Dometic Brisk Air 55815042 Parts Diagram · Optional Electric Heat Kit

Air Conditioner · 3 assemblies · 3 diagram sheets · 115 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 55815042 rooftop air conditioner: 3 assemblies (Optional Electric Heat Kit, Air Box Assembly, Shroud & Main Components) and 115 manufacturer part numbers. 50 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

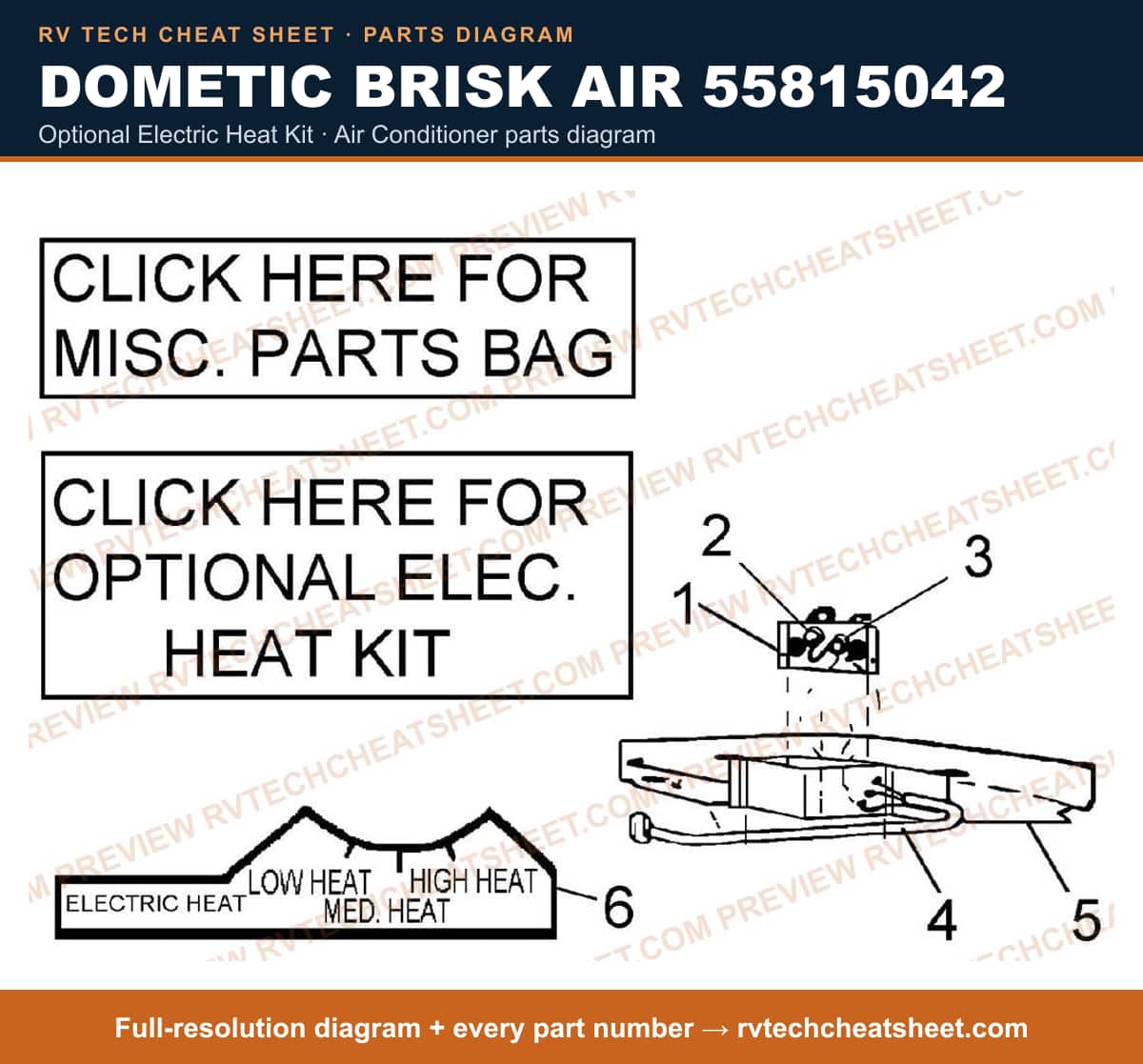

Optional Electric Heat Kit

Components

16 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat MFR # 316516
10. #5-1/4" TO 6-1/4" MFR # 313804003
11. #HEAT STRIP,NON-DUCTED MFR # 3101121030
12. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
13. #1" TO 2-1/4" MFR # 313804001
14. #3-3/4" TO 5-1/4" MFR # 313804002
15. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
16. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description

Air Box Assembly

Components

12 items

1. #FILTER RETURN AIR(UNIVER MFR # 3108015003
2. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
3. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
4. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
7. #LOUVER ASM 2REQUIRED MFR # 310138
8. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
9. #RETAINER,RETURN AIR GRILLE MFR # 311675000
10. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
11. #STUD,LATCH RETURN AIR MFR # 311673001
12. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Shroud & Main Components

Components

87 items

1. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
2. #SHROUD KIT CLOSED END SW MFR # 3309364028
3. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
4. #SHROUD 12' MFR # 3309518003
5. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
6. #SHROUD USE 3103144006 MFR # 316404001 Superseded: see description
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #SHROUD USE 3103144006 MFR # 1314059 Superseded: see description
10. #EXTENSION,SHROUD USE 46-6721 OR 3309518003 MFR # 316434 Superseded: see description
11. #DECAL,SHROUD SUNCHASER PIST ON MFR # 316567
12. #SHROUD DECAL, BRISKAIR (557 & 559 ONLY) MFR # 316564
13. #COVER, CONDENSER COIL MFR # 309383000
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #CONDENSER COIL BRACE MFR # 317556
16. #CONDENSER COIL BULKHEAD MFR # 39293
17. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
18. #COIL,CONDENSER USE 318477 MFR # 316343 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
20. #HOUSING KIT 12" EVAP RVA MFR # 1317099
21. #COVER,EVAPORATOR 12" MFR # 314885
22. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
23. #INSULATION,EVAPORATOR MFR # 317797001
24. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 1317218003
25. #RING,BLOWER INLET MFR # 39304
26. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
27. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
28. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
29. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
30. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
31. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
32. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #PLATE,HOLD DOWN MFR # 3101828006
35. #MOTOR KIT MFR # 3108706916
36. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
37. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
38. #MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description
39. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
40. #SUPPORT,LOWER MOTOR RVA MFR # 316460
41. #SUPPORT,MOTOR UPPER MFR # 38101001
42. #FAN BLADE MFR # 3313107015
43. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
44. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
45. #SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313
46. #COVER CONT MFR # 38146
47. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
48. #SWITCH,SELECTOR USE 3100291016 MFR # 313539 Superseded: see description
49. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
50. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
51. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
52. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
53. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
54. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
55. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
56. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
58. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
59. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
60. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
62. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
64. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
66. #RELAY,TIME DELAY 532- 546 MFR # 310456
67. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
68. #RELAY,START USE 3100235120 MFR # 35040012 Superseded: see description
69. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
70. #CAPACITOR USE 3100236177 MFR # 35046017 Superseded: see description
71. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
72. #CAPACITOR, START MFR # 47C
73. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
74. #ELECTRICAL BOX COVER MFR # 39306
75. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
76. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
77. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
78. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
79. #COMPRESSOR USE 3102619008 SANYO MFR # 1318086 Superseded: see description
80. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
81. #PROTECTOR USE 3100250228 OVERLOAD MFR # 318264002 Superseded: see description
82. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
83. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
84. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
85. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
86. #APPLIANCE COMPONENTS RV; Bolt .31-18 X .75 Rva Cmp MFR # 313684003
87. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
