Dometic Brisk Air 55908009 8,000 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 3 assemblies · 3 diagram sheets · 113 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 55908009 8,000 BTU rooftop air conditioner: 3 assemblies (Air Box Assembly, Opt. Heater Accessory Kit, Shroud & Main Components) and 113 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

23 items

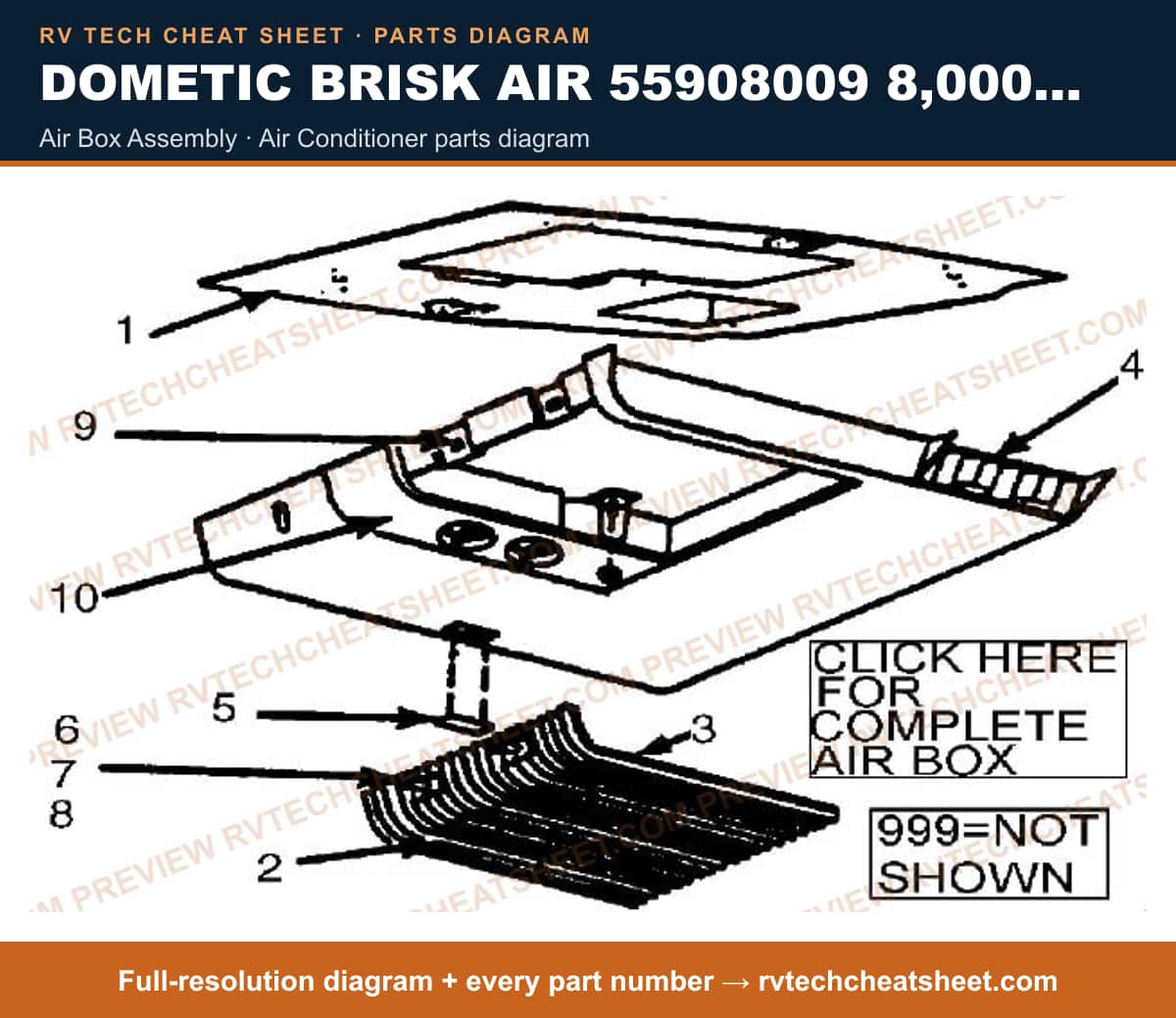

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
9. #KIT SVC AIR FILTER MFR # 3313107103
10. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
11. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
12. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
17. #RETAINER,RETURN AIR GRILLE MFR # 311675000
18. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
19. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
21. #AIRBOX ASM 5590 8.009 MFR # 316699010
22. #AIRBOX COMPLETE ASM MFR # 316699011
23. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804

Opt. Heater Accessory Kit

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223

Shroud & Main Components

Components

79 items

1. #SHROUD 12' MFR # 3309518003
2. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
3. #SHROUD,10" USE 3309517005 COLONIAL WHITE MFR # 3103139006 Superseded: see description
4. #DECAL,SHROUD MFR # 3101380016
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #PLATE MFR # 3101400004
7. #COVER, CONDENSER COIL MFR # 309383000
8. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
10. #BULKHEAD RVA 10 IN. 5590 8.005/.003/041 F6 MFR # 37826
11. #COIL KIT,CONDENSER MFR # 3102273004
12. #HOUSING KIT 10" MFR # 1317098
13. #INSULATION (3 PC. SET) MFR # 316109
14. #PLATE,HOLD DOWN MFR # 3101828006
15. #COVER,EVAP. 10" MFR # 314884
16. #INSULATION,EVAPORATOR MFR # 317797001
17. #INSULATION,EVAP.USE 317797001 MFR # 317957 Superseded: see description
18. #COIL,EVAPORATOR MFR # 1317218006
19. #INSULATION, BOTTOM MFR # 315181
20. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
21. #CHANNEL MFR # 3101379
22. #BLOWER INLET RING MFR # 33692
23. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
24. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
25. #ROOF A/C GASKET KIT MFR # 3310718006
26. #GASKET, GREY, 14 X 14 MFR # 6759A3281
27. #A/C SEAL, 14 X 14 WHITE MFR # A101414
28. #BLOCKS, FOAM MFR # 3100587009
29. #APPLIANCE COMPONENTS RV; Compressor MFR # 316443001
30. #COMPRESSOR USE 316443001 ROTORX MFR # 1316443 Superseded: see description
31. #PROTECTOR,OVERLOAD MFR # 3100250129
32. #SPRING MFR # 3102594003
33. #PLATE,COMPRESSOR BASE MFR # 3102738006
34. #GROMMET, ROTARY COMPR. 5590 8.003 55908.005 MFR # 3100238108
35. #SLEEVE (4 REQUIRED) MFR # 3100239023
36. #APPLIANCE COMPONENTS RV; Bolt .31-18 X .75 Rva Cmp MFR # 313684003
37. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101315004
38. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3101314007
39. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
40. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
41. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
42. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 316783
43. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
44. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
45. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38101
46. #SERVICE KIT F/MOTOR MFR # 3310725001
47. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
49. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
50. #FIELD WIRING DECAL MFR # 3100799018
51. #ELECTRICAL BOX COVER MFR # 39306
52. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
53. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
54. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
55. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
56. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
57. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
58. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
59. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
61. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
62. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
63. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
64. #FLEX CONDUIT MFR # 3100838014
65. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
66. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
67. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
68. #PTCR KIT MFR # 3310731009
69. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
70. #RELAY,START USE 46-2266 MFR # 3100235229 Superseded: see description
71. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
72. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
73. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
74. #APPLIANCE COMPONENTS RV; Capacitor Start21-2 5M/22 MFR # 3100236060
75. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
76. #CONNECTOR,CONDUIT 90 DEG MFR # 3100249022
77. #BOX,ELECT. USE 318187003 MFR # 318187002 Superseded: see description
78. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
79. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
