Dometic Brisk Air 55908209 8,000 BTU Parts Diagram · Opt. Heater Accessory Kit

Air Conditioner · 3 assemblies · 3 diagram sheets · 110 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 55908209 8,000 BTU rooftop air conditioner: 3 assemblies (Opt. Heater Accessory Kit, Air Box Assembly, Shroud & Main Components) and 110 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. Heater Accessory Kit

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
10. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
11. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description

Air Box Assembly

Components

25 items

1. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
8. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #KIT SVC AIR FILTER MFR # 3313107103
11. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
12. #ATTACHMENT TAPE GREY-EACH MFR # 06384
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #LOUVER ASM 2REQUIRED MFR # 310138
15. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
16. #STUD,LATCH RETURN AIR MFR # 311673001
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
23. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
25. #AIRBOX MFR # 316699015

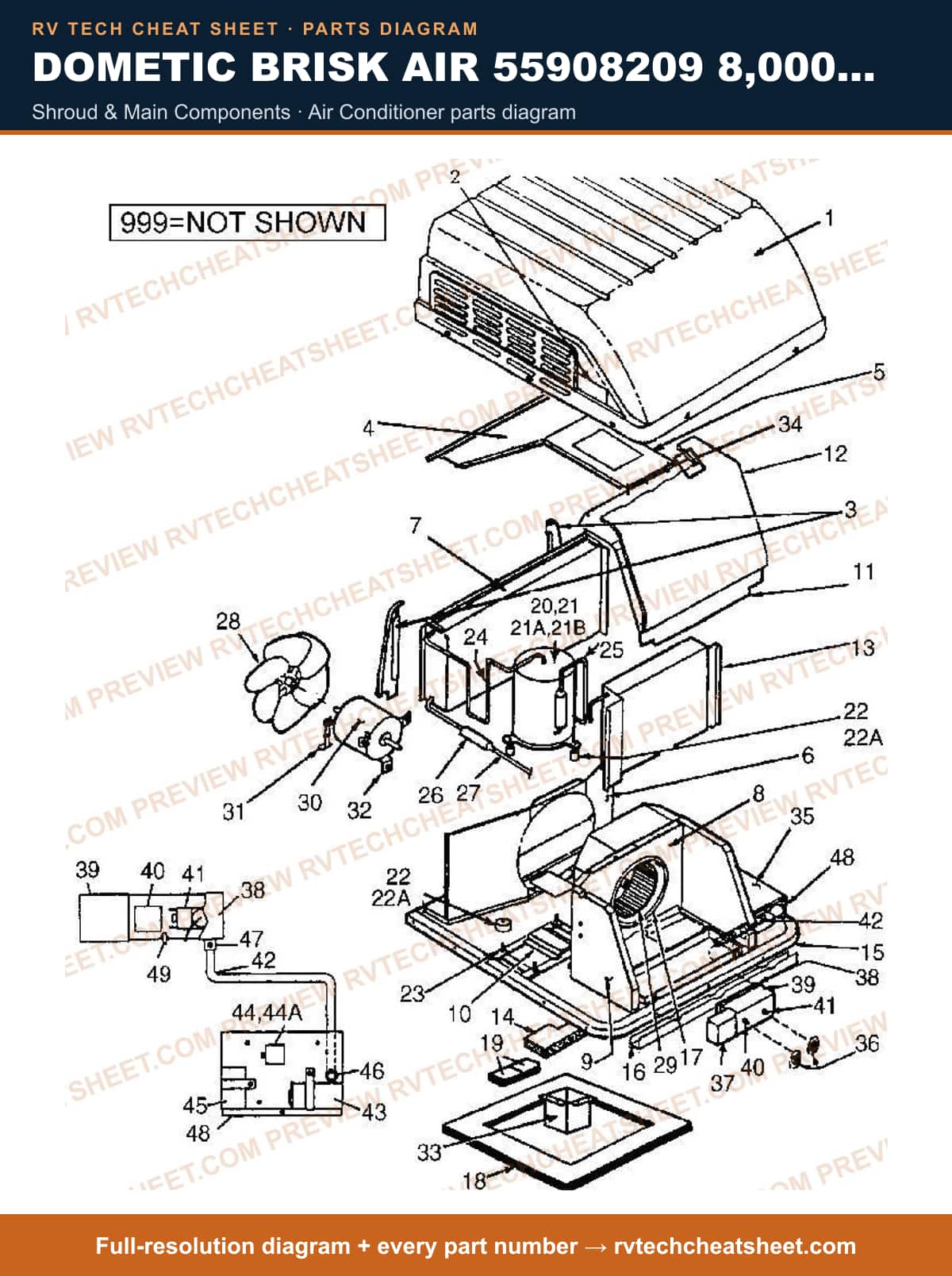

Shroud & Main Components

Components

74 items

1. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
2. #SHROUD,10" USE 3309517005 COLONIAL WHITE MFR # 3103139006 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
4. #SHROUD 12' MFR # 3309518003
5. #SHROUD USE 3103139006 MFR # 3101990004 Superseded: see description
6. #SHROUD USE 3101990004 SHELL WHITE MFR # 316404004 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
9. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
10. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
11. #DECAL,SHROUD MFR # 3101380016
12. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
13. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
14. #COVER, CONDENSER COIL MFR # 309383000
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #BULKHEAD RVA 10 IN. 5590 8.005/.003/041 F6 MFR # 37826
17. #COIL KIT,CONDENSER MFR # 3102273004
18. #HOUSING KIT 10" MFR # 1317098
19. #INSULATION (3 PC. SET) MFR # 316109
20. #PLATE,HOLD DOWN MFR # 3101828006
21. #COVER,EVAP. 10" MFR # 314884
22. #INSULATION,EVAPORATOR MFR # 317797001
23. #COIL,EVAPORATOR MFR # 1317218006
24. #INSULATION, BOTTOM MFR # 315181
25. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
26. #ROOF A/C GASKET KIT MFR # 3310718006
27. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
28. #GASKET, GREY, 14 X 14 MFR # 6759A3281
29. #A/C SEAL, 14 X 14 WHITE MFR # A101414
30. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
31. #BLOCKS, FOAM MFR # 3100587009
32. #APPLIANCE COMPONENTS RV; Compressor Asm Service MFR # 3102376005
33. #OVERLOAD MFR # 3100250137
34. #SLEEVE (4 REQUIRED) MFR # 3100239023
35. #GROMMET MFR # 3100238025
36. #APPLIANCE COMPONENTS RV; Bolt Compressor MFR # 313684001
37. #DISCHARGE LINE MFR # 3102378001
38. #SUCTION LINE MFR # 3102377003
39. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
40. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
41. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 316783
42. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
43. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
44. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38101
45. #SERVICE KIT F/MOTOR MFR # 3310725001
46. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
48. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
49. #ELECTRICAL BOX COVER MFR # 39306
50. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
51. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
53. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
54. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
55. #COVER CONT MFR # 38146
56. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
57. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
58. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
59. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
60. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
61. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
62. #FLEX CONDUIT MFR # 3100838014
63. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
64. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
65. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
66. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
68. #APPLIANCE COMPONENTS RV; Capacitor Start21-2 5M/22 MFR # 3100236060
69. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
70. #CONNECTOR,CONDUIT 90 DEG MFR # 3100249022
71. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
72. #BOX,ELECT. USE 318187003 MFR # 318187002 Superseded: see description
73. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
74. #PTCR KIT MFR # 3310731009
