Dometic Brisk Air 55912341 Parts Diagram · Air Box Assembly

Air Conditioner · 3 assemblies · 3 diagram sheets · 133 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 55912341 rooftop air conditioner: 3 assemblies (Air Box Assembly, Shroud & Main Components, Optional Electric Heat Kit) and 133 manufacturer part numbers. 51 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

25 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #ATTACHMENT TAPE GREY-EACH MFR # 06384
6. #FILTER RETURN AIR(UNIVER MFR # 3108015003
7. #KIT SVC AIR FILTER MFR # 3313107103
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
10. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
11. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #PIN USE 311673001 MFR # 311673 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #DECAL ROTARY MFR # 316476
22. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
23. #DECAL MFR # 316475
24. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
25. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description

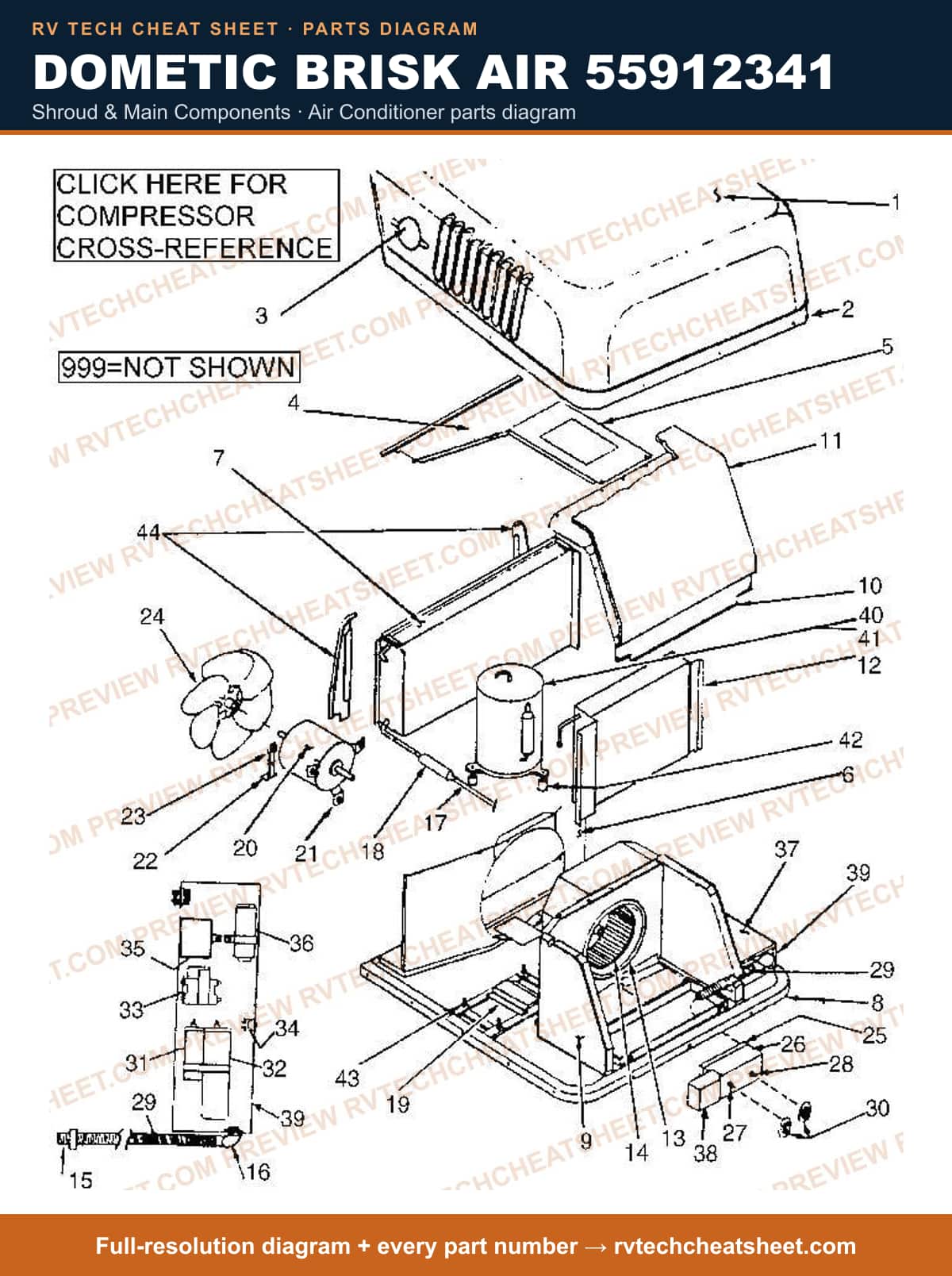

Shroud & Main Components

Components

92 items

1. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
2. #SHROUD 12' MFR # 3309518003
3. #SHROUD KIT CLOSED END SW MFR # 3309364028
4. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
5. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
10. #COVER, CONDENSER COIL MFR # 309383000
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #CONDENSER COIL BRACE MFR # 317556
13. #CONDENSER COIL BULKHEAD MFR # 39293
14. #COIL,CONDENSER USE 318504 MFR # 316341 Superseded: see description
15. #COIL,CONDENSER USE 3103014001 MFR # 318504 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
17. #HOUSING KIT 12" EVAP RVA MFR # 1317099
18. #COVER,EVAPORATOR 12" MFR # 314885
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
21. #COIL,EVAP USE 1317218003 MFR # 316340 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 1317218003
23. #RING,BLOWER INLET MFR # 39304
24. #WHEEL,BLOWER MFR # 317959
25. #WHEEL,BLOWER USE 317959 MFR # 39302100 Superseded: see description
26. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
27. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
28. #TUBE,CAPILLARY USE 3100245203 MFR # 315752020 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
30. #PLATE,HOLD DOWN MFR # 3101828006
31. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
32. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
33. #MOTOR USE 20285 MFR # 316425 Superseded: see description
34. #MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description
35. #MOTOR KIT MFR # 3108706916
36. #TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285
37. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
38. #SERVICE KIT F/MOTOR MFR # 3310725001
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #SUPPORT,LOWER MOTOR RVA MFR # 316460
41. #SUPPORT,MOTOR UPPER MFR # 38101001
42. #BLADE,FAN USE 317937 MFR # 316416 Superseded: see description
43. #FAN BLADE MFR # 3313107015
44. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
45. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
46. #COVER CONT MFR # 38146
47. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
48. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
49. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
50. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
51. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
52. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
53. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
54. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
55. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
56. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
57. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
58. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
60. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
61. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
62. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
64. #RELAY,TIME DELAY 532- 546 MFR # 310456
65. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
66. #RELAY USE 1318289001 MFR # 35040006 Superseded: see description
67. #RELAY KIT START ROTARY MFR # 1318289001
68. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
69. #CAPACITOR, START MFR # 47C
70. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
71. #CAPACITOR USE 3100236169 START MFR # 35046016 Superseded: see description
72. #ELECTRICAL BOX COVER MFR # 39306
73. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
74. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
75. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
76. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
77. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
78. #COMPRESSOR,ROTORX CAS1 10.007 & .009 MFR # 1316369
79. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
80. #PROTECTOR,OVERLOAD MFR # 3100250020
81. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
82. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
83. #APPLIANCE COMPONENTS RV; Bolt .31-18 X .75 Rva Cmp MFR # 313684003
84. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
85. #COPELAND JRR4-0100-PFA MFR # 1316348
86. #COMPRESSOR USE 3102618 MFR # 1318085 Superseded: see description
87. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
88. #Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318
89. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
90. #COMPRESSOR USE 3102619008 SANYO MFR # 1318086 Superseded: see description
91. #COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description
92. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618

Optional Electric Heat Kit

Components

16 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # FR# 313642
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521
10. #3-3/4" TO 5-1/4" MFR # 313804002
11. #HEAT STRIP,NON-DUCTED MFR # 3101121030
12. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
13. #5-1/4" TO 6-1/4" MFR # 313804003
14. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
15. #1" TO 2-1/4" MFR # 313804001
16. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description
