Dometic Brisk Air 56915003 Parts Diagram · Evaporator Section

Air Conditioner · 2 assemblies · 2 diagram sheets · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 56915003 rooftop air conditioner: 2 assemblies (Evaporator Section, Condenser Section) and 66 manufacturer part numbers. 10 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Evaporator Section

Components

38 items

1. #RELAY,START MFR # 3100235211
2. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
3. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
4. #CAPACITOR, START MFR # 47C
5. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
6. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
7. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
8. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
9. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
10. #COIL EVAPORATOR RVA 56915 MFR # 317667
11. #MOTOR,BLOWER 56915 MFR # 317670
12. #RELAY,BLOWER MFR # 317678
13. #FILTER RETAINER, LEFT MFR # 317680
14. #APPLIANCE COMPONENTS RV; Retainer Filter Rh Rva MFR # 317681
15. #BULKHEAD,BLOWER RVA 56915 MFR # 317682
16. #PAN,DRAIN MFR # 317684
17. #TOP MFR # 317685
18. #INSULATION, BULKHEAD MFR # 317686
19. #INSULATION, TOP MFR # 317687000
20. #FILTER,AIR MFR # 317688
21. #PLATE, MOTOR MOUNTING MFR # 317689
22. #BRACKET MFR # 317712
23. #WELD,BLOWER HOUSING MFR # 3101592008
24. #ELECTRICAL BOX, OUTER MFR # 317731001
25. #COVER,ELECTRICAL BOX 5691 5 MFR # 317733
26. #WIRE STAND-OFF MFR # 317745
27. #CUT-OFF PLATE MFR # 317746
28. #BOX,ELECTRICAL MFR # 317754
29. #APPLIANCE COMPONENTS RV; Insulation Side MFR # 317757
30. #TRANSFORMER120V USE 3311546000 50/60 HZ 24V 20VA MFR # 317759 Superseded: see description
31. #TIME DELAY RELAY KIT RVA MFR # 1318289002
32. #CONTRACTOR LINE MFR # 318319
33. #INSULATION, BLOWER MFR # 317793
34. #APPLIANCE COMPONENTS RV; Tube Cap .049 X 36 In MFR # 3100245293
35. #FILTER SUPPORT MFR # 317813
36. #WHEEL,BLOWER MFR # 317850
37. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
38. #SERVICE KIT F/MOTOR MFR # 3310725001

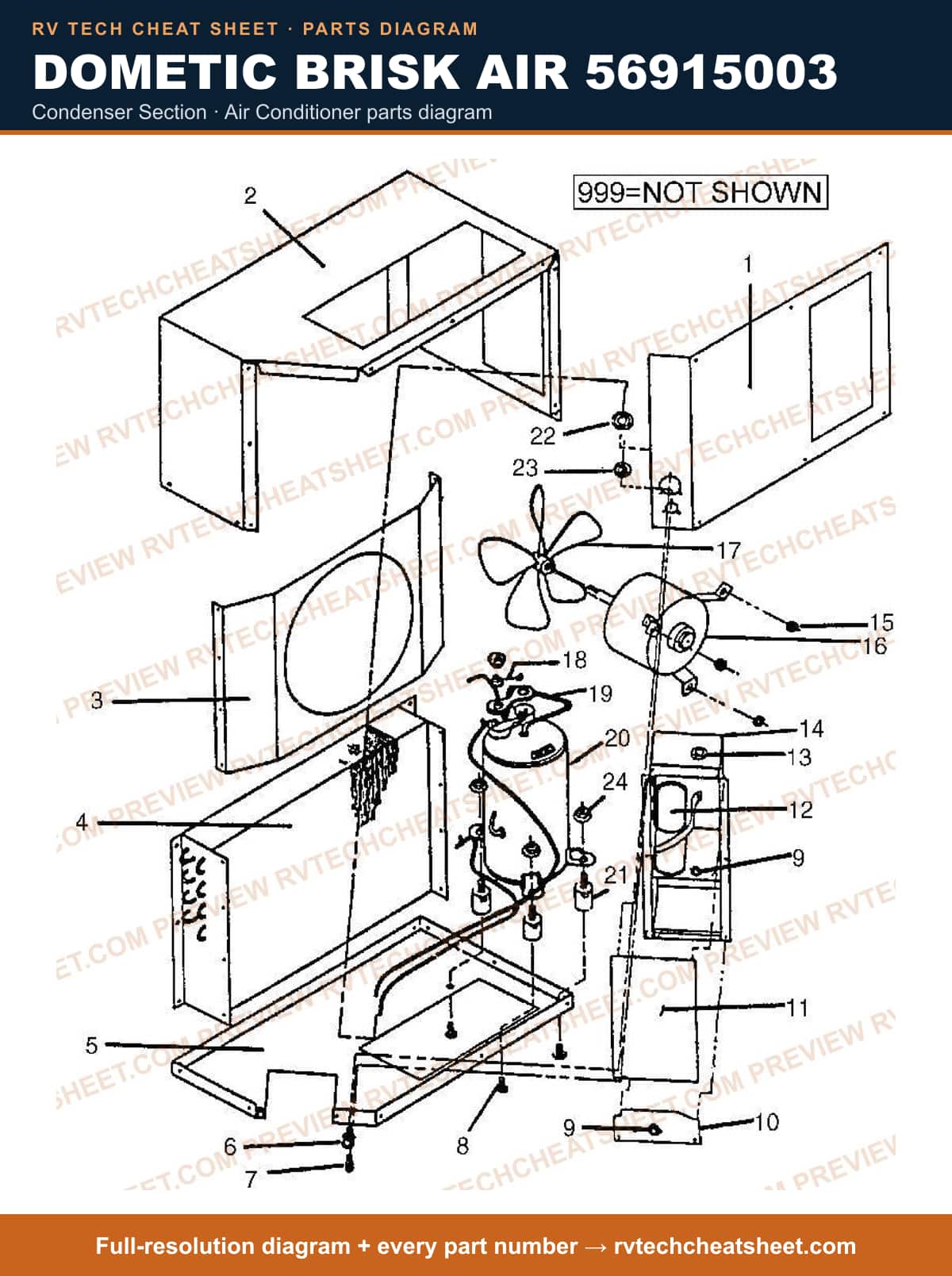

Condenser Section

Components

28 items

1. #WRAPPER MFR # 8150101400
2. #WRAPPER MFR # 8150100810
3. #FAN SHROUD MFR # 8150101300
4. #COIL,CONDENSER MFR # 8150101270
5. #BASE PAN MFR # 8150100800
6. #APPLIANCE COMPONENTS RV; Coupling Male 5782-10 MFR # 317916005
7. #COUPLING MFR # 317916003
8. #BOLT W/LOCKWASHER 5/16-18 MFR # 8150032150
9. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
10. #COVER, LOWER ELECTRIC BOX MFR # 3100466006
11. #COVER, UPPER ELECTRIC BOX MFR # 3100465008
12. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
13. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
14. #CAPACITOR,RUN USE 3100248073 MFR # 81501007100 Superseded: see description
15. #RELIEF, STRAIN (2 REQUIRED) MFR # 32994013
16. #ELECTRICAL BOX HOUSING MFR # 815200690
17. #GROMMETS MFR # 8150301140
18. #MOTOR,FAN 110V CONDENSER MFR # 8150100780
19. #BLADE,FAN MFR # 8150100990
20. #SWITCH,OVERLOAD MFR # E12112
21. #SWITCH,OVERLOAD USE E12112 MFR # E12112E Superseded: see description
22. #DISCHARGE TUBE 569 SERIES A/C MFR # 8150101440
23. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
25. #GROMMETS,MOUNTING MFR # 8150100760
26. #MOUNTING FLANGE #10 MFR # 8150100960
27. #MOUNTING FLANGE #6 MFR # 8150100950
28. #MOUNTS,CONDENSER MFR # 8150139630
