Dometic Brisk Air 56915302 Parts Diagram · Condenser Section

Air Conditioner · 2 assemblies · 2 diagram sheets · 56 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 56915302 rooftop air conditioner: 2 assemblies (Condenser Section, Evaporator Section) and 56 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Condenser Section

Components

20 items

1. #GROMMET, ROTARY COMPR. 5590 8.003 55908.005 MFR # 3100238108
2. #PARTIAL USE 57115301 CONDENSER SECT O/S UNIT MFR # 57115001 Superseded: see description
3. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
4. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
5. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
6. #TOP,CONDENSER MFR # 317586
7. #CONDENSOR SECT O/S UNIT THIS IS A FINISHED GOOD MFR # 57115301
8. #CONDENSOR SECT O/S UNIT THIS IS A FINISHED GOOD MFR # 317589
9. #COIL,CONDENSER MODE L RVA 56916 MFR # 317590
10. #TOP,CONDENSER MFR # 317594
11. #APPLIANCE COMPONENTS RV; Screen Right Hand MFR # 317595
12. #APPLIANCE COMPONENTS RV; Screen Right Hand MFR # 317596
13. #COUPLING,PANEL 5691 5 MFR # 317597
14. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 317705
15. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 317708
16. #APPLIANCE COMPONENTS RV; Cover Junction Box Rva MFR # 317762001
17. #ELECTRICAL MFR # 317765
18. #SCREEN LH RVA 56916 MFR # 317808
19. #SERVICE KIT F/MOTOR MFR # 3310725001
20. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description

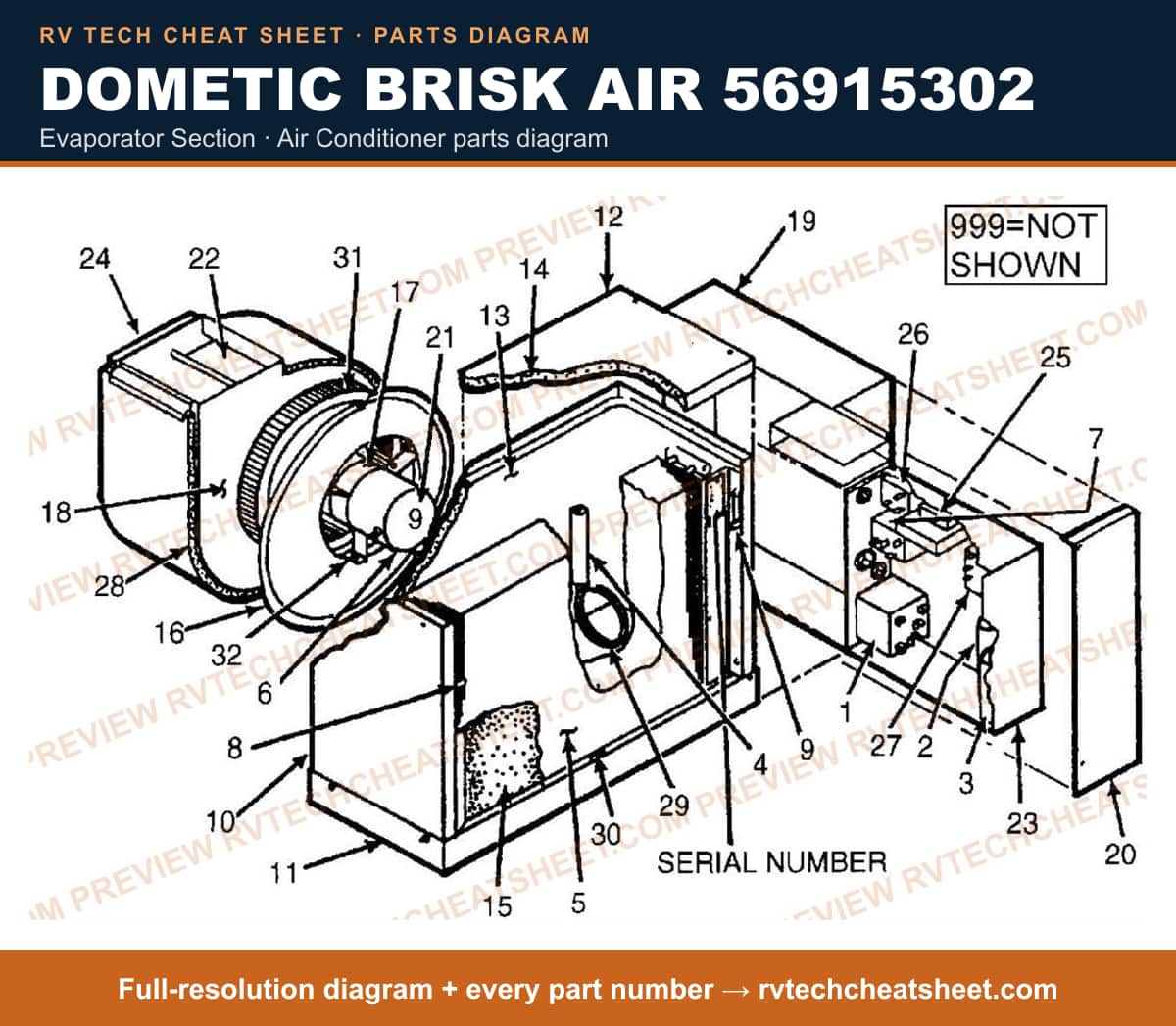

Evaporator Section

Components

38 items

1. #RELAY,START MFR # 3100235211
2. #CAPACITOR, START MFR # 47C
3. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
4. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
5. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
7. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
9. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
10. #COIL EVAPORATOR RVA 56915 MFR # 317667
11. #MOTOR,BLOWER 56915 MFR # 317670
12. #RELAY,BLOWER MFR # 317678
13. #FILTER RETAINER, LEFT MFR # 317680
14. #APPLIANCE COMPONENTS RV; Retainer Filter Rh Rva MFR # 317681
15. #BULKHEAD,BLOWER RVA 56915 MFR # 317682
16. #PAN,DRAIN MFR # 317684
17. #TOP MFR # 317685
18. #INSULATION, BULKHEAD MFR # 317686
19. #INSULATION, TOP MFR # 317687000
20. #FILTER,AIR MFR # 317688
21. #PLATE, MOTOR MOUNTING MFR # 317689
22. #BRACKET MFR # 317712
23. #WELD,BLOWER HOUSING MFR # 3101592008
24. #ELECTRICAL BOX, OUTER MFR # 317731001
25. #COVER,ELECTRICAL BOX 5691 5 MFR # 317733
26. #WIRE STAND-OFF MFR # 317745
27. #CUT-OFF PLATE MFR # 317746
28. #BOX,ELECTRICAL MFR # 317754
29. #APPLIANCE COMPONENTS RV; Insulation Side MFR # 317757
30. #TRANSFORMER120V USE 3311546000 50/60 HZ 24V 20VA MFR # 317759 Superseded: see description
31. #TIME DELAY RELAY KIT RVA MFR # 1318289002
32. #CONTRACTOR LINE MFR # 318319
33. #INSULATION, BLOWER MFR # 317793
34. #APPLIANCE COMPONENTS RV; Tube Cap .049 X 36 In MFR # 3100245293
35. #FILTER SUPPORT MFR # 317813
36. #WHEEL,BLOWER MFR # 317850
37. #SERVICE KIT F/MOTOR MFR # 3310725001
38. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
