Dometic Brisk Air 57008042 Parts Diagram · Shroud & Main Components

Air Conditioner · 3 assemblies · 3 diagram sheets · 108 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57008042 rooftop air conditioner: 3 assemblies (Shroud & Main Components, Opt. Heater Accessory Kit, Optional Elec. Heat Kit) and 108 manufacturer part numbers. 39 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

88 items

1. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
2. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
4. #SHROUD 12' MFR # 3309518003
5. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD DECAL, SIDE (2 REQUIRED) MFR # 317547
10. #SHROUD DECAL, FRONT MFR # 317548
11. #COVER, CONDENSER COIL MFR # 309383000
12. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
13. #CONDENSER COIL BRACE MFR # 317556
14. #BULKHEAD RVA 10 IN. 5590 8.005/.003/041 F6 MFR # 37826
15. #COIL KIT,CONDENSER MFR # 3102273004
16. #COIL,CONDENSER USE 3102273004 MFR # 316592 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
18. #HOUSING KIT 10" MFR # 1317098
19. #COVER,EVAP. 10" MFR # 314884
20. #COIL,EVAP USE 1317218006 MFR # 316593 Superseded: see description
21. #COIL,EVAPORATOR MFR # 1317218006
22. #BLOWER INLET RING MFR # 33692
23. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
24. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
25. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
26. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
27. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
28. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
29. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
30. #PLATE,HOLD DOWN MFR # 3101828006
31. #MOTOR USE 20287 MFR # 316774 Superseded: see description
32. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
33. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
34. #SERVICE KIT F/MOTOR MFR # 3310725001
35. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
36. #SUPPORT,LOWER MOTOR RVA MFR # 316460
37. #SUPPORT,MOTOR UPPER MFR # 38101001
38. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 316783
39. #COVER CONT MFR # 38146
40. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
41. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
43. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
44. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
45. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
46. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
47. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
48. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
50. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
51. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
52. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
53. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
54. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
56. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
58. #RELAY,TIME DELAY 532- 546 MFR # 310456
59. #TERMINAL BLOCK MFR # 308024000
60. #RELAY MFR # 35040018
61. #CAPACITOR USE 3100236060 MFR # 35046006 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Capacitor Start21-2 5M/22 MFR # 3100236060
63. #ELECTRICAL BOX COVER MFR # 39306
64. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
65. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
66. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
67. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
68. #APPLIANCE COMPONENTS RV; Compressor MFR # 316443001
69. #COMPRESSOR USE 316443001 ROTORX MFR # 1316443 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250038
71. #PROTECTOR USE 3100250038 OVERLOAD MFR # 317001003 Superseded: see description
72. #GROMMET, ROTARY COMPR. 5590 8.003 55908.005 MFR # 3100238108
73. #SUPPORT,GROMMET USE 3100238108 MFR # 310780010 Superseded: see description
74. #APPLIANCE COMPONENTS RV; Bolt .31-18 X .75 Rva Cmp MFR # 313684003
75. #CLOSE-OFF PLATE RIGHT SIDE MFR # 38053
76. #APPLIANCE COMPONENTS RV; Plate Close Off Rt 54608 MFR # 38052
77. #COMPRESSOR SUPPORT MFR # 317325
78. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
79. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
80. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
81. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
82. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
83. #GASKET, GREY, 14 X 14 MFR # 6759A3281
84. #ROOF A/C GASKET KIT MFR # 3310718006
85. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
86. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
87. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
88. #A/C SEAL, 14 X 14 WHITE MFR # A101414

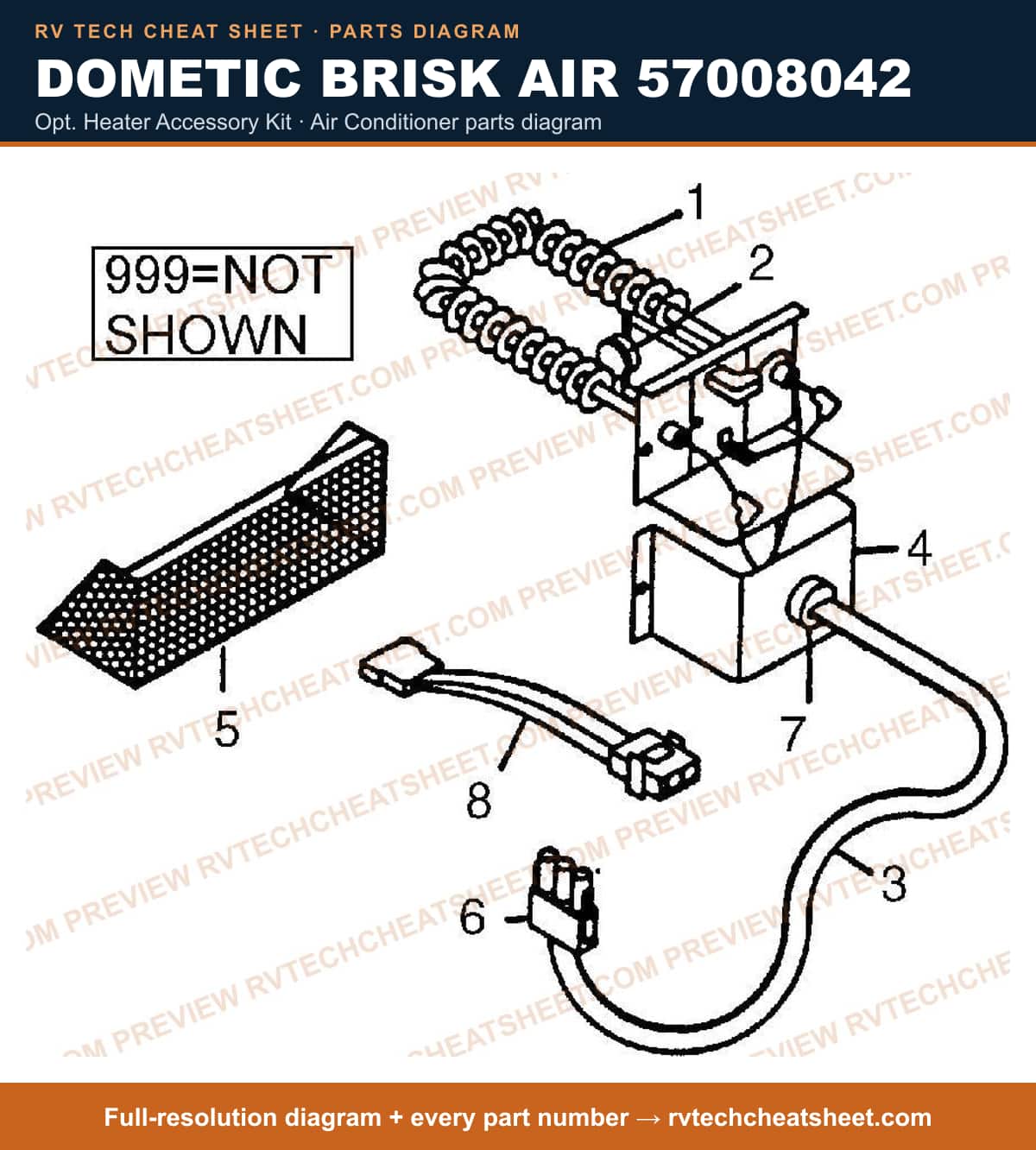

Opt. Heater Accessory Kit

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #ELECTRIC BOX MFR # 3101125007
6. #GUARD, HEAT MFR # 3101143
7. #SLEEVING MFR # 3100394083
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Optional Elec. Heat Kit

Components

9 items

1. #ELEMENT,HEAT W/FUSE LINK MFR # 313643
2. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521
