Dometic Brisk Air 57012341 Parts Diagram · Shroud & Main Components

Air Conditioner · 3 assemblies · 3 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57012341 rooftop air conditioner: 3 assemblies (Shroud & Main Components, Optional Elec. Heat Kit, Opt. Heater Accessory Kit) and 112 manufacturer part numbers. 47 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

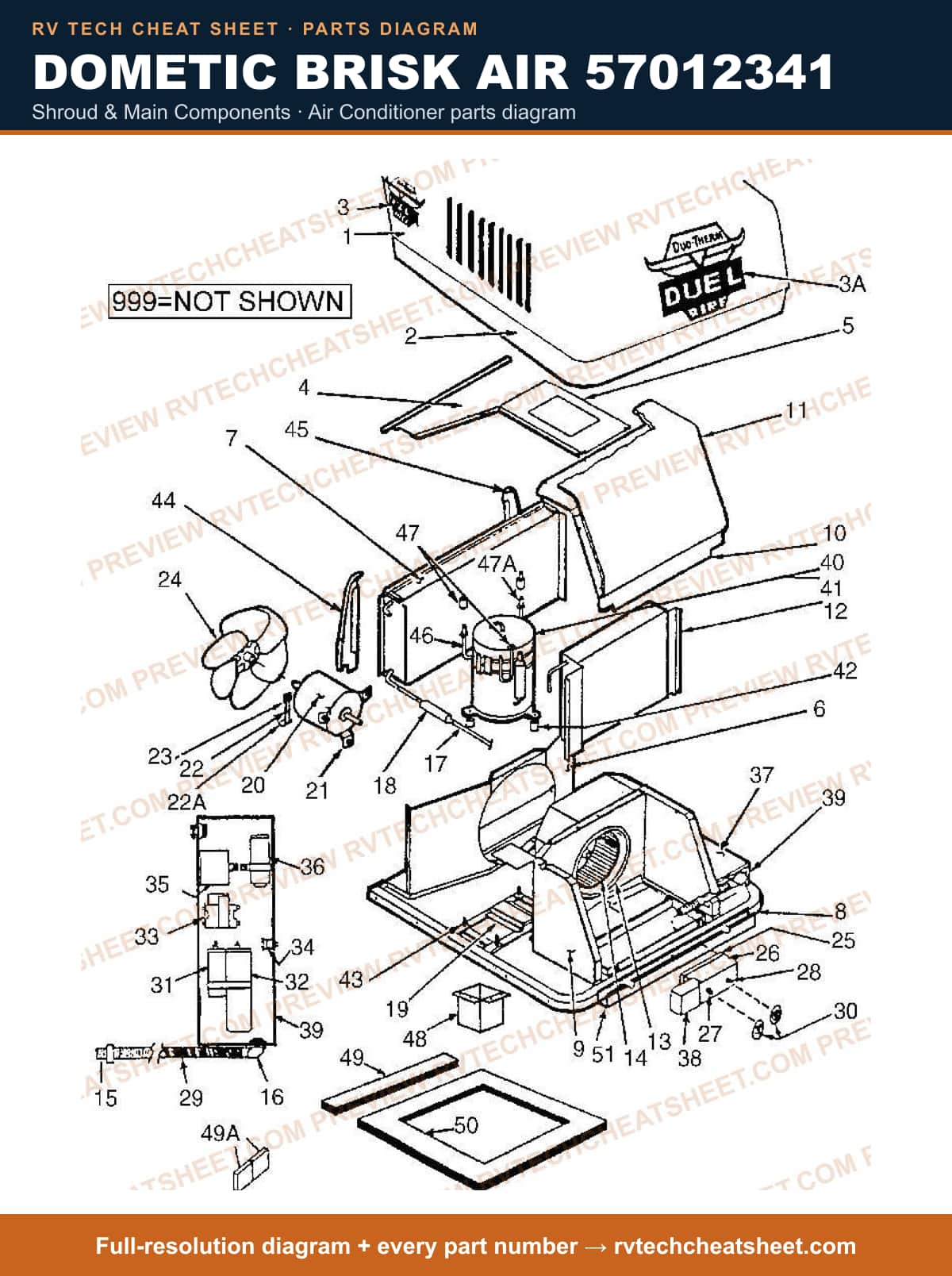

Shroud & Main Components

Components

92 items

1. #SHROUD KIT CLOSED END SW MFR # 3309364028
2. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
4. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #SHROUD 12' MFR # 3309518003
7. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD USE 3103144006 MFR # 1314059 Superseded: see description
10. #EXTENSION,SHROUD USE 46-6721 OR 3309518003 MFR # 316434 Superseded: see description
11. #SHROUD DECAL, FRONT MFR # 317548
12. #SHROUD DECAL, SIDE (2 REQUIRED) MFR # 317547
13. #COVER, CONDENSER COIL MFR # 309383000
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #CONDENSER COIL BRACE MFR # 317556
16. #CONDENSER COIL BULKHEAD MFR # 39293
17. #COIL,CONDENSER USE 318477 MFR # 316343 Superseded: see description
18. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
20. #HOUSING KIT 12" EVAP RVA MFR # 1317099
21. #COVER,EVAPORATOR 12" MFR # 314885
22. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
23. #INSULATION,EVAPORATOR MFR # 317797001
24. #APPLIANCE COMPONENTS RV; Coil Kit Evaporator MFR # 318476
25. #COIL,EVAP. USE 1317218004 MFR # 316342 Superseded: see description
26. #COIL,EVAPORATOR USE 318476 MFR # 1317218004 Superseded: see description
27. #RING,BLOWER INLET MFR # 39304
28. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
29. #WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description
30. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
31. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
32. #CAPILLARY TUBE (# REQUIRED) MFR # 3157520022
33. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
35. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
36. #PLATE,HOLD DOWN MFR # 3101828006
37. #MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description
38. #MOTOR KIT MFR # 3108706916
39. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
40. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
41. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
42. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
43. #SERVICE KIT F/MOTOR MFR # 3310725001
44. #SUPPORT,LOWER MOTOR RVA MFR # 316460
45. #SUPPORT,MOTOR UPPER MFR # 38101001
46. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
47. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
48. #FAN BLADE MFR # 3313107015
49. #SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313
50. #COVER CONT MFR # 38146
51. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
52. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
53. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
54. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
56. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
57. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
58. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
59. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
60. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
62. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
63. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
64. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
66. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
67. #COMPRESSOR RUN CAPACITOR MFR # 316615009
68. #RELAY,TIME DELAY 532- 546 MFR # 310456
69. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
70. #RELAY USE 1318289001 MFR # 35040006 Superseded: see description
71. #RELAY KIT START ROTARY MFR # 1318289001
72. #CAPACITOR, START MFR # 47C
73. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
74. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
75. #CAPACITOR USE 3100236169 START MFR # 35046016 Superseded: see description
76. #ELECTRICAL BOX COVER MFR # 39306
77. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
78. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
79. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
80. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
81. #COMPRESSOR,ROTORX CAS1 10.007 & .009 MFR # 1316369
82. #PROTECTOR,OVERLOAD MFR # 3100250020
83. #OVERLOAD PROTECTOR USE 3100250210 MFR # 318264001 Superseded: see description
84. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
85. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
86. #APPLIANCE COMPONENTS RV; Bolt .31-18 X .75 Rva Cmp MFR # 313684003
87. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
88. #COMPRESSOR MOUNT MFR # 317696
89. #SUPPORT,GROMMET USE 3100238108 MFR # 310780010 Superseded: see description
90. #NO PART # GIVEN BY VENDOR MFR # NPG
91. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
92. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description

Optional Elec. Heat Kit

Components

9 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521

Opt. Heater Accessory Kit

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #ELECTRIC BOX MFR # 3101125007
6. #GUARD, HEAT MFR # 3101143
7. #SLEEVING MFR # 3100394083
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
