Dometic Brisk Air 57015042 Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 4 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57015042 rooftop air conditioner: 4 assemblies (Shroud & Main Components, Optional Elec. Heat Kit, Air Box Assembly, Opt. Heater Accessory Kit) and 112 manufacturer part numbers. 45 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

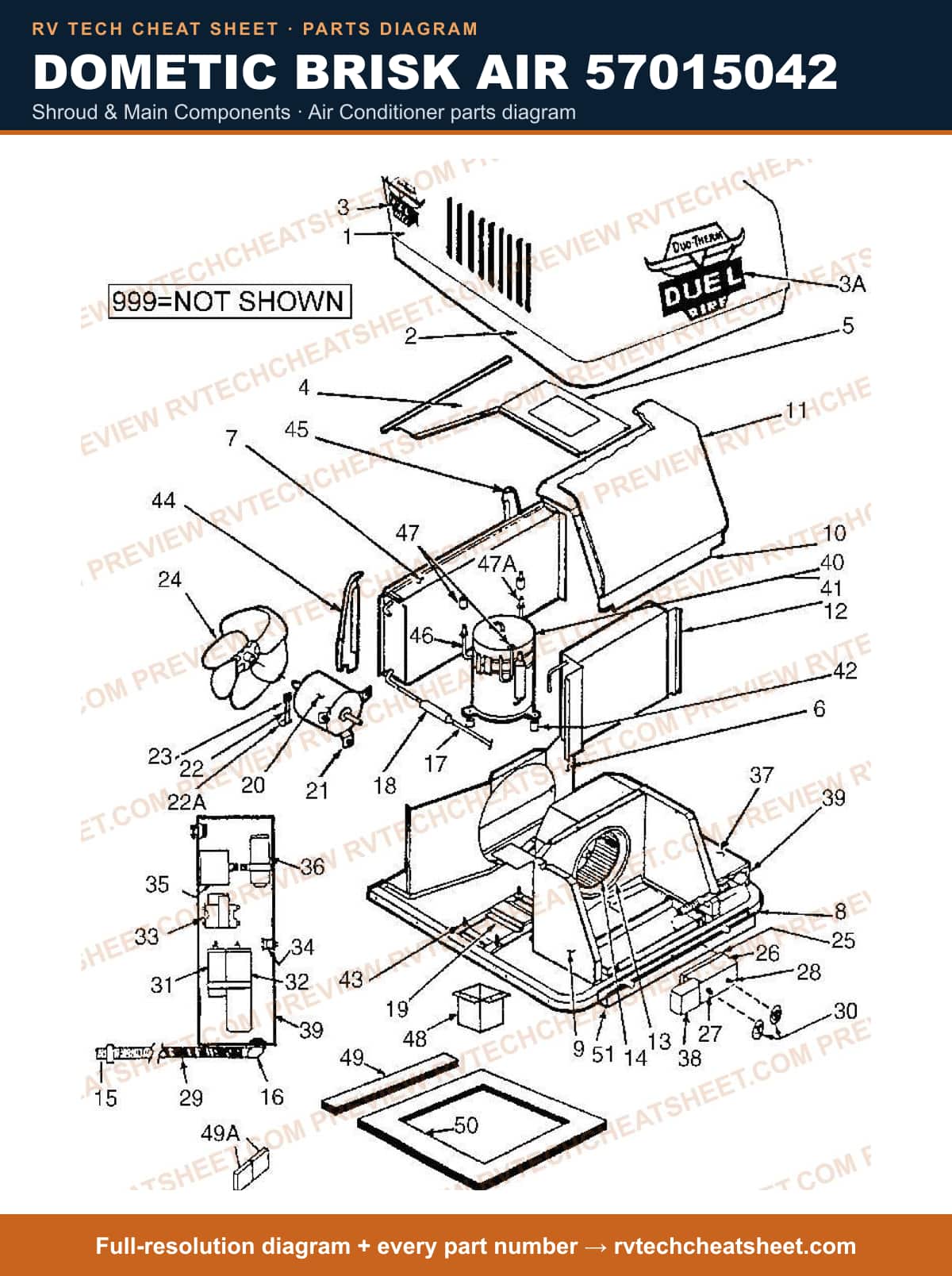

Shroud & Main Components

Components

73 items

1. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
3. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
4. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
7. #SHROUD 12' MFR # 3309518003
8. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
9. #SHROUD USE 3103144006 MFR # 1314059 Superseded: see description
10. #EXTENSION,SHROUD USE 46-6721 OR 3309518003 MFR # 316434 Superseded: see description
11. #SHROUD DECAL, SIDE (2 REQUIRED) MFR # 317547
12. #SHROUD DECAL, FRONT MFR # 317548
13. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
14. #COVER, CONDENSER COIL MFR # 309383000
15. #CONDENSER COIL BRACE MFR # 317556
16. #CONDENSER COIL BULKHEAD MFR # 39293
17. #COIL,CONDENSER USE 318477 MFR # 316343 Superseded: see description
18. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
20. #HOUSING KIT 12" EVAP RVA MFR # 1317099
21. #COVER,EVAPORATOR 12" MFR # 314885
22. #INSULATION,EVAPORATOR MFR # 317797001
23. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Coil Kit Evaporator MFR # 318476
25. #COIL,EVAP. USE 1317218004 MFR # 316342 Superseded: see description
26. #COIL,EVAPORATOR USE 318476 MFR # 1317218004 Superseded: see description
27. #RING,BLOWER INLET MFR # 39304
28. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
29. #WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description
30. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
31. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
32. #CAPILLARY TUBE (# REQUIRED) MFR # 3157520022
33. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
34. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
35. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
36. #PLATE,HOLD DOWN MFR # 3101828006
37. #MOTOR KIT MFR # 3108706916
38. #MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
40. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
41. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
42. #SERVICE KIT F/MOTOR MFR # 3310725001
43. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
44. #SUPPORT,LOWER MOTOR RVA MFR # 316460
45. #SUPPORT,MOTOR UPPER MFR # 38101001
46. #SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313
47. #FAN BLADE MFR # 3313107015
48. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
49. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
50. #COVER CONT MFR # 38146
51. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
52. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
53. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
54. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
55. #SWITCH,ROTARY MFR # 31442001
56. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
59. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
60. #COMPRESSOR RUN CAPACITOR MFR # 316615009
61. #RELAY,TIME DELAY 532- 546 MFR # 310456
62. #TERMINAL BLOCK MFR # 308024000
63. #RELAY,START MFR # 305040006
64. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
65. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
66. #CAPACITOR USE 3100236169 START MFR # 35046016 Superseded: see description
67. #CAPACITOR, START MFR # 47C
68. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
69. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
71. #COMPRESSOR USE 3102618 MFR # 1318085 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
73. #OVERLOAD PROTECTOR USE 3100250210 MFR # 318264001 Superseded: see description

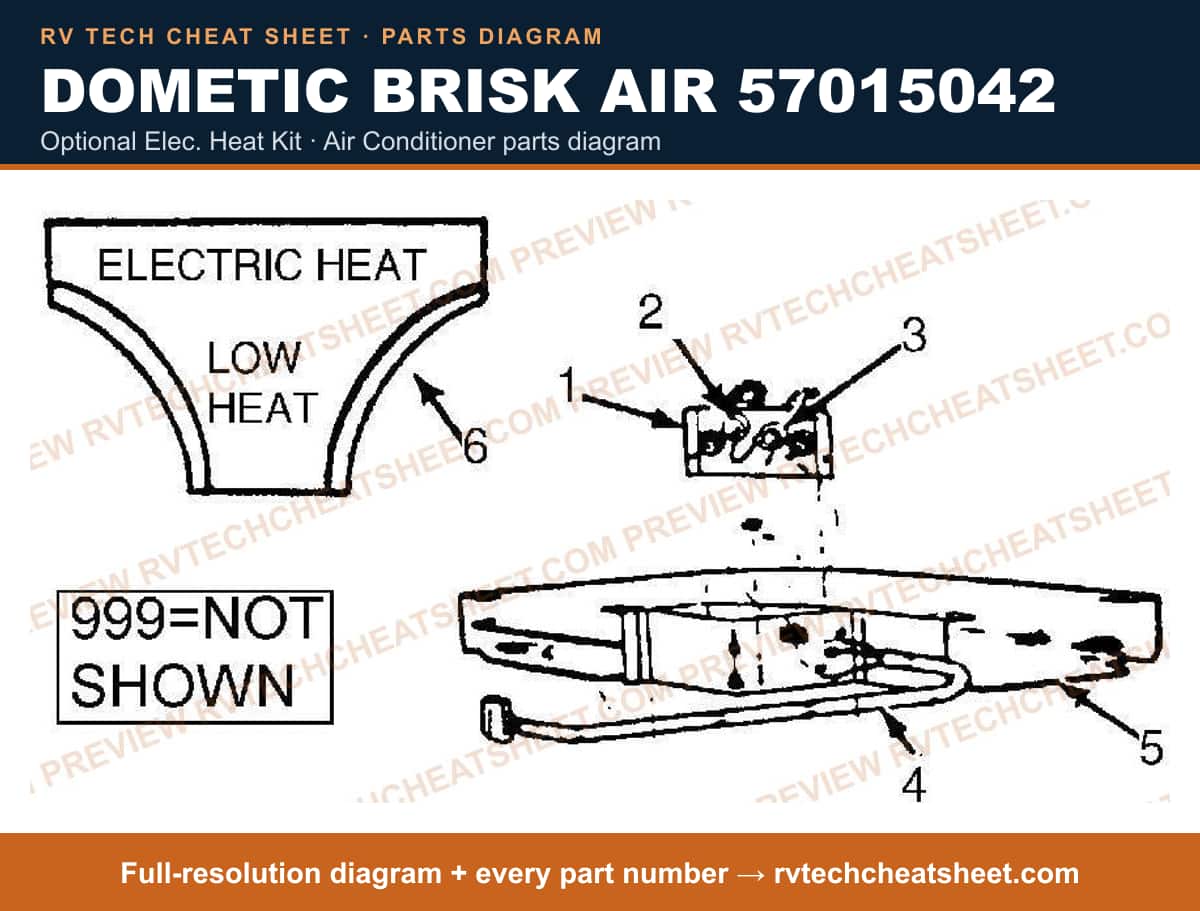

Optional Elec. Heat Kit

Components

9 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521

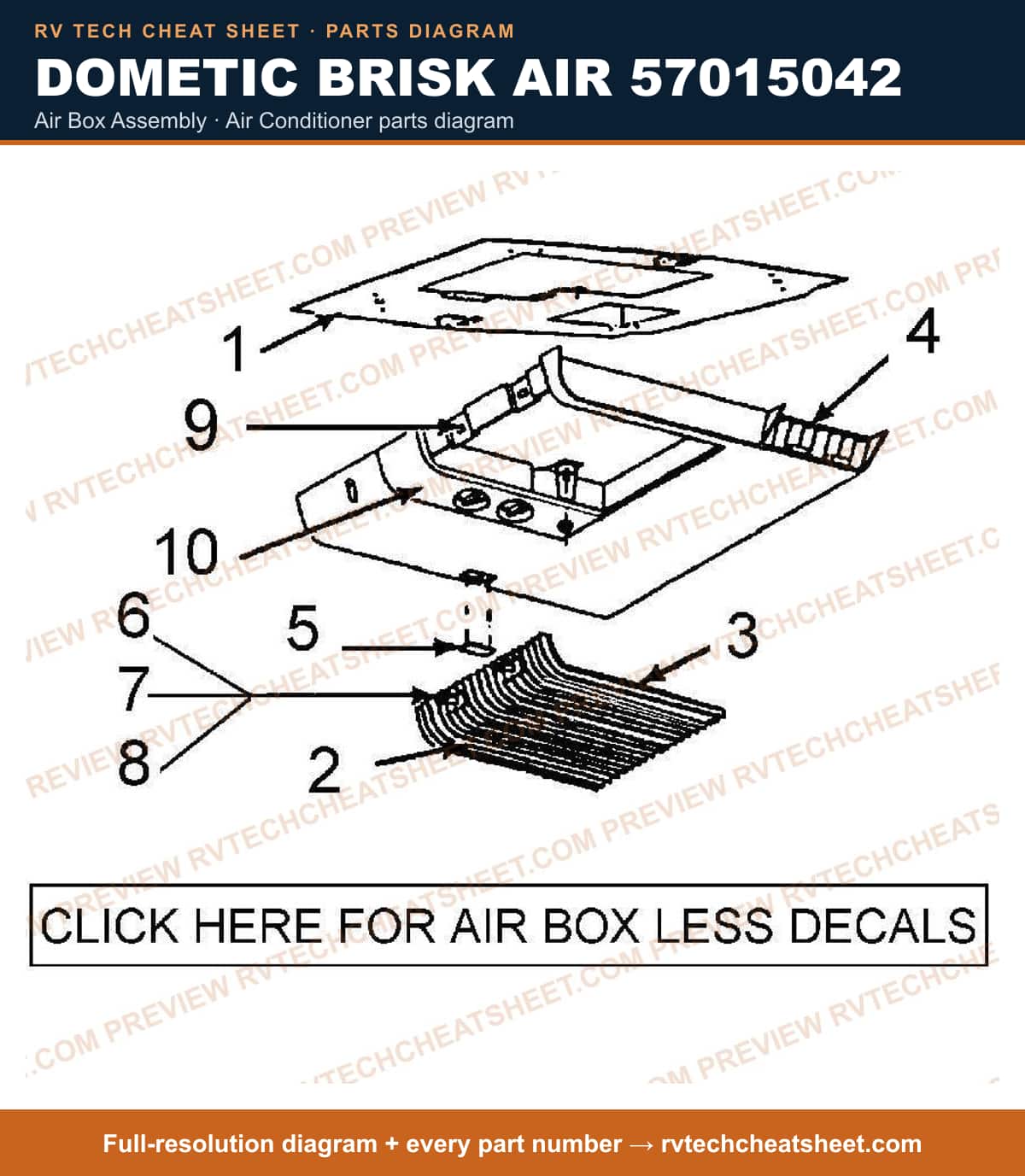

Air Box Assembly

Components

19 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #GRILLE,RETURN AIR MFR # 308047
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #KIT SVC AIR FILTER MFR # 3313107103
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
11. #LOUVER ASM 2REQUIRED MFR # 310138
12. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
13. #STUD,LATCH RETURN AIR MFR # 311673001
14. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
15. #RETAINER,RETURN AIR GRILLE MFR # 311675000
16. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
17. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
18. #DECAL,AIR BOX MFR # 317551
19. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Opt. Heater Accessory Kit

Components

11 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #ELECTRIC BOX MFR # 3101125007
6. #GUARD, HEAT MFR # 3101143
7. #SLEEVING MFR # 3100394083
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
