Dometic Brisk Air 57715601 Parts Diagram · Adb #3107206XXX Manual Cntrl

Air Conditioner · 2 assemblies · 2 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57715601 rooftop air conditioner: 2 assemblies (Adb #3107206XXX Manual Cntrl, Shroud & Main Components) and 112 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Adb #3107206XXX Manual Cntrl

Components

45 items

1. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
2. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
3. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
4. #ATTACHMENT TAPE GREY-EACH MFR # 06384
5. #AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description
8. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
9. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
10. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
11. #FILTER RETURN AIR(UNIVER MFR # 3108015003
12. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
13. #GRILLE, RETURN USE 3313107034 PLR WHT MFR # 3107053005 Superseded: see description
14. #TEMPLATE, CEILING (SW) MFR # 3107193009
15. #APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013
16. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
17. #GRILLE RETURN AIR SVC KIT MFR # 3313107034
18. #LOUVER ASM MFR # 3107189007
19. #CAP, CONN HOUSING MFR # 3106624012
20. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
21. #CAP, CONN. HOUSING (3-POLE) MFR # 3106624004
22. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
23. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
24. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
26. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
27. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
28. #APPLIANCE COMPONENTS RV; Plug Hole Shell White MFR # 3104931005
29. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
30. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002
32. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
33. #BOX,JUNCTION MFR # 3107220018
34. #APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015
35. #SCREW 8-18 X .625 MFR # 312096004
36. #APPLIANCE COMPONENTS RV; Parts Bag Asm Shell White MFR # 3107194007
37. #BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description
38. #COVER , CONTROL BOX MFR # 308146000
39. #DEACAL, FIELD WIRING MFR # 3105024008
40. #BOX, CONTROL MFR # 3105027035
41. #Air Conditioner Ceiling Assembly; For Duo-Therm Air Conditioner Brisk Air Model 57915622; Non-Ducted System; With Manual Control MFR # 3107188017
42. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3107188009
43. #APPLIANCE COMPONENTS RV; DUCT KIT MFR # 3106775004
44. #EXTENSION, DUCT MFR # 313606000
45. #HEAT STRIP,NON-DUCTED MFR # 3101121030

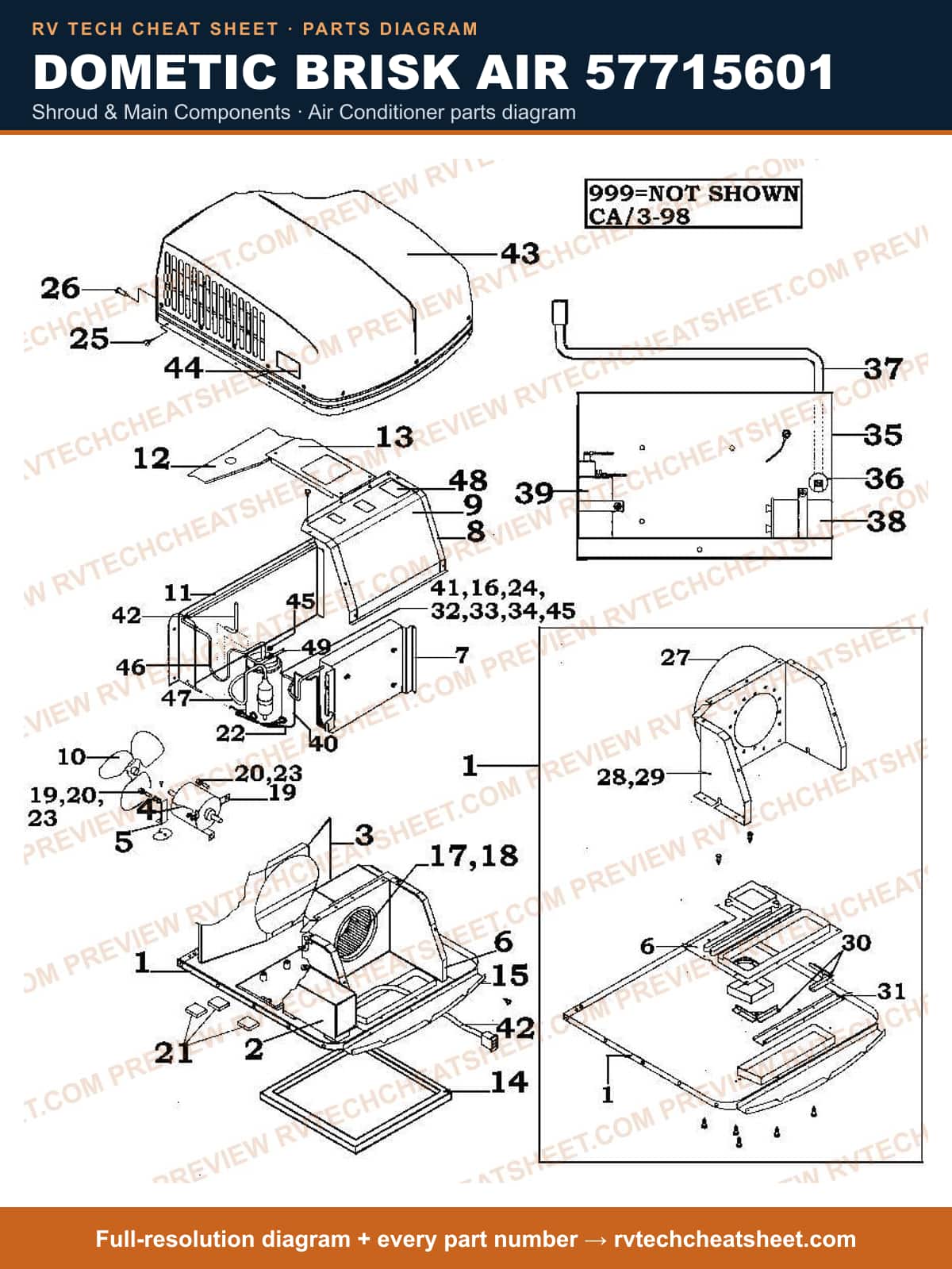

Shroud & Main Components

Components

70 items

1. #BASEPAN KIT USE 3108700323 MFR # 3108705348 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
3. #MOTOR KIT MFR # 3108706916
4. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
5. #KIT, MOTOR SUPPORT MFR # 3108705595
6. #COIL,EVAPORATOR SING LE INLET/OUTLET MFR # 3107338000
7. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
9. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
10. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
12. #COIL,CONDENSER USE 3103014001 MFR # 3100817026 Superseded: see description
13. #COVER, CONDENSER COIL MFR # 309383000
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #A/C SEAL, 14 X 14 WHITE MFR # A101414
16. #ROOF A/C GASKET KIT MFR # 3310718006
17. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
18. #GASKET USE 3100247 MFR # 3100247000 Superseded: see description
19. #GASKET, GREY, 14 X 14 MFR # 6759A3281
20. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
22. #GROMMET MFR # 3100238207
23. #WHEEL BLOWER MFR # 3313107033
24. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
25. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
26. #SERVICE KIT F/MOTOR MFR # 3310725001
27. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
28. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
29. #BLOCKS, FOAM MFR # 3100587009
30. #Air Conditioner Bulkhead Plate; Replacement For Duo-Therm 57908321/ 59016626/ 57915403 Model Air Conditioners MFR # 3107478004
31. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
33. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
34. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
35. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
36. #SCREW,SHOULDER MFR # 3102834003
37. #HOUSING, BLOWER MFR # 3100865009
38. #BULKHEAD,EVAPORATOR MFR # 3100831076
39. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
40. #BRACKET, (2 REQ.) MFR # 3106290004
41. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
42. #Screw; Self Tapping Type; For Use With Dometic Air Conditioners; 1/4 Inch-20; Zinc; Single MFR # 312110024 Superseded: see description
43. #GROMMET 3REQUIRED MFR # 3102324005
44. #BOX, ELECTRIC MFR # 3104904010
45. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
46. #APPLIANCE COMPONENTS RV; Sleeve MFR # 318087009
47. #CAPACITOR,FAN/RUN 10/40MFD 370VAC MFR # 3100248495
48. #CAPACITOR,FAN/RUN USE 46-2348 10/40MFD 370VAC MFR # F8603 Superseded: see description
49. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
50. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
51. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # IS A USE # F/3105023000,3105023
52. #APPLIANCE COMPONENTS RV; Tube Capillary .070" X 44 MFR # 3100245517
53. #APPLIANCE COMPONENTS RV; Compressor Asm 57915-603 MFR # 3104465004
54. #LINE, PROCESS MFR # 20309007
55. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
56. #SHROUD 12' MFR # 3309518003
57. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
58. #DECAL, SHROUD MFR # 3107704003
59. #NUT, FLANGE MFR # 306342004
60. #LINE, DISCHARGE MFR # 3103825000
61. #LINE, SUCTION MFR # 3104236009
62. #DECAL, FIELD WIRING MFR # 3105052017
63. #BAR, COMPRESSOR SUPPORT MFR # 3107625000
64. #APPLIANCE COMPONENTS RV; BOLT,9-1/2" KIT MFR # 3100895014
65. #HEAT STRIP,NON-DUCTED MFR # 3101121030
66. #APPLIANCE COMPONENTS RV; DUCT KIT MFR # 3106775004
67. #APPLIANCE COMPONENTS RV; Screen Decorative Protect MFR # 3101701005
68. #BOX,AIR ASSM. COMPLETE PW MFR # 3107209017
69. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
70. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
