Dometic Brisk Air 57812002 Parts Diagram · Air Box Assembly

Air Conditioner · 4 assemblies · 4 diagram sheets · 141 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57812002 rooftop air conditioner: 4 assemblies (Air Box Assembly, Electrical Box Assembly, Shroud & Main Components, Optional Electric Heat Kit) and 141 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

23 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #KIT SVC AIR FILTER MFR # 3313107103
6. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
11. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
14. #STUD,LATCH RETURN AIR MFR # 311673001
15. #PIN USE 311673001 MFR # 311673 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
17. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
20. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
21. #DECAL ROTARY MFR # 316476
22. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780

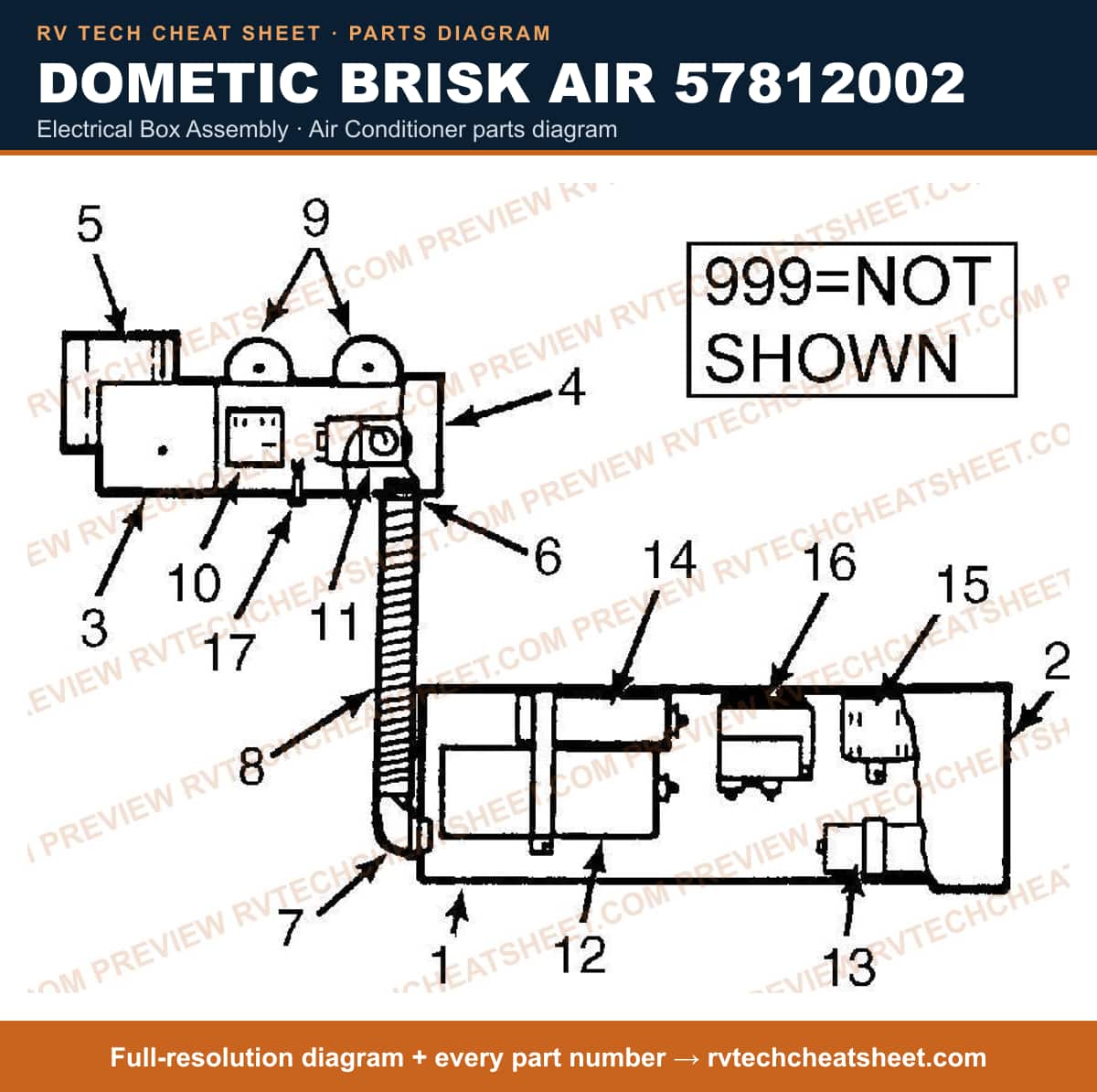

Electrical Box Assembly

Components

36 items

1. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
2. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
3. #ELECTRICAL BOX COVER MFR # 39306
4. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
5. #COVER CONT MFR # 38146
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
7. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
8. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
9. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
10. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
11. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
12. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
14. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
15. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
16. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
17. #SWITCH,SELECTOR USE 3100291016 MFR # 313539 Superseded: see description
18. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
20. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
21. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
22. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
23. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
25. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
26. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
27. #CAPACITOR USE 3100236169 START MFR # 35046016 Superseded: see description
28. #CAPACITOR, START MFR # 47C
29. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
30. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
32. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
33. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
34. #CAPACITOR,START USE 3100235237 MFR # 35040022 Superseded: see description
35. #RELAY,TIME DELAY 532- 546 MFR # 310456
36. #WIRE SET, WITH PLUG (FOR HEAT STRIP) MFR # 1313082011

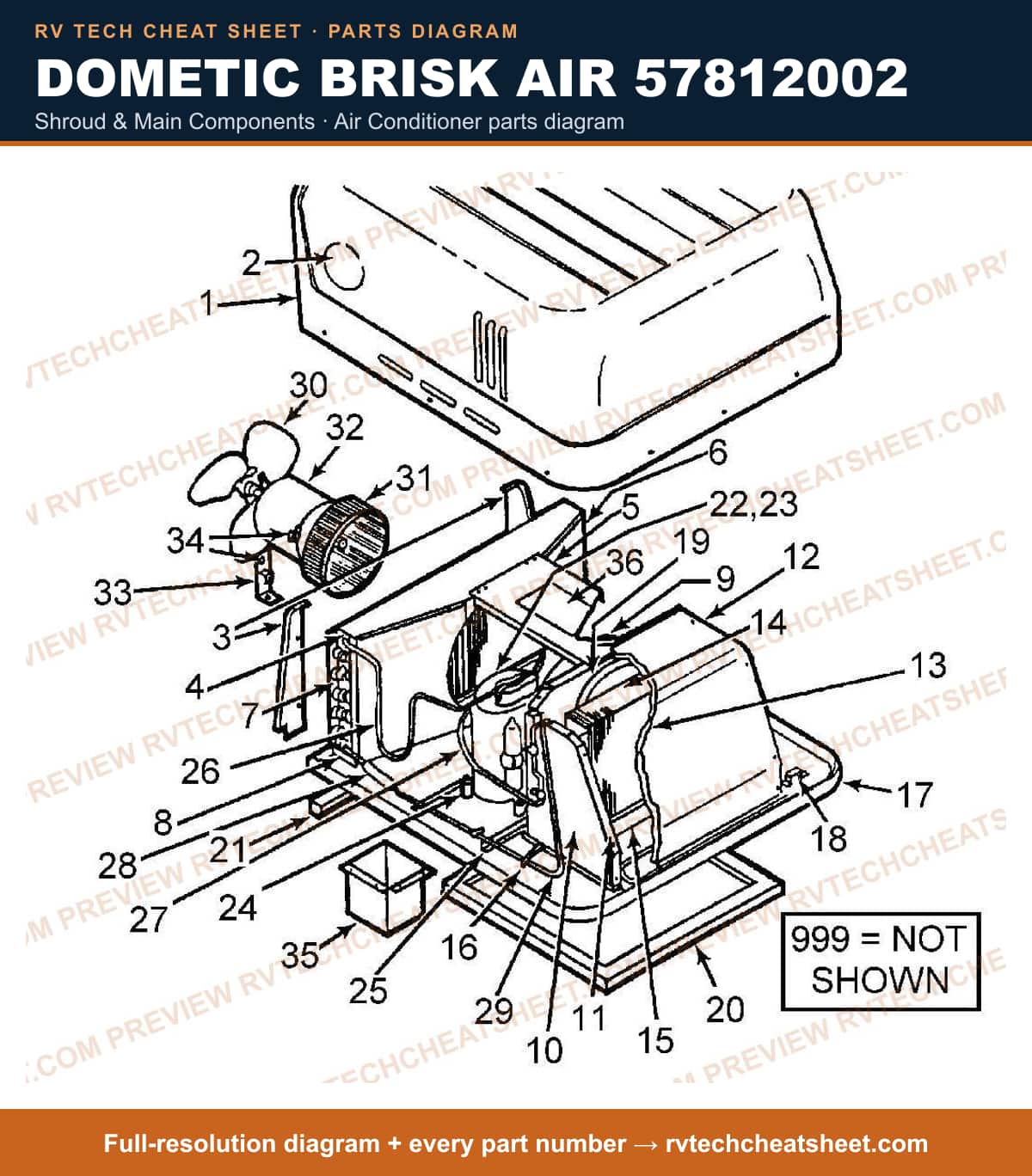

Shroud & Main Components

Components

69 items

1. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
2. #SHROUD,BRISK USE 3103144006 MFR # 316404003 Superseded: see description
3. #SHROUD KIT CLOSED END SW MFR # 3309364028
4. #SHROUD 12' MFR # 3309518003
5. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #DECAL,SHROUD SUNCHASER ROTA RY MFR # 316512
9. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
10. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #COVER, CONDENSER COIL MFR # 309383000
13. #CONDENSER COIL BRACE MFR # 317556
14. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
15. #BULKHEAD,COND. USE 317923001 MFR # 317923 Superseded: see description
16. #COIL,CONDENSER USE 3103014001 MFR # 318504 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
18. #HOUSING,BLOWER MFR # 318012
19. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
20. #BULKHEAD,EVAPORATOR MFR # 317983
21. #COVER,EVAPORATOR 12" MFR # 314885
22. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
23. #INSULATION,EVAPORATOR MFR # 317797001
24. #COIL,EVAP USE 3108704523 579 12 MFR # 318505 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #FAN,COND DRAIN 579 MFR # 318008
27. #DRAIN TUBE RVA 578 579 MFR # 318202
28. #N/A BASE KIT (INCLUDES 15 & 16) MFR # 317097001
29. #ELECTRICAL BOX SUPPORT (3 REQUIRED) MFR # 318010
30. #RING,BLOWER INLET MFR # 39304
31. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
32. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
33. #GASKET, GREY, 14 X 14 MFR # 6759A3281
34. #A/C SEAL, 14 X 14 WHITE MFR # A101414
35. #ROOF A/C GASKET KIT MFR # 3310718006
36. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
37. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
39. #COMPRESSOR,ROTORX CAS1 10.007 & .009 MFR # 1316369
40. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
41. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
42. #PROTECTOR,OVERLOAD MFR # 3100250020
43. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
47. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
48. #SUCTION LINE MFR # 318357
49. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
50. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
52. #TUBE,CAPILLARY USE 3100245203 MFR # 315752020 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
54. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
55. #FAN BLADE MFR # 3313107015
56. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
57. #BLADE,FAN USE 317937 MFR # 317938 Superseded: see description
58. #WHEEL,BLOWER MFR # 317959
59. #MOTOR KIT MFR # 3108706916
60. #MOTOR,FAN USE 20285 MFR # 318456 Superseded: see description
61. #TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285
62. #MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description
63. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
64. #SERVICE KIT F/MOTOR MFR # 3310725001
65. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
67. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
68. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
69. #DECAL,WIRING DIAGRAM MFR # 318192

Optional Electric Heat Kit

Components

13 items

1. #ELEMENT,HEAT W/FUSE LINK MFR # FR# 313642
2. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat MFR # 316516
10. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
11. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description
12. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
13. #HEAT STRIP,NON-DUCTED MFR # 3101121030
