Dometic Brisk Air 57815001 Parts Diagram · Optional Elec. Heat Kit

Air Conditioner · 3 assemblies · 3 diagram sheets · 70 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57815001 rooftop air conditioner: 3 assemblies (Optional Elec. Heat Kit, Air Box Assembly, Electric Box Assembly) and 70 manufacturer part numbers. 27 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Elec. Heat Kit

Components

11 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # FR# 313642
3. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521
10. #APPLIANCE COMPONENTS RV; Decal Add On Heat MFR # 316516
11. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804

Air Box Assembly

Components

22 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #FILTER RETURN AIR(UNIVER MFR # 3108015003
8. #ATTACHMENT TAPE GREY-EACH MFR # 06384
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
17. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
20. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
21. #DECAL ROTARY MFR # 316476
22. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description

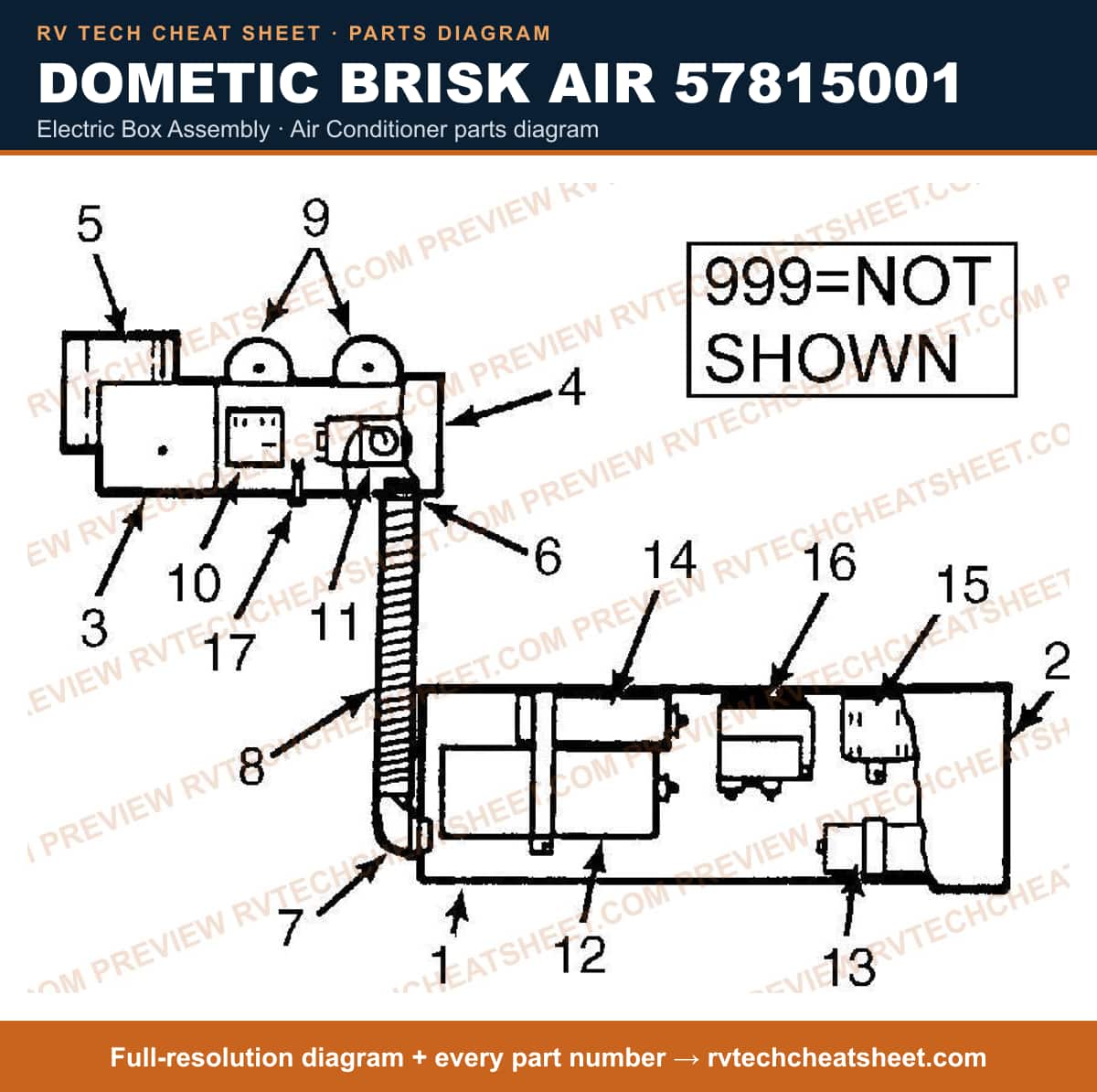

Electric Box Assembly

Components

37 items

1. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
2. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
3. #ELECTRICAL BOX COVER MFR # 39306
4. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
5. #COVER CONT MFR # 38146
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
7. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
8. #CONDUIT CONNECTOR, STRAIGHT MFR # 316718001
9. #CONDUIT CONNECTOR, 90 DEGREE MFR # 316718002
10. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
11. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
12. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
14. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
15. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
16. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
17. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
18. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
19. #SWITCH,SELECTOR USE 3100291016 MFR # 313539 Superseded: see description
20. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
21. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
22. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
23. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
24. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
26. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
27. #CAPACITOR, START MFR # 47C
28. #CAPACITOR USE 3100236169 START MFR # 35046016 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
31. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
32. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
34. #CAPACITOR,START USE 3100235237 MFR # 35040022 Superseded: see description
35. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
36. #RELAY,TIME DELAY 532- 546 MFR # 310456
37. #WIRE SET, WITH PLUG (FOR HEAT STRIP) MFR # 1313082011
