Dometic Brisk Air 57908321 8,000 BTU Parts Diagram · 57908321 8,000 BTU › 3105023.000 Air Dist Box Kit

Air Conditioner · 10 assemblies · 10 diagram sheets · 161 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57908321 8,000 BTU rooftop air conditioner: 10 assemblies (57908321 8,000 BTU › 3105023.000 Air Dist Box Kit, 57908321 8,000 BTU › Relay Kit Bi-metal, 57908321 8,000 BTU › 3104999.002 Electronic T-stat, 57908321 8,000 BTU › 3104999.010 Electronic Cable, 57908321 8,000 BTU › 3105023.000 Heat Kit-air Box and more) and 161 manufacturer part numbers. 50 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

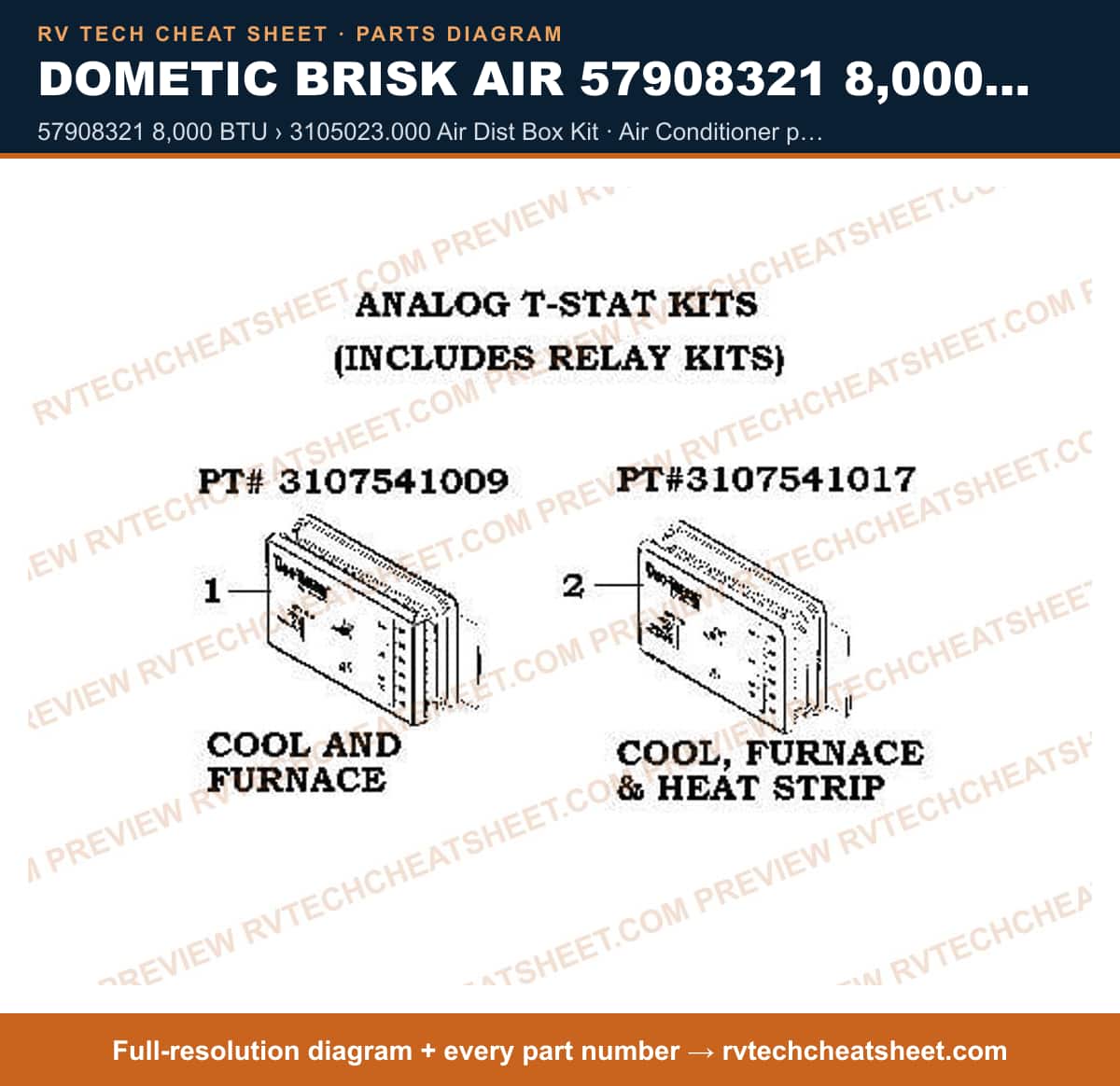

57908321 8,000 BTU › 3105023.000 Air Dist Box Kit

Components

16 items

1. #A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714
2. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
3. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015
4. #KIT SVC AIR FILTER MFR # 3313107103
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #FILTER RETURN AIR(UNIVER MFR # 3108015003
8. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
12. #ATTACHMENT TAPE GREY-EACH MFR # 06384
13. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
14. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
15. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
16. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description

57908321 8,000 BTU › Relay Kit Bi-metal

Components

34 items

1. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
2. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
3. #COVER,BOX RELAY USE 3104998004 MFR # 3104933001 Superseded: see description
4. #3104938000 MFR # 3104938000
5. #RELIEF, STRAIN MFR # 302994006
6. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3104991009
7. #BOX JUNCTION MFR # 3104934009
8. #STRAIN, RELIEF MFR # 302994001
9. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
10. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
11. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
14. #T-STAT KIT USE 3105058014 HEAT/COOL MFR # 3108700539 Superseded: see description
15. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
16. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
17. #T-STAT USE 3108700539 MFR # 3104438001 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
19. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
21. #COVER, JUNCTION BOX MFR # 3104935006
22. #BOX, RELAY MFR # 3104932003
23. #COVER, RETURN AIR GRILLE ASM SHELL WHITE MFR # 3105958007
24. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
25. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016
26. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
27. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
28. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
29. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
30. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
31. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008
32. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
33. #GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description
34. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512

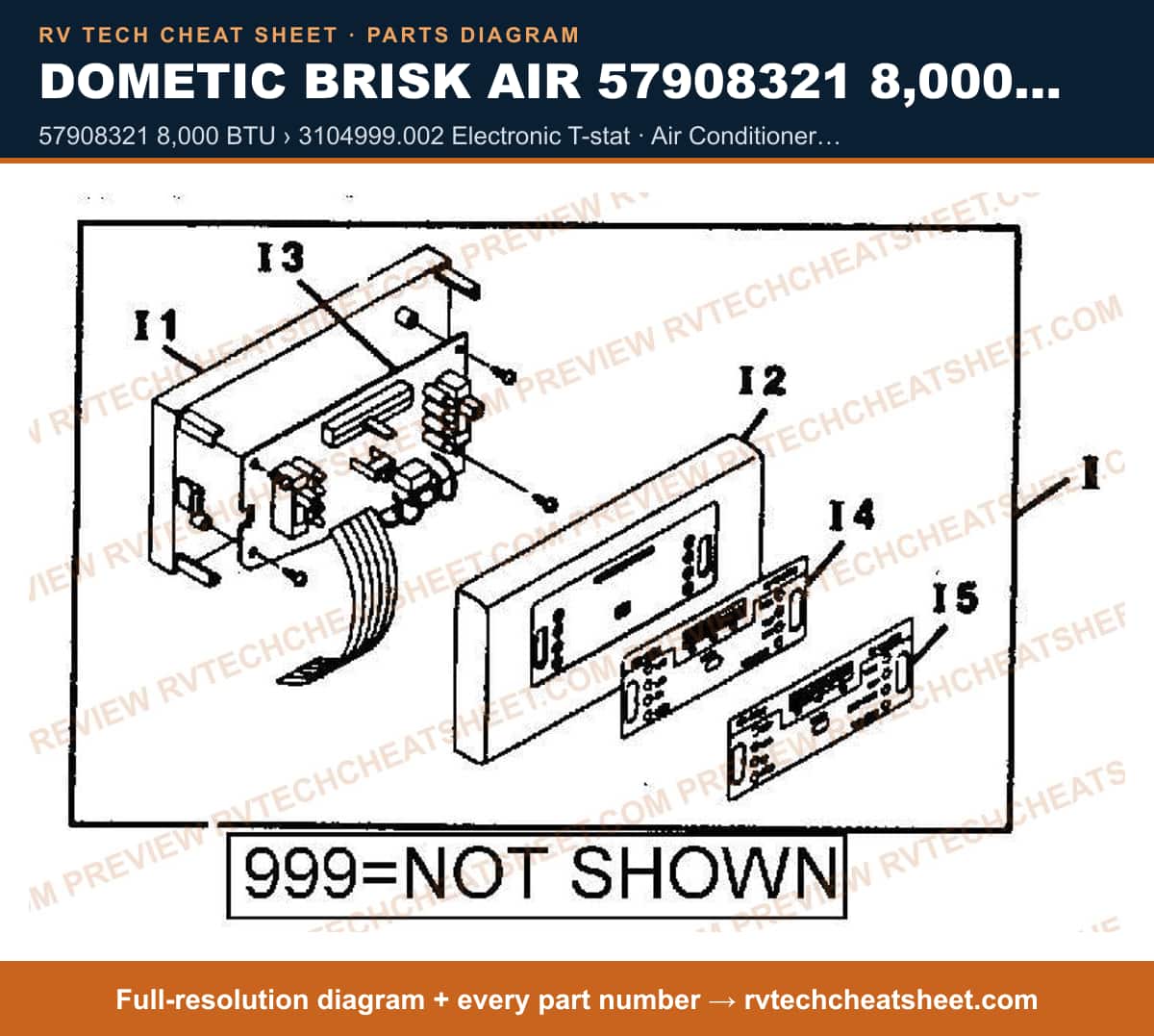

57908321 8,000 BTU › 3104999.002 Electronic T-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER,THERMOSTAT WHITE MFR # 3103809020
3. #BOARD KIT MFR # 3108701339
4. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
5. #APPLIANCE COMPONENTS RV; Decal Selector Switch MFR # 3105318004
6. #T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description

57908321 8,000 BTU › 3104999.010 Electronic Cable

Components

9 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

57908321 8,000 BTU › 3105023.000 Heat Kit-air Box

Components

8 items

1. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #SLEEVING MFR # 3100394083
4. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
5. #GUARD, HEAT MFR # 3101143
6. #ELECTRIC BOX MFR # 3101125007
7. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
8. #HEAT STRIP,NON-DUCTED MFR # 3101121030

57908321 8,000 BTU › 3104999.002 Electronic Cable

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
8. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

57908321 8,000 BTU › 3104999.010 Electronic T-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER, THERMOSTAT MFR # 3103809038
3. #BOARD KIT MFR # 3108701339
4. #DECAL, T-STAT (CLG./ELEC. HEAT MFR # 3105379006
5. #APPLIANCE COMPONENTS RV; Decal T-Stat Electric H/C MFR # 3105380004
6. #T-STAT ASM MOD 57915.621 MFR # 3105375004

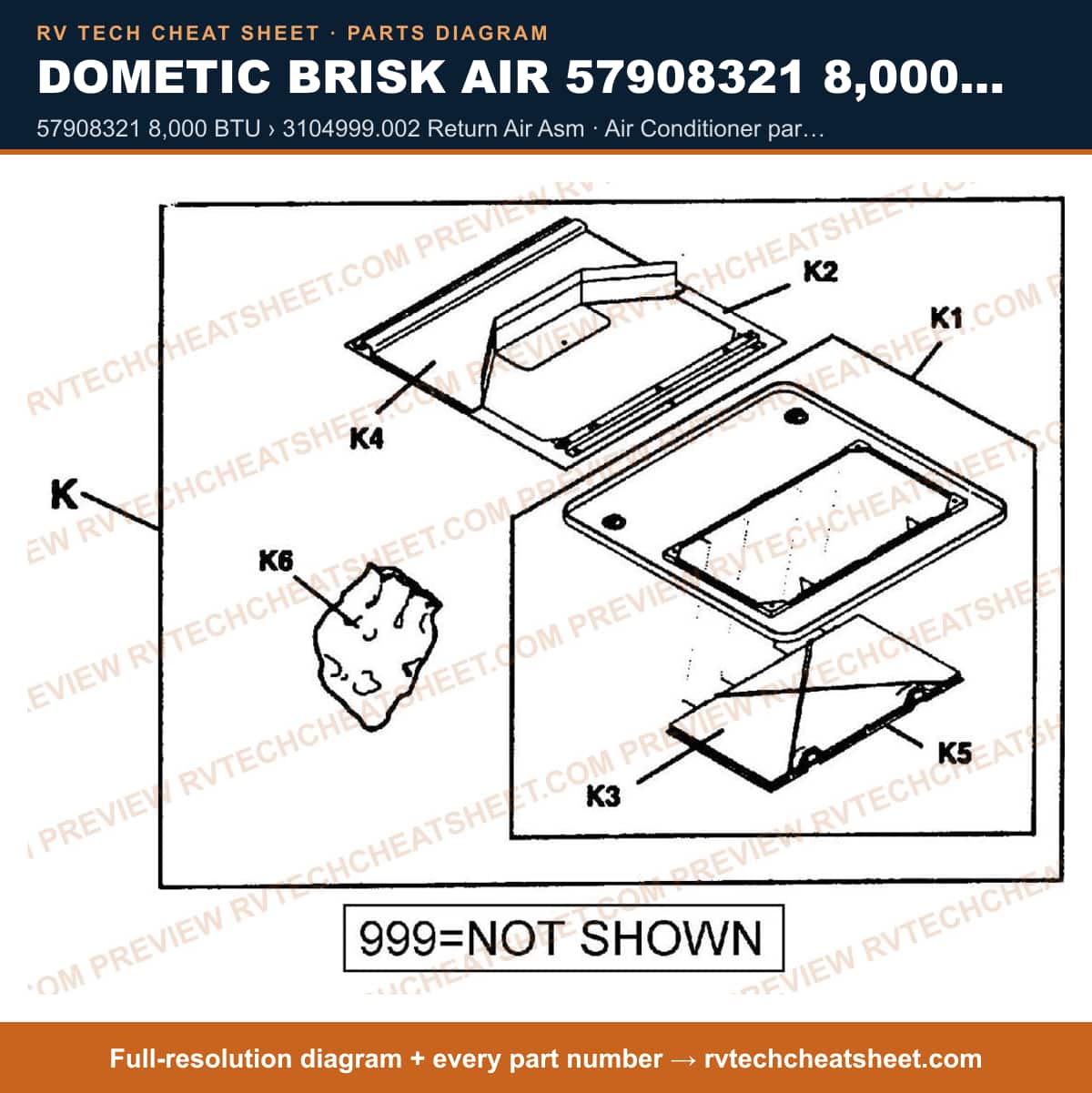

57908321 8,000 BTU › 3104998.004 Return Air Asm

Components

21 items

1. #GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description
2. #TEMPLATE, CEILING MFR # 3105148005
3. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016
4. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008
5. #GRILLE,RETURN AIR GRAY MFR # 3105148021
6. #Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 3108701373
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #KIT SVC AIR FILTER MFR # 3313107103
12. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
13. #Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description
14. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
15. #GRILLE RETURN AIR MFR # 3104928001
16. #Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description
17. #GRILLE,RETURN USE 3105007029 MFR # 3104928027 Superseded: see description
18. #GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description
19. #Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381
20. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
21. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037

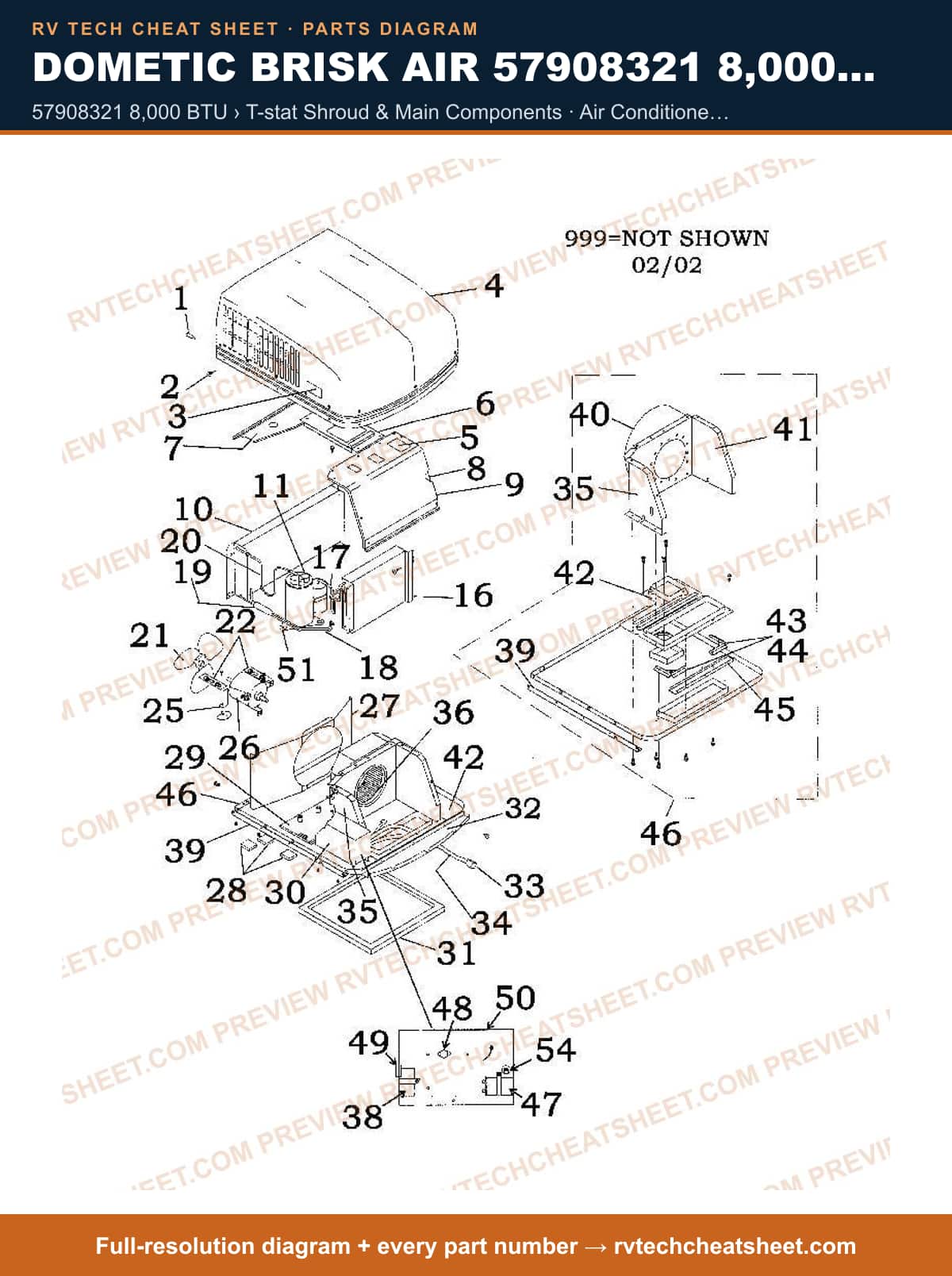

57908321 8,000 BTU › T-stat Shroud & Main Components

Components

78 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #DECAL,SHROUD MFR # 3101380016
7. #SHROUD 10" USE 3103143008 GRAY MFR # 3103141002 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #APPLIANCE COMPONENTS RV; Shroud Asm Gray Use 33095 MFR # 3103143008 Superseded: see description
10. #SHROUD,POLAR WH USE 3309517005 MFR # 3103142000 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
12. #SHROUD,10" USE 3309517005 COLONIAL WHITE MFR # 3103139006 Superseded: see description
13. #DECAL,FIELD WIRING MFR # 3105052009
14. #COVER, CONDENSER COIL MFR # 309383000
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #INSULATION,EVAPORATOR MFR # 317797001
17. #APPLIANCE COMPONENTS RV; Cover Evaporator MFR # 3102773003
18. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3102766015
19. #COMPRESSOR MFR # 3103150003
20. #COVER, TERMINAL MFR # 3102777004
21. #GASKET, TERMINAL MFR # 3102778002
22. #PROTECTOR OVERLOAD MFR # 3100250236
23. #NUT,FLANGE MFR # 306342005
24. #NUT USE 306342005 MFR # 318295 Superseded: see description
25. #COIL,EVAPORATOR MFR # 3102765009
26. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3102775016
27. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
28. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
29. #LINE,DISCHARGE MFR # 3102774019
30. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 3102779
31. #SERVICE KIT F/MOTOR MFR # 3310725001
32. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
33. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
34. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
35. #MOTOR USE 3108700448 MFR # 3104432012 Superseded: see description
36. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
37. #MOTOR USE 3104432012 MFR # 3104110006 Superseded: see description
38. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
39. #MOTOR KIT MFR # 3108706916
40. #APPLIANCE COMPONENTS RV; Bulkhead Condenser MFR # 3102771007
41. #PAN KIT,BASE 10" MFR # 3108700315
42. #GROMMETS, COMP., 3 REQ MFR # 3100238178
43. #BLOCKS, FOAM MFR # 3100587009
44. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #HOUSING, BLOWER MFR # 3102782012
50. #INSULATION (3 PC. SET) MFR # 3103896001
51. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
52. #APPLIANCE COMPONENTS RV; Wheel Blower MFR # 3107779005
53. #WHEEL,BLOWER USE 3107779005 MFR # 3102780008 Superseded: see description
54. #BLOWER INLET RING MFR # 33692
55. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
56. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
57. #SLEEVING, FIBERGLASS MFR # 3100394208
58. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
59. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
61. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
62. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
63. #COVER CONT MFR # 38146
64. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
65. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
66. #A/C SEAL, 14 X 14 WHITE MFR # A101414
67. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
68. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
69. #GASKET, GREY, 14 X 14 MFR # 6759A3281
70. #ROOF A/C GASKET KIT MFR # 3310718006
71. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
72. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
73. #BOX,ELECTRICAL MFR # 3100827066
74. #GROMMET MFR # 3100238207
75. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
76. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
77. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
78. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017

57908321 8,000 BTU › 3104999.002 Return Air Asm

Components

20 items

1. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008
2. #TEMPLATE, CEILING MFR # 3105148005
3. #GRILLE,RETURN AIR GRAY MFR # 3105148021
4. #GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description
5. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016
6. #Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 3108701373
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description
10. #ATTACHMENT TAPE GREY-EACH MFR # 06384
11. #FILTER RETURN AIR(UNIVER MFR # 3108015003
12. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
13. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
14. #GRILLE RETURN AIR MFR # 3104928001
15. #GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description
16. #GRILLE,RETURN USE 3105007029 MFR # 3104928027 Superseded: see description
17. #Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description
18. #Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381
19. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
20. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
