Dometic Brisk Air 57908403 8,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 6 assemblies · 6 diagram sheets · 84 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57908403 8,000 BTU rooftop air conditioner: 6 assemblies (Shroud & Main Components, Replacement Ducted A-c, Electrical Box Assembly, Replacement Non-ducted A-c, Optional Heater Assy Kit and more) and 84 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

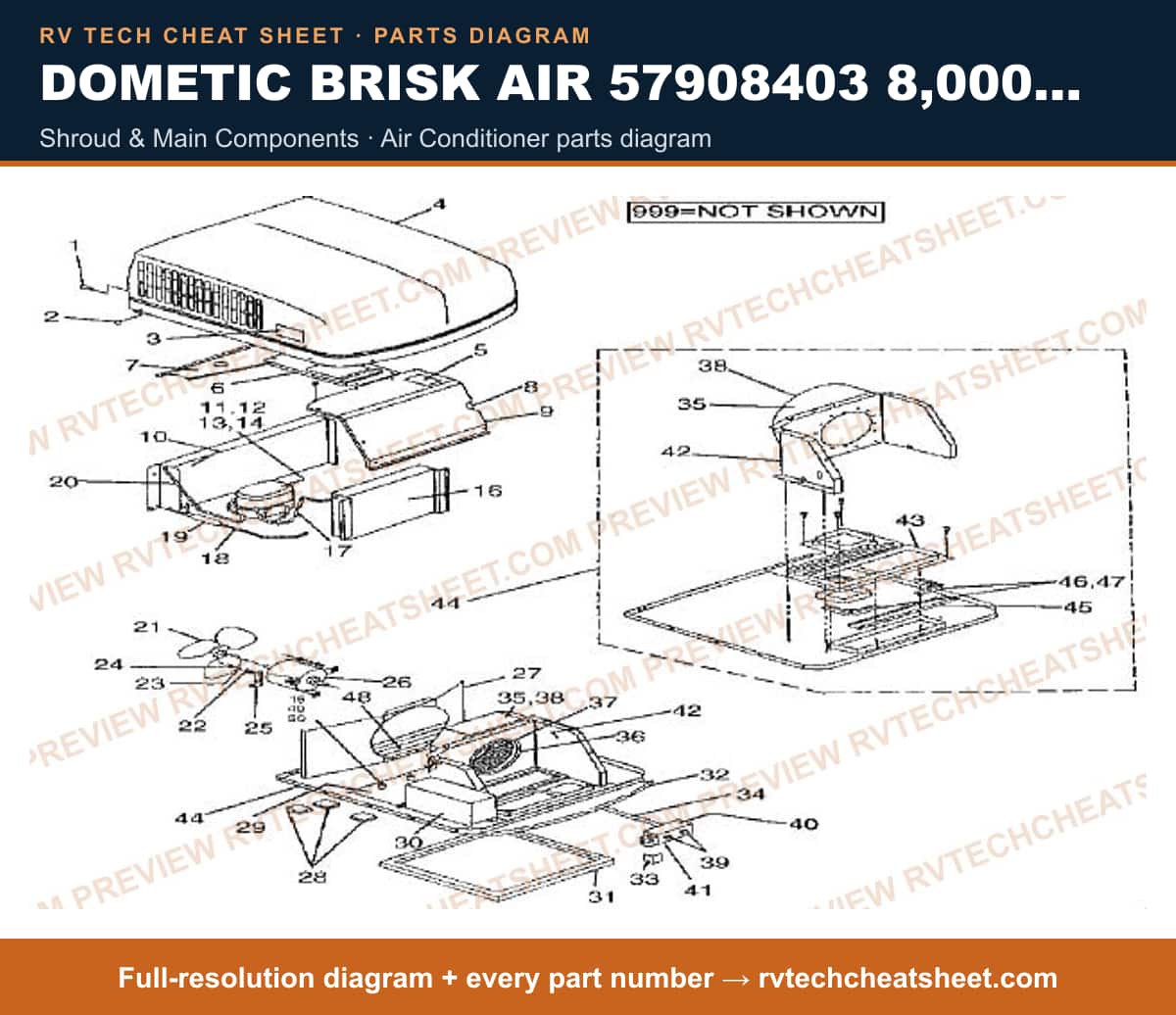

Shroud & Main Components

Components

7 items

1. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
2. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
3. #SHROUD 12' MFR # 3309518003
4. #BLADE,FAN USE 3102779 57908.321 MFR # 3102779000 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 3102779
6. #NO PART # GIVEN BY VENDOR MFR # NPG
7. #PAN KIT,BASE 10" MFR # 3108700315

Replacement Ducted A-c

Components

12 items

1. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
2. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
3. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
7. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
8. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
9. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
10. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
11. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
12. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description

Electrical Box Assembly

Components

22 items

1. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
2. #BOX,ELECTRICAL MFR # 3100827066
3. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
5. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
6. #COVER CONT MFR # 38146
7. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
8. #CONDUIT,FLEX 579 MFR # 3100838006
9. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
10. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
11. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
12. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
13. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
14. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
15. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
16. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
19. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
20. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
21. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
22. #PTCR KIT MFR # 3310731009

Replacement Non-ducted A-c

Components

12 items

1. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
4. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
5. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
6. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
7. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
8. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
9. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
10. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
11. #BOARD KIT CCC MFR # 3311557000
12. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description

Optional Heater Assy Kit

Components

8 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

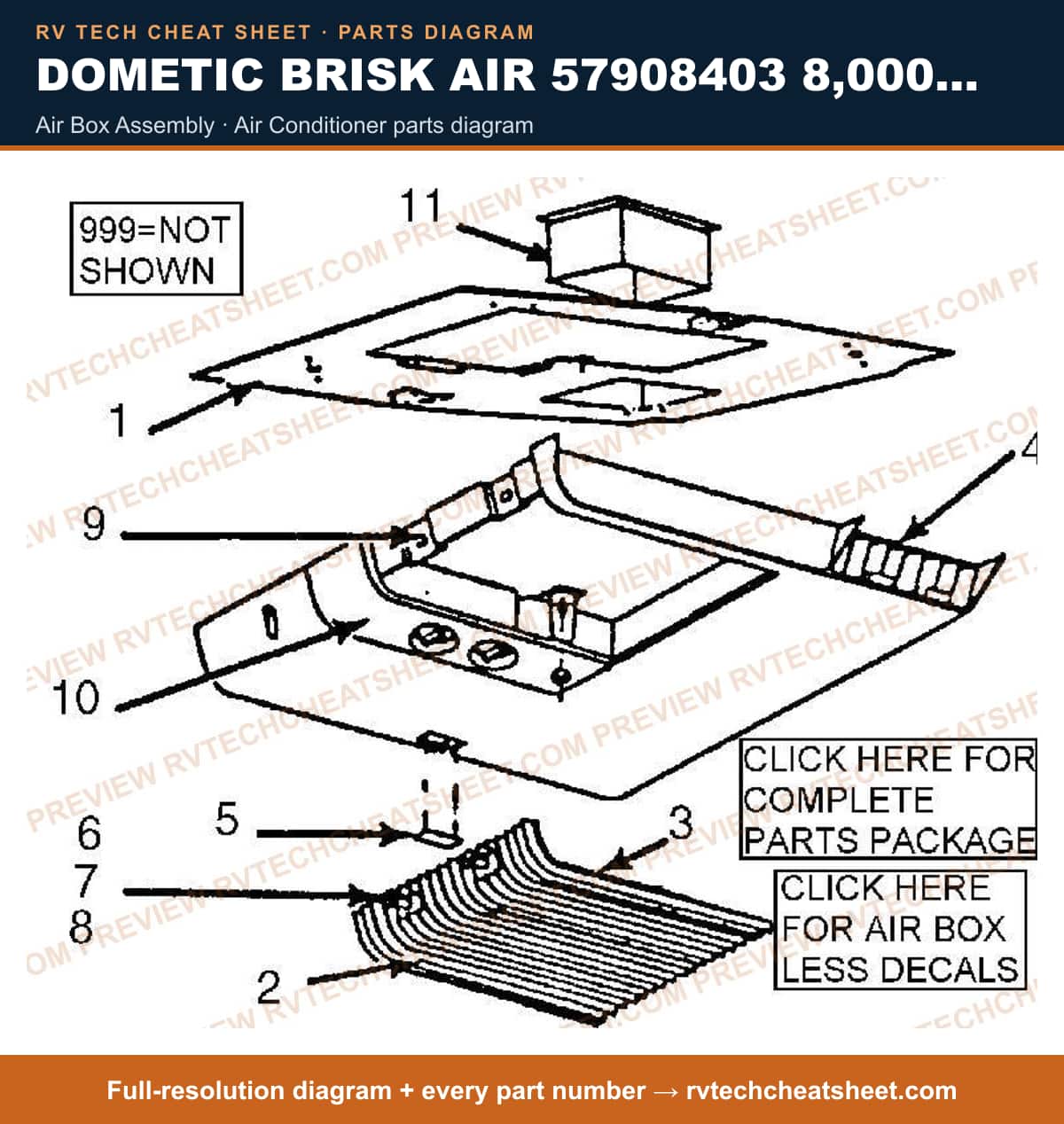

Air Box Assembly

Components

25 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #GRILLE,RETURN AIR MFR # 308047
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
10. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
11. #LOUVER ASM 2REQUIRED MFR # 310138
12. #COVER, PLATE (NOT SHOWN) MFR # 316659000
13. #STUD,LATCH RETURN AIR MFR # 311673001
14. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
15. #RETAINER,RETURN AIR GRILLE MFR # 311675000
16. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
17. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
18. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
19. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
21. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
22. #PARTS BAG 679508.403 MFR # 3101148009
23. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
24. #APPLIANCE COMPONENTS RV; BOLT KIT FOR 6" - 9" ROOF MFR # 3101538001
25. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
