Dometic Brisk Air 57908404 8,000 BTU Parts Diagram · Replacement Ducted A-c

Air Conditioner · 6 assemblies · 6 diagram sheets · 125 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57908404 8,000 BTU rooftop air conditioner: 6 assemblies (Replacement Ducted A-c, Air Box Assembly, Shroud & Main Components, Replacement Non-ducted A-c, Optional Heater Assy Kit and more) and 125 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

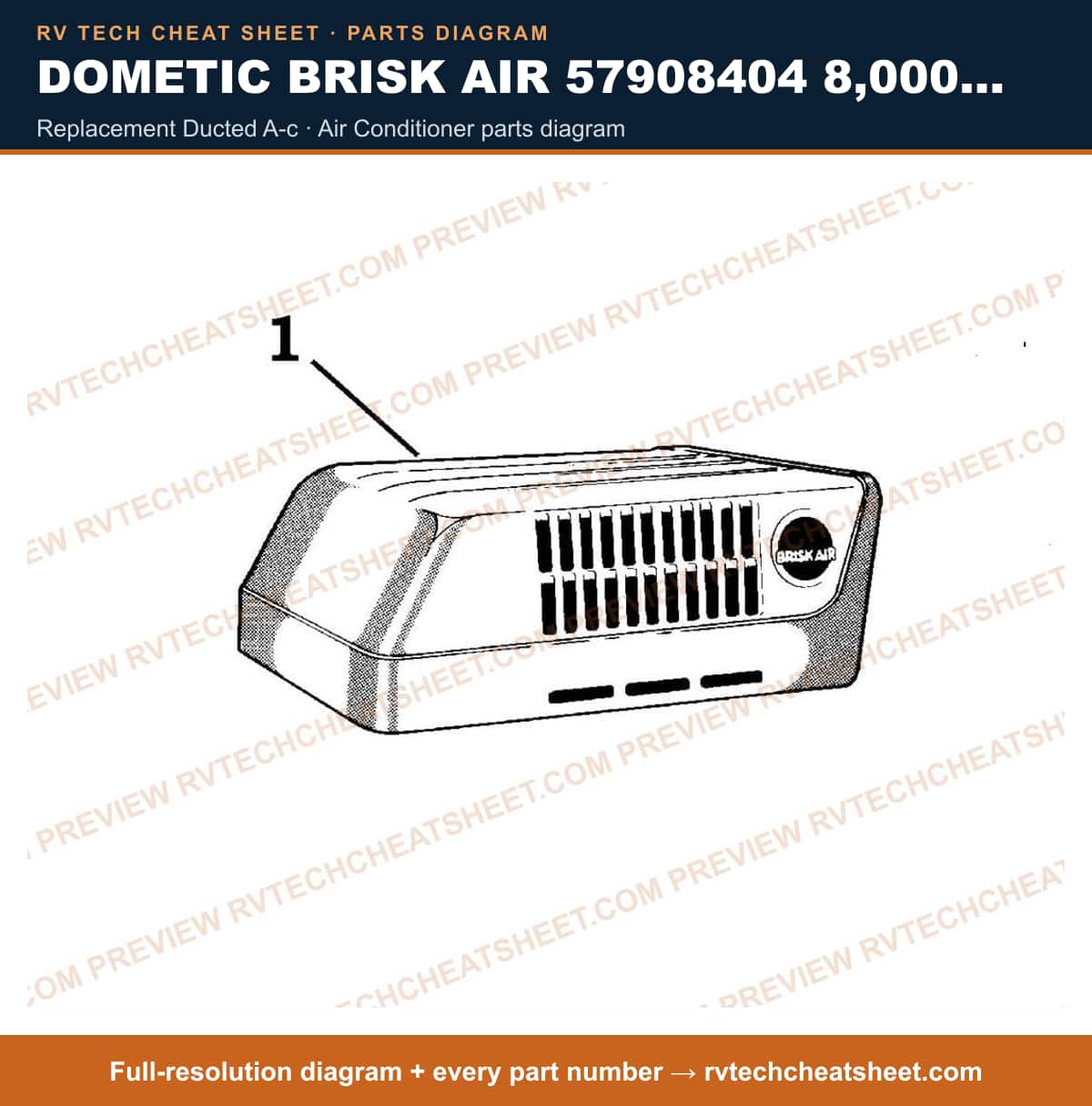

Replacement Ducted A-c

Components

12 items

1. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
2. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
3. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
4. #COMFORT CTRL MFR # 3106463007
5. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
6. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
7. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
8. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
9. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
10. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
11. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description

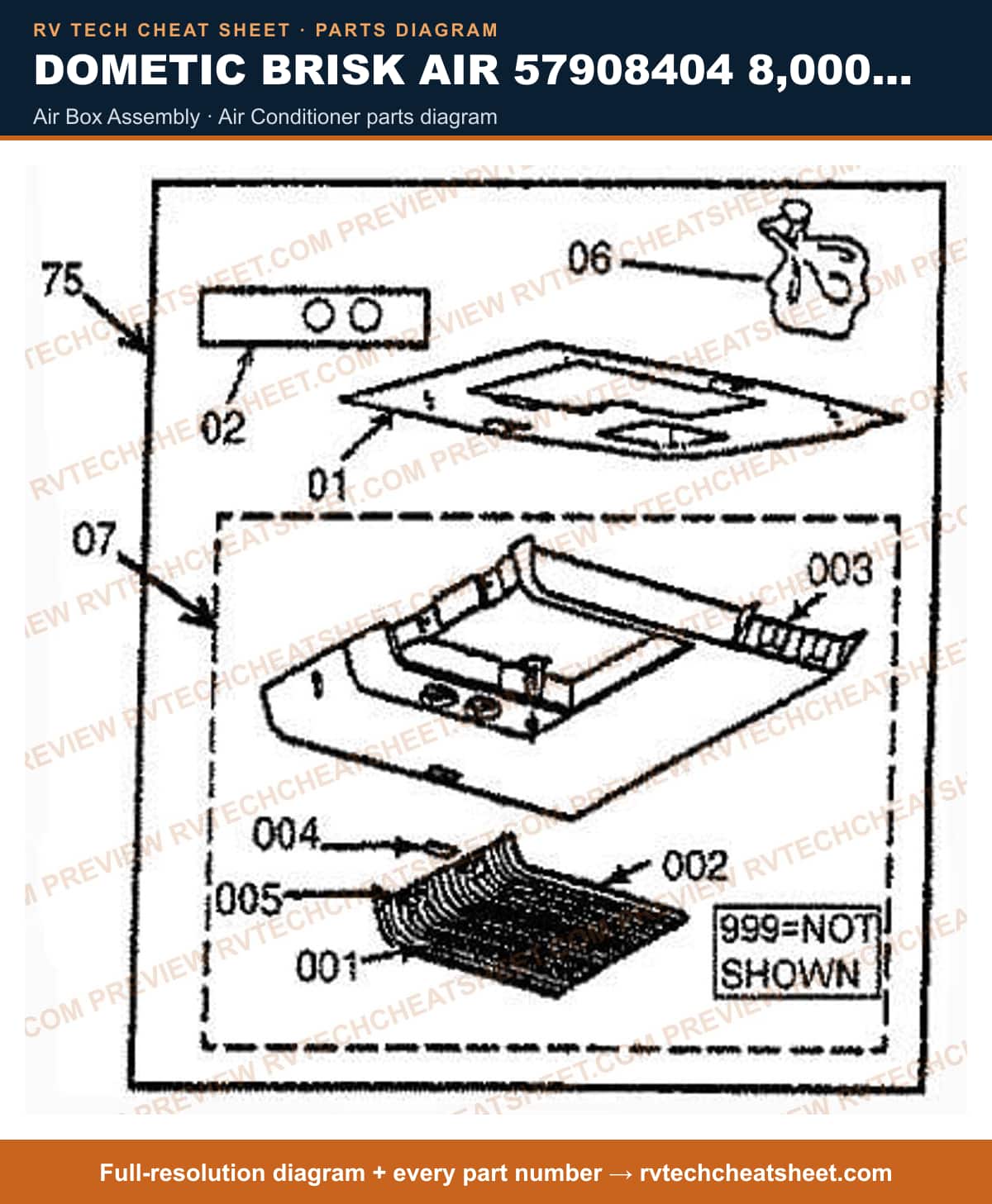

Air Box Assembly

Components

14 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
3. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
4. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
5. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #LOUVER ASM 2REQUIRED MFR # 310138
9. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
10. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
11. #FASTENER KIT PUSH/PULL SET OF 2 MFR # DMT3108700.307
12. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
13. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
14. #DUCT ADAPTER-LOWER MFR # 313605

Shroud & Main Components

Components

73 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
8. #SHROUD,10" USE 3309517005 COLONIAL WHITE MFR # 3103139006 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shroud Asm Gray Use 33095 MFR # 3103143008 Superseded: see description
10. #SHROUD,POLAR WH USE 3309517005 MFR # 3103142000 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
12. #SHROUD 10" USE 3103143008 GRAY MFR # 3103141002 Superseded: see description
13. #DECAL,FIELD WIRING MFR # 3105052009
14. #COVER, CONDENSER COIL MFR # 309383000
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #INSULATION,EVAPORATOR MFR # 317797001
17. #APPLIANCE COMPONENTS RV; Cover Evaporator MFR # 3102773003
18. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3102766015
19. #COMPRESSOR MFR # 3103150003
20. #COVER, TERMINAL MFR # 3102777004
21. #GASKET, TERMINAL MFR # 3102778002
22. #PROTECTOR OVERLOAD MFR # 3100250236
23. #NUT,FLANGE MFR # 306342005
24. #NUT USE 306342005 MFR # 318295 Superseded: see description
25. #COIL,EVAPORATOR MFR # 3102765009
26. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3102775016
27. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
28. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
29. #LINE,DISCHARGE MFR # 3102774019
30. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 3102779
31. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
32. #SERVICE KIT F/MOTOR MFR # 3310725001
33. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
34. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
35. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
36. #MOTOR USE 3108700448 MFR # 3104432012 Superseded: see description
37. #MOTOR KIT MFR # 3108706916
38. #MOTOR USE 3104432012 MFR # 3104110006 Superseded: see description
39. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Bulkhead Condenser MFR # 3102771007
41. #PAN KIT,BASE 10" MFR # 3108700315
42. #GROMMETS, COMP., 3 REQ MFR # 3100238178
43. #BLOCKS, FOAM MFR # 3100587009
44. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
47. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #HOUSING, BLOWER MFR # 3102782012
50. #INSULATION (3 PC. SET) MFR # 3103896001
51. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
52. #APPLIANCE COMPONENTS RV; Wheel Blower MFR # 3107779005
53. #WHEEL,BLOWER USE 3107779005 MFR # 3102780008 Superseded: see description
54. #BLOWER INLET RING MFR # 33692
55. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
57. #SLEEVING, FIBERGLASS MFR # 3100394208
58. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
59. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
61. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
62. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
63. #COVER CONT MFR # 38146
64. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
65. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
66. #A/C SEAL, 14 X 14 WHITE MFR # A101414
67. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
68. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
69. #GASKET, GREY, 14 X 14 MFR # 6759A3281
70. #ROOF A/C GASKET KIT MFR # 3310718006
71. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
72. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
73. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098

Replacement Non-ducted A-c

Components

12 items

1. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
2. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
3. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
4. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
5. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #BOARD KIT CCC MFR # 3311557000
9. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
10. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
11. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
12. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description

Optional Heater Assy Kit

Components

9 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

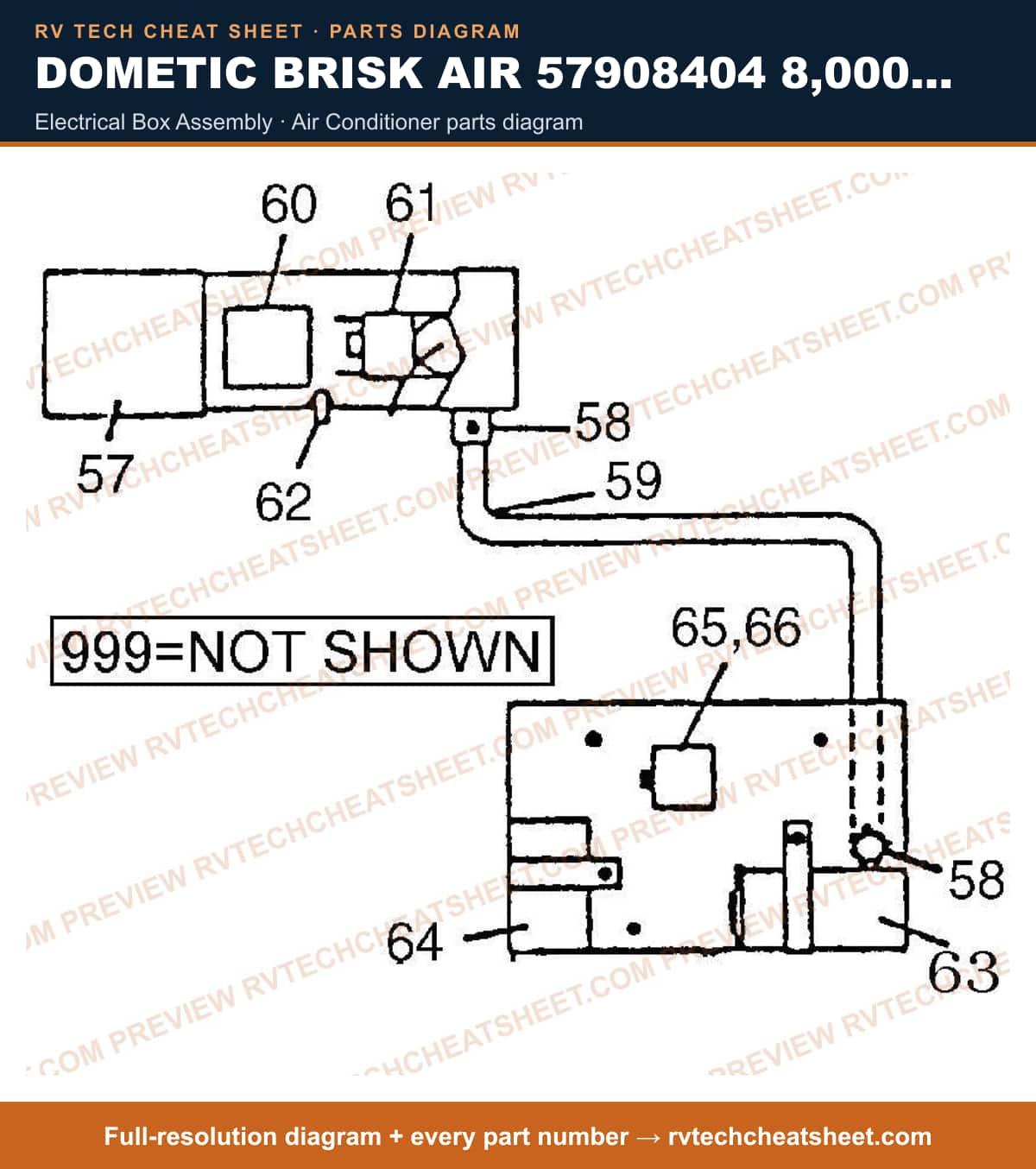

Electrical Box Assembly

Components

18 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
3. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
4. #COVER, ELECTRIC BOX MFR # 3100828
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
9. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
10. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
13. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
14. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
15. #CAPACITOR,RUN MFR # 3100248404
16. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
17. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
18. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
