Dometic Brisk Air 57908521 8,000 BTU Parts Diagram · 3105023.000 Adb (manual)

Air Conditioner · 14 assemblies · 14 diagram sheets · 218 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57908521 8,000 BTU rooftop air conditioner: 14 assemblies (3105023.000 Adb (manual), Elec Kit W-t-stat 3104999002, Center Comfort Control, Adb #3105023018 (manual), Shroud & Main Components and more) and 218 manufacturer part numbers. 66 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

3105023.000 Adb (manual)

Components

55 items

1. #BUSHING,SNAP-IN MFR # 301028040
2. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015
3. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
4. #SWITCH,ROTARY USE 20250 *N* MFR # 20250000 Superseded: see description
5. #A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714
6. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
7. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
8. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
9. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
10. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
11. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
12. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
13. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
14. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
15. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
16. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
17. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
18. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
19. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
20. #FILTER RETURN AIR(UNIVER MFR # 3108015003
21. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
22. #ATTACHMENT TAPE GREY-EACH MFR # 06384
23. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
24. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
25. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
26. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
27. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
28. #PLUG, FEMALE MFR # 314471000
29. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
30. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
31. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
32. #WELDMENT, JUNCTION BOX MFR # 3104161017
33. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
34. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
35. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
36. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
37. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
38. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
39. #AIRBOX,COMPLETE USE 3107206017 POLAR WHITE MFR # 3105023018 Superseded: see description
40. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
41. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
43. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
44. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
46. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
47. #EXTENSION, DUCT MFR # 313606000
48. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
49. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
50. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
51. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
52. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
53. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
54. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
55. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description

Elec Kit W-t-stat 3104999002

Components

19 items

1. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
2. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
4. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
16. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
17. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
18. #COVER, JUNCTION BOX MFR # 3104967009
19. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002

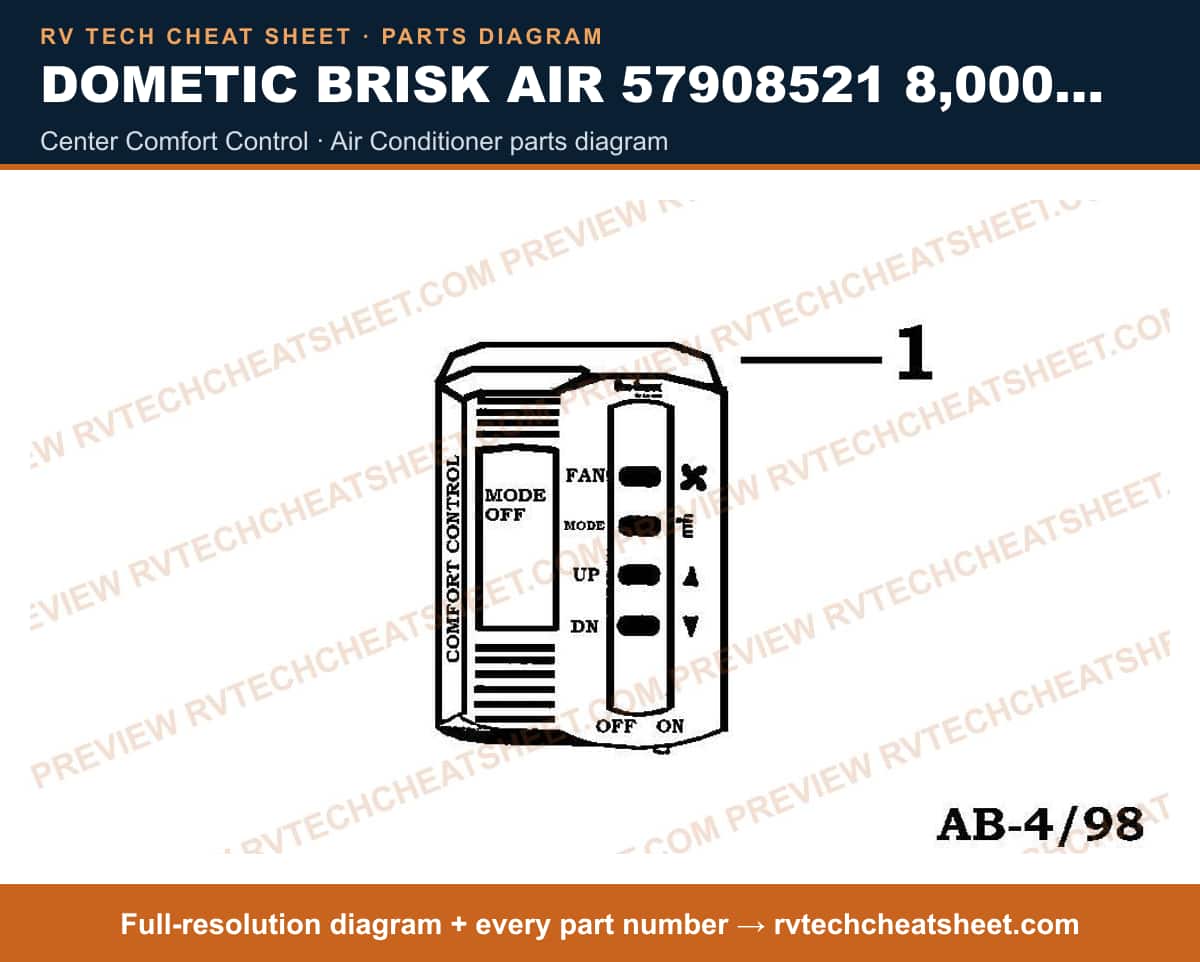

Center Comfort Control

Components

9 items

1. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
2. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
3. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
4. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
5. #Wall Thermostat; 5 Button; White MFR # 3109228001
6. #COMFORT CTRL MFR # 3106463007
7. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
8. #BOARD KIT CCC MFR # 3311557000
9. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000

Adb #3105023018 (manual)

Components

49 items

1. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
5. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
6. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
8. #SWITCH,ROTARY USE 20250 *N* MFR # 20250000 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
10. #BUSHING,SNAP-IN MFR # 301028040
11. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
12. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
13. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
14. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
15. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
16. #EXTENSION, DUCT MFR # 313606000
17. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
18. #FILTER RETURN AIR(UNIVER MFR # 3108015003
19. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
20. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
21. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
22. #ATTACHMENT TAPE GREY-EACH MFR # 06384
23. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
24. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
25. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
26. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
27. #PLUG, FEMALE MFR # 314471000
28. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
29. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
30. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
31. #WELDMENT, JUNCTION BOX MFR # 3104161017
32. #BOX,JUNCTION MFR # 3107220018
33. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
34. #BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description
35. #COVER, CONTROL BOX COMPLETE SHELL WHITE MFR # 308146
36. #BOX, CONTROL COMPLETE POLAR WHITE MFR # 3105027019
37. #BOX, CONTROL COMPLETE SHELL WHITE MFR # 3105027001
38. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
39. #AIRBOX,COMPLETE USE 3107206017 POLAR WHITE MFR # 3105023018 Superseded: see description
40. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
41. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
42. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
43. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
44. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
45. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
46. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
47. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
48. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
49. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description

Shroud & Main Components

Components

74 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #SHROUD,10" USE 3309517005 COLONIAL WHITE MFR # 3103139006 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
6. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
7. #SHROUD,POLAR WH USE 3309517005 MFR # 3103142000 Superseded: see description
8. #SHROUD 12' MFR # 3309518003
9. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
10. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud Asm Gray Use 33095 MFR # 3103143008 Superseded: see description
12. #SHROUD KIT CLOSED END SW MFR # 3309364028
13. #DECAL,SHROUD MFR # 3101380016
14. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
15. #DECAL,FIELD WIRING MFR # 3105052009
16. #COVER, CONDENSER COIL MFR # 309383000
17. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
18. #INSULATION,EVAPORATOR MFR # 317797001
19. #APPLIANCE COMPONENTS RV; Cover Evaporator MFR # 3102773003
20. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3102766015
21. #COMPRESSOR MFR # 3103150003
22. #COVER, TERMINAL MFR # 3102777004
23. #GASKET, TERMINAL MFR # 3102778002
24. #PROTECTOR OVERLOAD MFR # 3100250236
25. #NUT,FLANGE MFR # 306342005
26. #NUT USE 306342005 MFR # 318295 Superseded: see description
27. #COIL,EVAPORATOR MFR # 3102765009
28. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3102775016
29. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
30. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
31. #LINE,DISCHARGE MFR # 3102774019
32. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 3102779
33. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
34. #SERVICE KIT F/MOTOR MFR # 3310725001
35. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
36. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
37. #MOTOR KIT MFR # 3108706916
38. #MOTOR USE 3108700448 MFR # 3104432012 Superseded: see description
39. #MOTOR USE 3104432012 MFR # 3104110006 Superseded: see description
40. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
41. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
42. #PAN KIT,BASE 10" MFR # 3108700315
43. #GROMMETS, COMP., 3 REQ MFR # 3100238178
44. #BLOCKS, FOAM MFR # 3100587009
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
48. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
50. #HOUSING, BLOWER MFR # 3102782012
51. #INSULATION (3 PC. SET) MFR # 3103896001
52. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
53. #APPLIANCE COMPONENTS RV; Wheel Blower MFR # 3107779005
54. #WHEEL,BLOWER USE 3107779005 MFR # 3102780008 Superseded: see description
55. #BLOWER INLET RING MFR # 33692
56. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
57. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
58. #SLEEVING, FIBERGLASS MFR # 3100394208
59. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
60. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
62. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
63. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
64. #COVER CONT MFR # 38146
65. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
66. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
67. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
68. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
69. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
70. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
71. #BOX,ELECTRICAL MFR # 3100827066
72. #SLEEVE, COMPRESSOR (3 REQ.) MFR # 3100239155
73. #GROMMET, COMPRESSOR (3 REQ.) MFR # 3100238215
74. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002

Adb #3107210019

Components

32 items

1. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
2. #DECAL FIELD WIRING MFR # 3107764007
3. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001
4. #APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015
5. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3107188025
7. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
8. #SPACER, FIBER MFR # 3105677011
9. #SCREW (3 REQ.) MFR # 307987001
10. #APPLIANCE COMPONENTS RV; Parts Bag Asm Shell White MFR # 3107194007
11. #PLATE, ESCUTCHEON MFR # 3107217006
12. #APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033
13. #DECAL, FIELD WIRING MFR # 3106515004
14. #PLATE, RELAY KIT MFR # 3107575007
15. #TEMPLATE, CEILING (SW) MFR # 3107193009
16. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
17. #LOUVER ASM MFR # 3107189007
18. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
19. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
20. #SCREW 8-18 X .625 MFR # 312096004
21. #APPLIANCE COMPONENTS RV; Plug Hole Shell White MFR # 3104931005
22. #AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003
23. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
24. #FOAM TAPE (22.5" REQ.) SHELL WHITE MFR # 3107890
25. #APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013
26. #Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051
27. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
28. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
29. #ATTACHMENT TAPE GREY-EACH MFR # 06384
30. #FILTER RETURN AIR(UNIVER MFR # 3108015003
31. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
32. #FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description

Adb #3107210001

Components

32 items

1. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3107188025
2. #APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015
3. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
4. #SCREW (3 REQ.) MFR # 307987001
5. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001
6. #APPLIANCE COMPONENTS RV; Parts Bag Asm Shell White MFR # 3107194007
7. #DECAL FIELD WIRING MFR # 3107764007
8. #TEMPLATE, CEILING (SW) MFR # 3107193009
9. #DECAL, FIELD WIRING MFR # 3106515004
10. #PLATE, RELAY KIT MFR # 3107575007
11. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
12. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
13. #PLATE, ESCUTCHEON MFR # 3107217006
14. #APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033
15. #SPACER, FIBER MFR # 3105677011
16. #APPLIANCE COMPONENTS RV; Plug Hole Shell White MFR # 3104931005
17. #SCREW 8-18 X .625 MFR # 312096004
18. #AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003
19. #LOUVER ASM MFR # 3107189007
20. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
21. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
22. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
24. #FOAM TAPE (22.5" REQ.) SHELL WHITE MFR # 3107890
25. #Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051
26. #APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013
27. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
28. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
29. #FILTER RETURN AIR(UNIVER MFR # 3108015003
30. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
31. #ATTACHMENT TAPE GREY-EACH MFR # 06384
32. #FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description

Analog T-stat Kits

Components

19 items

1. #A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
4. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
5. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
6. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
7. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015
8. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
9. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
10. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
11. #null MFR # 3107546008
12. #BOARD KIT,RELAY(10)USE 46-4114 MFR # F7003 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Board Kit Relay MFR # 3106997020
14. #Air Conditioner Relay; Use With Dometic Duo-Therm Air Conditioner And Cool/ Furnace Thermostat MFR # 3106997004 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Board Control MFR # 3106997012
16. #BOARD,CONTROL(10) USE 46-4113 MFR # F7002 Superseded: see description
17. #BOARD KIT,RELAY USE 46-4112 HT/COOL (10) MFR # F7000 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
19. #APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002

Replacement Ducted A-c

Components

12 items

1. #BOARD KIT CCC MFR # 3311557000
2. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
5. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
6. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
7. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
8. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
9. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
10. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
11. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
12. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009

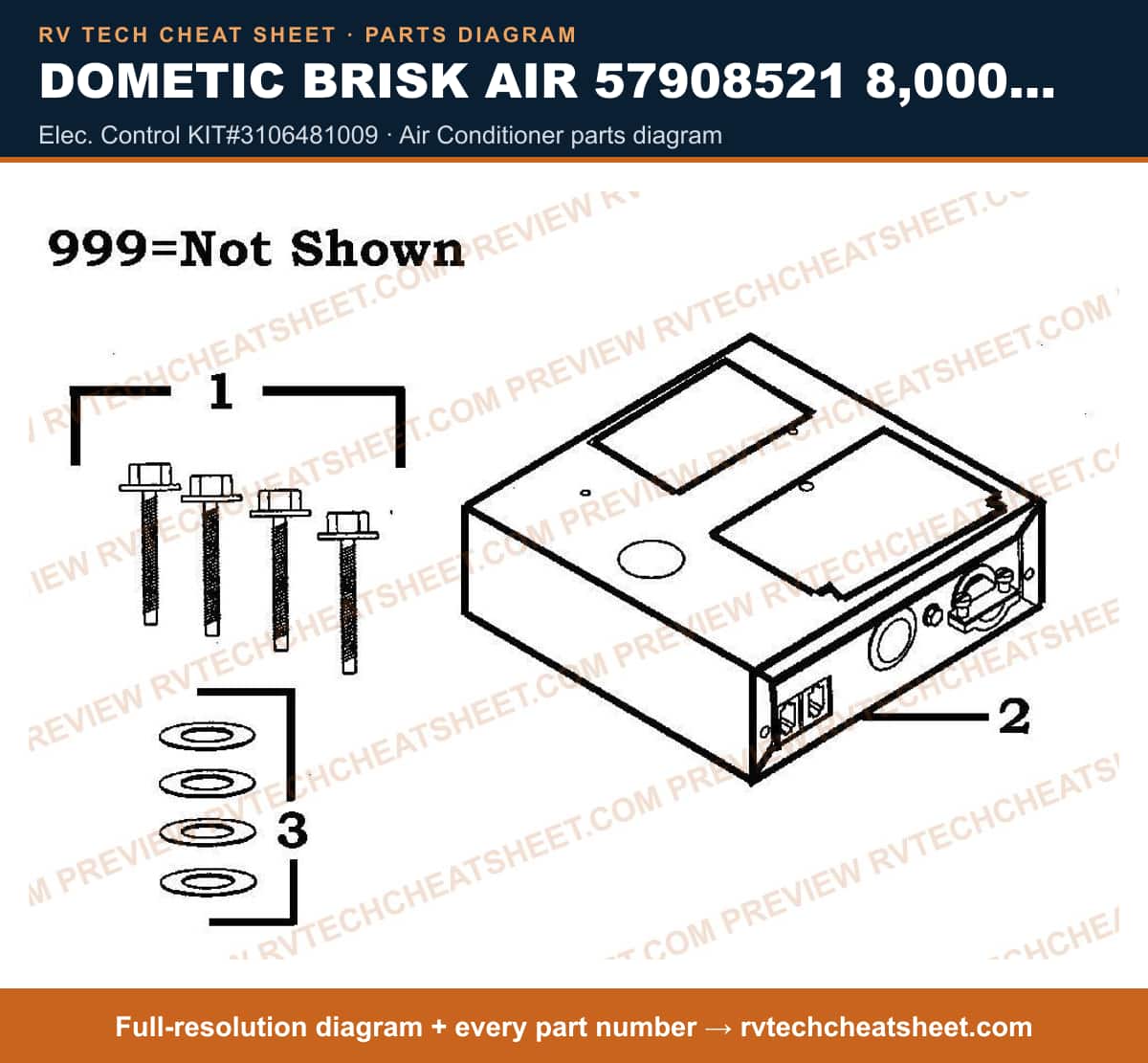

Elec. Control KIT#3106481009

Components

7 items

1. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
3. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
5. #ELECTRONIC KIT CCC MFR # 3109226005
6. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Washer Flat Steel .188X.6 MFR # 309513015

Heat Strip Kit

Components

9 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
4. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3-POLE MFR # 314470000
7. #APPLIANCE COMPONENTS RV; Guard Kit Heat MFR # 3101143000
8. #ELECTRIC BOX MFR # 3101125007
9. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012

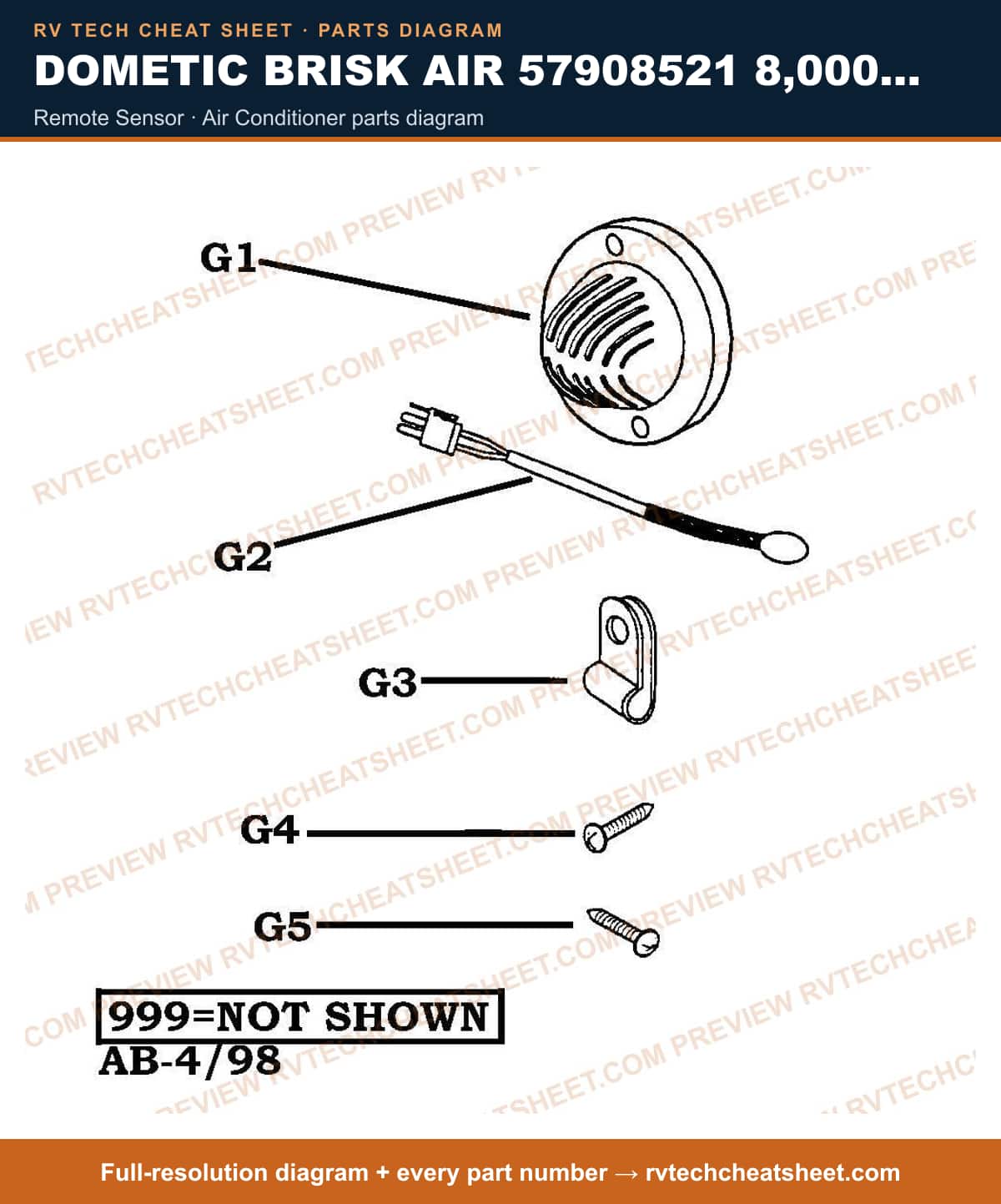

Remote Sensor

Components

8 items

1. #APPLIANCE COMPONENTS RV; Cap Svc Kit White MFR # 3313107064
2. #APPLIANCE COMPONENTS RV; Cap Sensor MFR # 3106488012
3. #SENSOR CAP, TAN MFR # 3313107065
4. #APPLIANCE COMPONENTS RV; KIT,SVC SENSOR CAP BLACK MFR # 3313107066
5. #SENSOR FOR 3106486008 MFR # 3106484004
6. #NYLOCLIP MFR # 304203001
7. #SCREW #4-24 X .62 (2 REQ.) MFR # 312096005
8. #SCREW #8-18 X .5 MFR # 312096014

Elec Kit W-t-stat 3104999010

Components

19 items

1. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
2. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
3. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
4. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
16. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
17. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
18. #COVER, JUNCTION BOX MFR # 3104967009
19. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002

Replacement Non-ducted A-c

Components

11 items

1. #AIR CONDITIONER USE 57908N SHELL WHITE 7100 BTU MFR # 57908521N Superseded: see description
2. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
3. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
4. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
5. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
6. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
7. #AIR CONDITIONER USE 57908CN POLAR WHITE BRISK AIR MFR # 57908521CN Superseded: see description
8. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
9. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
10. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
11. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
