Dometic Brisk Air 57912003 11,000 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 6 assemblies · 6 diagram sheets · 146 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912003 11,000 BTU rooftop air conditioner: 6 assemblies (Air Box Assembly, Replacement Non-ducted A-c, Replacement Ducted A-c, Optional Elec. Heat Kit, Shroud & Main Components and more) and 146 manufacturer part numbers. 56 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

23 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
3. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
9. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003
11. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
17. #RETAINER,RETURN AIR GRILLE MFR # 311675000
18. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
19. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
20. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
21. #BOLT PACKAGE MFR # 314870
22. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
23. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
2. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
3. #Wall Thermostat; 5 Button; White MFR # 3109228001
4. #COMFORT CTRL MFR # 3106463007
5. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
6. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
7. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
10. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
11. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
12. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description

Replacement Ducted A-c

Components

12 items

1. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
2. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
4. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
5. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
6. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
7. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
8. #BOARD KIT CCC MFR # 3311557000
9. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
10. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
11. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
12. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description

Optional Elec. Heat Kit

Components

7 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
5. #HARNESS,RVA HEAT STRIP MFR # 313590
6. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
7. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521

Shroud & Main Components

Components

68 items

1. #SHROUD 12' MFR # 3309518003
2. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
3. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
4. #SHROUD,BRISK USE 3103144006 MFR # 316404003 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #DECAL,SHROUD SUNCHASER ROTA RY MFR # 316512
9. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
10. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #COVER, CONDENSER COIL MFR # 309383000
13. #CONDENSER COIL BRACE MFR # 317556
14. #BULKHEAD,COND. USE 317923001 MFR # 317923 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
16. #COIL,CONDENSER USE 3103014001 MFR # 318504 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
18. #HOUSING,BLOWER MFR # 318012
19. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
20. #BULKHEAD,EVAPORATOR MFR # 317983
21. #COVER,EVAPORATOR 12" MFR # 314885
22. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
23. #INSULATION,EVAPORATOR MFR # 317797001
24. #COIL,EVAP USE 3108704523 579 12 MFR # 318505 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #FAN,COND DRAIN 579 MFR # 318008
27. #DRAIN TUBE RVA 578 579 MFR # 318202
28. #N/A BASE KIT (INCLUDES 15 & 16) MFR # 317097001
29. #ELECTRICAL BOX SUPPORT (3 REQUIRED) MFR # 318010
30. #RING,BLOWER INLET MFR # 39304
31. #A/C SEAL, 14 X 14 WHITE MFR # A101414
32. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
33. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
34. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
35. #GASKET, GREY, 14 X 14 MFR # 6759A3281
36. #ROOF A/C GASKET KIT MFR # 3310718006
37. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
38. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
39. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
40. #PROTECTOR,OVERLOAD MFR # 3100250020
41. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
42. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
43. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
47. #SUCTION LINE MFR # 318357
48. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
49. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
50. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
52. #TUBE,CAPILLARY USE 3100245203 MFR # 315752020 Superseded: see description
53. #BLADE,FAN USE 317937 MFR # 317938 Superseded: see description
54. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
55. #FAN BLADE MFR # 3313107015
56. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
57. #WHEEL,BLOWER MFR # 317959
58. #MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description
59. #TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285
60. #MOTOR KIT MFR # 3108706916
61. #MOTOR,FAN USE 20285 MFR # 318456 Superseded: see description
62. #SUPPORT,MOTOR MFR # 317795
63. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
64. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
65. #SERVICE KIT F/MOTOR MFR # 3310725001
66. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
67. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001

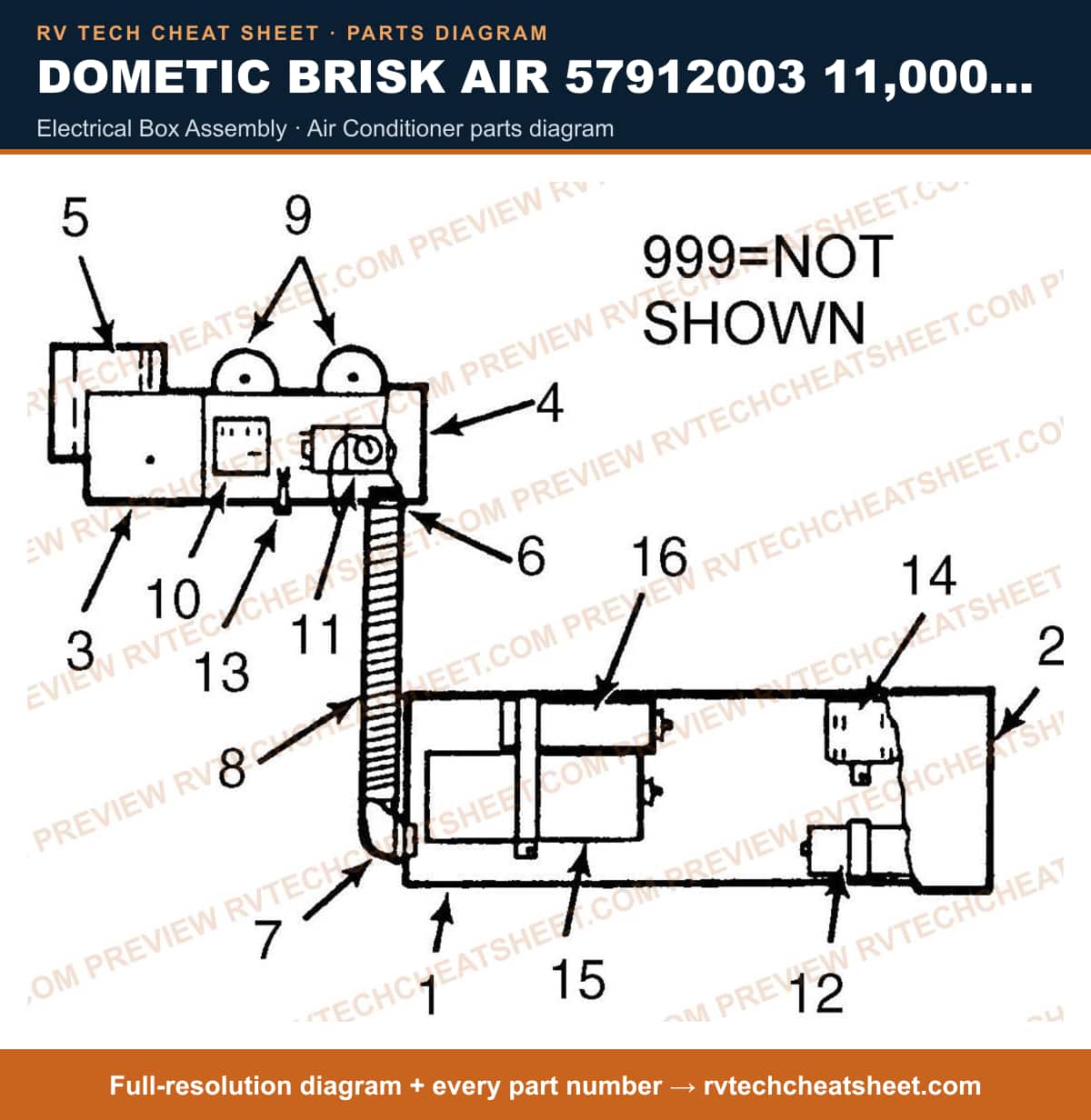

Electrical Box Assembly

Components

27 items

1. #ELECTRICAL BOX MFR # 318187001
2. #ELECTRICAL BOX COVER MFR # 39306
3. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
4. #COVER CONT MFR # 38146
5. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
7. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
8. #FLEX CONDUIT MFR # 3100394059
9. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
10. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
11. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
12. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
13. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
15. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
16. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
17. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
18. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
19. #CAPACITOR, START MFR # 47C
20. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
21. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
22. #RELAY,START USE 46-2266 MFR # 3100235229 Superseded: see description
23. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
25. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Capacitor Ma0010/17 5590 MFR # 3100248057
27. #CAPACITOR USE 3100248222 54815.047/.048 MFR # 315010013 Superseded: see description
