Dometic Brisk Air 57912007 11,000 BTU Parts Diagram · Replacement Non-ducted A-c

Air Conditioner · 6 assemblies · 6 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912007 11,000 BTU rooftop air conditioner: 6 assemblies (Replacement Non-ducted A-c, Opt. Heater Accessory Kit, Replacemetn Ducted A-c, Shroud & Main Components, Air Box Assembly and more) and 142 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Replacement Non-ducted A-c

Components

12 items

1. #COMFORT CTRL MFR # 3106463007
2. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
5. #Wall Thermostat; 5 Button; White MFR # 3109228001
6. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
7. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
8. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
11. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
12. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description

Opt. Heater Accessory Kit

Components

13 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #CONDUIT MFR # 3100394075
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #PARTS BAG 679508.403 MFR # 3101148009
12. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
13. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000

Replacemetn Ducted A-c

Components

12 items

1. #COMFORT CTRL MFR # 3106463007
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
4. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
5. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
6. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
7. #Wall Thermostat; 5 Button; White MFR # 3109228001
8. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
9. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
10. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
11. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
12. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009

Shroud & Main Components

Components

74 items

1. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
3. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
4. #SHROUD USE 3103144006 MODEL A MFR # 316404007 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #SHROUD 12' MFR # 3309518003
8. #SHROUD USE 3103144006 EGG SHELL MFR # 316404005 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
10. #PLATE SET,CLOSE OFF RVA RH & LH SEE 6 MFR # 317897002
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #COVER, CONDENSER COIL MFR # 309383000
13. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
14. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
15. #COIL,COND. USE 3103014001 MFR # 3100925001 Superseded: see description
16. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
17. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
19. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
20. #HOUSING,BLOWER MFR # 318012
21. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
22. #INSULATION MFR # 3100833007
23. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
24. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
25. #COVER,EVAPORATOR MFR # 314885001
26. #INSULATION,EVAPORATOR MFR # 317797001
27. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
28. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
31. #PAN,BASE USE 3100832041 MFR # 3100832025 Superseded: see description
32. #BASE PAN MFR # 3100832041
33. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
34. #RING,BLOWER INLET MFR # 39304
35. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
36. #ROOF A/C GASKET KIT MFR # 3310718006
37. #GASKET, GREY, 14 X 14 MFR # 6759A3281
38. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
39. #A/C SEAL, 14 X 14 WHITE MFR # A101414
40. #BLOCKS, FOAM MFR # 3100587009
41. #COMPRESSOR,ROTORX CAS1 10.007 & .009 MFR # 1316369
42. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
43. #PROTECTOR,OVERLOAD MFR # 3100250020
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
47. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
48. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
49. #DRIER,FILTER USE 3100862006 MFR # 3100826006 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
51. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
52. #FAN BLADE MFR # 3313107015
53. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
54. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
56. #MOTOR KIT MFR # 3108706916
57. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
58. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
59. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
60. #SUPPORT,MOTOR MFR # 317795
61. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
62. #SERVICE KIT F/MOTOR MFR # 3310725001
63. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
64. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
65. #DECAL, WIRING MFR # 3100915002
66. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
67. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
68. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
69. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
70. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
71. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
72. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
74. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description

Air Box Assembly

Components

20 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
12. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
13. #STUD,LATCH RETURN AIR MFR # 311673001
14. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
15. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
16. #RETAINER,RETURN AIR GRILLE MFR # 311675000
17. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
18. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
19. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
20. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

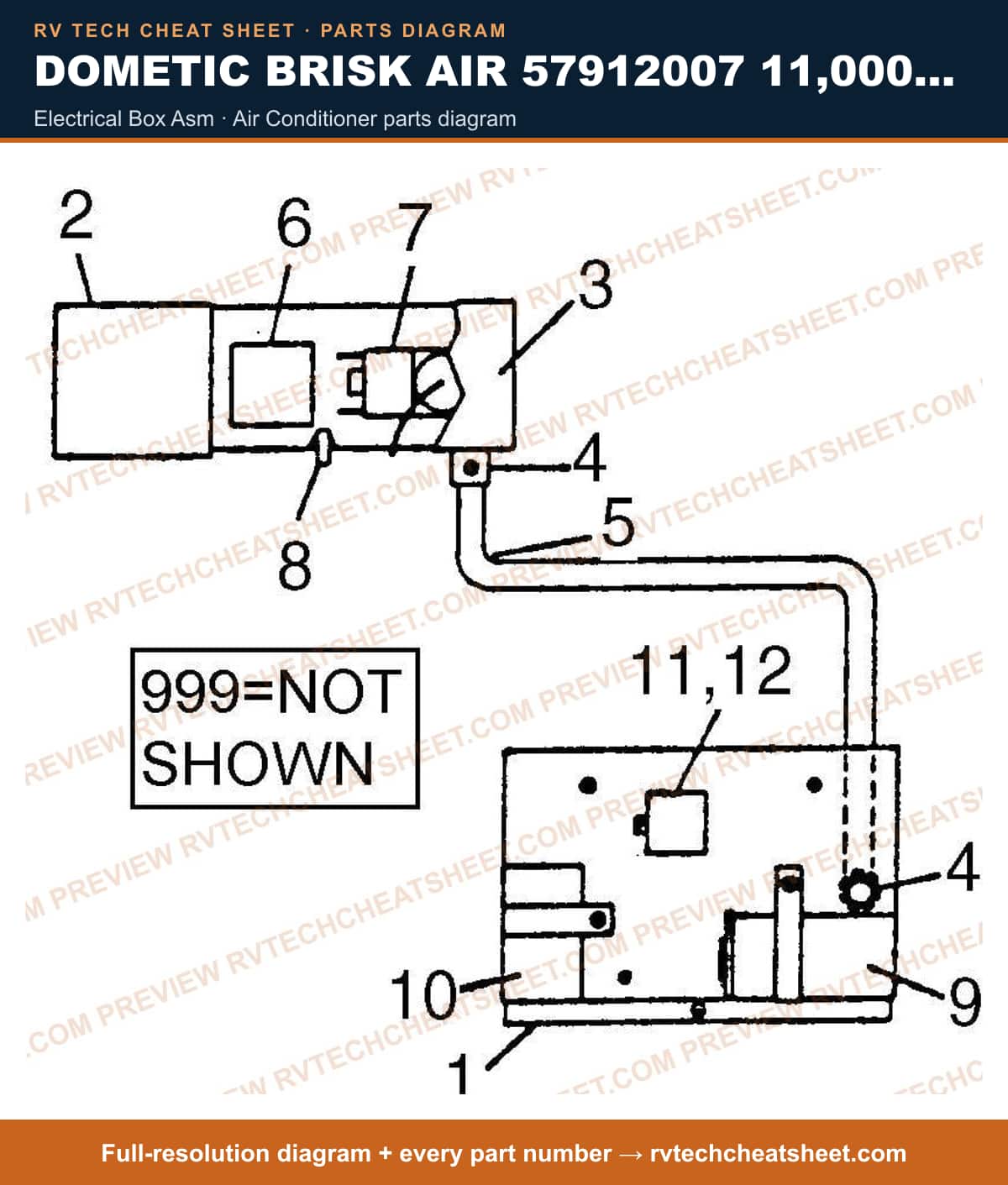

Electrical Box Asm

Components

25 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
6. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
7. #COVER CONT MFR # 38146
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONDUIT,FLEX 579 MFR # 3100838006
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
14. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
15. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
16. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
19. #CAPACITOR, START MFR # 47C
20. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
21. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
22. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
23. #RELAY, START USE 3310731009 PTCR MFR # 31008760006 Superseded: see description
24. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
25. #PTCR KIT MFR # 3310731009
