Dometic Brisk Air 57912009L 11,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 4 diagram sheets · 108 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912009L 11,000 BTU rooftop air conditioner: 4 assemblies (Shroud & Main Components, Replacement Ducted A-c, Air Box Assembly, Replacement Non-ducted A-c) and 108 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

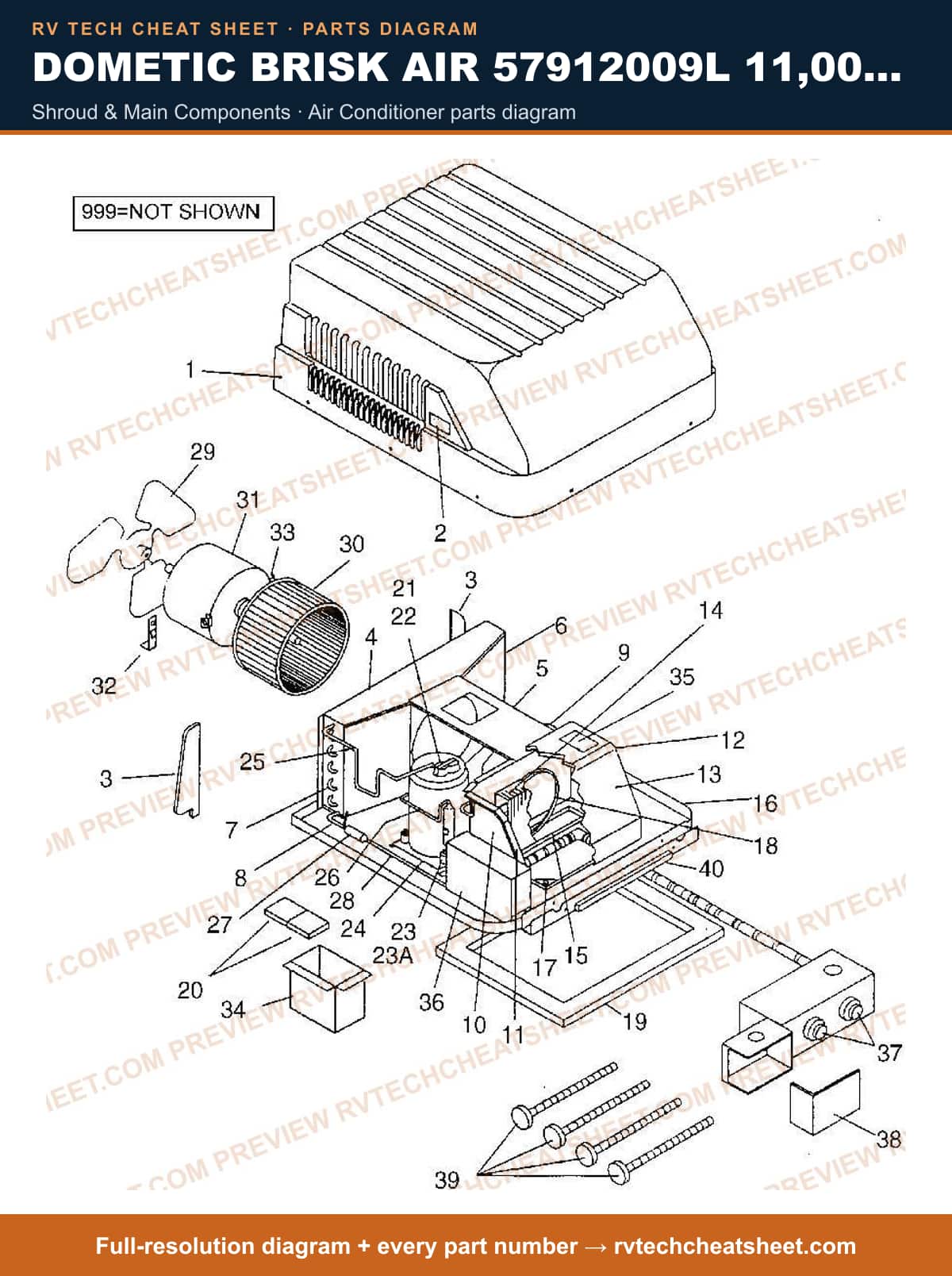

Shroud & Main Components

Components

76 items

1. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
2. #SHROUD KIT CLOSED END SW MFR # 3309364028
3. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
4. #SHROUD,WHT USE 3103147009 MFR # 3102293028 Superseded: see description
5. #SHROUD,12" USE 3103144006 MFR # 3102293010 Superseded: see description
6. #SHROUD 12' MFR # 3309518003
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #SHROUD USE 3103144006 MFR # 3102293002 Superseded: see description
9. #SHROUD GREY (BL) MFR # 3102293036
10. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
11. #DECAL,SHROUD MFR # 3101380016
12. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3101377004
14. #COVER, CONDENSER COIL MFR # 309383000
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
17. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
19. #COIL,COND. USE 3103014001 MFR # 3100925001 Superseded: see description
20. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
22. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
23. #HOUSING,BLOWER MFR # 318012
24. #INSULATION MFR # 3100833007
25. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
26. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
27. #COVER,EVAPORATOR MFR # 314885001
28. #INSULATION,EVAPORATOR MFR # 317797001
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
31. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
33. #PAN,BASE USE 3100832041 MFR # 3100832025 Superseded: see description
34. #BASE PAN MFR # 3100832041
35. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
36. #RING,BLOWER INLET MFR # 39304
37. #A/C SEAL, 14 X 14 WHITE MFR # A101414
38. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
39. #GASKET, GREY, 14 X 14 MFR # 6759A3281
40. #ROOF A/C GASKET KIT MFR # 3310718006
41. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
42. #BLOCKS, FOAM MFR # 3100587009
43. #COMPRESSOR ROTOREX (SER VICE) MFR # 316369
44. #COMPRESSOR,ROTORX CAS1 10.007 & .009 MFR # 1316369
45. #PROTECTOR,OVERLOAD MFR # 3100250020
46. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
47. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
49. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
50. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
51. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
52. #DRIER,FILTER USE 3100862006 MFR # 3100826006 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
54. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
55. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
56. #FAN BLADE MFR # 3313107015
57. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
58. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
59. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
60. #MOTOR KIT MFR # 3108706916
61. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
62. #SUPPORT,MOTOR MFR # 317795
63. #SERVICE KIT F/MOTOR MFR # 3310725001
64. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
66. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
67. #DECAL, WIRING MFR # 3100915002
68. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
69. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
71. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
72. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
73. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
74. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
75. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
76. #CHANNEL MFR # 3101379

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
2. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
3. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
8. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
9. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
10. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
11. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
12. #COMFORT CTRL MFR # 3106463007

Air Box Assembly

Components

20 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #ATTACHMENT TAPE GREY-EACH MFR # 06384
5. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
10. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
11. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
12. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
13. #STUD,LATCH RETURN AIR MFR # 311673001
14. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
15. #RETAINER,RETURN AIR GRILLE MFR # 311675000
16. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
17. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
18. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
19. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
20. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #COMFORT CTRL MFR # 3106463007
2. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
3. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
4. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
5. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
6. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
7. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #Wall Thermostat; 5 Button; White MFR # 3109228001
10. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
11. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
12. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
