Dometic Brisk Air 57912304 11,000 BTU Parts Diagram · Electrical Box Assembly

Air Conditioner · 6 assemblies · 6 diagram sheets · 135 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912304 11,000 BTU rooftop air conditioner: 6 assemblies (Electrical Box Assembly, Replacement Ducted A-c, Shroud & Main Components, Replacement Non-ducted A-c, Optional Heater Assy Kit and more) and 135 manufacturer part numbers. 51 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Electrical Box Assembly

Components

19 items

1. #ELECTRIC BOX MFR # 3104162007
2. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
3. #COVER CONT MFR # 38146
4. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
5. #SLEEVING, FIBERGLASS MFR # 3100394208
6. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
7. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
9. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
10. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
11. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
12. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
13. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
14. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
15. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
16. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
17. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
18. #PTCR KIT MFR # 3310731009
19. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
2. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
3. #Wall Thermostat; 5 Button; White MFR # 3109228001
4. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
5. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
6. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
7. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
8. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
9. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
10. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
11. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
12. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504

Shroud & Main Components

Components

67 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
4. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
5. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD KIT CLOSED END SW MFR # 3309364028
10. #SHROUD 12' MFR # 3309518003
11. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
12. #DECAL,SHROUD MFR # 3101380016
13. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #COVER, CONDENSER COIL MFR # 309383000
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790
20. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
21. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
22. #COIL,CONDENSER USE 3103014001 MFR # 3102962002 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
24. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
25. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
26. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
28. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
29. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
30. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
31. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
32. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
33. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SERVICE KIT F/MOTOR MFR # 3310725001
38. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
39. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
40. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
42. #BASE PAN MFR # 3100832041
43. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
44. #BLOCKS, FOAM MFR # 3100587009
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
50. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
51. #INSULATION MFR # 3100833007
52. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
53. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
58. #CONDUIT,FLEX 579 MFR # 3100838006
59. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
60. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
61. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
63. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
64. #COVER CONT MFR # 38146
65. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
66. #PAN KIT,BASE 12" MFR # 3108700323
67. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027

Replacement Non-ducted A-c

Components

11 items

1. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
2. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
3. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
4. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
6. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
7. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
8. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
9. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
10. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
11. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description

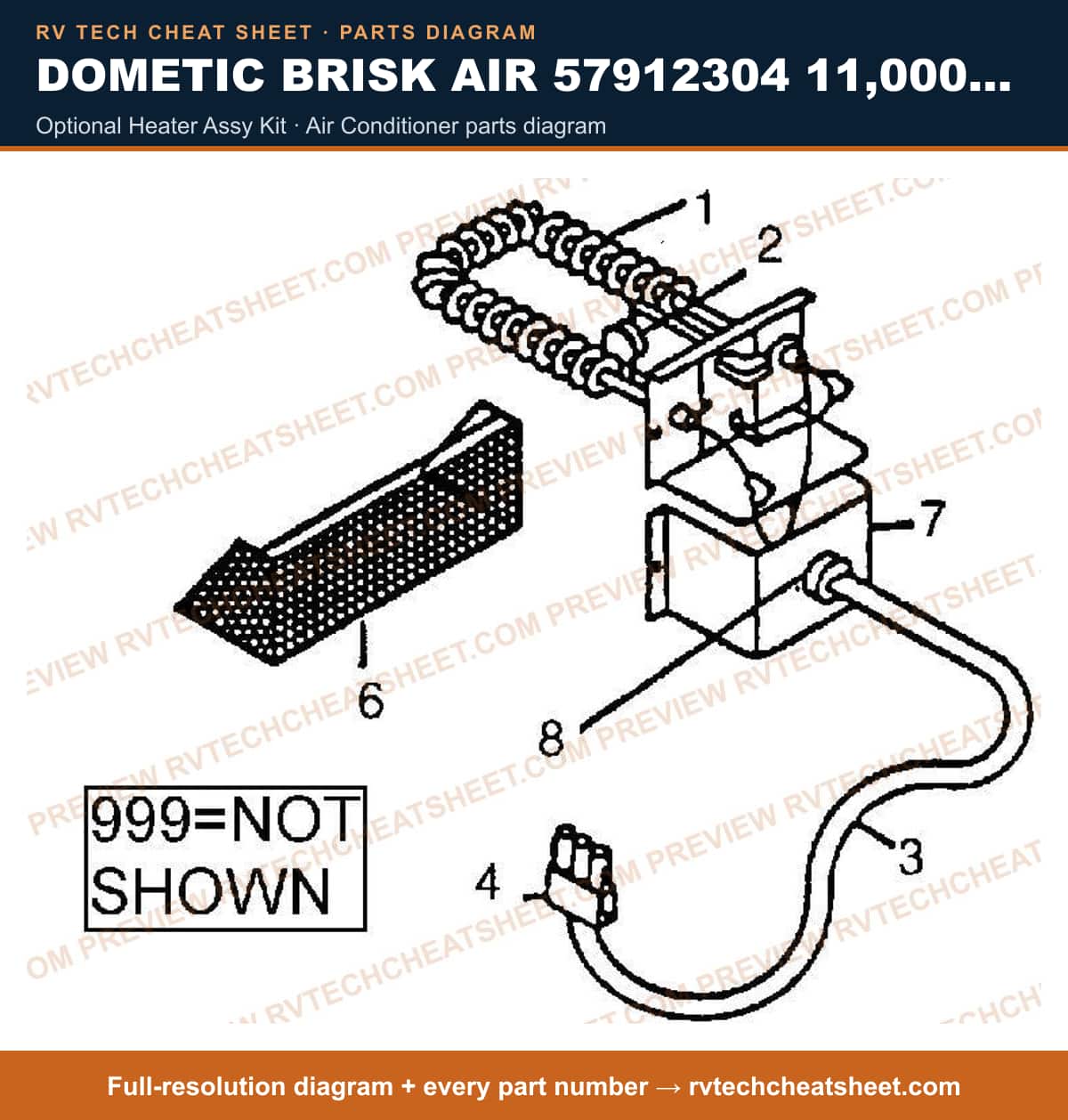

Optional Heater Assy Kit

Components

12 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
11. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
12. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description

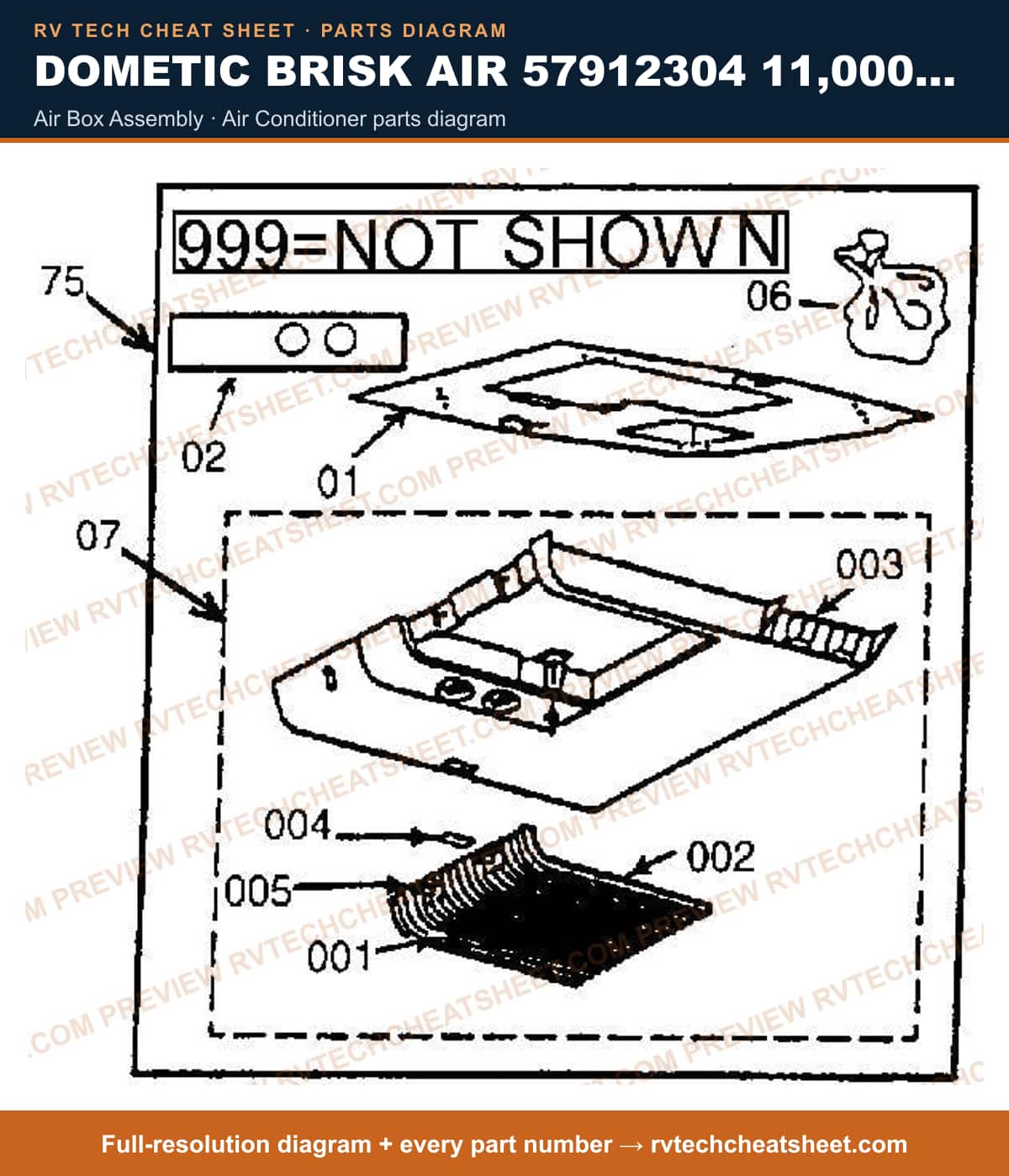

Air Box Assembly

Components

19 items

1. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
4. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
5. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER RETURN AIR(UNIVER MFR # 3108015003
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
16. #PARTS BAG 679508.403 MFR # 3101148009
17. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
19. #DUCT ADAPTER-LOWER MFR # 313605
