Dometic Brisk Air 57912321 11,000 BTU Parts Diagram · 3104999.002 Electronic Control

Air Conditioner · 12 assemblies · 12 diagram sheets · 173 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912321 11,000 BTU rooftop air conditioner: 12 assemblies (3104999.002 Electronic Control, 3104999.010 Electronic T-stat, Replacement Ducted A-c, 3104999.002 Electronic T-stat, 3104999.002 Electronic Cable and more) and 173 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

3104999.002 Electronic Control

Components

18 items

1. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
3. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
4. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
12. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
17. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
18. #COVER, JUNCTION BOX MFR # 3104967009

3104999.010 Electronic T-stat

Components

5 items

1. #T-STAT ASM MOD 57915.621 MFR # 3105375004
2. #COVER, THERMOSTAT MFR # 3103809038
3. #BOARD KIT MFR # 3108701339
4. #DECAL, T-STAT (CLG./ELEC. HEAT MFR # 3105379006
5. #APPLIANCE COMPONENTS RV; Decal T-Stat Electric H/C MFR # 3105380004

Replacement Ducted A-c

Components

11 items

1. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
2. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
3. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
4. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
5. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
6. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
7. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
9. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
10. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
11. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F

3104999.002 Electronic T-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER, THERMOSTAT MFR # 31083809020
3. #BOARD KIT MFR # 3108701339
4. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
5. #APPLIANCE COMPONENTS RV; Decal Selector Switch MFR # 3105318004
6. #T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description

3104999.002 Electronic Cable

Components

3 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036

3104999.010 Electronic Control

Components

16 items

1. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
2. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
3. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
4. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
12. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
13. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
15. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
16. #COVER, JUNCTION BOX MFR # 3104967009

3104998.004 Bi-metal Relay

Components

20 items

1. #BOX, RELAY MFR # 3104932003
2. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
3. #COVER,BOX RELAY USE 3104998004 MFR # 3104933001 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
5. #3104938000 MFR # 3104938000
6. #RELIEF, STRAIN MFR # 302994006
7. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3104991009
8. #BOX JUNCTION MFR # 3104934009
9. #STRAIN, RELIEF MFR # 302994001
10. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
11. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
14. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
15. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
16. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
17. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
18. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
20. #COVER, JUNCTION BOX MFR # 3104935006

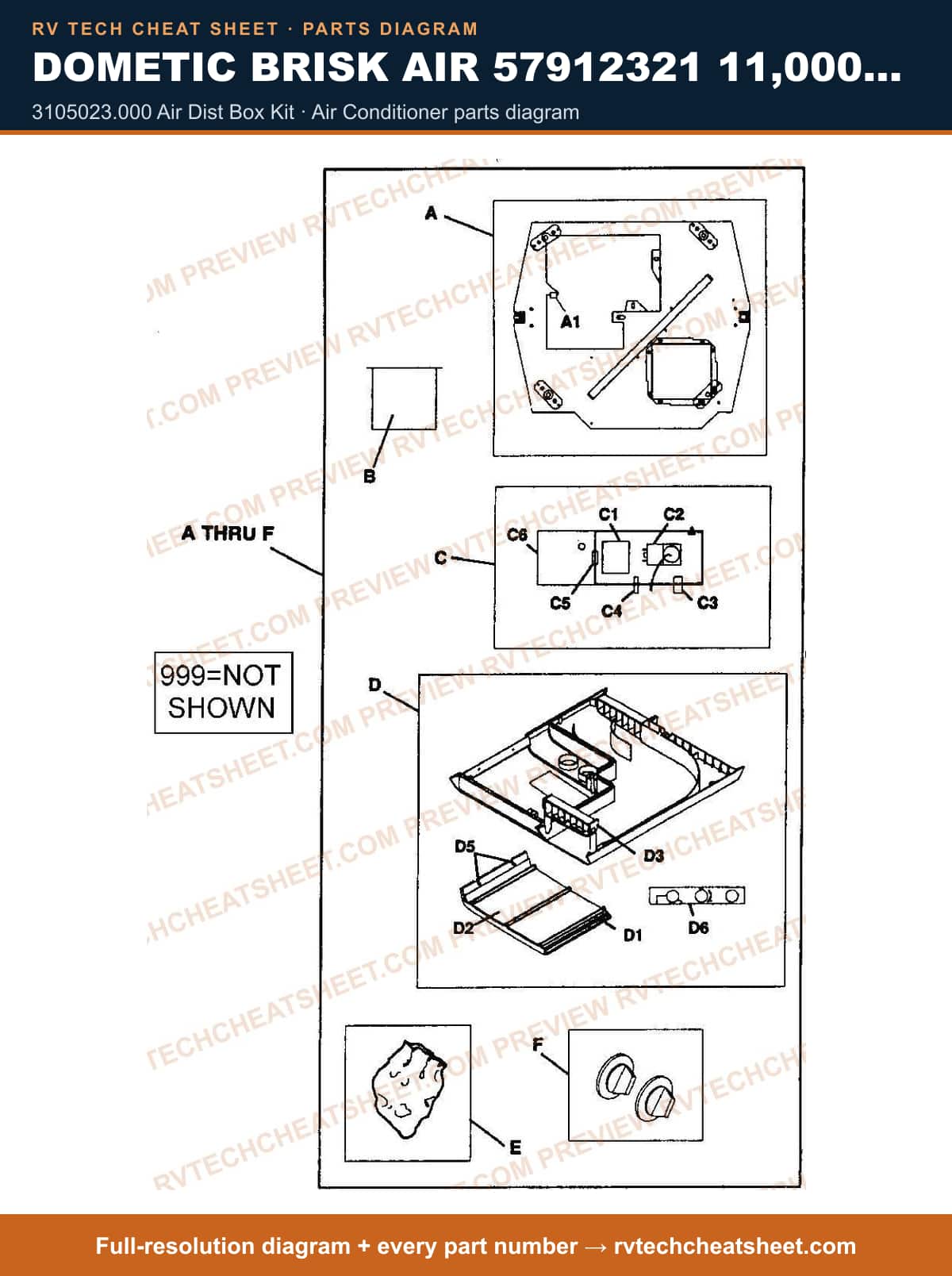

3105023.000 Air Dist Box Kit

Components

42 items

1. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
3. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
4. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
5. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
6. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003
11. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
12. #ATTACHMENT TAPE GREY-EACH MFR # 06384
13. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
14. #KIT SVC AIR FILTER MFR # 3313107103
15. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
16. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
17. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
18. #LOUVER ASM 2REQUIRED MFR # 310138
19. #PLUG, FEMALE MFR # 314471000
20. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
21. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
22. #WELDMENT,JUNCTION BOX MFR # 3104161007
23. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
24. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
25. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
26. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
27. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
28. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
29. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
30. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
31. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
32. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
33. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
34. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
35. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
37. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
38. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
39. #EXTENSION, DUCT MFR # 313606000
40. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
42. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002

3105023.000 Heat Kit-air Dist

Components

9 items

1. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #SLEEVING MFR # 3100394083
4. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
5. #GUARD, HEAT MFR # 3101143
6. #ELECTRIC BOX MFR # 3101125007
7. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
8. #HEAT STRIP,NON-DUCTED MFR # 3101121030
9. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description

Replacement Non-ducted A-c

Components

11 items

1. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
2. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
7. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
8. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
9. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
10. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
11. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description

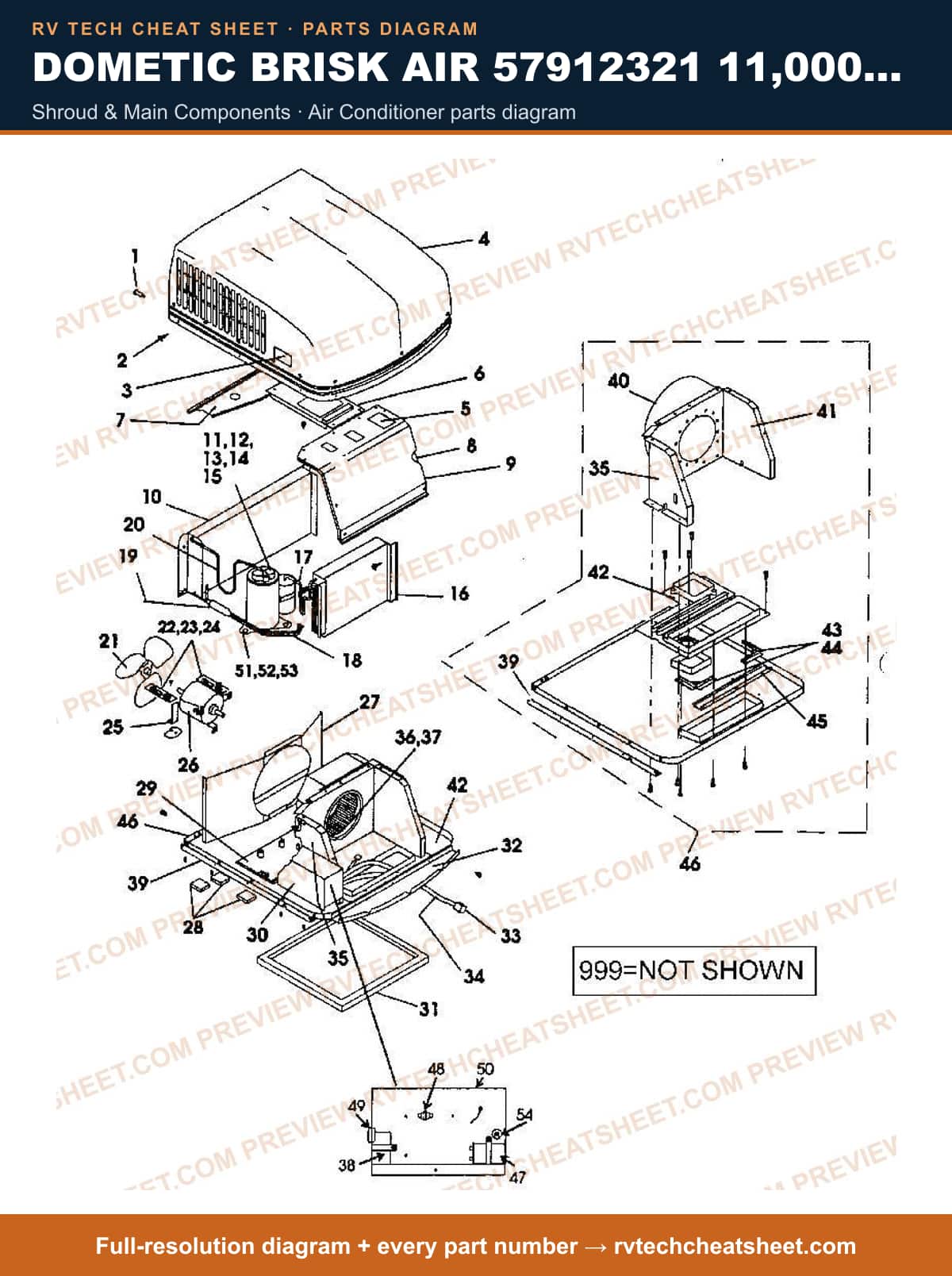

Shroud & Main Components

Components

77 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
3. #DECAL,SHROUD MFR # 3101380016
4. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
7. #SHROUD 12' MFR # 3309518003
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
10. #DECAL,FIELD WIRING MFR # 3105052009
11. #COVER, CONDENSER COIL MFR # 309383000
12. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
13. #INSULATION,EVAPORATOR MFR # 317797001
14. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
16. #SERVICE KIT,COMPRESSOR MFR # 3102618000
17. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
18. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
19. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
20. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
21. #COMPRESSOR MFR # 3103150003
22. #PROTECTOR OVERLOAD MFR # 3100250236
23. #NUT,FLANGE MFR # 306342005
24. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
25. #COIL,EVAP USE 3100818024 MFR # 3100818016 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
27. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
28. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
29. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
30. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
31. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
32. #FAN BLADE MFR # 3313107015
33. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
34. #SERVICE KIT F/MOTOR MFR # 3310725001
35. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
36. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
37. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
38. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
39. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR KIT MFR # 3108706916
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BLOCKS, FOAM MFR # 3100587009
44. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
46. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
48. #ROOF A/C GASKET KIT MFR # 3310718006
49. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
50. #A/C SEAL, 14 X 14 WHITE MFR # A101414
51. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
54. #PLUG,CONNECTION MFR # 314470001
55. #SLEEVING,WIRE MFR # 318087003
56. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
57. #BLOWER INLET RING MFR # 309304
58. #WHEEL BLOWER MFR # 3313107033
59. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
61. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
62. #PAN KIT,BASE 12" MFR # 3108700323
63. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
64. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
65. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
66. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
67. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
68. #BOX,ELECTRICAL MFR # 3100827066
69. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
70. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
71. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
72. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
73. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
74. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
75. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
76. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
77. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description

3104999.010 Electronic Cable

Components

3 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
