Dometic Brisk Air 57912404 11,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 6 assemblies · 6 diagram sheets · 131 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912404 11,000 BTU rooftop air conditioner: 6 assemblies (Shroud & Main Components, Replacement Ducted A-c, Replacement Non-ducted A-c, Electrical Box Assembly, Optional Heater Assy Kit and more) and 131 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

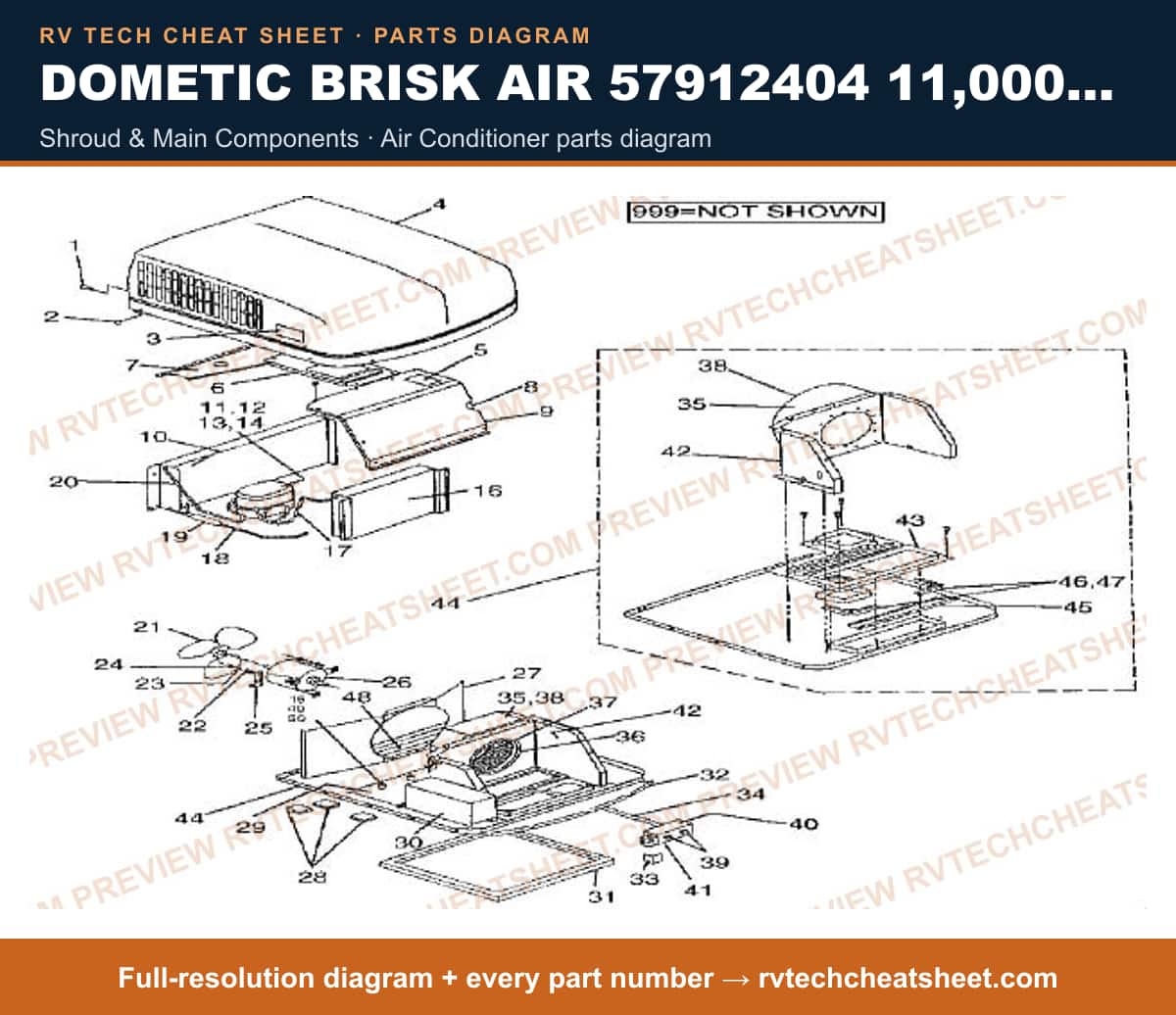

Shroud & Main Components

Components

74 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
9. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
10. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
11. #SHROUD 12' MFR # 3309518003
12. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
13. #SHROUD KIT CLOSED END SW MFR # 3309364028
14. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
15. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
16. #DECAL, FIELD WIRING MFR # 3104163005
17. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
18. #COVER, CONDENSER COIL MFR # 309383000
19. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
20. #INSULATION,EVAPORATOR MFR # 317797001
21. #COVER,EVAPORATOR MFR # 314885001
22. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
23. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
25. #COIL,CONDENSER USE 3103014001 MFR # 3102962002 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
27. #COVER, TERMINAL MFR # 3102806001
28. #GASKET, COVER MFR # 3102805003
29. #SWITCH,OVERLOAD MFR # 3100250244
30. #NUT,FLANGE MFR # 306342005
31. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
34. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3104105006
36. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
37. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
38. #LINE, DISCHARGE MFR # 3104106004
39. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
40. #FAN BLADE MFR # 3313107015
41. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
42. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
43. #SERVICE KIT F/MOTOR MFR # 3310725001
44. #SPACER USE 308046002 MFR # 38046 Superseded: see description
45. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
46. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
47. #BASE PAN MFR # 3100832041
48. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
49. #BLOCKS, FOAM MFR # 3100587009
50. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
51. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
53. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
54. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
55. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
56. #INSULATION MFR # 3100833007
57. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
58. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
60. #RING,BLOWER INLET MFR # 39304
61. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
62. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
63. #CONDUIT,FLEX 579 MFR # 3100838006
64. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
65. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
68. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
69. #COVER CONT MFR # 38146
70. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
71. #PAN KIT,BASE 12" MFR # 3108700323
72. #NUT WITH CLIP, MOUNTING (3 REQ.) MFR # 3100380019
73. #GROMMET 3REQUIRED MFR # 3102324005
74. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
2. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
3. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
4. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912CN Superseded: see description
5. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
6. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
7. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
8. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
9. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
10. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
11. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
12. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512

Replacement Non-ducted A-c

Components

12 items

1. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
2. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
3. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
4. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
5. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
6. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
7. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
8. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
9. #COMFORT CTRL MFR # 3106463007
10. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
11. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912CN Superseded: see description
12. #Wall Thermostat; 5 Button; White MFR # 3109228001

Electrical Box Assembly

Components

19 items

1. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
2. #BOX,ELECTRICAL MFR # 3100827066
3. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
4. #COVER, ELECTRIC BOX MFR # 3100828
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
9. #null MFR # DMT3313107025
10. #APPLIANCE COMPONENTS RV;;Switch Rotary Use 3106077 MFR # D7E20250 Superseded: see description
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
13. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
14. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
15. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
16. #PTCR KIT MFR # 3310731009
17. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
18. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
19. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Optional Heater Assy Kit

Components

9 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Air Box Assembly

Components

7 items

1. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
2. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
3. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
4. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
5. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
6. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
7. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
