Dometic Brisk Air 57912601 11,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 6 assemblies · 6 diagram sheets · 148 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912601 11,000 BTU rooftop air conditioner: 6 assemblies (Shroud & Main Components, Replacement Ducted A-c, Electrical Box Assembly, Optional Heater Accessory Kit, Replacement Non-ducted A-c and more) and 148 manufacturer part numbers. 54 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

80 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #DECAL,SHROUD MFR # 3101380016
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
7. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
8. #SHROUD KIT CLOSED END SW MFR # 3309364028
9. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
10. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
12. #SHROUD 12' MFR # 3309518003
13. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
14. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
15. #COVER, CONDENSER COIL MFR # 309383000
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
18. #INSULATION,EVAPORATOR MFR # 317797001
19. #COVER,EVAPORATOR MFR # 314885001
20. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790
21. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
23. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250285
25. #COMPRESSOR USE 3103830026 57915.601 MFR # 3104116003 Superseded: see description
26. #GASKET,COVER MFR # 3103800003
27. #COMPRESSOR ASM MFR # 3103830026
28. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
29. #NUT, FLANGE MFR # 36342004
30. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
33. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
34. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
35. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
36. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
37. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
38. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
39. #FAN BLADE MFR # 3313107015
40. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
41. #SERVICE KIT F/MOTOR MFR # 3310725001
42. #SUPPORT, MOTOR MFR # 317795002
43. #MOTOR KIT MFR # 3108706916
44. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
45. #MOTOR,BLOWER USE 3108700448 MFR # 3103644005 Superseded: see description
46. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
48. #BASE PAN MFR # 3100832041
49. #GROMMET MFR # 3100238207
50. #BLOCKS, FOAM MFR # 3100587009
51. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
52. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
54. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
55. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
57. #INSULATION MFR # 3100833007
58. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
60. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
61. #RING,BLOWER INLET MFR # 39304
62. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
63. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
65. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
66. #CONDUIT,FLEX 579 MFR # 3100838006
67. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
69. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
70. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
71. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
72. #COVER CONT MFR # 38146
73. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
74. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
75. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
76. #GASKET, GREY, 14 X 14 MFR # 6759A3281
77. #ROOF A/C GASKET KIT MFR # 3310718006
78. #A/C SEAL, 14 X 14 WHITE MFR # A101414
79. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
80. #BRACE, FRONT MFR # 3103901009

Replacement Ducted A-c

Components

12 items

1. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
2. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
3. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
4. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
5. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
6. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
7. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
8. #Wall Thermostat; 5 Button; White MFR # 3109228001
9. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
10. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
11. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
12. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001

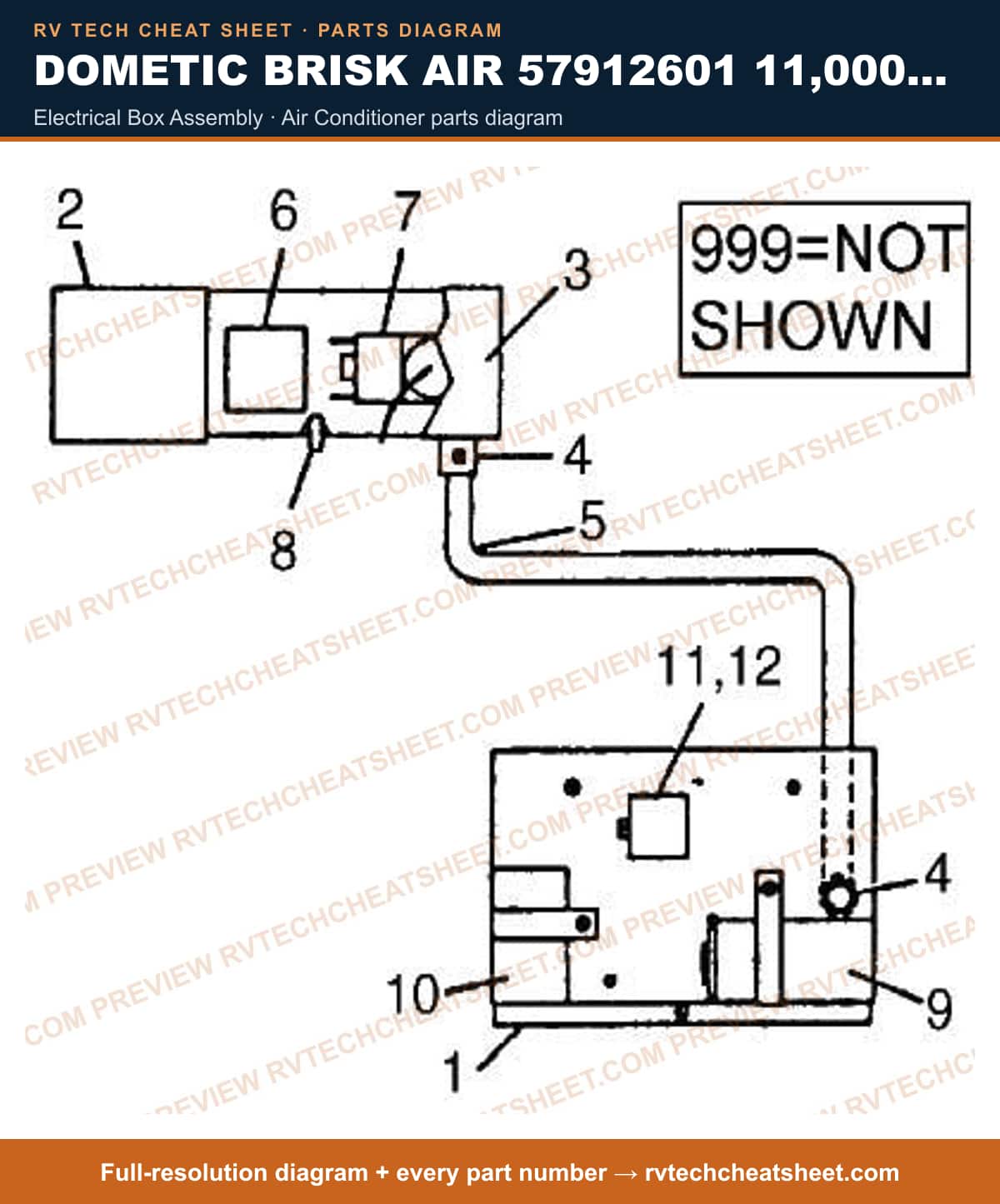

Electrical Box Assembly

Components

18 items

1. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
2. #BOX,ELECTRICAL MFR # 3100827066
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
5. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
6. #COVER CONT MFR # 38146
7. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
8. #CONDUIT,FLEX 579 MFR # 3100838006
9. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
10. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
11. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
12. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
13. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
14. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
15. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
16. #PTCR KIT MFR # 3310731009
17. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
18. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D

Optional Heater Accessory Kit

Components

8 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 310112300
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Replacement Non-ducted A-c

Components

12 items

1. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
2. #Wall Thermostat; 5 Button; White MFR # 3109228001
3. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
4. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
5. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
11. #COMFORT CTRL MFR # 3106463007
12. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000

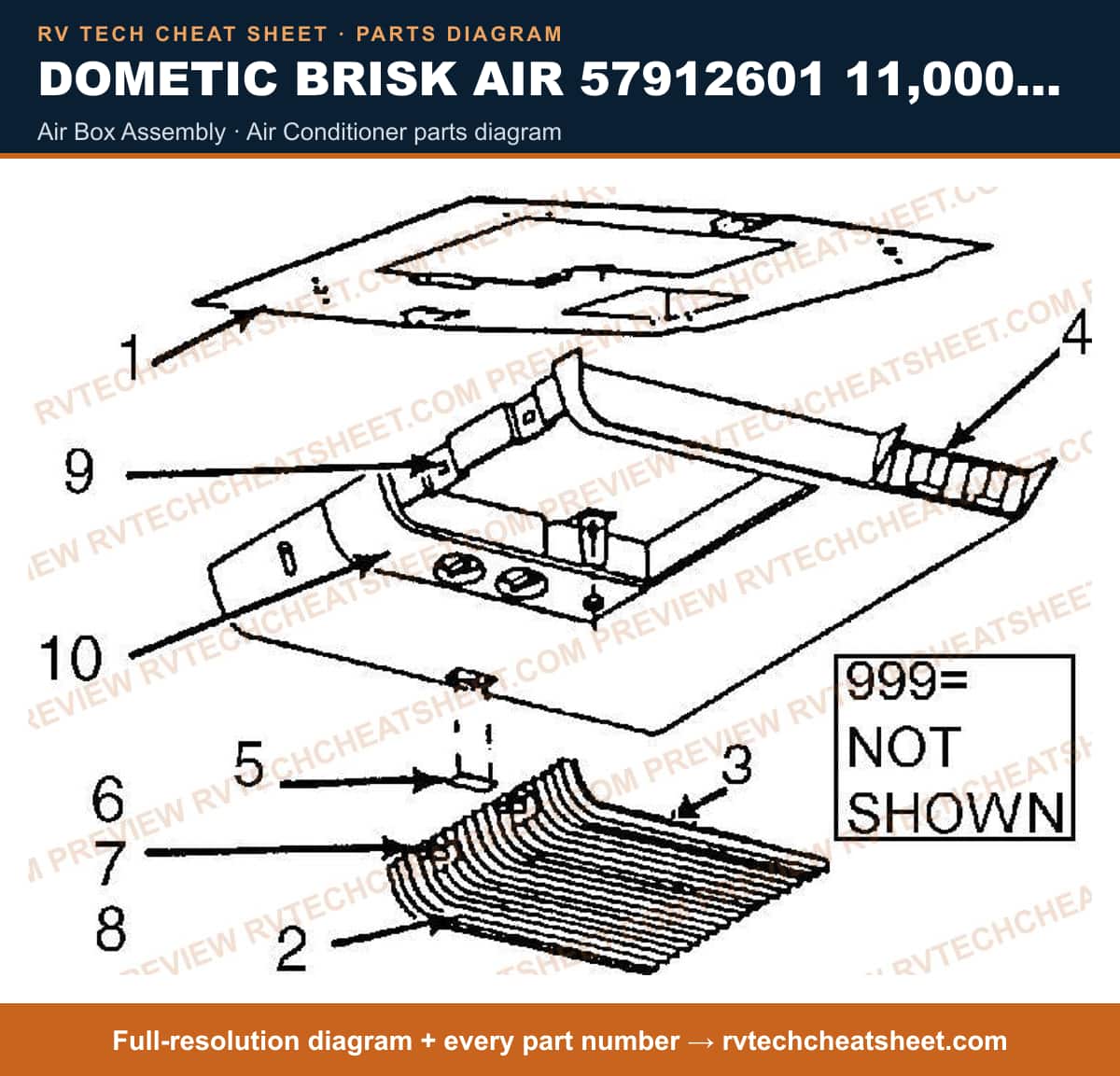

Air Box Assembly

Components

26 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #KIT SVC AIR FILTER MFR # 3313107103
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #ATTACHMENT TAPE GREY-EACH MFR # 06384
12. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
13. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
14. #STUD,LATCH RETURN AIR MFR # 311673001
15. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
16. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
17. #RETAINER,RETURN AIR GRILLE MFR # 311675000
18. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
19. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
20. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
21. #PARTS BAG 679508.403 MFR # 3101148009
22. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
23. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
24. #APPLIANCE COMPONENTS RV; BOLT KIT FOR 6" - 9" ROOF MFR # 3101538001
25. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
26. #AIRBOX USE 3104085 MFR # 316699012 Superseded: see description
