Dometic Brisk Air 57912602 11,000 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 6 assemblies · 6 diagram sheets · 148 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57912602 11,000 BTU rooftop air conditioner: 6 assemblies (Air Box Assembly, Replacement Non-ducted A-c, Shroud & Main Components, Electrical Box Assembly, Optional Heater Accessory Kit and more) and 148 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

21 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #ATTACHMENT TAPE GREY-EACH MFR # 06384
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
13. #LOUVER ASM 2REQUIRED MFR # 310138
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
16. #PARTS BAG 679508.403 MFR # 3101148009
17. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
18. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
19. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
20. #DUCT ADAPTER-LOWER MFR # 313605
21. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000

Replacement Non-ducted A-c

Components

12 items

1. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
2. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
5. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
6. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
7. #Wall Thermostat; 5 Button; White MFR # 3109228001
8. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
9. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
10. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
11. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
12. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F

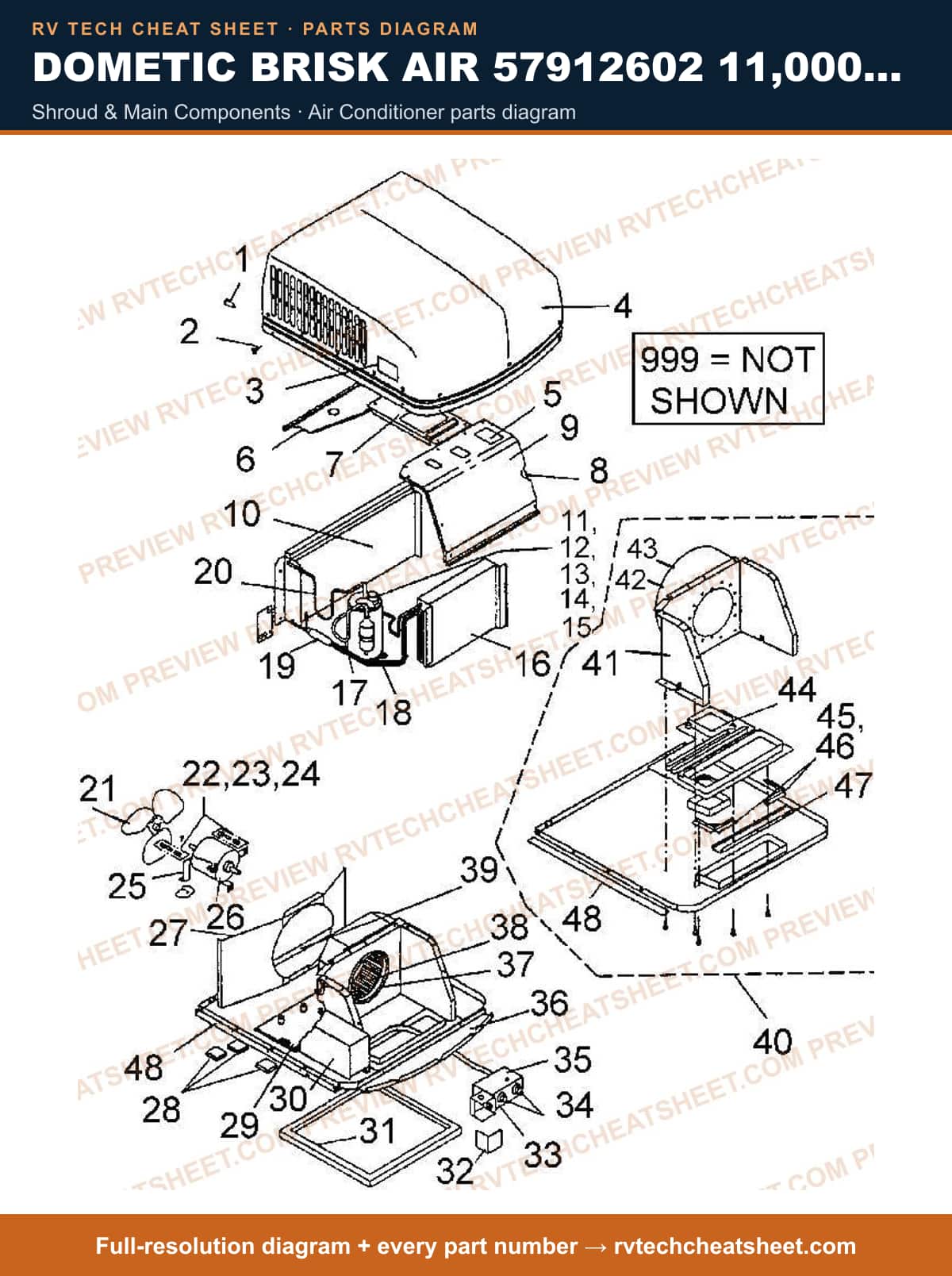

Shroud & Main Components

Components

80 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD 12' MFR # 3309518003
8. #SHROUD KIT CLOSED END SW MFR # 3309364028
9. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
10. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
12. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3104163005
14. #COVER, CONDENSER COIL MFR # 309383000
15. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #COIL,CONDENSER USE 3103014001 MFR # 3100925019 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
21. #COIL, CONDENSER USE 3100925019 MFR # 3100925027 Superseded: see description
22. #COMPRESSOR ASM MFR # 3103830026
23. #COMPRESSOR USE 3103830026 57915.601 MFR # 3104116003 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250285
25. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
26. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
27. #GASKET,COVER MFR # 3103800003
28. #NUT, FLANGE MFR # 36342004
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
31. #COIL,EVAP. USE 3100818024 MFR # 3100924004 Superseded: see description
32. #LINE, SUCTION MFR # 3104236009
33. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
34. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
35. #LINE, DISCHARGE MFR # 3103825000
36. #FAN BLADE MFR # 3313107015
37. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
38. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #SERVICE KIT F/MOTOR MFR # 3310725001
41. #SPACER USE 308046002 MFR # 38046 Superseded: see description
42. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
43. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
44. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
45. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
46. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
47. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
48. #MOTOR KIT MFR # 3108706916
49. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
50. #BLOCKS, FOAM MFR # 3100587009
51. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
53. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
54. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
56. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
57. #A/C SEAL, 14 X 14 WHITE MFR # A101414
58. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
59. #GASKET, GREY, 14 X 14 MFR # 6759A3281
60. #ROOF A/C GASKET KIT MFR # 3310718006
61. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
62. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
63. #COVER CONT MFR # 38146
64. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
65. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
69. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
70. #BLOWER INLET RING MFR # 33692
71. #WHEEL,BLOWER USE 3107779005 MFR # 3102780008 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Wheel Blower MFR # 3107779005
73. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
74. #PAN KIT,BASE 12" MFR # 3108700323
75. #BULKHEAD, EVAPORATOR MFR # 3100831068
76. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
77. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
78. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
79. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
80. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027

Electrical Box Assembly

Components

19 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #COVER, ELECTRIC BOX MFR # 3100828
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
9. #APPLIANCE COMPONENTS RV;;Switch Rotary Use 3106077 MFR # D7E20250 Superseded: see description
10. #null MFR # DMT3313107025
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
13. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
14. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
15. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
16. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
17. #PTCR KIT MFR # 3310731009
18. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
19. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Optional Heater Accessory Kit

Components

8 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 310112300
5. #SLEEVING MFR # 3100394083
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Replacement Ducted A-c

Components

12 items

1. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
3. #COMFORT CTRL MFR # 3106463007
4. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
5. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
6. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
7. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
8. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
9. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
10. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
11. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
12. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
