Dometic Brisk Air 57915001 13,500 BTU Parts Diagram · Replacement Non-ducted A-c

Air Conditioner · 6 assemblies · 6 diagram sheets · 156 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915001 13,500 BTU rooftop air conditioner: 6 assemblies (Replacement Non-ducted A-c, Electrical Box Assembly, Air Box Assembly, Shroud & Main Components, Optional Electric Heat Kit and more) and 156 manufacturer part numbers. 60 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

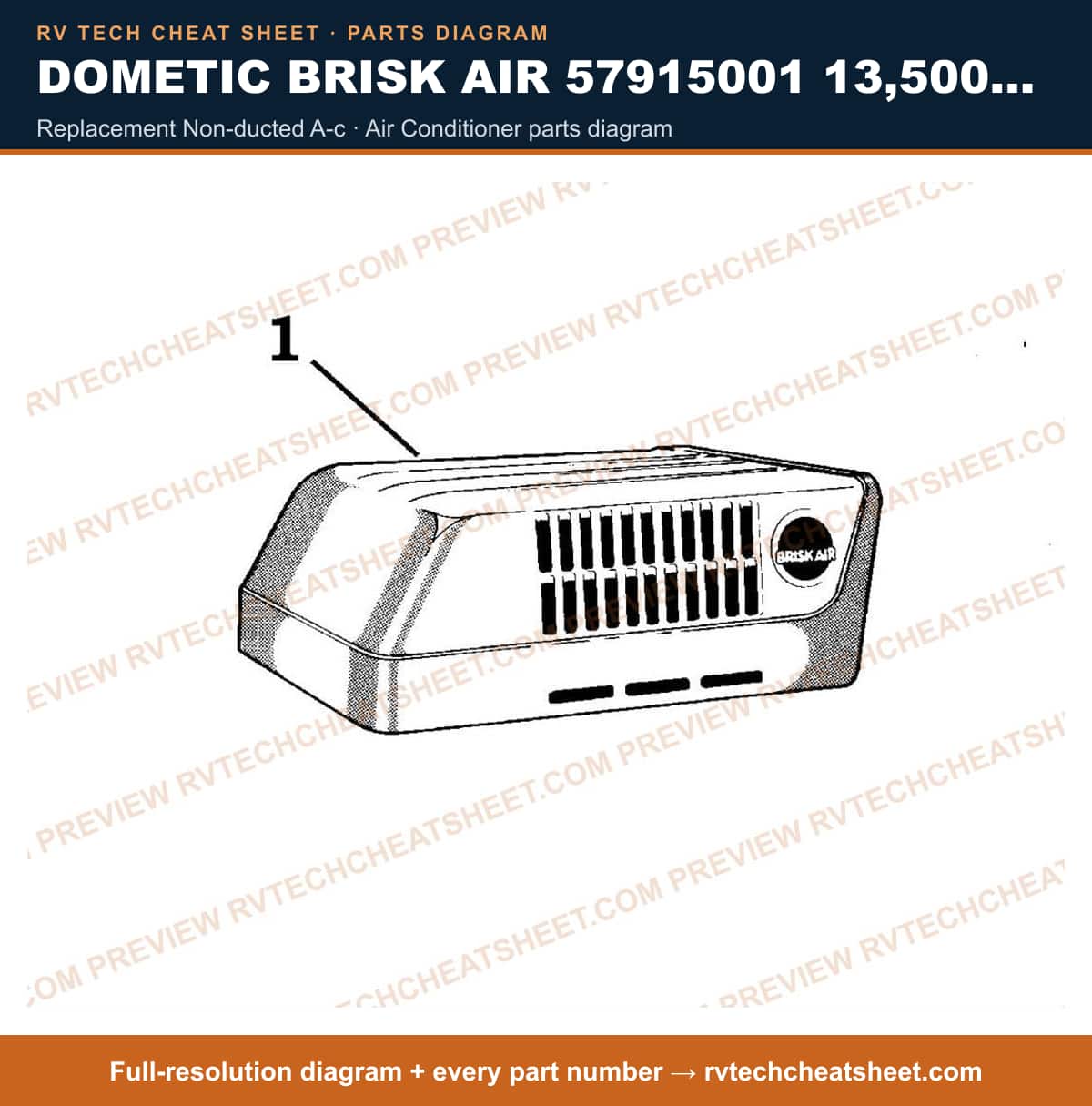

Replacement Non-ducted A-c

Components

12 items

1. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
2. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
3. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
8. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
9. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
10. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
11. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
12. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912CN Superseded: see description

Electrical Box Assembly

Components

32 items

1. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
2. #ELECTRICAL BOX COVER MFR # 39306
3. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
4. #COVER CONT MFR # 38146
5. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
7. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
8. #CONNECTOR,CONDUIT 90 DEG MFR # 3100249022
9. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
11. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
12. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
13. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
15. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
16. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
17. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
18. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
19. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
20. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
21. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
22. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
23. #CAPACITOR USE 3100248206 MFR # 316615020 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100248206 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
26. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
27. #CAPACITOR, START MFR # 47C
28. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
29. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
30. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
31. #RELAY,TIME DELAY 532- 546 MFR # 310456
32. #WIRE SET, WITH PLUG (FOR HEAT STRIP) MFR # 1313082011

Air Box Assembly

Components

24 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 310801500
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
12. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
13. #LOUVER ASM 2REQUIRED MFR # 310138
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #PIN USE 311673001 MFR # 311673 Superseded: see description
16. #STUD,LATCH RETURN AIR MFR # 311673001
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
22. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
23. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
24. #DECAL ROTARY MFR # 316476

Shroud & Main Components

Components

63 items

1. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
3. #SHROUD KIT CLOSED END SW MFR # 3309364028
4. #SHROUD,BRISK USE 3103144006 MFR # 316404003 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
6. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
7. #SHROUD 12' MFR # 3309518003
8. #DECAL,SHROUD SUNCHASER ROTA RY MFR # 316512
9. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
10. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
11. #COVER, CONDENSER COIL MFR # 309383000
12. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
13. #CONDENSER COIL BRACE MFR # 317556
14. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
15. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
17. #HOUSING,BLOWER MFR # 318012
18. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
19. #BULKHEAD,EVAPORATOR MFR # 317983
20. #COVER,EVAPORATOR 12" MFR # 314885
21. #INSULATION,EVAPORATOR MFR # 317797001
22. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Coil Kit Evaporator MFR # 318476
24. #FAN,COND DRAIN 579 MFR # 318008
25. #DRAIN TUBE RVA 578 579 MFR # 318202
26. #N/A BASE KIT (INCLUDES 15 & 16) MFR # 317097001
27. #ELECTRICAL BOX SUPPORT (3 REQUIRED) MFR # 318010
28. #RING,BLOWER INLET MFR # 39304
29. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
30. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
31. #A/C SEAL, 14 X 14 WHITE MFR # A101414
32. #ROOF A/C GASKET KIT MFR # 3310718006
33. #GASKET, GREY, 14 X 14 MFR # 6759A3281
34. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
35. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
36. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
37. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
38. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
39. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
40. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
42. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
43. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
44. #SUCTION LINE MFR # 318357
45. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
46. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
47. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
48. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
49. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
50. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
51. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
52. #FAN BLADE MFR # 3313107015
53. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
54. #MOTOR,BLOWER USE 20290 MFR # 318440 Superseded: see description
55. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
56. #MOTOR KIT MFR # 3108706916
57. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
58. #SUPPORT,MOTOR MFR # 317795
59. #GROMMET USE 3100230022 MFR # 610777900 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
61. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
62. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
63. #DECAL,WIRING DIAGRAM MFR # 318192

Optional Electric Heat Kit

Components

13 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521
10. #HEAT STRIP,NON-DUCTED MFR # 3101121030
11. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
12. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
13. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description

Replacement Ducted A-c

Components

12 items

1. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
2. #AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description
3. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
5. #ELECTRONIC KIT CCC MFR # 3109226005
6. #BOARD KIT CCC MFR # 3311557000
7. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
8. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
9. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
10. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
11. #HEAT STRIP KIT 59046 SERIES MFR # 3103780007
12. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
