Dometic Brisk Air 57915006 13,500 BTU Parts Diagram · Replacement Non-ducted A-c

Air Conditioner · 5 assemblies · 5 diagram sheets · 113 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915006 13,500 BTU rooftop air conditioner: 5 assemblies (Replacement Non-ducted A-c, Optional Elec. Heat Kit, Replacement Ducted A-c, Shroud & Main Components, Electrical Box Assembly) and 113 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Replacement Non-ducted A-c

Components

12 items

1. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
2. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
5. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
8. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
9. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
10. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
11. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
12. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000

Optional Elec. Heat Kit

Components

7 items

1. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
2. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
3. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
5. #HARNESS,RVA HEAT STRIP MFR # 313590
6. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
7. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521

Replacement Ducted A-c

Components

11 items

1. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
2. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
5. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
6. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
7. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
8. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
9. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
10. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
11. #COMFORT CTRL MFR # 3106463007

Shroud & Main Components

Components

59 items

1. #SHROUD USE 3103144006 EGG SHELL MFR # 316404005 Superseded: see description
2. #SHROUD 12' MFR # 3309518003
3. #SHROUD KIT CLOSED END SW MFR # 3309364028
4. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
7. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
9. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
10. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
11. #COVER, CONDENSER COIL MFR # 309383000
12. #CONDENSER COIL BRACE MFR # 317556
13. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
14. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
16. #HOUSING,BLOWER MFR # 318012
17. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
18. #BULKHEAD,EVAPORATOR MFR # 317983
19. #COVER,EVAPORATOR 12" MFR # 314885
20. #INSULATION,EVAPORATOR MFR # 317797001
21. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Kit Evaporator MFR # 318476
23. #FAN,COND DRAIN 579 MFR # 318008
24. #DRAIN TUBE RVA 578 579 MFR # 318202
25. #N/A BASE KIT (INCLUDES 15 & 16) MFR # 317097001
26. #ELECTRICAL BOX SUPPORT (3 REQUIRED) MFR # 318010
27. #RING,BLOWER INLET MFR # 39304
28. #A/C SEAL, 14 X 14 WHITE MFR # A101414
29. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
30. #ROOF A/C GASKET KIT MFR # 3310718006
31. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
32. #GASKET, GREY, 14 X 14 MFR # 6759A3281
33. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
35. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
37. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
38. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
39. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
40. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
41. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
42. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
43. #SUCTION LINE MFR # 318357
44. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
45. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
47. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
48. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
50. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
51. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
52. #MOTOR KIT MFR # 3108706916
53. #SUPPORT,MOTOR MFR # 317795
54. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
55. #SERVICE KIT F/MOTOR MFR # 3310725001
56. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
58. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
59. #WIRING DECAL MFR # 3100799

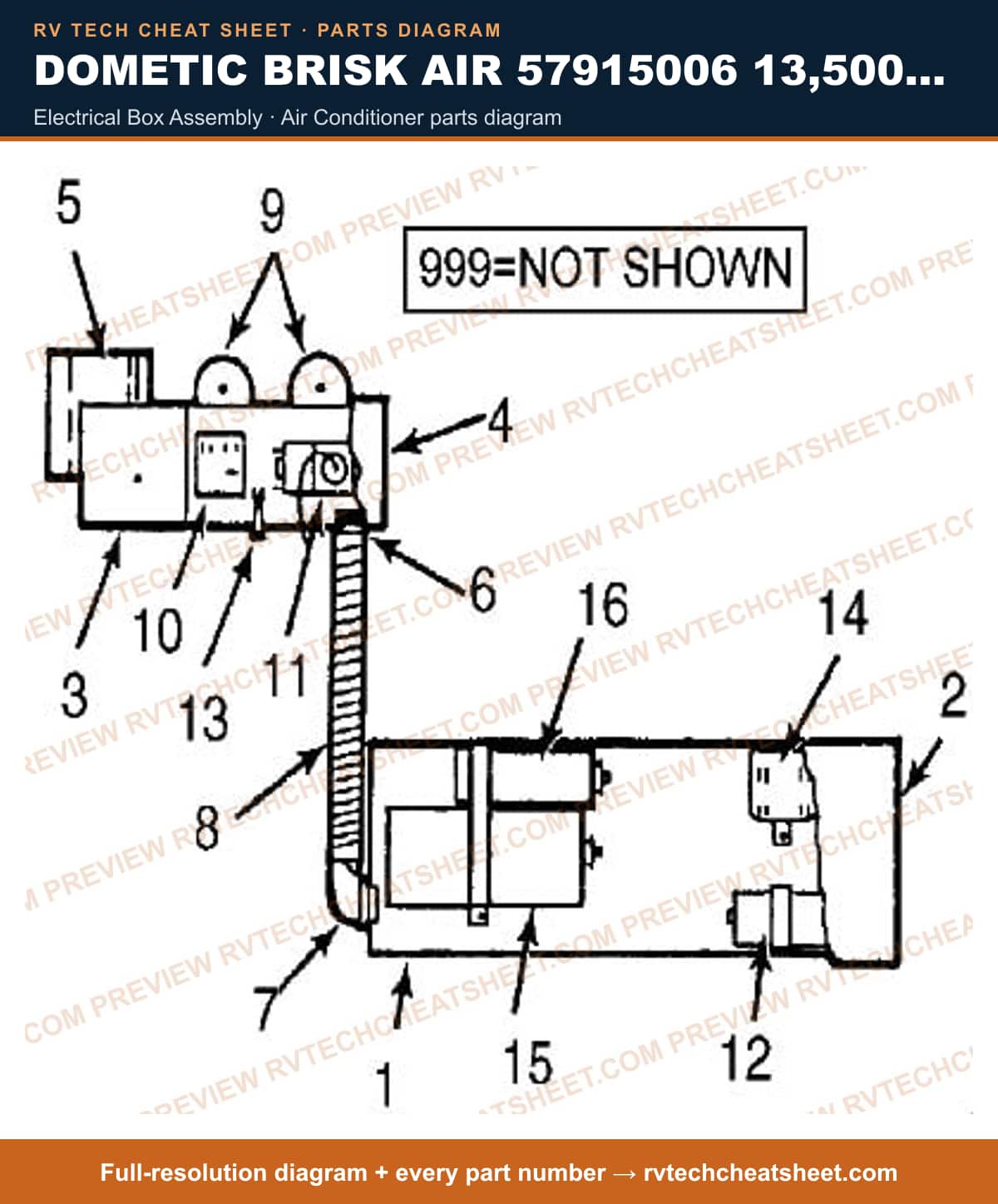

Electrical Box Assembly

Components

30 items

1. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
2. #BOX,ELECT. USE 318187003 MFR # 318187002 Superseded: see description
3. #ELECTRICAL BOX COVER MFR # 39306
4. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
5. #COVER CONT MFR # 38146
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
7. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONNECTOR,CONDUIT 90 DEG MFR # 3100249022
10. #FLEX CONDUIT MFR # 3100838014
11. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
13. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
14. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
16. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
17. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
18. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
19. #CAPACITOR, START MFR # 47C
20. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
21. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
22. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
23. #RELAY,START USE 46-2266 MFR # 3100235229 Superseded: see description
24. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
25. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100248206 Superseded: see description
27. #CAPACITOR,FAN/RUN VAC 50/60HZ ***USE 49-9556*** MFR # 3100248321 Superseded: see description
28. #CAPACITOR SVC KIT 20/10 M MFR # 3313107028
29. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248453
30. #CAPACITOR,FAN/RUN MFD 370 VAC MFR # F8605
