Dometic Brisk Air 57915007 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 5 assemblies · 5 diagram sheets · 128 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915007 13,500 BTU rooftop air conditioner: 5 assemblies (Shroud & Main Components, Replacement Ducted A-c, Air Box Assembly, Replacement Non-ducted A-c, Electrical Box Assembly) and 128 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

67 items

1. #SHROUD 12' MFR # 3309518003
2. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
3. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
5. #SHROUD USE 3103144006 EGG SHELL MFR # 316404005 Superseded: see description
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Decal Shroud Briskair 559 MFR # 316568
9. #CLOSE-OFF PLATE (SET OF 2) MFR # 317897
10. #COVER, CONDENSER COIL MFR # 309383000
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #CONDENSER COIL BRACE MFR # 317556
13. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
14. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
16. #HOUSING,BLOWER MFR # 318012
17. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
18. #BULKHEAD,EVAPORATOR MFR # 317983
19. #COVER,EVAPORATOR 12" MFR # 314885
20. #INSULATION,EVAPORATOR MFR # 317797001
21. #COVER,INSULATION USE 317797001 MFR # 317797 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Kit Evaporator MFR # 318476
23. #FAN,COND DRAIN 579 MFR # 318008
24. #DRAIN TUBE RVA 578 579 MFR # 318202
25. #N/A BASE KIT (INCLUDES 15 & 16) MFR # 317097001
26. #ELECTRICAL BOX SUPPORT (3 REQUIRED) MFR # 318010
27. #RING,BLOWER INLET MFR # 39304
28. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
29. #ROOF A/C GASKET KIT MFR # 3310718006
30. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
31. #GASKET, GREY, 14 X 14 MFR # 6759A3281
32. #A/C SEAL, 14 X 14 WHITE MFR # A101414
33. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
34. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
35. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
36. #COMPRESSOR USE 46-2990 ROTORX MFR # 1316344 Superseded: see description
37. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
38. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
39. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
41. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
42. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
43. #SUCTION LINE MFR # 318357
44. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
45. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
46. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
47. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
48. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
49. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
50. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
52. #MOTOR KIT MFR # 3108706916
53. #SUPPORT,MOTOR MFR # 317795
54. #SERVICE KIT F/MOTOR MFR # 3310725001
55. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
57. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
58. #DECAL, WIRING MFR # 3100915002
59. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
60. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
61. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
62. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
63. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
64. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
65. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
67. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description

Replacement Ducted A-c

Components

11 items

1. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
2. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
5. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
8. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #COMFORT CTRL MFR # 3106463007
11. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description

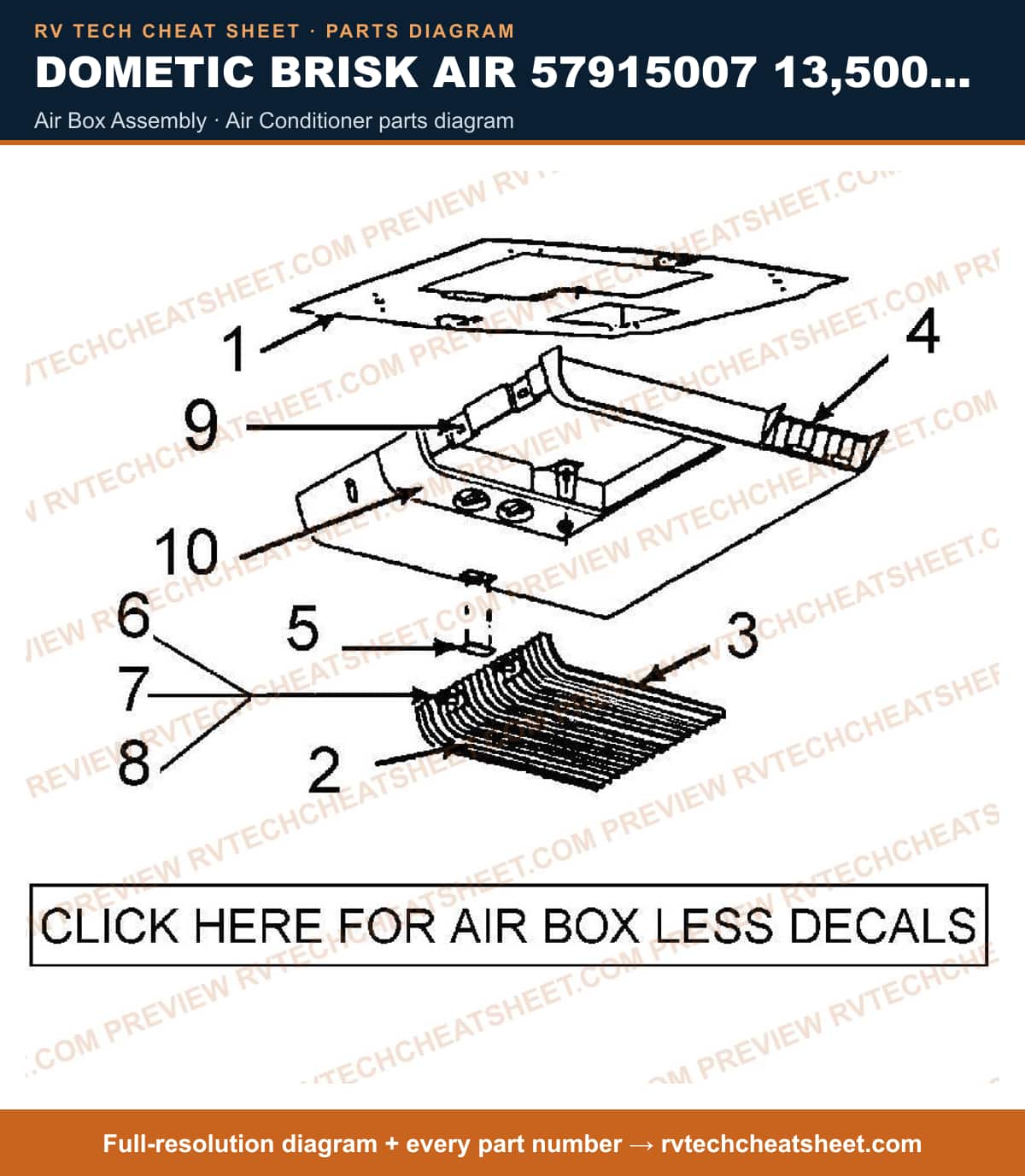

Air Box Assembly

Components

21 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
11. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
14. #PIN USE 311673001 MFR # 311673 Superseded: see description
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
17. #RETAINER,RETURN AIR GRILLE MFR # 311675000
18. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
19. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
20. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
21. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
2. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
5. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
8. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
9. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
10. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
11. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
12. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description

Electrical Box Assembly

Components

23 items

1. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
2. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
3. #BOX,ELECTRICAL MFR # 3100827066
4. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
6. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
7. #COVER CONT MFR # 38146
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONDUIT,FLEX 579 MFR # 3100838006
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
14. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
15. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
16. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
17. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
18. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
19. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
20. #CAPACITOR, START MFR # 47C
21. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
22. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
23. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
