Dometic Brisk Air 57915009L 13,500 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 4 assemblies · 4 diagram sheets · 74 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915009L 13,500 BTU rooftop air conditioner: 4 assemblies (Air Box Assembly, Replacement Ducted A-c, Electrical Box Assembly, Replacement Non-ducted A-c) and 74 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

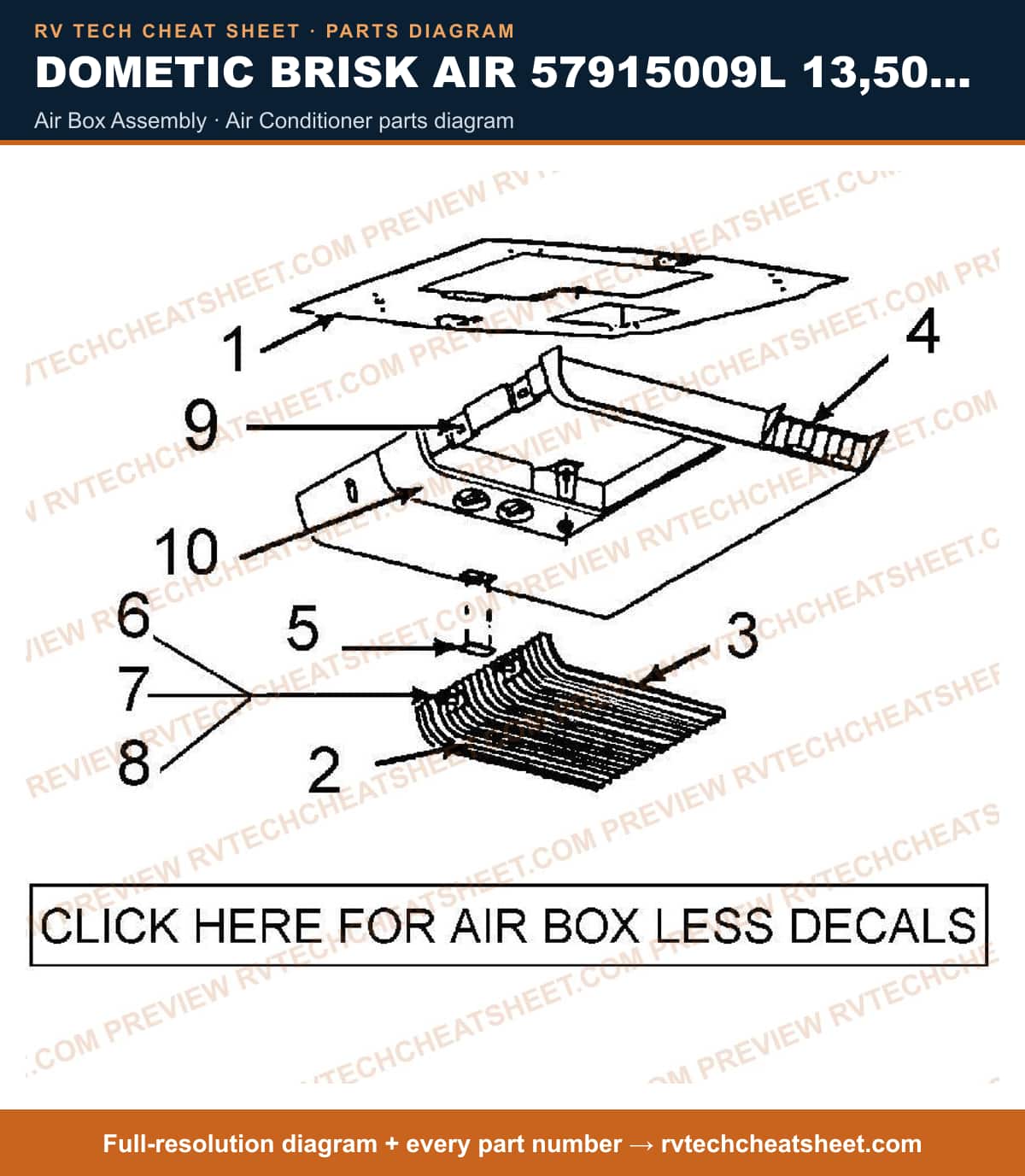

Air Box Assembly

Components

23 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #ATTACHMENT TAPE GREY-EACH MFR # 06384
9. #KIT SVC AIR FILTER MFR # 3313107103
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #PIN USE 311673001 MFR # 311673 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
22. #HEAT STRIP,NON-DUCTED MFR # 3101121030
23. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
2. #Air Conditioner Heating Element; Use With Duo-Therm 57915311/ 57915301/ 57915612 Model Air Conditioners MFR # 3105164002 Superseded: see description
3. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
4. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
5. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
6. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
7. #HEAT STRIP KIT 59046 SERIES MFR # 3103780007
8. #BOARD KIT CCC MFR # 3311557000
9. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
10. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
11. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
12. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description

Electrical Box Assembly

Components

28 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
3. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
4. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
6. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
7. #COVER CONT MFR # 38146
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONDUIT,FLEX 579 MFR # 3100838006
10. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
13. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
14. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
15. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
16. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
19. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
20. #CAPACITOR 30/50MFD MFR # 3313107027
21. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
22. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
23. #CAPACITOR, START MFR # 47C
24. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
25. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
26. #PTCR KIT MFR # 3310731009
27. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
28. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
2. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
3. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
4. #A/C 13.5 WHITE MFR # 990046800
5. #BOARD KIT CCC MFR # 3311557000
6. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #AIR CONDITIONER USE 57915CN POL.WHITE BRISK AIR 13.5 BT MFR # 57915531CN Superseded: see description
10. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
11. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
12. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
