Dometic Brisk Air 57915010 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 5 assemblies · 5 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915010 13,500 BTU rooftop air conditioner: 5 assemblies (Shroud & Main Components, Electrical Box Assembly, Air Box Assembly, Replacement Non-ducted A-c, Replacement Ducted A-c) and 142 manufacturer part numbers. 60 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

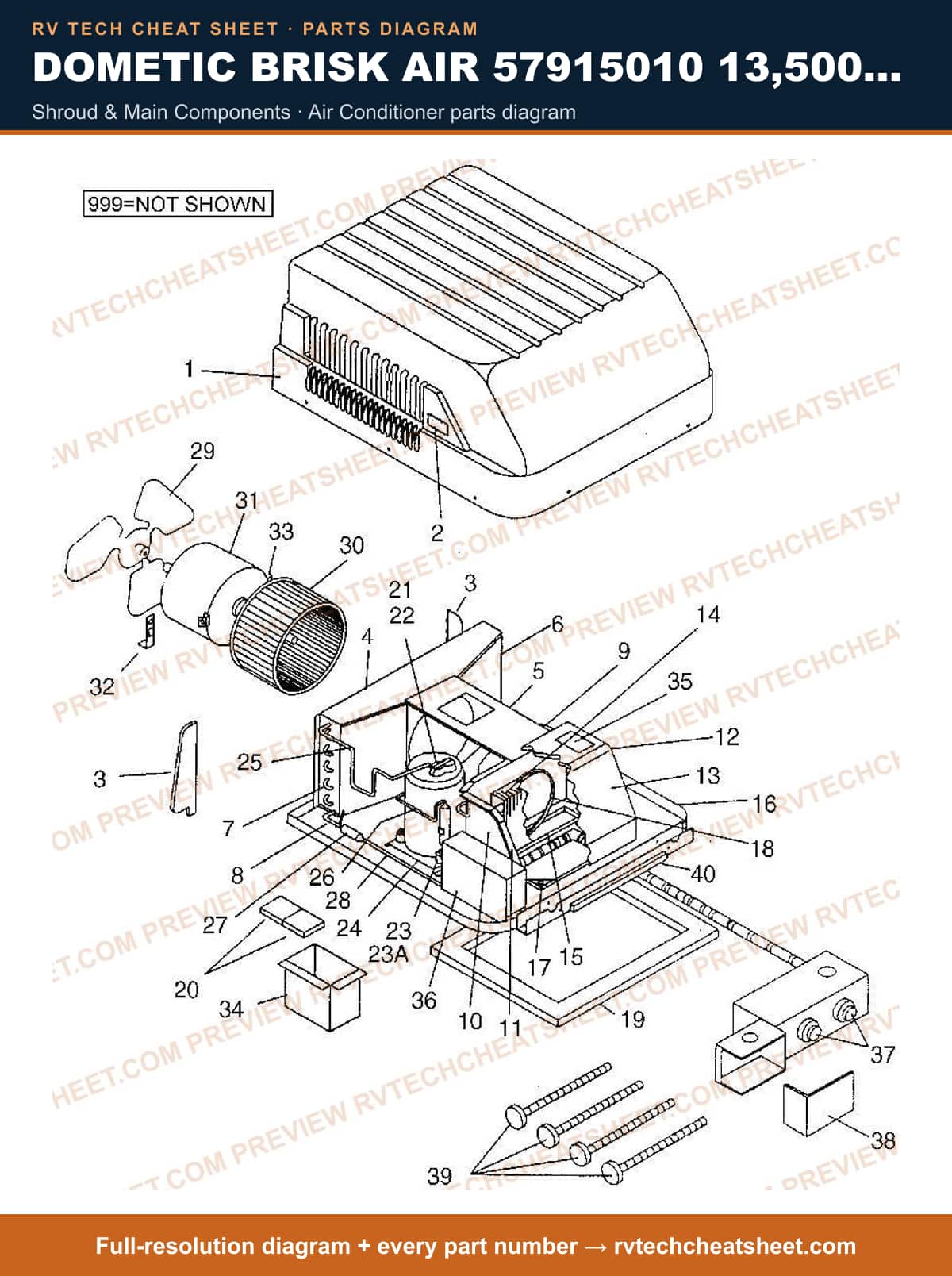

Shroud & Main Components

Components

71 items

1. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
2. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
3. #SHROUD 12' MFR # 3309518003
4. #SHROUD KIT CLOSED END SW MFR # 3309364028
5. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
6. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
7. #SHROUD USE 3103144006 MFR # 3102293002 Superseded: see description
8. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
9. #DECAL,SHROUD MFR # 3101380016
10. #SHROUD,WHT USE 3103147009 MFR # 3102293028 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3101377004
12. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
13. #COVER, CONDENSER COIL MFR # 309383000
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
16. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
18. #HOUSING,BLOWER MFR # 318012
19. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
20. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
22. #COVER,EVAPORATOR MFR # 314885001
23. #INSULATION,EVAPORATOR MFR # 317797001
24. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
25. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
26. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
28. #BASE PAN MFR # 3100832041
29. #PAN,BASE USE 3100832041 MFR # 3100832025 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
31. #RING,BLOWER INLET MFR # 39304
32. #ROOF A/C GASKET KIT MFR # 3310718006
33. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
34. #GASKET, GREY, 14 X 14 MFR # 6759A3281
35. #A/C SEAL, 14 X 14 WHITE MFR # A101414
36. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
37. #BLOCKS, FOAM MFR # 3100587009
38. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
39. #PROTECTOR USE 3100250228 OVERLOAD MFR # 318264002 Superseded: see description
40. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
41. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
42. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
43. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
44. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
45. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
46. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
47. #DRIER,FILTER USE 3100862006 MFR # 3100826006 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
49. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
50. #FAN BLADE MFR # 3313107015
51. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
52. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
54. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
55. #MOTOR KIT MFR # 3108706916
56. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
57. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
58. #SUPPORT,MOTOR MFR # 317795
59. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
60. #SERVICE KIT F/MOTOR MFR # 3310725001
61. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
62. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
63. #DECAL,WIRE 579 .8,A MFR # 3100916
64. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
65. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
66. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
67. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
69. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
70. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
71. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description

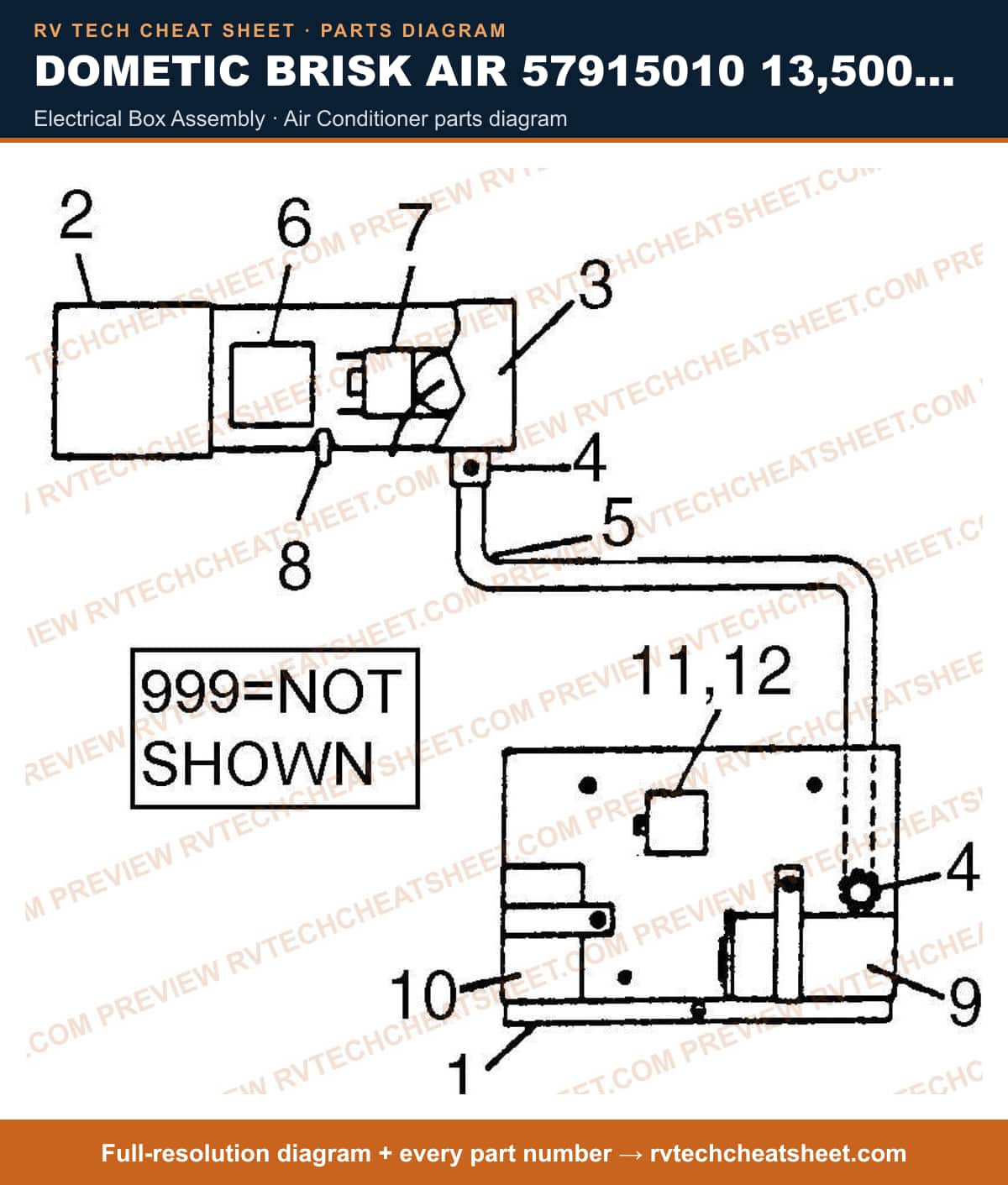

Electrical Box Assembly

Components

28 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
3. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
5. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
6. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
7. #COVER CONT MFR # 38146
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONDUIT,FLEX 579 MFR # 3100838006
10. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
13. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
14. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
15. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
16. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
17. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
18. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
19. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
20. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
21. #CAPACITOR 30/50MFD MFR # 3313107027
22. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
23. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
24. #CAPACITOR, START MFR # 47C
25. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
26. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
27. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
28. #PTCR KIT MFR # 3310731009

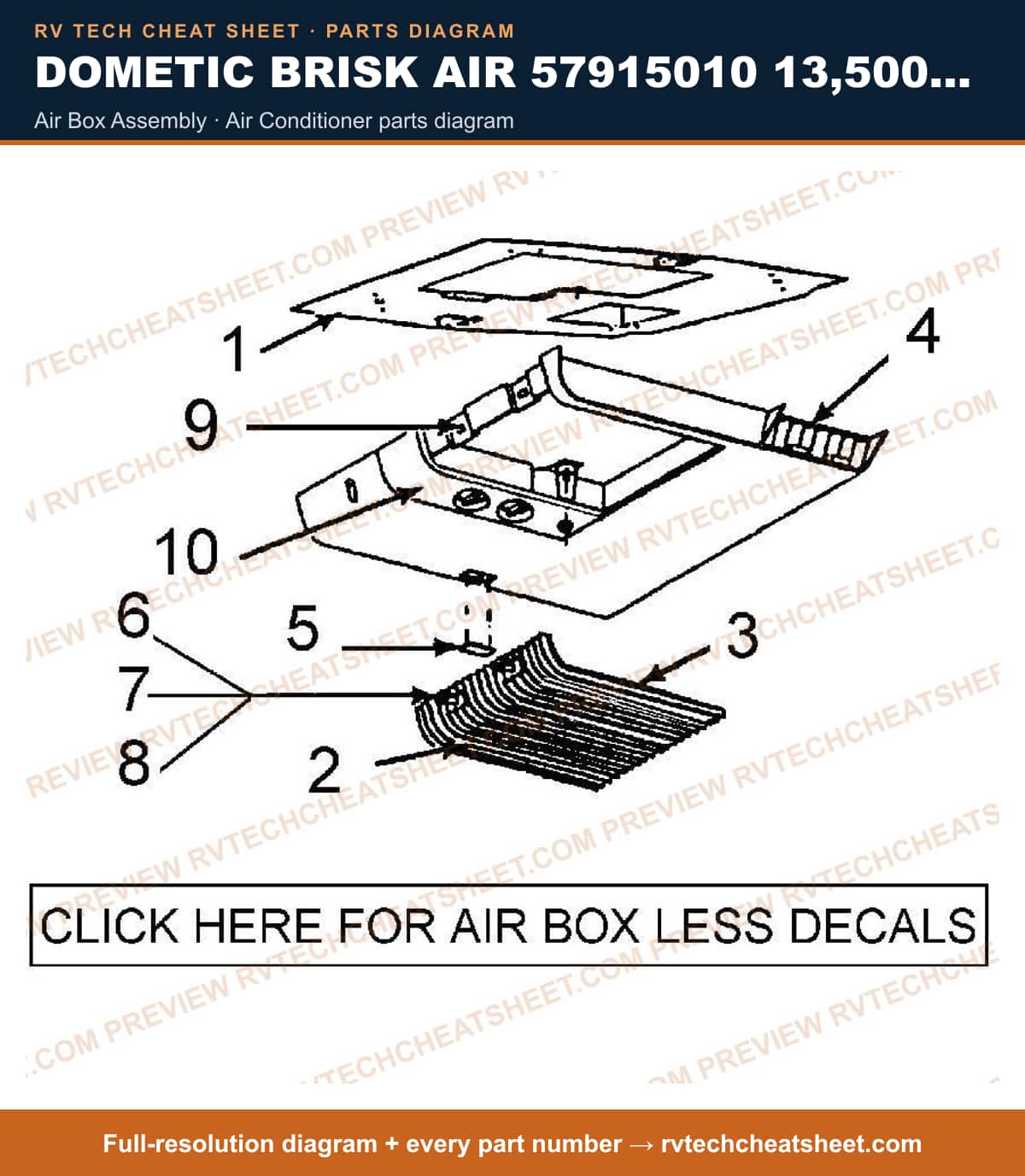

Air Box Assembly

Components

22 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #FILTER RETURN AIR(UNIVER MFR # 3108015003
8. #ATTACHMENT TAPE GREY-EACH MFR # 06384
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #KIT SVC AIR FILTER MFR # 3313107103
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #PIN USE 311673001 MFR # 311673 Superseded: see description
16. #STUD,LATCH RETURN AIR MFR # 311673001
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
19. #RETAINER,RETURN AIR GRILLE MFR # 311675000
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
22. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
2. #AIR CONDITIONER USE 57915CN POL.WHITE BRISK AIR 13.5 BT MFR # 57915531CN Superseded: see description
3. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
4. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
9. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
10. #BOARD KIT CCC MFR # 3311557000
11. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
12. #A/C 13.5 WHITE MFR # 990046800

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description
2. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
3. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
4. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
5. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
7. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
8. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
9. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
10. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
11. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
12. #A/C 13.5 WHITE MFR # 990046800
