Dometic Brisk Air 57915301 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 6 assemblies · 6 diagram sheets · 148 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915301 13,500 BTU rooftop air conditioner: 6 assemblies (Shroud & Main Components, Replacement Ducted A-c, Optional Electric Heat Kit, Electrical Box Assembly, Air Box Assembly and more) and 148 manufacturer part numbers. 57 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

70 items

1. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
2. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
4. #SHROUD KIT CLOSED END SW MFR # 3309364028
5. #SHROUD 12' MFR # 3309518003
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #SHROUD,BRISK USE 3103144006 MFR # 316404003 Superseded: see description
8. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
9. #SHROUD,WHT USE 3103147009 MFR # 3102293028 Superseded: see description
10. #DECAL,SHROUD MFR # 3101380016
11. #SHROUD USE 3103144006 MFR # 3102293002 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3101377004
13. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
14. #COVER, CONDENSER COIL MFR # 309383000
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
17. #COIL,CONDENSER*USE 3103014001 FAN 13M SPLT MFR # 318477 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Support Condenser Coil MFR # 318041
19. #HOUSING,BLOWER MFR # 318012
20. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 316110
21. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
22. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
23. #COVER,EVAPORATOR MFR # 314885001
24. #INSULATION,EVAPORATOR MFR # 317797001
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
29. #BASE PAN MFR # 3100832041
30. #PAN,BASE USE 3100832041 MFR # 3100832025 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
32. #RING,BLOWER INLET MFR # 39304
33. #A/C SEAL, 14 X 14 WHITE MFR # A101414
34. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
35. #ROOF A/C GASKET KIT MFR # 3310718006
36. #GASKET, GREY, 14 X 14 MFR # 6759A3281
37. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
38. #BLOCKS, FOAM MFR # 3100587009
39. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
40. #PROTECTOR USE 3100250228 OVERLOAD MFR # 318264002 Superseded: see description
41. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
42. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 317001001
44. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
45. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
46. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
47. #MOUNT,COMP. USE 3100238116 MFR # 310780011 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
49. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
50. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 316403
51. #SUCTION LINE MFR # 318357
52. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
53. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
55. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
56. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
57. #FAN BLADE MFR # 3313107015
58. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
59. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
61. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
62. #MOTOR,BLOWER USE 20290 MFR # 318440 Superseded: see description
63. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
64. #MOTOR KIT MFR # 3108706916
65. #SUPPORT,MOTOR MFR # 317795
66. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
68. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
69. #DECAL,WIRING DIAGRAM MFR # 318192
70. #Air Conditioner Compressor Clutch Coil Connector; Replacement For Dometic CAS135001/ CAS110003 Model Air Conditioners MFR # 318591

Replacement Ducted A-c

Components

12 items

1. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #Wall Thermostat; 5 Button; White MFR # 3109228001
4. #Air Conditioner Heating Element; Use With Duo-Therm 57915311/ 57915301/ 57915612 Model Air Conditioners MFR # 3105164002 Superseded: see description
5. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
6. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
7. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
8. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
9. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
10. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
11. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
12. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000

Optional Electric Heat Kit

Components

13 items

1. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
2. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
3. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat Bris MFR # 316521
10. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
11. #HEAT STRIP,NON-DUCTED MFR # 3101121030
12. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
13. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description

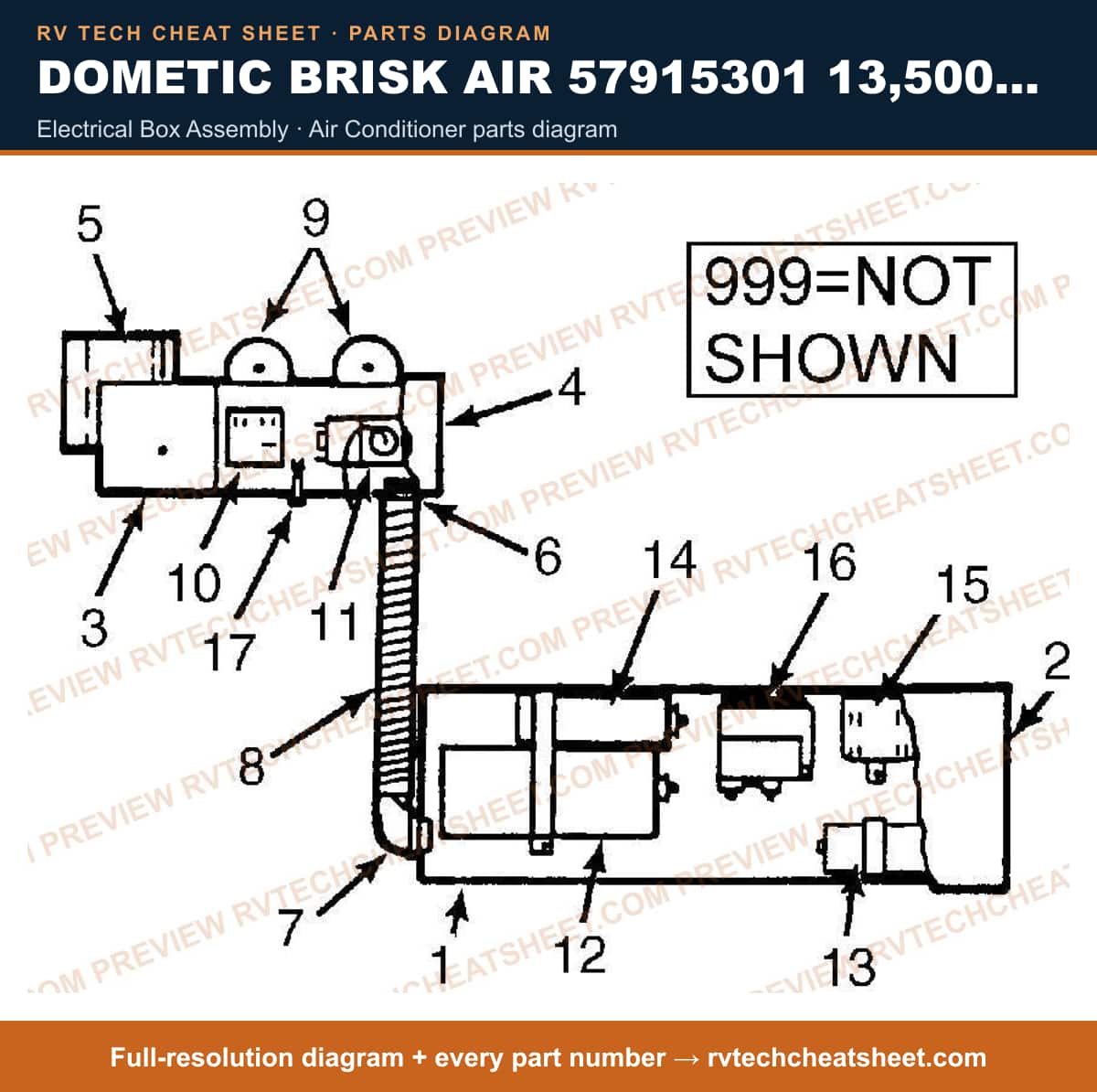

Electrical Box Assembly

Components

29 items

1. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
2. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
3. #ELECTRICAL BOX COVER MFR # 39306
4. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
5. #COVER CONT MFR # 38146
6. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
7. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONNECTOR,CONDUIT 90 DEG MFR # 3100249022
10. #FLEX CONDUIT MFR # 3100838014
11. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
13. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
14. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
15. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
16. #SWITCH USE 20250 & 3101398 ROTARY MFR # 316442001 Superseded: see description
17. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
18. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
20. #CAPACITOR, START MFR # 47C
21. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
22. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
23. #RELAY,START USE 46-2266 MFR # 3100235229 Superseded: see description
24. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
25. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
27. #CAPACITOR,START USE 3100235237 MFR # 35040022 Superseded: see description
28. #RELAY,TIME DELAY 532- 546 MFR # 310456
29. #WIRE SET, WITH PLUG (FOR HEAT STRIP) MFR # 1313082011

Air Box Assembly

Components

24 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003
11. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
12. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
13. #LOUVER ASM 2REQUIRED MFR # 310138
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #STUD,LATCH RETURN AIR MFR # 311673001
16. #PIN USE 311673001 MFR # 311673 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #DECAL ROTARY MFR # 316476
22. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
23. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
24. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description

Replacement Non-ducted A-c

Components

12 items

1. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
2. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
3. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
4. #Air Conditioner Heating Element; Use With Duo-Therm 57915311/ 57915301/ 57915612 Model Air Conditioners MFR # 3105164002 Superseded: see description
5. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
6. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
7. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
8. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
9. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
10. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
11. #Wall Thermostat; 5 Button; White MFR # 3109228001
12. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
