Dometic Brisk Air 57915304 13,500 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 5 assemblies · 5 diagram sheets · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915304 13,500 BTU rooftop air conditioner: 5 assemblies (Air Box Assembly, Electrical Box Assembly, Replacement Ducted A-c, Optional Heater Assy Kit, Replacement Non-ducted A-c) and 66 manufacturer part numbers. 25 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

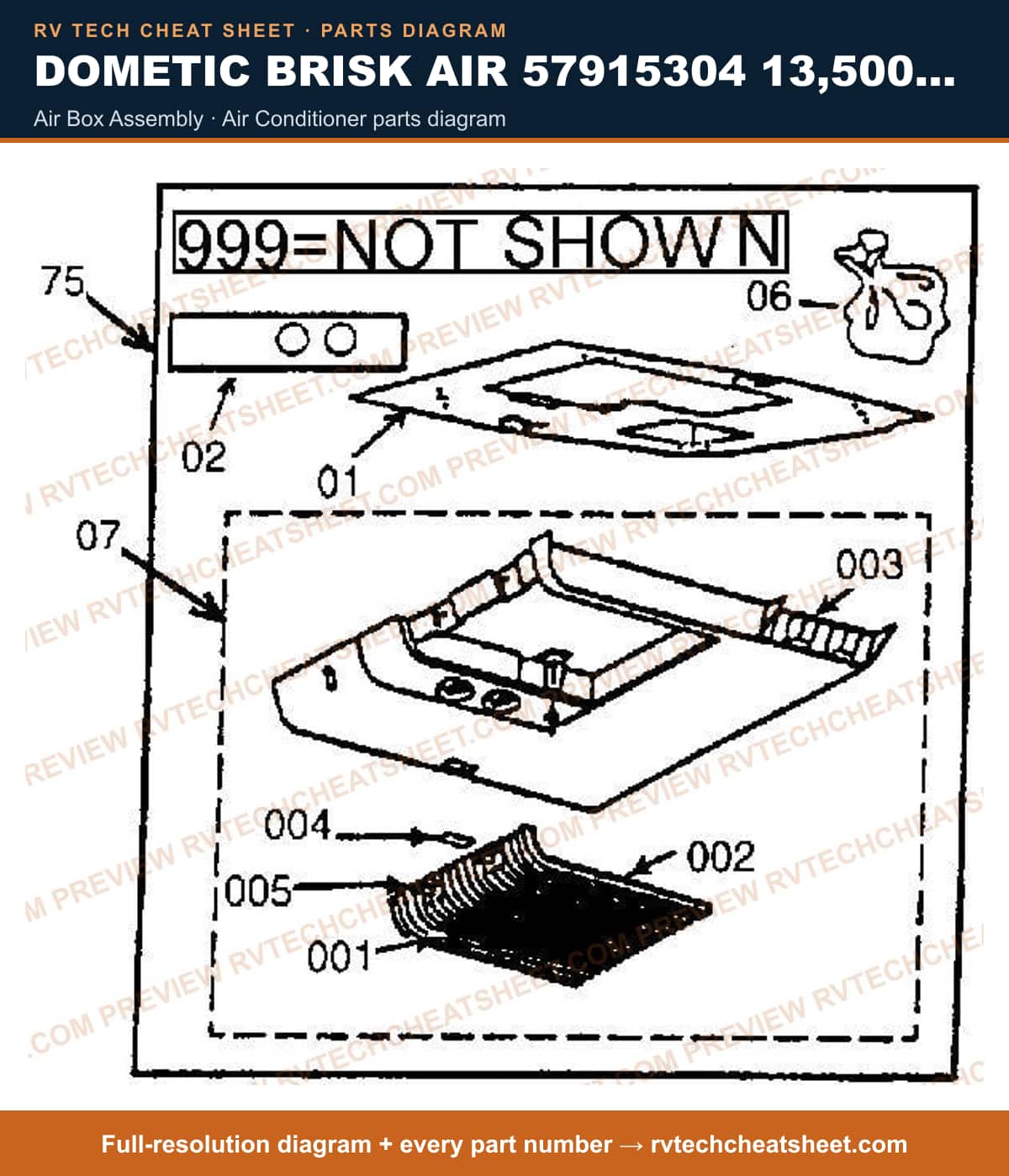

Air Box Assembly

Components

21 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
3. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #ATTACHMENT TAPE GREY-EACH MFR # 06384
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
11. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
12. #LOUVER ASM 2REQUIRED MFR # 310138
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
15. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
16. #PARTS BAG 679508.403 MFR # 3101148009
17. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
19. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
20. #DUCT ADAPTER-LOWER MFR # 313605
21. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006

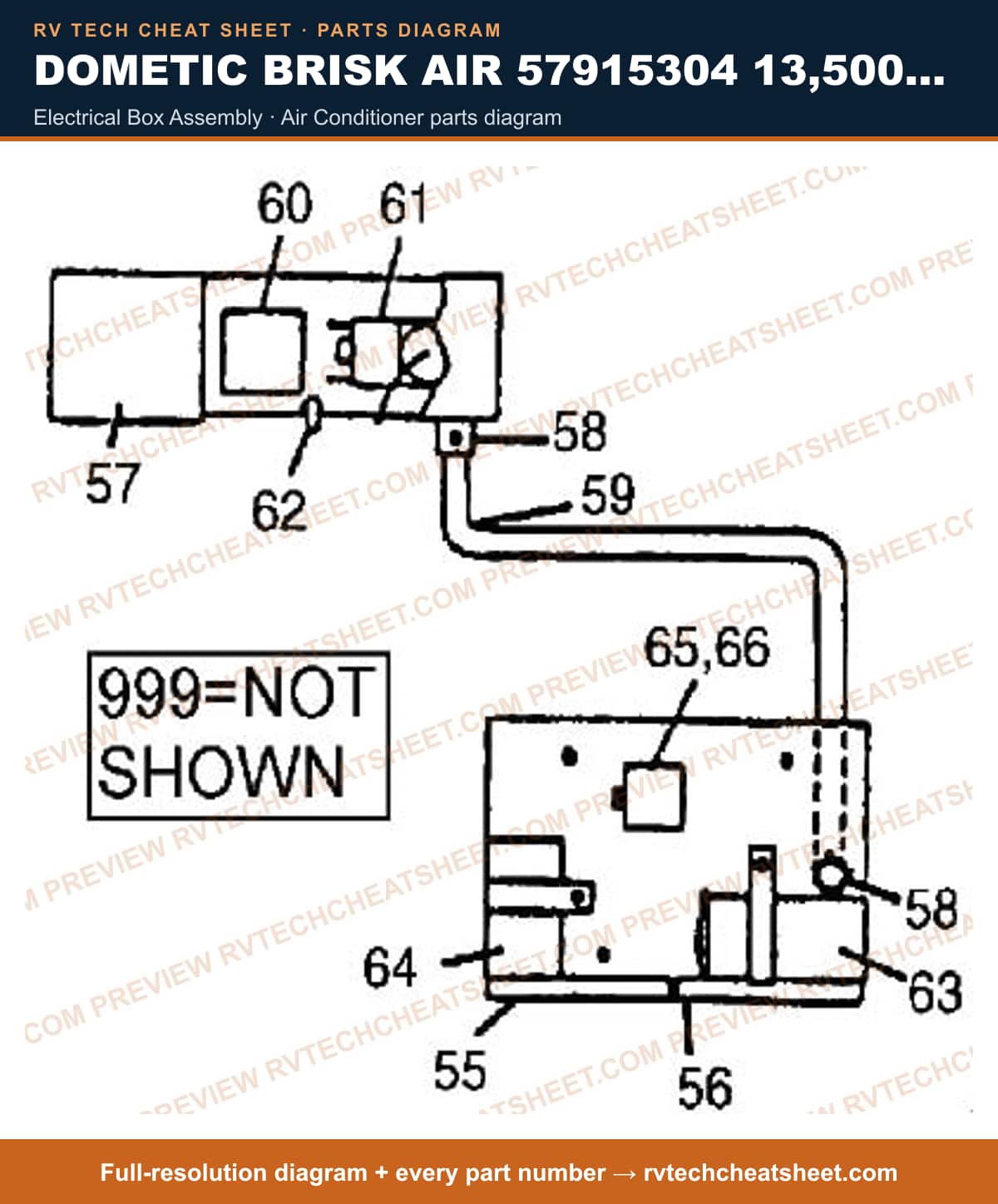

Electrical Box Assembly

Components

17 items

1. #ELECTRIC BOX MFR # 3104162007
2. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
3. #COVER CONT MFR # 38146
4. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
5. #SLEEVING, FIBERGLASS MFR # 3100394208
6. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
7. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
9. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
10. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
11. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
12. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
13. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
14. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
15. #PTCR KIT MFR # 3310731009
16. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
17. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Replacement Ducted A-c

Components

11 items

1. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
2. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
3. #BOARD KIT CCC MFR # 3311557000
4. #AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description
5. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
6. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
7. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
8. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
9. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
10. #HEAT STRIP KIT 59046 SERIES MFR # 3103780007
11. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description

Optional Heater Assy Kit

Components

12 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
10. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
11. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description

Replacement Non-ducted A-c

Components

11 items

1. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
2. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
3. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
4. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
5. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
6. #AIR CONDITIONER USE 57915N BRISK AIR COLONIAL WHITE MFR # 57915531N Superseded: see description
7. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
8. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
9. #A/C 13.5 WHITE MFR # 990046800
10. #AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description
11. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
