Dometic Brisk Air 57915326 13,500 BTU Parts Diagram · 3104999.010 Electronic T-stat

Air Conditioner · 12 assemblies · 12 diagram sheets · 183 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915326 13,500 BTU rooftop air conditioner: 12 assemblies (3104999.010 Electronic T-stat, 3105023.000 Heat Kit-air Dist, 3104999.010 Electronic Cable, 3104999.002 Electronic Cable, 3104999.010 Electronic Control and more) and 183 manufacturer part numbers. 62 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

3104999.010 Electronic T-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER, THERMOSTAT MFR # 31083809020
3. #BOARD KIT MFR # 3108701339
4. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
5. #APPLIANCE COMPONENTS RV; Decal Selector Switch MFR # 3105318004
6. #T-STAT USE 3108701339 WHITE MFR # 3105325004 Superseded: see description

3105023.000 Heat Kit-air Dist

Components

9 items

1. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #SLEEVING MFR # 3100394083
4. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
5. #GUARD, HEAT MFR # 3101143
6. #ELECTRIC BOX MFR # 3101125007
7. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
8. #HEAT STRIP,NON-DUCTED MFR # 3101121030
9. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description

3104999.010 Electronic Cable

Components

3 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description

3104999.002 Electronic Cable

Components

3 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010

3104999.010 Electronic Control

Components

17 items

1. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
2. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
4. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
12. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
16. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
17. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002

3104998.004 Bi-metal Relay Ctl

Components

20 items

1. #BOX, RELAY MFR # 3104932003
2. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
3. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
4. #COVER,BOX RELAY USE 3104998004 MFR # 3104933001 Superseded: see description
5. #3104938000 MFR # 3104938000
6. #RELIEF, STRAIN MFR # 302994006
7. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3104991009
8. #BOX JUNCTION MFR # 3104934009
9. #STRAIN, RELIEF MFR # 302994001
10. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
11. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
14. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
15. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
16. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
17. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
18. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
20. #COVER, JUNCTION BOX MFR # 3104935006

3104999.002 Electronic T-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER, THERMOSTAT MFR # 31083809020
3. #BOARD KIT MFR # 3108701339
4. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
5. #APPLIANCE COMPONENTS RV; Decal Selector Switch MFR # 3105318004
6. #T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description

3105023.000 Air Dist Box Kit

Components

42 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
3. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
4. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
5. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
6. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
13. #KIT SVC AIR FILTER MFR # 3313107103
14. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
15. #ATTACHMENT TAPE GREY-EACH MFR # 06384
16. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
17. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
18. #LOUVER ASM 2REQUIRED MFR # 310138
19. #PLUG, FEMALE MFR # 314471000
20. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
21. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
22. #WELDMENT,JUNCTION BOX MFR # 3104161007
23. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
24. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
25. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
26. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
27. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
28. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
29. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
30. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
31. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
32. #EXTENSION, DUCT MFR # 313606000
33. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
34. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
35. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
36. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
37. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
38. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
39. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
40. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
42. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024

Replacement Non-ducted A-c

Components

11 items

1. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
2. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
3. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
4. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
5. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
6. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
7. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
8. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
9. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
10. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
11. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032

Shroud & Main Components

Components

79 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #SHROUD 12' MFR # 3309518003
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #DECAL,SHROUD MFR # 3101380016
9. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
10. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
11. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
12. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
14. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #COVER, CONDENSER COIL MFR # 309383000
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
24. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
27. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
33. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
39. #MOTOR KIT MFR # 3108706916
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
50. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
51. #INSULATION MFR # 3100833007
52. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
53. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
63. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
65. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #COVER CONT MFR # 38146
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
70. #ROOF A/C GASKET KIT MFR # 3310718006
71. #GASKET, GREY, 14 X 14 MFR # 6759A3281
72. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
73. #A/C SEAL, 14 X 14 WHITE MFR # A101414
74. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
75. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
76. #PAN KIT,BASE 12" MFR # 3108700323
77. #BOX,ELECTRICAL MFR # 3100827066
78. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
79. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER USE 57915CN POL.WHITE BRISK AIR 13.5 BT MFR # 57915531CN Superseded: see description
2. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
3. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
4. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
5. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
6. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
9. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
10. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
11. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
12. #ELECTRONIC KIT CCC MFR # 3109226005

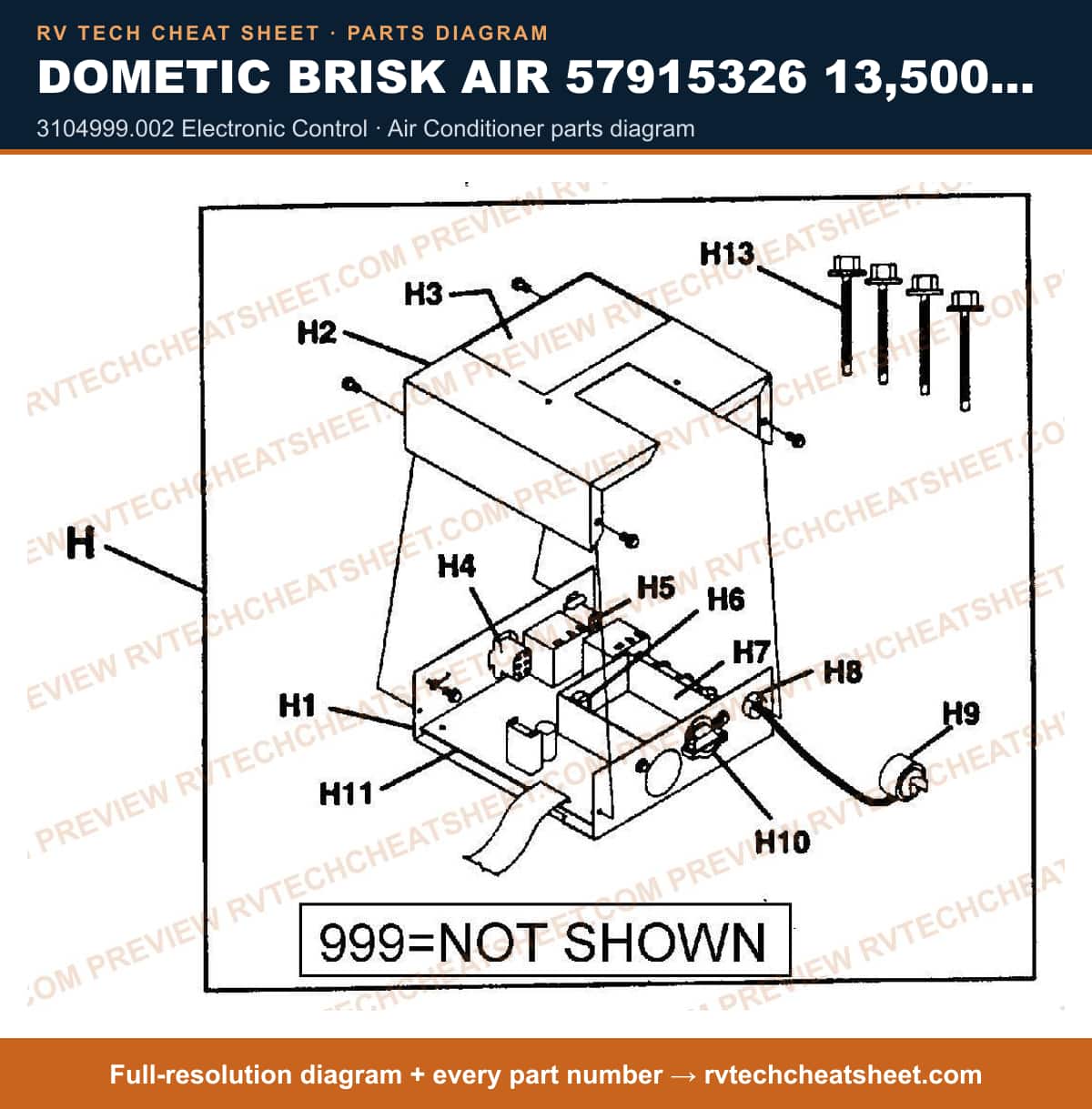

3104999.002 Electronic Control

Components

17 items

1. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
2. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
4. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
12. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
17. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
