Dometic Brisk Air 57915403 13,500 BTU Parts Diagram · Heater Accessory Kit

Air Conditioner · 6 assemblies · 6 diagram sheets · 153 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915403 13,500 BTU rooftop air conditioner: 6 assemblies (Heater Accessory Kit, Replacement Ducted A-c, Air Box Assembly, Shroud And Main Components, Electrical Box Assembly and more) and 153 manufacturer part numbers. 58 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Heater Accessory Kit

Components

8 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #CONDUIT MFR # 3100394075
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Replacement Ducted A-c

Components

12 items

1. #AIR CONDITIONER 13,500 BTU POLAR WHITE - CLOSED SHROUD MFR # 57915G
2. #RECON AIR CONDITIONER 13500BTU POLAR WHITE MFR # 57915R
3. #HEAT STRIP KIT 59046 SERIES MFR # 3103780007
4. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
5. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
6. #BOARD KIT CCC MFR # 3311557000
7. #AIR CONDITIONER USE 57915CN BRISK AIR PW 13.5 BTU MFR # 57915522CN Superseded: see description
8. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
9. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
10. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
11. #ELECTRONIC KIT CCC MFR # 3109226005
12. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049

Air Box Assembly

Components

22 items

1. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #ATTACHMENT TAPE GREY-EACH MFR # 06384
11. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
12. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
13. #STUD,LATCH RETURN AIR MFR # 311673001
14. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
15. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
16. #RETAINER,RETURN AIR GRILLE MFR # 311675000
17. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
18. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
19. #PARTS BAG 679508.403 MFR # 3101148009
20. #AIRBOX USE 3104085 MFR # 316699012 Superseded: see description
21. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
22. #APPLIANCE COMPONENTS RV; BOLT KIT FOR 6" - 9" ROOF MFR # 3101538001

Shroud And Main Components

Components

78 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SHROUD KIT CLOSED END SW MFR # 3309364028
5. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
6. #SHROUD 12' MFR # 3309518003
7. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
8. #DECAL,SHROUD MFR # 3101380016
9. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
10. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
11. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
13. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
14. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #GASKET, COVER MFR # 3102805003
23. #SPRING, OVERLOAD MFR # 3102803008
24. #COMPRESSOR USE 3106430006 MFR # 3102863002 Superseded: see description
25. #COVER, TERMINAL MFR # 3102806001
26. #COMPRESSOR *N* MFR # 31064630006
27. #COMPRESSOR MFR # 3106430006
28. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
29. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
30. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
32. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
33. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
34. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
35. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
36. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
37. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
38. #FAN BLADE MFR # 3313107015
39. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
40. #SERVICE KIT F/MOTOR MFR # 3310725001
41. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
42. #SUPPORT, MOTOR MFR # 317795002
43. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
44. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
45. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
46. #MOTOR KIT MFR # 3108706916
47. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
48. #BASE PAN MFR # 3100832041
49. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
50. #BLOCKS, FOAM MFR # 3100587009
51. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
53. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
54. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
55. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
56. #INSULATION MFR # 3100833007
57. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
58. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
59. #RING,BLOWER INLET MFR # 39304
60. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
61. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
62. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
63. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
64. #CONDUIT,FLEX 579 MFR # 3100838006
65. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
66. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
67. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
68. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
69. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
71. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
72. #COVER CONT MFR # 38146
73. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
74. #ROOF A/C GASKET KIT MFR # 3310718006
75. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
76. #GASKET, GREY, 14 X 14 MFR # 6759A3281
77. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
78. #A/C SEAL, 14 X 14 WHITE MFR # A101414

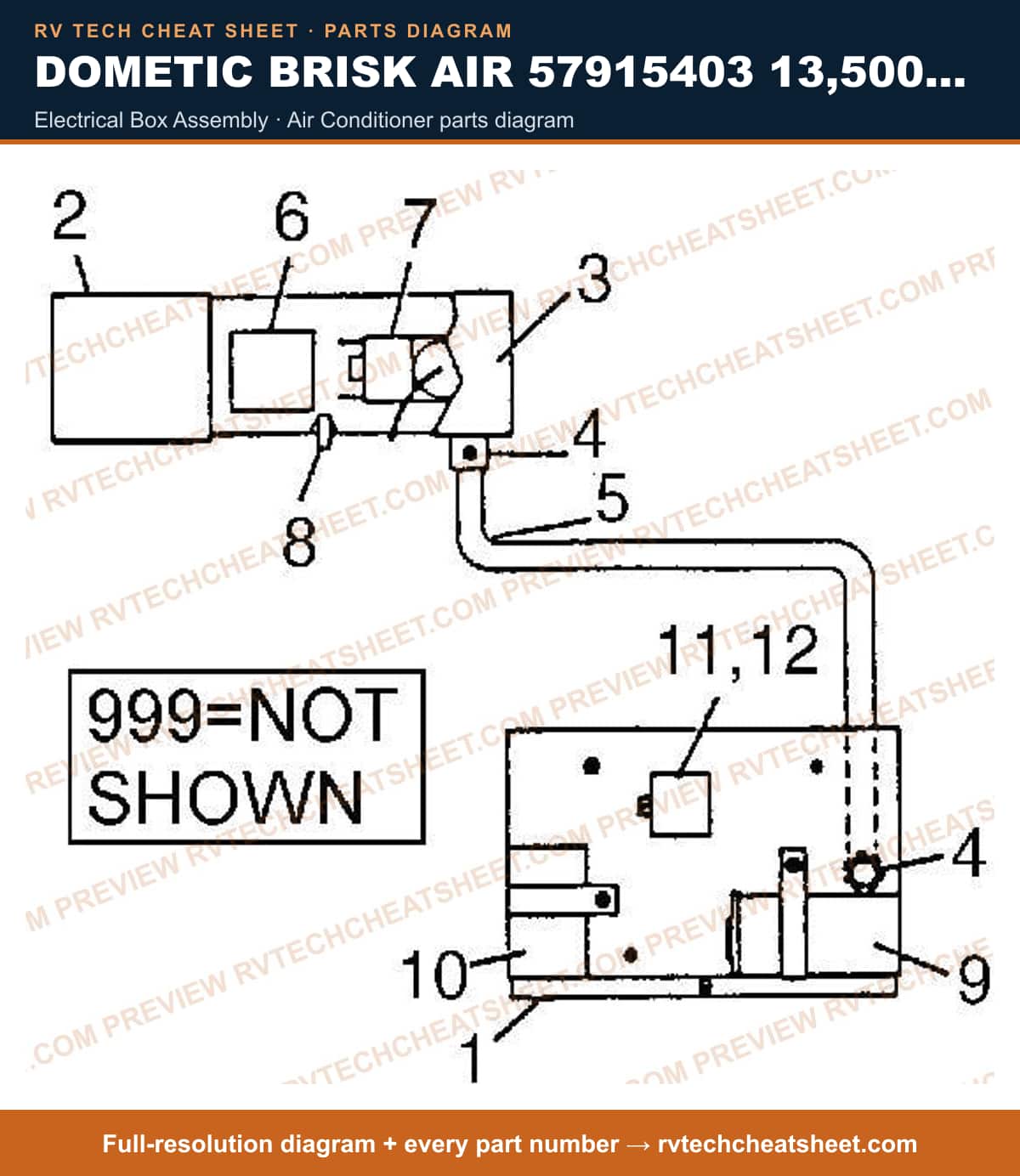

Electrical Box Assembly

Components

28 items

1. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
2. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
3. #BOX,ELECTRICAL MFR # 3100827066
4. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
5. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
7. #COVER CONT MFR # 38146
8. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
9. #CONDUIT,FLEX 579 MFR # 3100838006
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
13. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
14. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
15. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
16. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
17. #PLUG,FEMALE 3 POLE HEATSTRIP MFR # 313653
18. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
19. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
20. #CAPACITOR 30/50MFD MFR # 3313107027
21. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
22. #CAPACITOR, START MFR # 47C
23. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
24. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
25. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
26. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
27. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
28. #PTCR KIT MFR # 3310731009

Replacement Non-ducted A-c

Components

11 items

1. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
2. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
3. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
4. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
5. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
6. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
7. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
8. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
10. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
11. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
