Diagrams › Dometic › Brisk Air 57915422 13,500 BTU Dometic Brisk Air 57915422 13,500 BTU Parts Diagram · Shroud & Main Components
Air Conditioner · 16 assemblies · 16 diagram sheets · 260 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic Brisk Air 57915422 13,500 BTU rooftop air conditioner: 16 assemblies (Shroud & Main Components, Elec. Control Kit# 3106481009, Return Air Assembly, Replacement Ducted A-c, Adb #3107210001 and more) and 260 manufacturer part numbers. 82 parts are marked as superseded — the description gives the replacement number to order instead.
On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.
Shroud & Main Components
Dometic Brisk Air 57915422 13,500 BTU shroud & main components — exploded parts diagram Full-resolution diagram + every part number →
Components 87 items # SCREW,SHOULDER MFR # 3102834003 # Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 12' MFR # 3309518003 # DECAL,SHROUD MFR # 3101380016 # DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description # SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description # SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description # SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Decal MFR # 3100916018 # COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description # COVER, CONDENSER COIL MFR # 309383000 # APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023 # INSULATION,EVAPORATOR MFR # 317797001 # COVER,EVAPORATOR MFR # 314885001 # APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001 # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description # OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description # COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description # APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description # APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523 # Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003 # APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343 # APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006 # APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # FAN BLADE MFR # 3313107015 # SERVICE KIT F/MOTOR MFR # 3310725001 # GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description # SUPPORT, MOTOR MFR # 317795002 # MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description # MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description # APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001 # BASE PAN MFR # 3100832041 # Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116 # BLOCKS, FOAM MFR # 3100587009 # APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000 # APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007 # APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033 # HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description # INSULATION MFR # 3100833007 # BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description # APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # RING,BLOWER INLET MFR # 39304 # APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001 # APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001 # NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description # APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027 # CONDUIT,FLEX 579 MFR # 3100838006 # APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001 # BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description # APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650 # COVER CONT MFR # 38146 # GASKET, GREY, 14 X 14 MFR # 6759A3281 # A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071 # A/C SEAL, 14 X 14 WHITE MFR # A101414 # ROOF A/C GASKET KIT MFR # 3310718006 # GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description # BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008 # PAN KIT,BASE 12" MFR # 3108700323 # BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description # BOX,ELECTRICAL MFR # 3100827066 # Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098 # GROMMET 3REQUIRED MFR # 3102324005 # NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002 # COUPLING,3/8 X 5/16 MFR # 3103731000 # PLATE, COMPRESSOR BASE MFR # 3106429008 # LINE, PROCESS MFR # 203309006 # RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020 # FIN-SCREEN, WHITE (24) F/DUO-THERM 57/59 SERIES MFR # FS1022 # APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
Elec. Control Kit# 3106481009
Dometic Brisk Air 57915422 13,500 BTU elec. control kit# 3106481009 — exploded parts diagram Full-resolution diagram + every part number →
Components 7 items # APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020 # BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description # HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description # ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description # ELECTRONIC KIT CCC MFR # 3109226005 # APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005 # APPLIANCE COMPONENTS RV; Washer Flat Steel .188X.6 MFR # 309513015
Return Air Assembly
Dometic Brisk Air 57915422 13,500 BTU return air assembly — exploded parts diagram Full-resolution diagram + every part number →
Components 21 items # GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description # Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008 # TEMPLATE, CEILING MFR # 3105148005 # Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016 # GRILLE,RETURN AIR GRAY MFR # 3105148021 # Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 3108701373 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description # GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description # GRILLE,RETURN USE 3105007029 MFR # 3104928027 Superseded: see description # A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045 # Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381 # Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description # GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description # GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description # APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
Replacement Ducted A-c
Dometic Brisk Air 57915422 13,500 BTU replacement ducted a-c — exploded parts diagram Full-resolution diagram + every part number →
Components 12 items # ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description # AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description # CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description # BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description # CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description # AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description # Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description # APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005 # Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009 # AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description # COMFORT CTRL MFR # 3106463007 # BOARD KIT CCC MFR # 3311557000
Adb #3107210001
Dometic Brisk Air 57915422 13,500 BTU adb #3107210001 — exploded parts diagram Full-resolution diagram + every part number →
Components 32 items # APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000 # DECAL, FIELD WIRING MFR # 3106515004 # SCREW (3 REQ.) MFR # 307987001 # APPLIANCE COMPONENTS RV; Parts Bag Asm Shell White MFR # 3107194007 # SPACER, FIBER MFR # 3105677011 # TEMPLATE, CEILING (SW) MFR # 3107193009 # APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3107188025 # APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033 # PLATE, ESCUTCHEON MFR # 3107217006 # APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019 # AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001 # DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description # DECAL FIELD WIRING MFR # 3107764007 # PLATE, RELAY KIT MFR # 3107575007 # APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015 # APPLIANCE COMPONENTS RV; Plug Hole Shell White MFR # 3104931005 # LOUVER ASM MFR # 3107189007 # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # SCREW 8-18 X .625 MFR # 312096004 # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051 # FOAM TAPE (22.5" REQ.) SHELL WHITE MFR # 3107890 # APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
Adb #3105023000
Dometic Brisk Air 57915422 13,500 BTU adb #3105023000 — exploded parts diagram Full-resolution diagram + every part number →
Components 53 items # Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015 # Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009 # DOOR,RETURN AIR SHELL WHITE MFR # 3104071000 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000 # CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description # BUSHING,SNAP-IN MFR # 301028040 # A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714 # Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000 # CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description # Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # CAP, CONN. HOUSING (6 POLE) MFR # 314471001 # LOUVER USE 310138 MFR # 310138000 Superseded: see description # LOUVER ASM 2REQUIRED MFR # 310138 # PLUG, FEMALE MFR # 314471000 # Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307 # Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description # WELDMENT,JUNCTION BOX MFR # 3104161007 # APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005 # BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description # BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # PLATE,COVER RV A/C SHELL WHITE MFR # 316659 # APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002 # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009 # BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description # APPLIANCE COMPONENTS RV; Template MFR # 315427001 # SHELL,AIRBOX SHEL L WHITE MFR # 3104234004 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650 # BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description # APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008 # EXTENSION, DUCT MFR # 313606000
Replacement Non-ducted A-c
Dometic Brisk Air 57915422 13,500 BTU replacement non-ducted a-c — exploded parts diagram Full-resolution diagram + every part number →
Components 12 items # AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description # AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description # AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description # COMFORT CTRL MFR # 3106463007 # ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description # APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005 # CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description # Wall Thermostat; 5 Button; White MFR # 3109228001 # BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description # BOARD KIT CCC MFR # 3311557000 # CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description # Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009

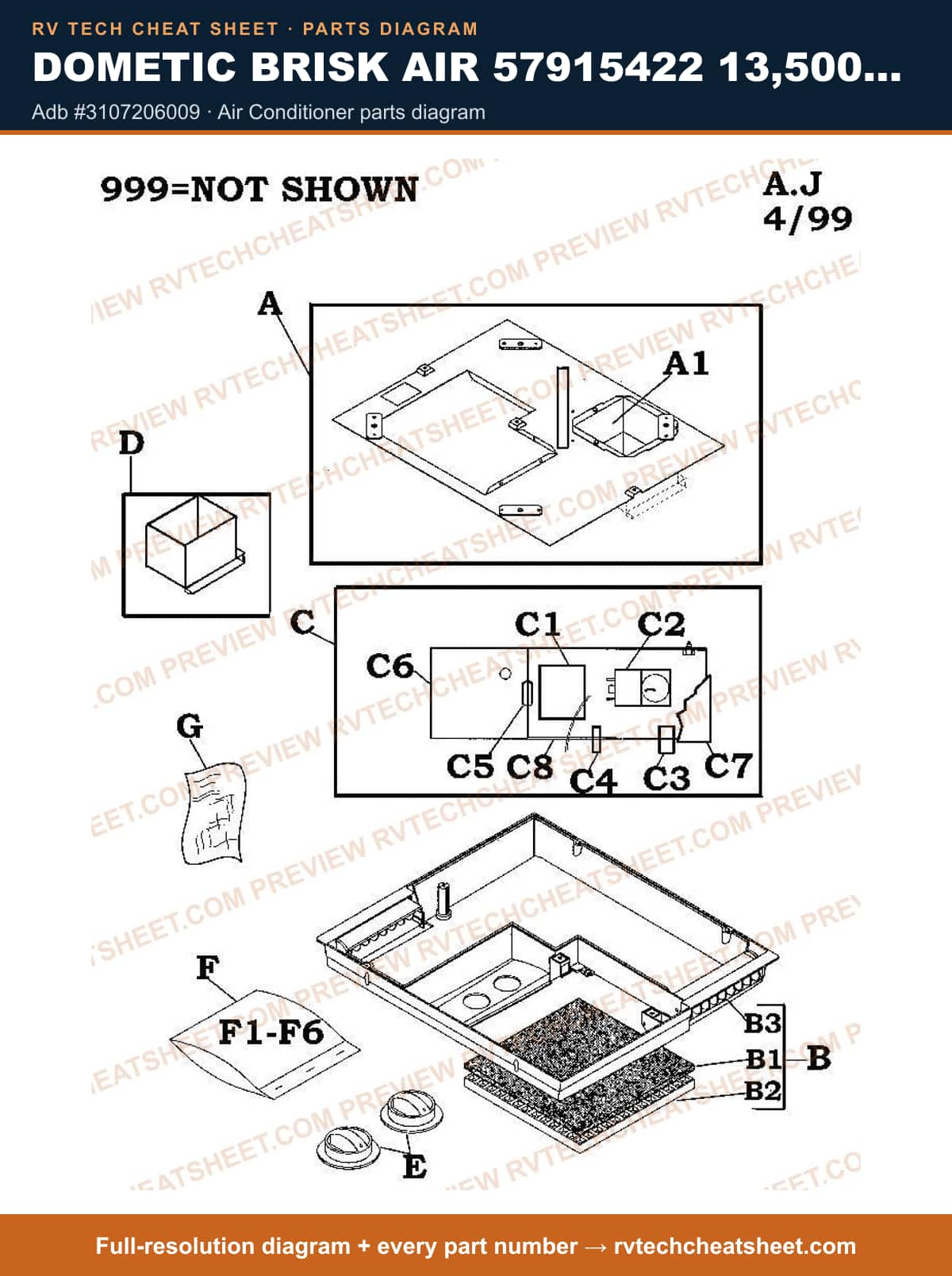

Adb #3107206009
Dometic Brisk Air 57915422 13,500 BTU adb #3107206009 — exploded parts diagram Full-resolution diagram + every part number →
Components 39 items # Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # SCREW 8-18 X .625 MFR # 312096004 # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009 # AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003 # Air Conditioner Ceiling Assembly Service Kit; Replacement For Dometic 579/ 590/ 591/ 595/ 600/ 630015 Series Air Conditioners; Press On; Round; Polar White MFR # 3104931013 # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # SCREW,16-24X.38 PCR MFR # 317224001 # APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013 # Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000 # Air Conditioner Ceiling Assembly; For Duo-Therm Air Conditioner Brisk Air Model 57915622; Non-Ducted System; With Manual Control MFR # 3107188017 # GRILLE, RETURN USE 3313107034 PLR WHT MFR # 3107053005 Superseded: see description # T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description # GRILLE RETURN AIR SVC KIT MFR # 3313107034 # Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051 # CAP, CONN HOUSING MFR # 3106624012 # LOUVER ASM MFR # 3107189007 # APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002 # APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000 # CAP, CONN. HOUSING (3-POLE) MFR # 3106624004 # RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description # BOX,JUNCTION MFR # 3107220018 # APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015 # COVER , CONTROL BOX MFR # 308146000 # DEACAL, FIELD WIRING MFR # 3105024008 # BOX, CONTROL MFR # 3105027035
Adb KIT#3105023018
Dometic Brisk Air 57915422 13,500 BTU adb kit#3105023018 — exploded parts diagram Full-resolution diagram + every part number →
Components 54 items # APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # BUSHING,SNAP-IN MFR # 301028040 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # DOOR,RETURN AIR SHELL WHITE MFR # 3104071000 # AIRBOX,COMPLETE USE 3104234004 MFR # 3104234020 Superseded: see description # SHELL,AIRBOX SHEL L WHITE MFR # 3104234004 # EXTENSION, DUCT MFR # 313606000 # BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # DOOR,RETURN AIR PW WITH FILTER MFR # 3104071018 # SWITCH,ROTARY USE 20250 *N* MFR # 20250000 Superseded: see description # BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002 # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # LOUVER USE 310138 MFR # 310138000 Superseded: see description # LOUVER ASM 2REQUIRED MFR # 310138 # CAP, CONN. HOUSING (6 POLE) MFR # 314471001 # PLUG, FEMALE MFR # 314471000 # RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description # Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307 # Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description # APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005 # BOX,JUNCTION MFR # 3107220018 # BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description # WELDMENT, JUNCTION BOX MFR # 3104161017 # COVER, CONTROL BOX COMPLETE SHELL WHITE MFR # 308146 # BOX, CONTROL COMPLETE SHELL WHITE MFR # 3105027001 # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650 # BOX, CONTROL COMPLETE POLAR WHITE MFR # 3105027019 # BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description # PLATE,COVER POLAR WHITE MFR # 316659001 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description # AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description # AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009 # AIRBOX,COMPLETE USE 3107206017 POLAR WHITE MFR # 3105023018 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # PLATE,COVER RV A/C SHELL WHITE MFR # 316659 # BAG ASM., PARTS COMPLETE POLAR WHITE MFR # 3105615003
Adb #3107206017
Dometic Brisk Air 57915422 13,500 BTU adb #3107206017 — exploded parts diagram Full-resolution diagram + every part number →
Components 39 items # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # SCREW,16-24X.38 PCR MFR # 317224001 # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Service Kit; Replacement For Dometic 579/ 590/ 591/ 595/ 600/ 630015 Series Air Conditioners; Press On; Round; Polar White MFR # 3104931013 # Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003 # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # SCREW 8-18 X .625 MFR # 312096004 # Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051 # T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description # GRILLE RETURN AIR SVC KIT MFR # 3313107034 # GRILLE, RETURN USE 3313107034 PLR WHT MFR # 3107053005 Superseded: see description # Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000 # Air Conditioner Ceiling Assembly; For Duo-Therm Air Conditioner Brisk Air Model 57915622; Non-Ducted System; With Manual Control MFR # 3107188017 # APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013 # APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002 # LOUVER ASM MFR # 3107189007 # CAP, CONN HOUSING MFR # 3106624012 # CAP, CONN. HOUSING (3-POLE) MFR # 3106624004 # APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description # RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description # BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description # BOX,JUNCTION MFR # 3107220018 # APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015 # COVER , CONTROL BOX MFR # 308146000 # DEACAL, FIELD WIRING MFR # 3105024008 # BOX, CONTROL MFR # 3105027035

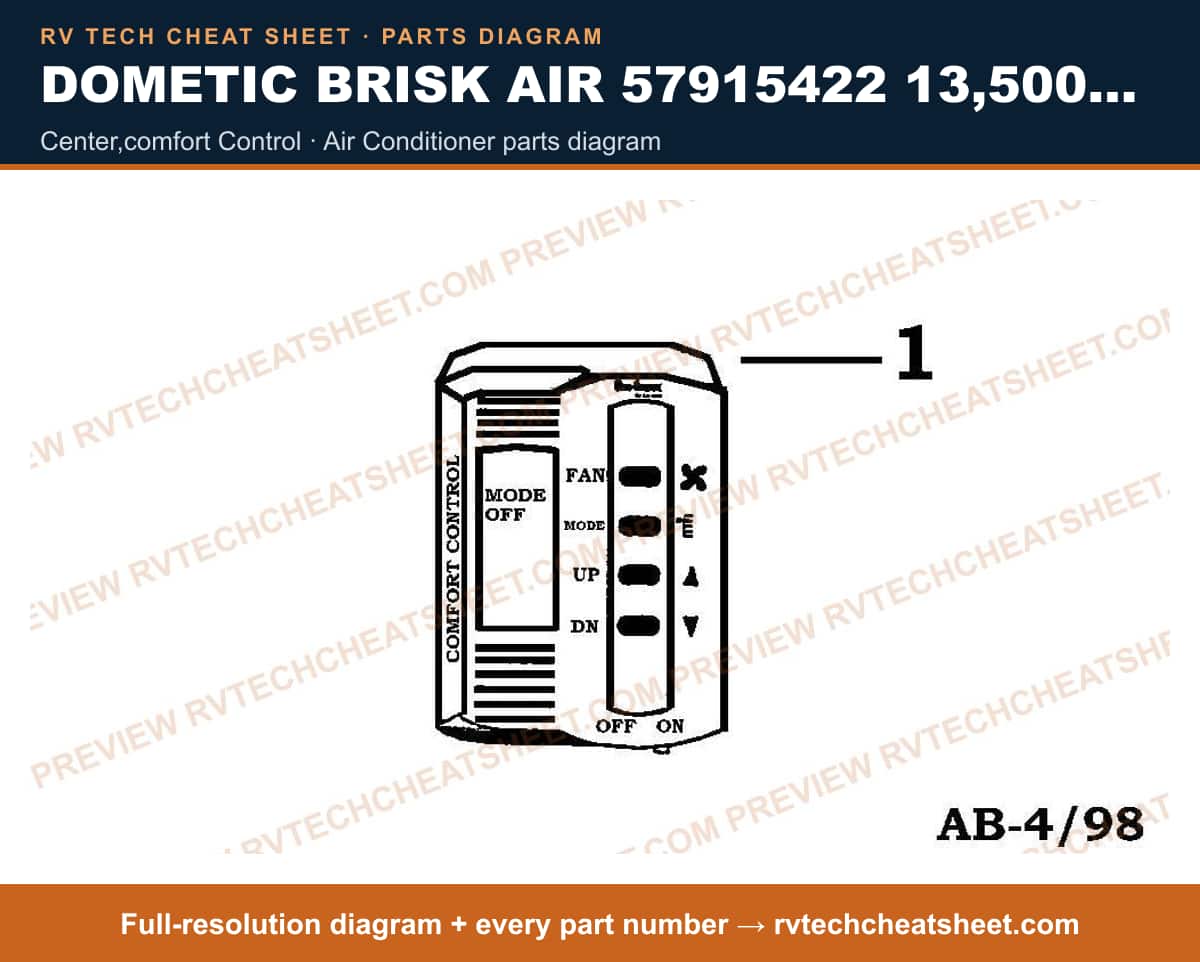

Center,comfort Control
Dometic Brisk Air 57915422 13,500 BTU center,comfort control — exploded parts diagram Full-resolution diagram + every part number →
Components 9 items # Wall Thermostat; 5 Button; White MFR # 3109228001 # Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003 # BOARD KIT CCC MFR # 3311557000 # COMFORT CTRL MFR # 3106463007 # Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000 # CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001 # APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019 # BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description # Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000

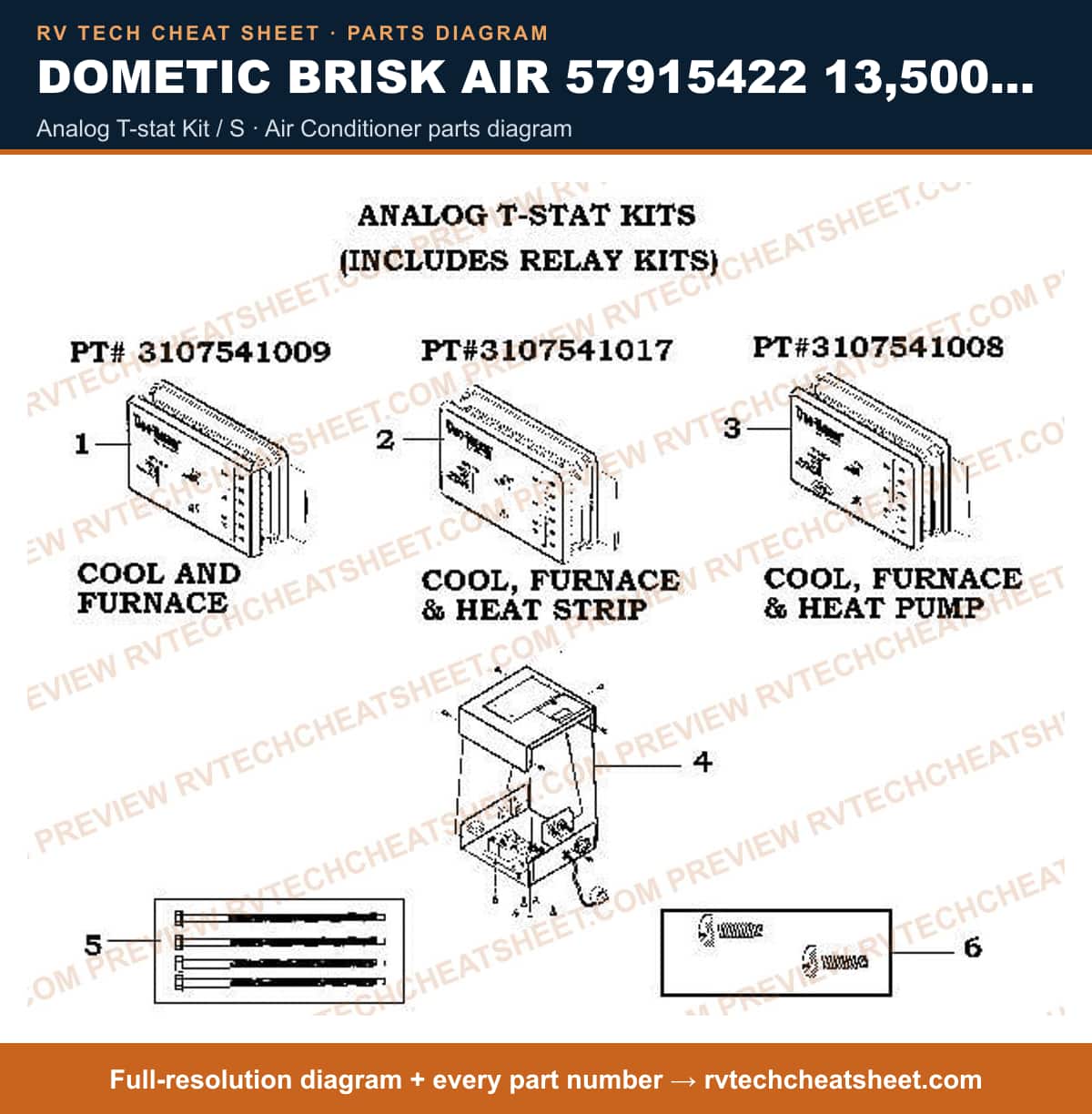

Analog T-stat Kit / S
Dometic Brisk Air 57915422 13,500 BTU analog t-stat kit / s — exploded parts diagram Full-resolution diagram + every part number →
Components 22 items # Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000 # Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032 # T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description # Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000 # Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015 # A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714 # Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description # null MFR # D7E3107541009 # Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000 # CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description # CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description # APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049 # null MFR # 3107546008 # APPLIANCE COMPONENTS RV; Board Control MFR # 3106997012 # Air Conditioner Relay; Use With Dometic Duo-Therm Air Conditioner And Cool/ Furnace Thermostat MFR # 3106997004 Superseded: see description # Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009 # BOARD KIT,RELAY USE 46-4112 HT/COOL (10) MFR # F7000 Superseded: see description # CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description # BOARD KIT,RELAY(10)USE 46-4114 MFR # F7003 Superseded: see description # BOARD,CONTROL(10) USE 46-4113 MFR # F7002 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020 # APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002
Remote Sensor
Dometic Brisk Air 57915422 13,500 BTU remote sensor — exploded parts diagram Full-resolution diagram + every part number →
Components 8 items # APPLIANCE COMPONENTS RV; Cap Svc Kit White MFR # 3313107064 # APPLIANCE COMPONENTS RV; Cap Sensor MFR # 3106488012 # SENSOR CAP, TAN MFR # 3313107065 # APPLIANCE COMPONENTS RV; KIT,SVC SENSOR CAP BLACK MFR # 3313107066 # SENSOR FOR 3106486008 MFR # 3106484004 # NYLOCLIP MFR # 304203001 # SCREW #4-24 X .62 (2 REQ.) MFR # 312096005 # SCREW #8-18 X .5 MFR # 312096014

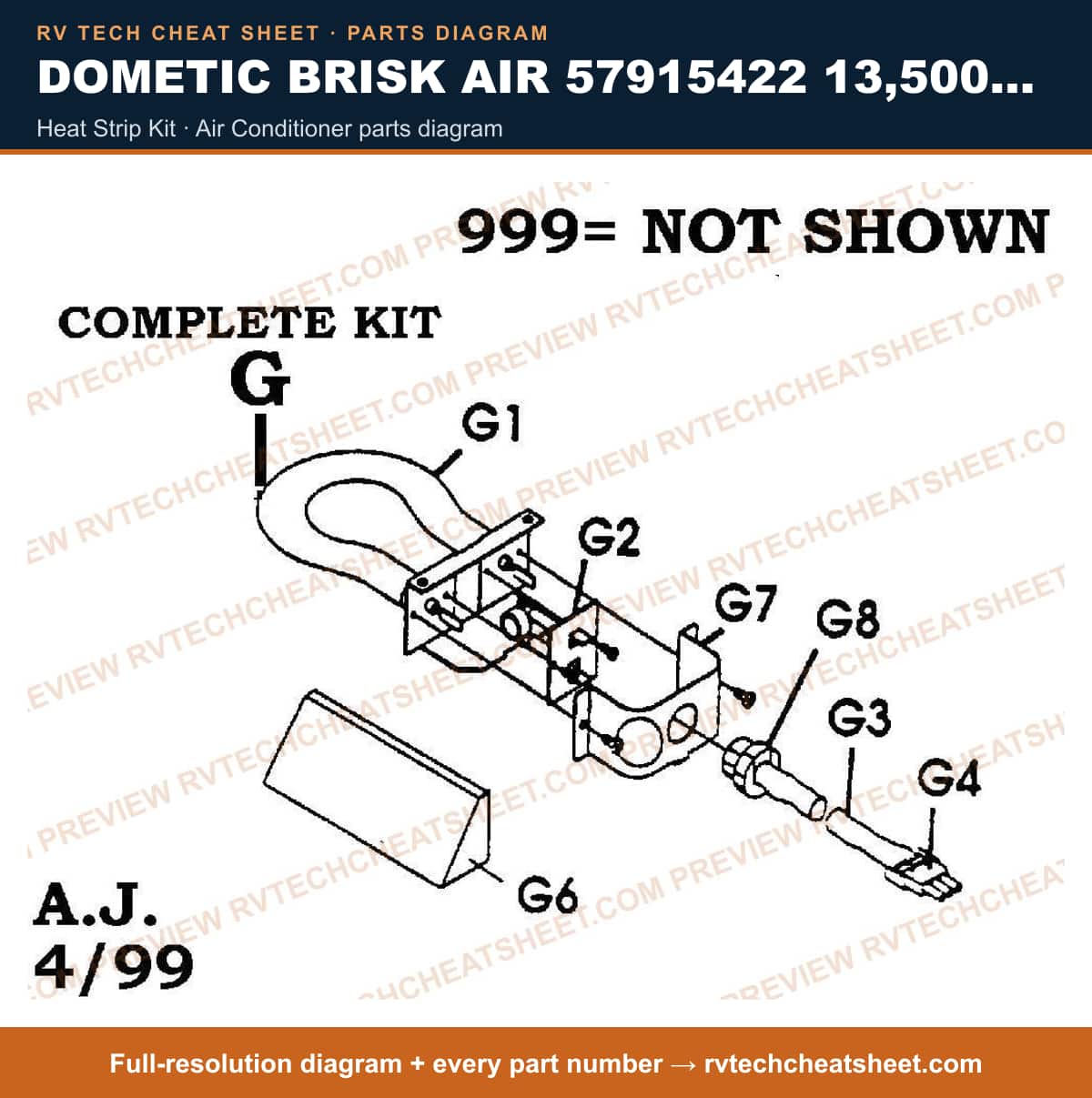

Heat Strip Kit
Dometic Brisk Air 57915422 13,500 BTU heat strip kit — exploded parts diagram Full-resolution diagram + every part number →
Components 9 items # APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004 # HEAT STRIP,NON-DUCTED MFR # 3101121030 # HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009 # SLEEVING MFR # 3100394083 # PLUG,MALE 3-POLE MFR # 314470000 # APPLIANCE COMPONENTS RV; Guard Kit Heat MFR # 3101143000 # ELECTRIC BOX MFR # 3101125007 # APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
Adb #3107210019
Dometic Brisk Air 57915422 13,500 BTU adb #3107210019 — exploded parts diagram Full-resolution diagram + every part number →
Components 32 items # PLATE, ESCUTCHEON MFR # 3107217006 # TEMPLATE, CEILING (SW) MFR # 3107193009 # APPLIANCE COMPONENTS RV; Parts Bag Polar White MFR # 3107194015 # APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000 # SCREW (3 REQ.) MFR # 307987001 # SPACER, FIBER MFR # 3105677011 # APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033 # DECAL, FIELD WIRING MFR # 3106515004 # APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3107188025 # DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description # AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001 # APPLIANCE COMPONENTS RV; Parts Bag Asm Shell White MFR # 3107194007 # APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019 # DECAL FIELD WIRING MFR # 3107764007 # PLATE, RELAY KIT MFR # 3107575007 # SCREW 8-18 X .625 MFR # 312096004 # LOUVER ASM MFR # 3107189007 # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000 # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000 # AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003 # APPLIANCE COMPONENTS RV; Plug Hole Shell White MFR # 3104931005 # Air Conditioner Ceiling Assembly Grille; Air Return; Shell White MFR # 3313107051 # FOAM TAPE (22.5" REQ.) SHELL WHITE MFR # 3107890 # APPLIANCE COMPONENTS RV; Grille Return Air Shell W MFR # 3107053013 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description
