Dometic Brisk Air 57915502 13,500 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 4 assemblies · 4 diagram sheets · 92 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915502 13,500 BTU rooftop air conditioner: 4 assemblies (Non-ducted A-c Replacement, Ducted A-c Replacement, Air Box Assembly, Shroud & Main Components) and 92 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Non-ducted A-c Replacement

Components

12 items

1. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
2. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #BOARD KIT CCC MFR # 3311557000
5. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
6. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
7. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
9. #COMFORT CTRL MFR # 3106463007
10. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
11. #AIR CONDITIONER USE 57915G BRISK AIR POLAR WHITE MFR # 57915CN Superseded: see description
12. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description

Ducted A-c Replacement

Components

12 items

1. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
2. #COMFORT CTRL MFR # 3106463007
3. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
4. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
5. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
6. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
7. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
8. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
9. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
10. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
11. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
12. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037

Air Box Assembly

Components

24 items

1. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
3. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #KIT SVC AIR FILTER MFR # 3313107103
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #LOUVER ASM 2REQUIRED MFR # 310138
15. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
16. #STUD,LATCH RETURN AIR MFR # 311673001
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
19. #RETAINER,RETURN AIR GRILLE MFR # 311675000
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
22. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
23. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
24. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description

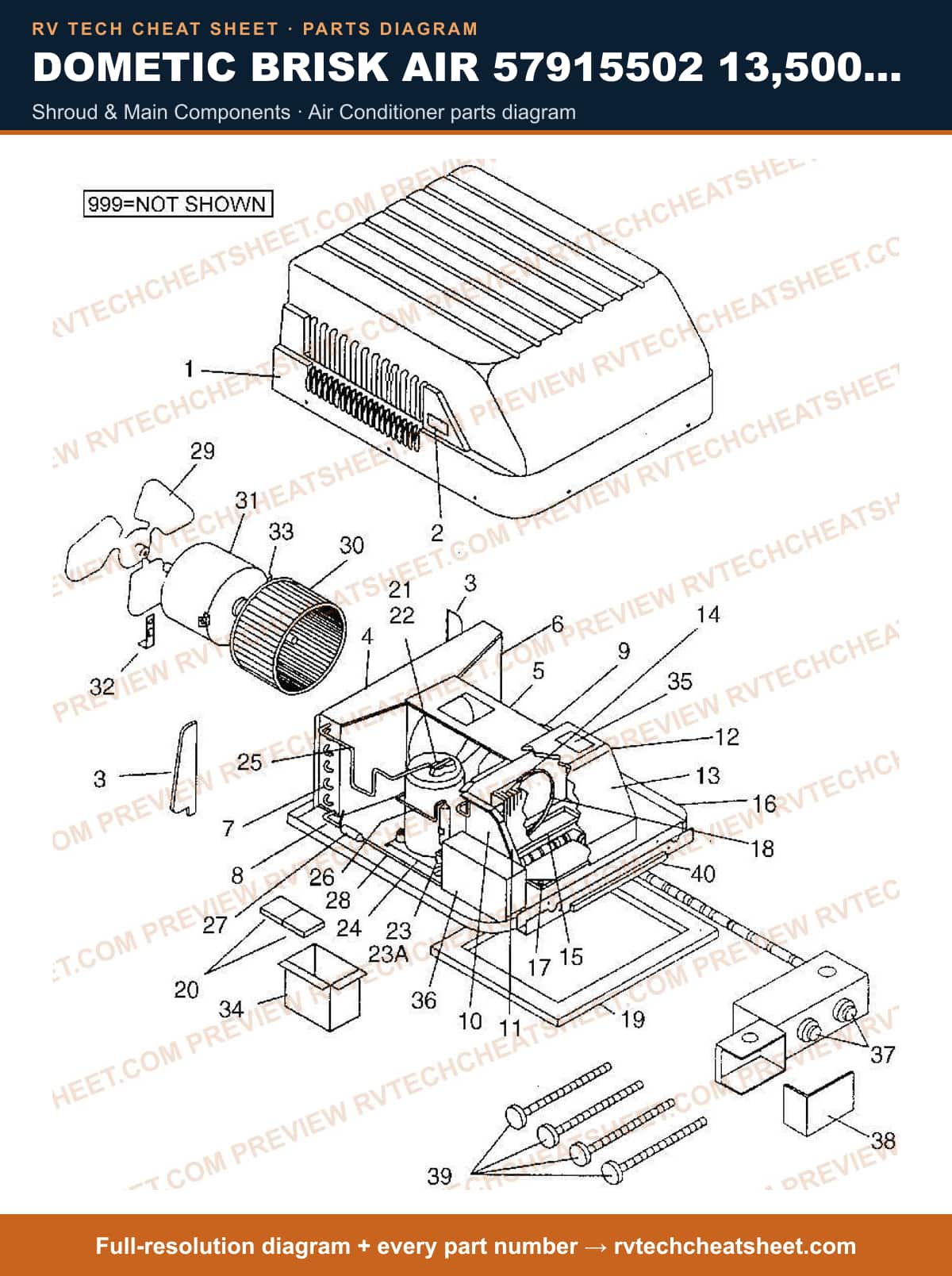

Shroud & Main Components

Components

50 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #PART OF SHROUD MFR # PART OF SHROUD
5. #DECAL, SHROUD MFR # 3101380
6. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
9. #SHROUD 12' MFR # 3309518003
10. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
11. #INSULATION,EVAPORATOR MFR # 317797001
12. #COVER,EVAPORATOR MFR # 314885001
13. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
14. #NUT, FLANGE MFR # 36342004
15. #GASKET,COVER MFR # 3103800003
16. #APPLIANCE COMPONENTS RV; Compressor Kit MFR # 3104115013
17. #COMPRESSOR USE 3104115013 58915 MFR # 3104115005 Superseded: see description
18. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
19. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
21. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
23. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
24. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245061
25. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
26. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
27. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
28. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
29. #SERVICE KIT F/MOTOR MFR # 3310725001
30. #FAN BLADE MFR # 3313107015
31. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
32. #MOTOR KIT MFR # 3108706916
33. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
34. #SUPPORT, MOTOR MFR # 317795002
35. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
37. #BASE PAN MFR # 3100832041
38. #GROMMET MFR # 3100238207
39. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
40. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
41. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
43. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
44. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
46. #RING,BLOWER INLET MFR # 39304
47. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
48. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
49. #CONDUIT,FLEX 579 MFR # 3100838006
50. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
