Dometic Brisk Air 57915503 13,500 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 6 assemblies · 6 diagram sheets · 140 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915503 13,500 BTU rooftop air conditioner: 6 assemblies (Non-ducted A-c Replacement, Electrical Box Assembly, Air Box Assembly, Shroud & Main Components, Ducted A-c Replacement and more) and 140 manufacturer part numbers. 55 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Non-ducted A-c Replacement

Components

11 items

1. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
2. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
3. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
4. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
5. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
8. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
9. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
10. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
11. #AIR CONDITIONER USE 57915F COLONIAL WHITE MFR # 57915N Superseded: see description

Electrical Box Assembly

Components

21 items

1. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
2. #BOX,ELECTRICAL MFR # 3100827066
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
5. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
6. #COVER CONT MFR # 38146
7. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
8. #CONDUIT,FLEX 579 MFR # 3100838006
9. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
13. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
14. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
15. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
16. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
17. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
18. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
19. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
20. #PTCR KIT MFR # 3310731009
21. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Air Box Assembly

Components

26 items

1. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
4. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #KIT SVC AIR FILTER MFR # 3313107103
10. #ATTACHMENT TAPE GREY-EACH MFR # 06384
11. #FILTER RETURN AIR(UNIVER MFR # 3108015003
12. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
13. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
14. #LOUVER ASM 2REQUIRED MFR # 310138
15. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
16. #STUD,LATCH RETURN AIR MFR # 311673001
17. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
18. #RETAINER,RETURN AIR GRILLE MFR # 311675000
19. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
20. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
21. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780000
22. #DECAL,AIR BOX USE 3100780 MFR # 316565 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Decal 8 Pos Switch MFR # 3100780
24. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
25. #AIRBOX USE 3104085 MFR # 316699012 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001

Shroud & Main Components

Components

74 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #SHROUD 12' MFR # 3309518003
7. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
8. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
9. #DECAL,SHROUD MFR # 3101380016
10. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
11. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
12. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
13. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
24. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #FAN BLADE MFR # 3313107015
33. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
34. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
39. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR KIT MFR # 3108706916
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
50. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
51. #INSULATION MFR # 3100833007
52. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
53. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
64. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
65. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #COVER CONT MFR # 38146
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
70. #GASKET, GREY, 14 X 14 MFR # 6759A3281
71. #A/C SEAL, 14 X 14 WHITE MFR # A101414
72. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
73. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
74. #ROOF A/C GASKET KIT MFR # 3310718006

Ducted A-c Replacement

Components

11 items

1. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
4. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
5. #Wall Thermostat; 5 Button; White MFR # 3109228001
6. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
7. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
8. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
9. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
10. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
11. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F

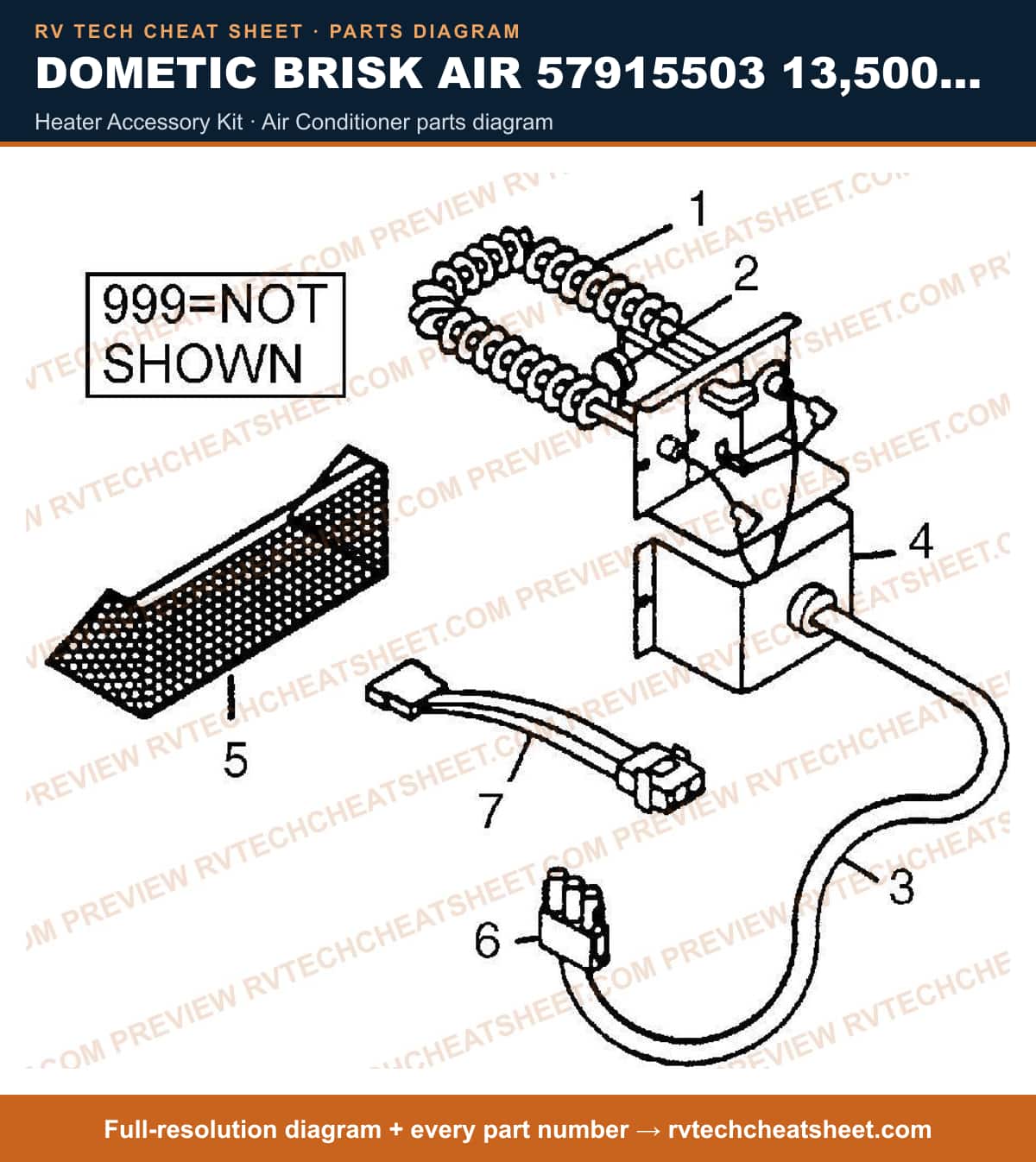

Heater Accessory Kit

Components

10 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #CONDUIT MFR # 3100394075
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
10. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
