Dometic Brisk Air 57915504 13,500 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 6 assemblies · 6 diagram sheets · 149 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915504 13,500 BTU rooftop air conditioner: 6 assemblies (Air Box Assembly, Shroud And Main Components, Non-ducted A-c Replacement, Ducted A-c Replacement, Electrical Box Assembly and more) and 149 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

21 items

1. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
2. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
3. #FILTER RETURN AIR(UNIVER MFR # 3108015003
4. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
5. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #KIT SVC AIR FILTER MFR # 3313107103
9. #LOUVER ASM 2REQUIRED MFR # 310138
10. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
11. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
12. #STUD,LATCH RETURN AIR MFR # 311673001
13. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
14. #RETAINER,RETURN AIR GRILLE MFR # 311675000
15. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
16. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
17. #AIRBOX COMPLETE 5940 6-501 MFR # 316699016
18. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
19. #BOLT KIT, 6" - 9" MFR # 310538001
20. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
21. #PARTS BAG 679508.403 MFR # 3101148009

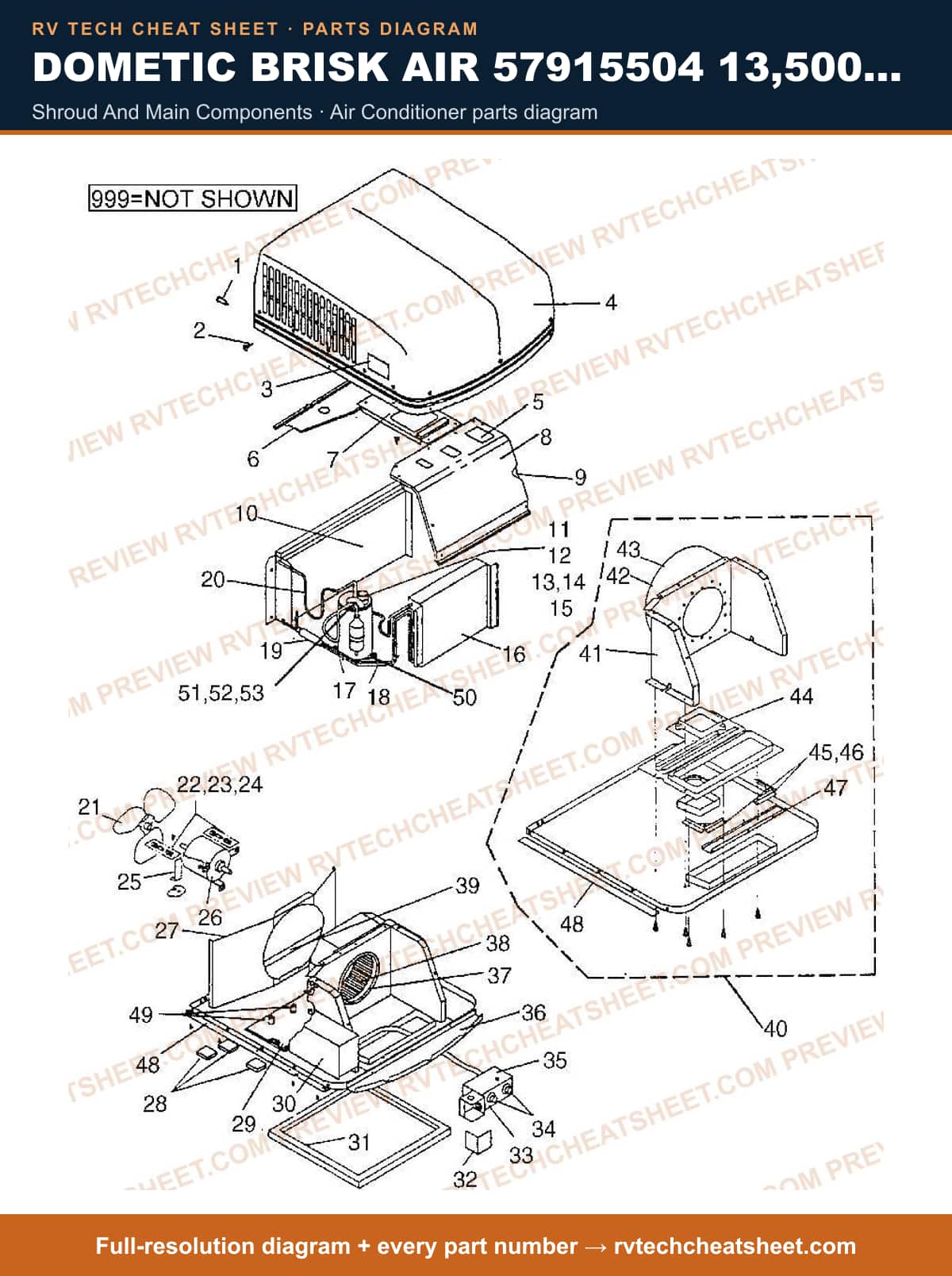

Shroud And Main Components

Components

82 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
9. #SHROUD 12' MFR # 3309518003
10. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
11. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
13. #DECAL, FIELD WIRING MFR # 3104163005
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #COVER, CONDENSER COIL MFR # 309383000
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #COIL,CONDENSER USE 3103014001 MFR # 3100817026 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
21. #COMPRESSOR USE 3104115013 58915 MFR # 3104115005 Superseded: see description
22. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
23. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
25. #GASKET,COVER MFR # 3103800003
26. #NUT, FLANGE MFR # 36342004
27. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
28. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
31. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245426
32. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
33. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
34. #FAN BLADE MFR # 3313107015
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
37. #SERVICE KIT F/MOTOR MFR # 3310725001
38. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
39. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
40. #SPACER USE 308046002 MFR # 38046 Superseded: see description
41. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
42. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
43. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
44. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
45. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
46. #MOTOR KIT MFR # 3108706916
47. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
48. #BLOCKS, FOAM MFR # 3100587009
49. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
51. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
52. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
53. #ROOF A/C GASKET KIT MFR # 3310718006
54. #A/C SEAL, 14 X 14 WHITE MFR # A101414
55. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
56. #GASKET, GREY, 14 X 14 MFR # 6759A3281
57. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
58. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
59. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
60. #COVER CONT MFR # 38146
61. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
62. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
64. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
66. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
67. #RING,BLOWER INLET MFR # 39304
68. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
69. #PAN KIT,BASE 12" MFR # 3108700323
70. #BULKHEAD, EVAPORATOR MFR # 3100831068
71. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
73. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
74. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
75. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
76. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
77. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
78. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
79. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
80. #APPLIANCE COMPONENTS RV; Nut Terminal Cover MFR # 3102550005
81. #APPLIANCE COMPONENTS RV; Gasket Nut MFR # 3102551003
82. #SPRING, OVERLOAD MFR # 3102552001

Non-ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
2. #COMFORT CTRL MFR # 3106463007
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
6. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
7. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
10. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
11. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
12. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description

Ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
2. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
3. #COMFORT CTRL MFR # 3106463007
4. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
7. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
8. #Wall Thermostat; 5 Button; White MFR # 3109228001
9. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
10. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
11. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
12. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912CN Superseded: see description

Electrical Box Assembly

Components

20 items

1. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
2. #BOX,ELECTRICAL MFR # 3100827066
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #COVER, ELECTRIC BOX MFR # 3100828
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
9. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
13. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
14. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
15. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
16. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
17. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
18. #PTCR KIT MFR # 3310731009
19. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
20. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Optional Heater Accessory Kit

Components

9 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #CONDUIT MFR # 3100394075
6. #ELECTRIC BOX MFR # 3101125007
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
