Dometic Brisk Air 57915522 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 12 assemblies · 12 diagram sheets · 226 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915522 13,500 BTU rooftop air conditioner: 12 assemblies (Shroud & Main Components, Bi-metal Relay KIT#3104998004, Remote Sensor, Adb KIT#3105023018, Analog T-stat Kit / S and more) and 226 manufacturer part numbers. 77 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

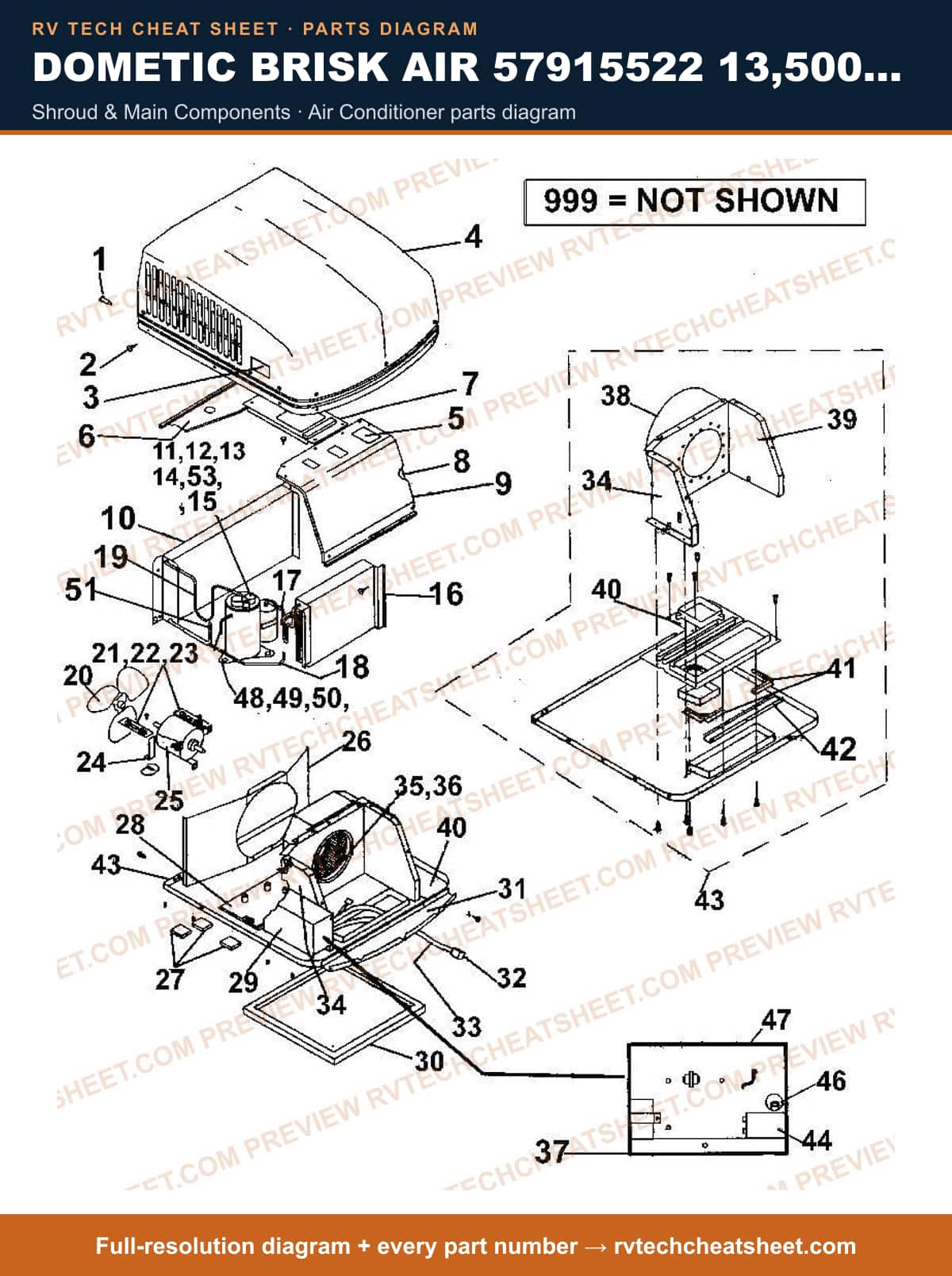

Shroud & Main Components

Components

87 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #SHROUD 12' MFR # 3309518003
8. #DECAL,SHROUD MFR # 3101380016
9. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
11. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
12. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
13. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
14. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #COVER, CONDENSER COIL MFR # 309383000
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
24. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
33. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
39. #MOTOR KIT MFR # 3108706916
40. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
41. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
51. #INSULATION MFR # 3100833007
52. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
59. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
64. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
66. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
69. #COVER CONT MFR # 38146
70. #ROOF A/C GASKET KIT MFR # 3310718006
71. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
72. #GASKET, GREY, 14 X 14 MFR # 6759A3281
73. #A/C SEAL, 14 X 14 WHITE MFR # A101414
74. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
75. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
76. #PAN KIT,BASE 12" MFR # 3108700323
77. #BOX,ELECTRICAL MFR # 3100827066
78. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
79. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
80. #GROMMET 3REQUIRED MFR # 3102324005
81. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
82. #COUPLING,3/8 X 5/16 MFR # 3103731000
83. #PLATE, COMPRESSOR BASE MFR # 3106429008
84. #LINE, PROCESS MFR # 203309006
85. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
86. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
87. #FIN-SCREEN, WHITE (24) F/DUO-THERM 57/59 SERIES MFR # FS1022

Bi-metal Relay KIT#3104998004

Components

27 items

1. #BOX, RELAY MFR # 3104932003
2. #COVER,BOX RELAY USE 3104998004 MFR # 3104933001 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
4. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
5. #3104938000 MFR # 3104938000
6. #RELIEF, STRAIN MFR # 302994006
7. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3104991009
8. #BOX JUNCTION MFR # 3104934009
9. #STRAIN, RELIEF MFR # 302994001
10. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
11. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
12. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
13. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
14. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
15. #T-STAT KIT USE 3105058014 HEAT/COOL MFR # 3108700539 Superseded: see description
16. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
17. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
18. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
19. #T-STAT USE 3108700539 MFR # 3104438001 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
21. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
22. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
23. #COVER, JUNCTION BOX MFR # 3104935006
24. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
25. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
26. #Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description
27. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description

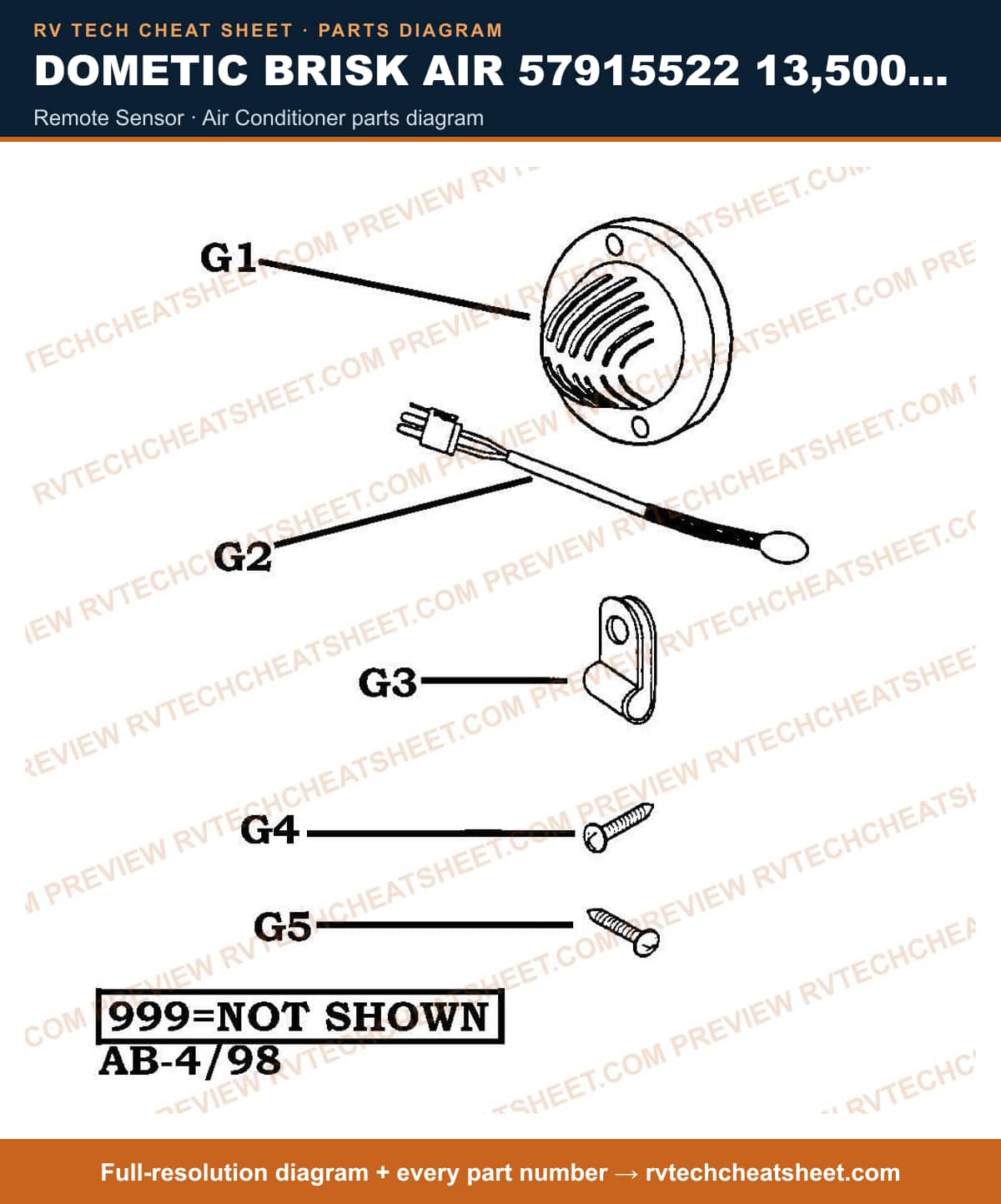

Remote Sensor

Components

8 items

1. #APPLIANCE COMPONENTS RV; KIT,SVC SENSOR CAP BLACK MFR # 3313107066
2. #APPLIANCE COMPONENTS RV; Cap Sensor MFR # 3106488012
3. #APPLIANCE COMPONENTS RV; Cap Svc Kit White MFR # 3313107064
4. #SENSOR CAP, TAN MFR # 3313107065
5. #SENSOR FOR 3106486008 MFR # 3106484004
6. #NYLOCLIP MFR # 304203001
7. #SCREW #4-24 X .62 (2 REQ.) MFR # 312096005
8. #SCREW #8-18 X .5 MFR # 312096014

Adb KIT#3105023018

Components

54 items

1. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
2. #SWITCH,ROTARY USE 20250 *N* MFR # 20250000 Superseded: see description
3. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
4. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
5. #BUSHING,SNAP-IN MFR # 301028040
6. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
7. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
8. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
9. #DOOR,RETURN AIR PW WITH FILTER MFR # 3104071018
10. #AIRBOX,COMPLETE USE 3104234004 MFR # 3104234020 Superseded: see description
11. #EXTENSION, DUCT MFR # 313606000
12. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
13. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
14. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
16. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
17. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
18. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
19. #FILTER RETURN AIR(UNIVER MFR # 3108015003
20. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
21. #ATTACHMENT TAPE GREY-EACH MFR # 06384
22. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
23. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
24. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
25. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
26. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
27. #LOUVER ASM 2REQUIRED MFR # 310138
28. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
29. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
30. #PLUG, FEMALE MFR # 314471000
31. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
32. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
33. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
34. #BOX,JUNCTION USE 3107220018 MFR # 3104154004 Superseded: see description
35. #WELDMENT, JUNCTION BOX MFR # 3104161017
36. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
37. #BOX,JUNCTION MFR # 3107220018
38. #COVER, CONTROL BOX COMPLETE SHELL WHITE MFR # 308146
39. #BOX, CONTROL COMPLETE SHELL WHITE MFR # 3105027001
40. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
41. #BOX, CONTROL COMPLETE POLAR WHITE MFR # 3105027019
42. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
44. #AIRBOX,COMPLETE USE 3107206017 POLAR WHITE MFR # 3105023018 Superseded: see description
45. #BAG ASM., PARTS COMPLETE POLAR WHITE MFR # 3105615003
46. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
47. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
48. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
49. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
51. #PLATE,COVER POLAR WHITE MFR # 316659001
52. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
53. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
54. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description

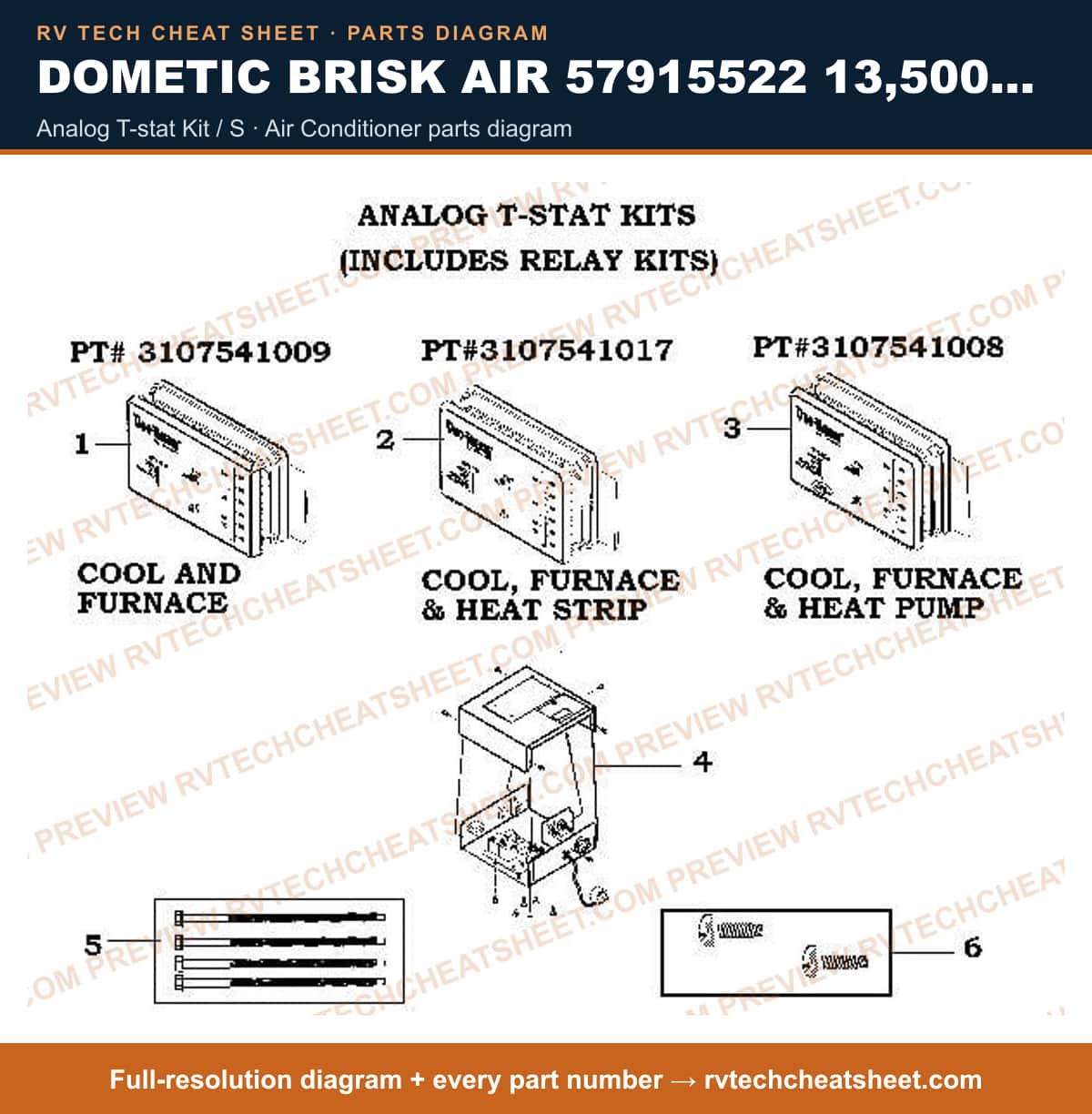

Analog T-stat Kit / S

Components

22 items

1. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
4. #A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714
5. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
6. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015
7. #null MFR # D7E3107541009
8. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
9. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
10. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
11. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
12. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
13. #null MFR # 3107546008
14. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
15. #BOARD,CONTROL(10) USE 46-4113 MFR # F7002 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Board Control MFR # 3106997012
17. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
18. #BOARD KIT,RELAY(10)USE 46-4114 MFR # F7003 Superseded: see description
19. #Air Conditioner Relay; Use With Dometic Duo-Therm Air Conditioner And Cool/ Furnace Thermostat MFR # 3106997004 Superseded: see description
20. #BOARD KIT,RELAY USE 46-4112 HT/COOL (10) MFR # F7000 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
22. #APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002

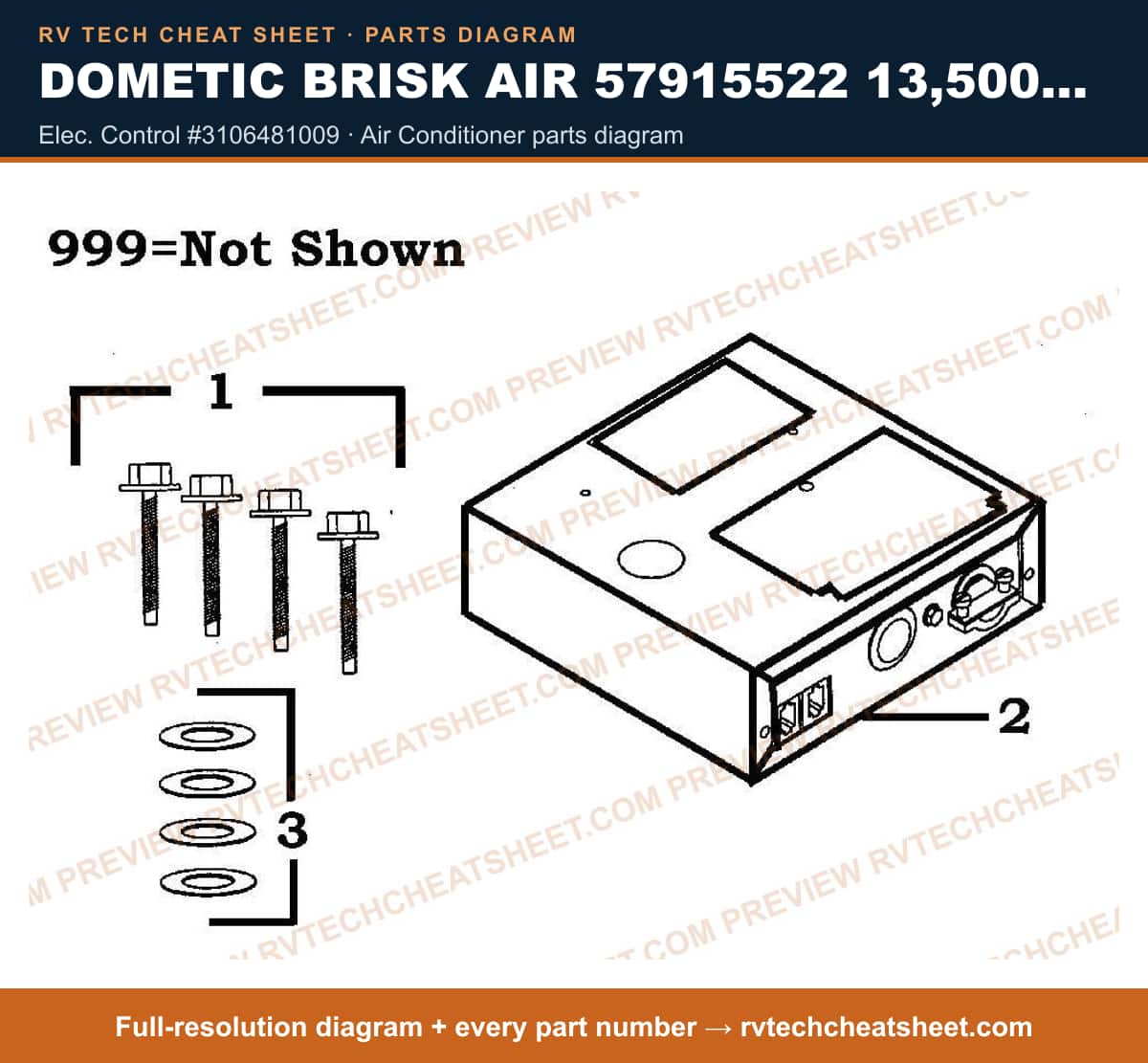

Elec. Control #3106481009

Components

7 items

1. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
2. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
3. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
4. #ELECTRONIC KIT CCC MFR # 3109226005
5. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
6. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Washer Flat Steel .188X.6 MFR # 309513015

Return Air Assembly

Components

21 items

1. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016
2. #TEMPLATE, CEILING MFR # 3105148005
3. #GRILLE,RETURN AIR GRAY MFR # 3105148021
4. #GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description
5. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008
6. #Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 3108701373
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #ATTACHMENT TAPE GREY-EACH MFR # 06384
12. #Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description
13. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
14. #GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description
15. #GRILLE,RETURN USE 3105007029 MFR # 3104928027 Superseded: see description
16. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
17. #Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381
18. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
19. #Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description
20. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
21. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037

Center,comfort Control

Components

9 items

1. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
2. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
3. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
4. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
5. #BOARD KIT CCC MFR # 3311557000
6. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
7. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
8. #COMFORT CTRL MFR # 3106463007
9. #Wall Thermostat; 5 Button; White MFR # 3109228001

Ducted A-c Replacement

Components

12 items

1. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
3. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
4. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
5. #COMFORT CTRL MFR # 3106463007
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
8. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
9. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
10. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
11. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
12. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009

Non-ducted A-c Replacement

Components

12 items

1. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
2. #COMFORT CTRL MFR # 3106463007
3. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
4. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
5. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
6. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
7. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
11. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
12. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504

Adb KIT#3105023000

Components

53 items

1. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
2. #A/C COMPONENTS RV; CTRL KIT, CT STD-C/F-BLK MFR # 3316230714
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
6. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
9. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
13. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
14. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
15. #BUSHING,SNAP-IN MFR # 301028040
16. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; Black Case; With Control Box MFR # 3313189015
17. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
18. #ATTACHMENT TAPE GREY-EACH MFR # 06384
19. #KIT SVC AIR FILTER MFR # 3313107103
20. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
21. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
22. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
23. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
24. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
25. #FILTER RETURN AIR(UNIVER MFR # 3108015003
26. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
27. #LOUVER ASM 2REQUIRED MFR # 310138
28. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
29. #PLUG, FEMALE MFR # 314471000
30. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
31. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
33. #WELDMENT,JUNCTION BOX MFR # 3104161007
34. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
35. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
36. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002
37. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
38. #EXTENSION, DUCT MFR # 313606000
39. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
40. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
41. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
43. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
44. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
46. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
47. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
48. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
49. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
50. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
51. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
52. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description

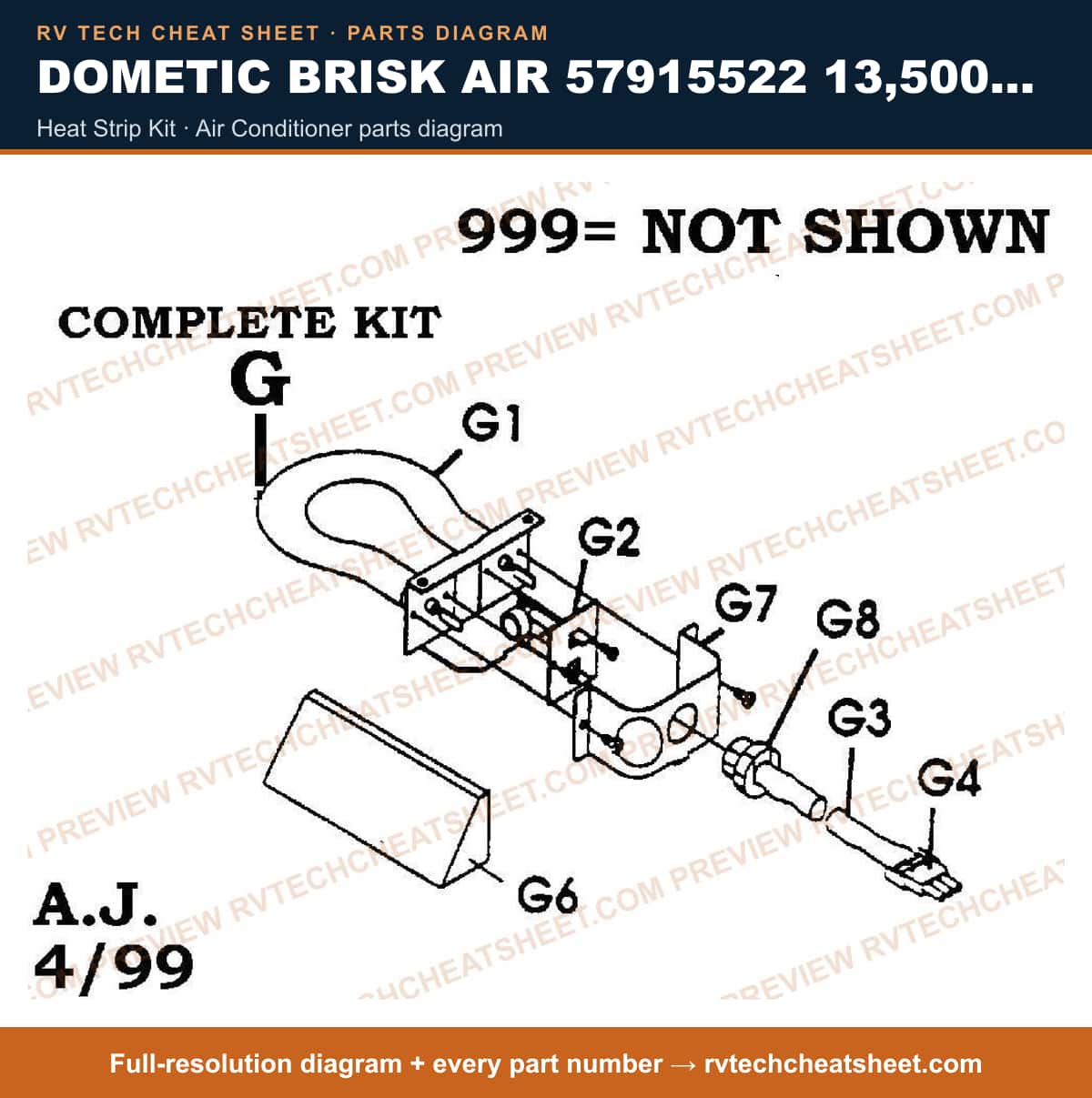

Heat Strip Kit

Components

9 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3-POLE MFR # 314470000
7. #APPLIANCE COMPONENTS RV; Guard Kit Heat MFR # 3101143000
8. #ELECTRIC BOX MFR # 3101125007
9. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
