Dometic Brisk Air 57915536C1 W-solar Panels Parts Diagram · Comfort Control Center

Air Conditioner · 8 assemblies · 8 diagram sheets · 122 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915536C1 W-solar Panels rooftop air conditioner: 8 assemblies (Comfort Control Center, 6 / & 9 1-2 / Bolt Kits, 3105935 Series Quick Cool, Duct Kit, Decorative Screen and more) and 122 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Comfort Control Center

Components

5 items

1. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
2. #ELECTRONIC KIT CCC MFR # 3109226005
3. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description

6 / & 9 1-2 / Bolt Kits

Components

2 items

1. #APPLIANCE COMPONENTS RV; BOLT,9-1/2" KIT MFR # 3100895014
2. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006

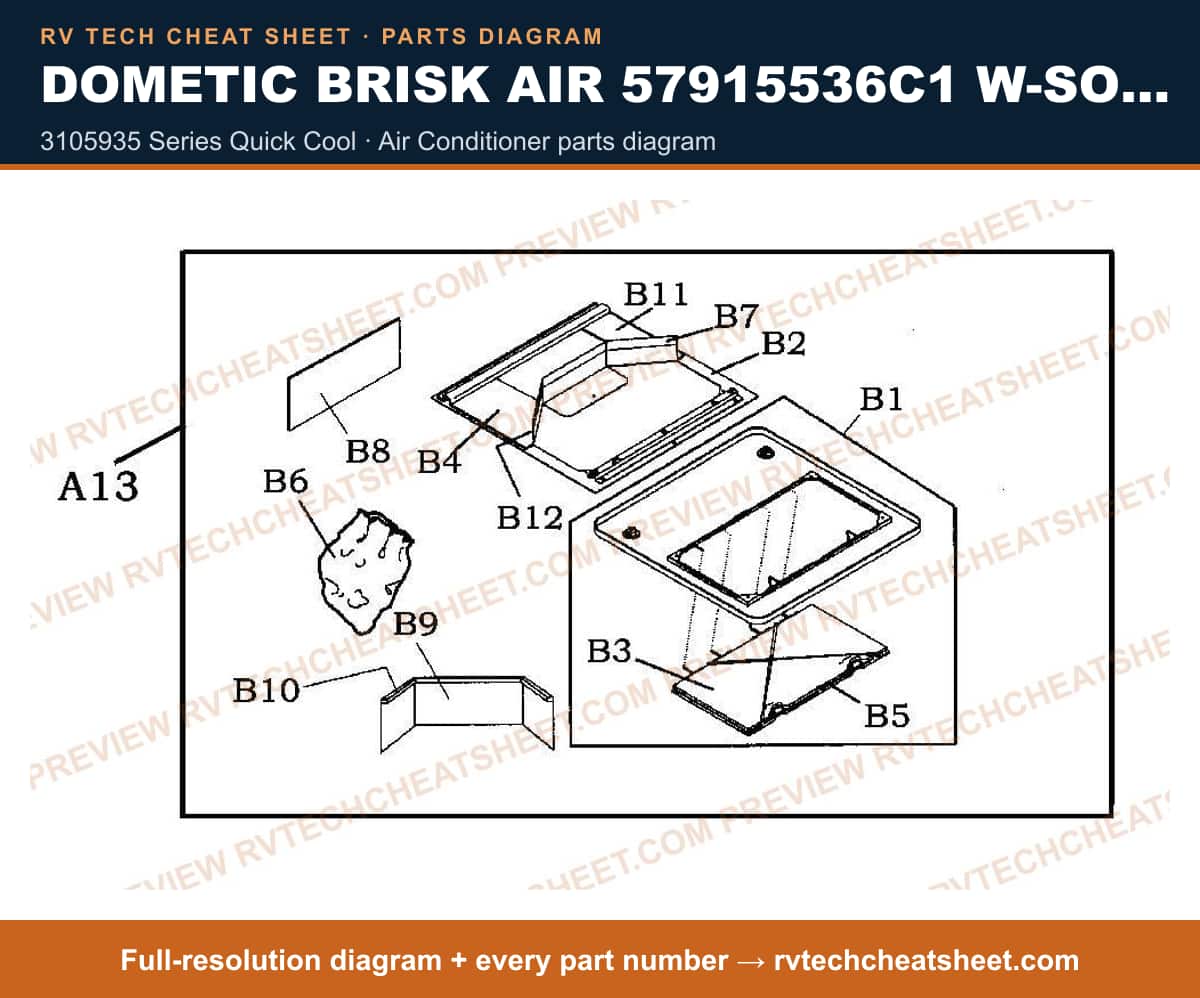

3105935 Series Quick Cool

Components

24 items

1. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3105958015
2. #COVER, RETURN AIR GRILLE ASM SHELL WHITE MFR # 3105958007
3. #3105000016 MFR # 3105000016
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #INSULATION, CEILING TEMPLATE MFR # 3105946002
11. #GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description
12. #GRILLE RETURN AIR MFR # 3104928001
13. #Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381
14. #FOAM TAPE - DOUBLE SIDED 16" MFR # 3105154003
15. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Divider Slide MFR # 3105009009
17. #APPLIANCE COMPONENTS RV; Tape Foam MFR # 306168000
18. #INSULATION, CEILING TEMPLATE, LH MFR # 3105946010
19. #INSULATION, FOA M MFR # 3105014017
20. #APPLIANCE COMPONENTS RV; Grille Ret Air Use 310593 MFR # 3105935005 Superseded: see description
21. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
22. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
23. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
24. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512

Duct Kit

Components

1 item

1. #APPLIANCE COMPONENTS RV; DUCT KIT MFR # 3106775004

Decorative Screen

Components

1 item

1. #APPLIANCE COMPONENTS RV; Screen Decorative Protect MFR # 3101701005

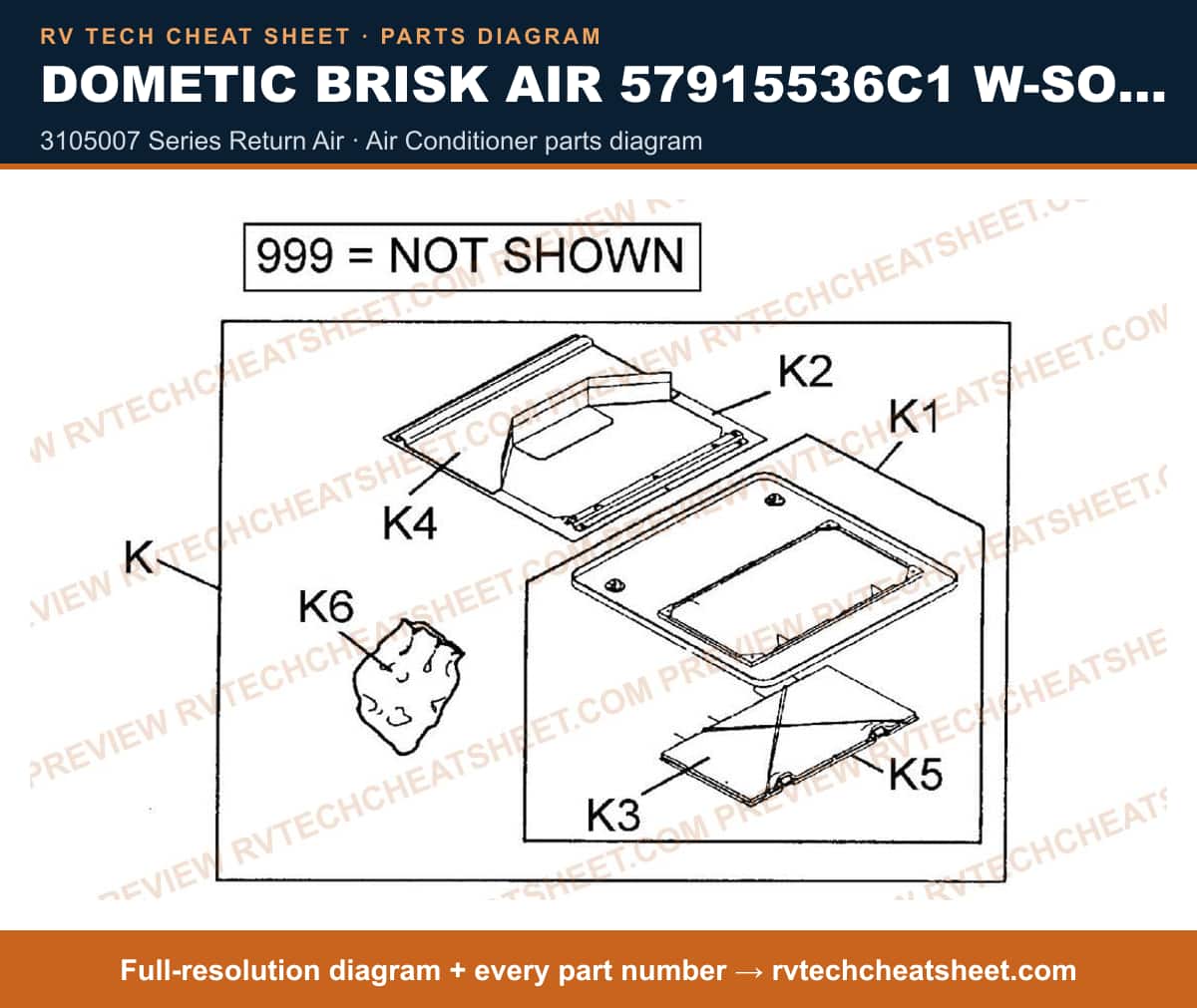

3105007 Series Return Air

Components

22 items

1. #TEMPLATE, CEILING MFR # 3105148005
2. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Shell White; With Return Air Kit/ Filter MFR # 3107867008
3. #Air Conditioner Ceiling Assembly Grille; For Dometic Air Conditioners; 17-1/16 Inch Length x 17-1/16 Inch Width; Polar White; With Return Air Kit/ Filter MFR # 3107867016
4. #GRILLE USE 3107867008 INSIDE SHROUD (EGGSHELL) MFR # 3105148013 Superseded: see description
5. #GRILLE,RETURN AIR GRAY MFR # 3105148021
6. #Air Conditioner Filter; Replacement For Dometic Air Conditioners With Quick Cool Ducted Return Air Package; 12 Inch x 16 Inch; Hand Washable; Single MFR # 3108701373
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
11. #ATTACHMENT TAPE GREY-EACH MFR # 06384
12. #Air Conditioner Filter;;Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 1-3/4 Inch MFR # 3105012003 Superseded: see description
13. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
14. #GRILLE RETURN AIR MFR # 3104928001
15. #GRILLE,RETURN USE 3105007029 MFR # 3104928019 Superseded: see description
16. #Air Conditioner Ceiling Assembly Grille; For Use With Dometic Air Conditioner Ducted Quick Cool Brisk Return Air; Shell White; 14-1/8 Inch Length x 7-5/8 Inch Width MFR # 3105007029 Superseded: see description
17. #GRILLE,RETURN USE 3105007029 MFR # 3104928027 Superseded: see description
18. #Air Conditioner Ceiling Assembly Service Kit; Parts Bag For Dometic Ceiling Assemblies; With Two 3104931005 Shell White Hole Plugs/ Two 3104931013 Polar White Hole Plugs/ Two 3104931021 Gray Hole Plugs/ Six 312096014 Screws MFR # 3108701381
19. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
20. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
21. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
22. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045

Shroud & Main Components

Components

66 items

1. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
3. #SHROUD 12' MFR # 3309518003
4. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3101377004
7. #COVER, CONDENSER COIL MFR # 309383000
8. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
9. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
10. #COIL,CONDENSER USE 3103014001 MFR # 3100817018 Superseded: see description
11. #DECAL, FIELD WIRING MFR # 3101328007
12. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
14. #INSULATION MFR # 3100833007
15. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
17. #APPLIANCE COMPONENTS RV; Nut Terminal Cover MFR # 3102550005
18. #APPLIANCE COMPONENTS RV; Gasket Nut MFR # 3102551003
19. #SHROUD KIT CLOSED END SW MFR # 3309364028
20. #SHROUD,WHT USE 3103147009 MFR # 3102293028 Superseded: see description
21. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
23. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
24. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
25. #INSULATION,EVAPORATOR MFR # 317797001
26. #COVER,EVAPORATOR MFR # 314885001
27. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
28. #PAN,BASE USE 3100832041 MFR # 3100832025 Superseded: see description
29. #BASE PAN MFR # 3100832041
30. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
31. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
33. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
34. #ROOF A/C GASKET KIT MFR # 3310718006
35. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
36. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
37. #BOX, JUNCTION USE3101316036 MFR # 3101316010
38. #CONDUIT,FLEX 579 MFR # 3100838006
39. #COVER, ELEC. BOX MFR # 3100828015
40. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
41. #COVER, MAIN BOARD MFR # 3101313009
42. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
43. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
44. #BLOCKS, FOAM MFR # 3100587009
45. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
46. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
47. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
48. #SUPPORT,MOTOR MFR # 317795
49. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
50. #FAN BLADE MFR # 3313107015
51. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
52. #MOTOR KIT MFR # 3108706916
53. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
54. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
55. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
56. #SERVICE KIT F/MOTOR MFR # 3310725001
57. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
59. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
60. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
61. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
62. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
63. #CAPACITOR, START MFR # 47C
64. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
65. #SLEEVING, FIBERGLASS MFR # 3100394125
66. #INSULATION MFR # 3109712004

Optional Heat Kit

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
8. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
