Dometic Brisk Air 57915602 13,500 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 6 assemblies · 6 diagram sheets · 127 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915602 13,500 BTU rooftop air conditioner: 6 assemblies (Non-ducted A-c Replacement, Air Box Assembly, Optional Heater Accessory Kit, Electrical Box Assembly, Shroud & Main Components and more) and 127 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

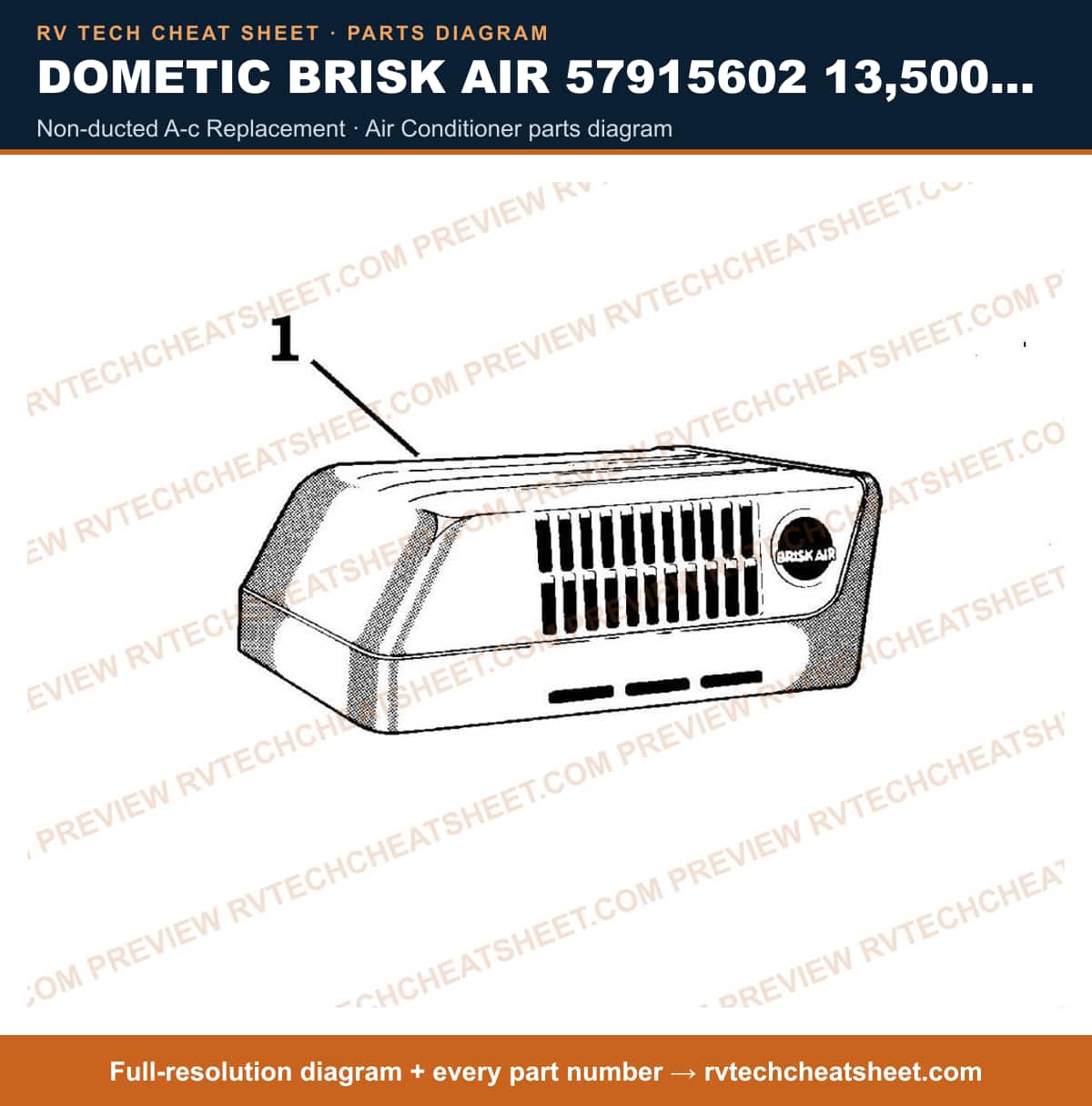

Non-ducted A-c Replacement

Components

12 items

1. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
2. #COMFORT CTRL MFR # 3106463007
3. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
4. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
7. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
10. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
11. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
12. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description

Air Box Assembly

Components

17 items

1. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #FILTER RETURN AIR(UNIVER MFR # 3108015003
4. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #KIT SVC AIR FILTER MFR # 3313107103
9. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
10. #LOUVER ASM 2REQUIRED MFR # 310138
11. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
12. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
13. #PARTS BAG 679508.403 MFR # 3101148009
14. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
15. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
16. #DUCT ADAPTER-LOWER MFR # 313605
17. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001

Optional Heater Accessory Kit

Components

9 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

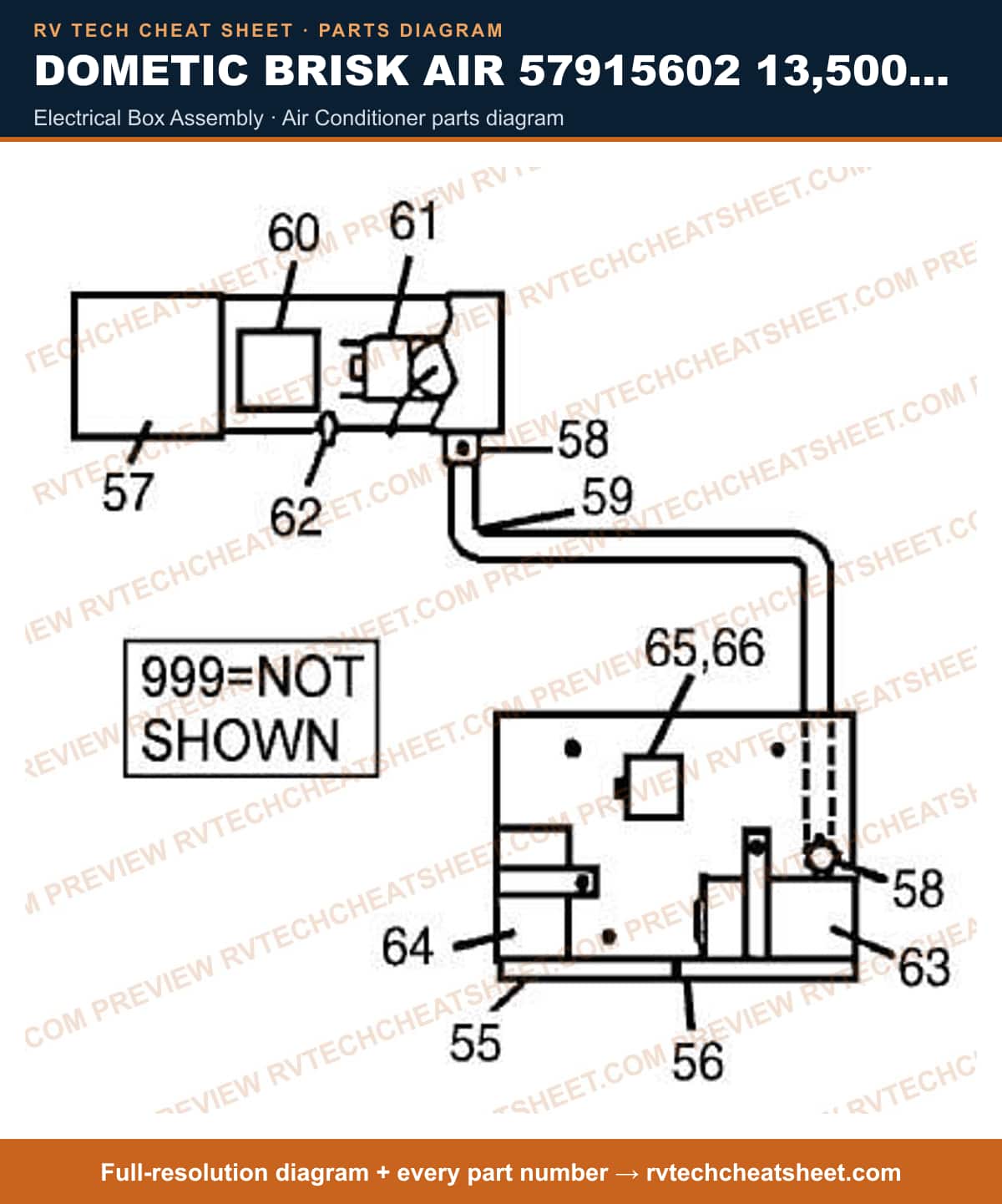

Electrical Box Assembly

Components

16 items

1. #COVER, ELECTRIC BOX MFR # 3100828
2. #COVER CONT MFR # 38146
3. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
4. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
5. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
6. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
8. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
9. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
10. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
11. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
12. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
13. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
14. #PTCR KIT MFR # 3310731009
15. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
16. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Shroud & Main Components

Components

74 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #SHROUD 12' MFR # 3309518003
9. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
11. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
12. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3104163005
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #COVER, CONDENSER COIL MFR # 309383000
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #COMPRESSOR USE 3104115013 58915 MFR # 3104115005 Superseded: see description
21. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
22. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
24. #GASKET,COVER MFR # 3103800003
25. #NUT, FLANGE MFR # 36342004
26. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
27. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
29. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
30. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245426
31. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
32. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
33. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #SERVICE KIT F/MOTOR MFR # 3310725001
37. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
38. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
39. #SPACER USE 308046002 MFR # 38046 Superseded: see description
40. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
41. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
42. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
43. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
44. #MOTOR KIT MFR # 3108706916
45. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
47. #BLOCKS, FOAM MFR # 3100587009
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
49. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
50. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
52. #ROOF A/C GASKET KIT MFR # 3310718006
53. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
54. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
55. #A/C SEAL, 14 X 14 WHITE MFR # A101414
56. #GASKET, GREY, 14 X 14 MFR # 6759A3281
57. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
58. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
59. #COVER CONT MFR # 38146
60. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
61. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
62. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
63. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
64. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
66. #RING,BLOWER INLET MFR # 39304
67. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
68. #PAN KIT,BASE 12" MFR # 3108700323
69. #BULKHEAD, EVAPORATOR MFR # 3100831068
70. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
71. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
73. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
74. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description

Ducted A-c Replacement

Components

12 items

1. #COMFORT CTRL MFR # 3106463007
2. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
3. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
4. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
5. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
6. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
7. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
8. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
9. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
10. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
11. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
12. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
