Dometic Brisk Air 57915611 13,500 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 6 assemblies · 6 diagram sheets · 138 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915611 13,500 BTU rooftop air conditioner: 6 assemblies (Non-ducted A-c Replacement, Shroud And Main Components, Ducted A-c Replacement, Optional Heater Accessory Kit, Electrical Box Assembly and more) and 138 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

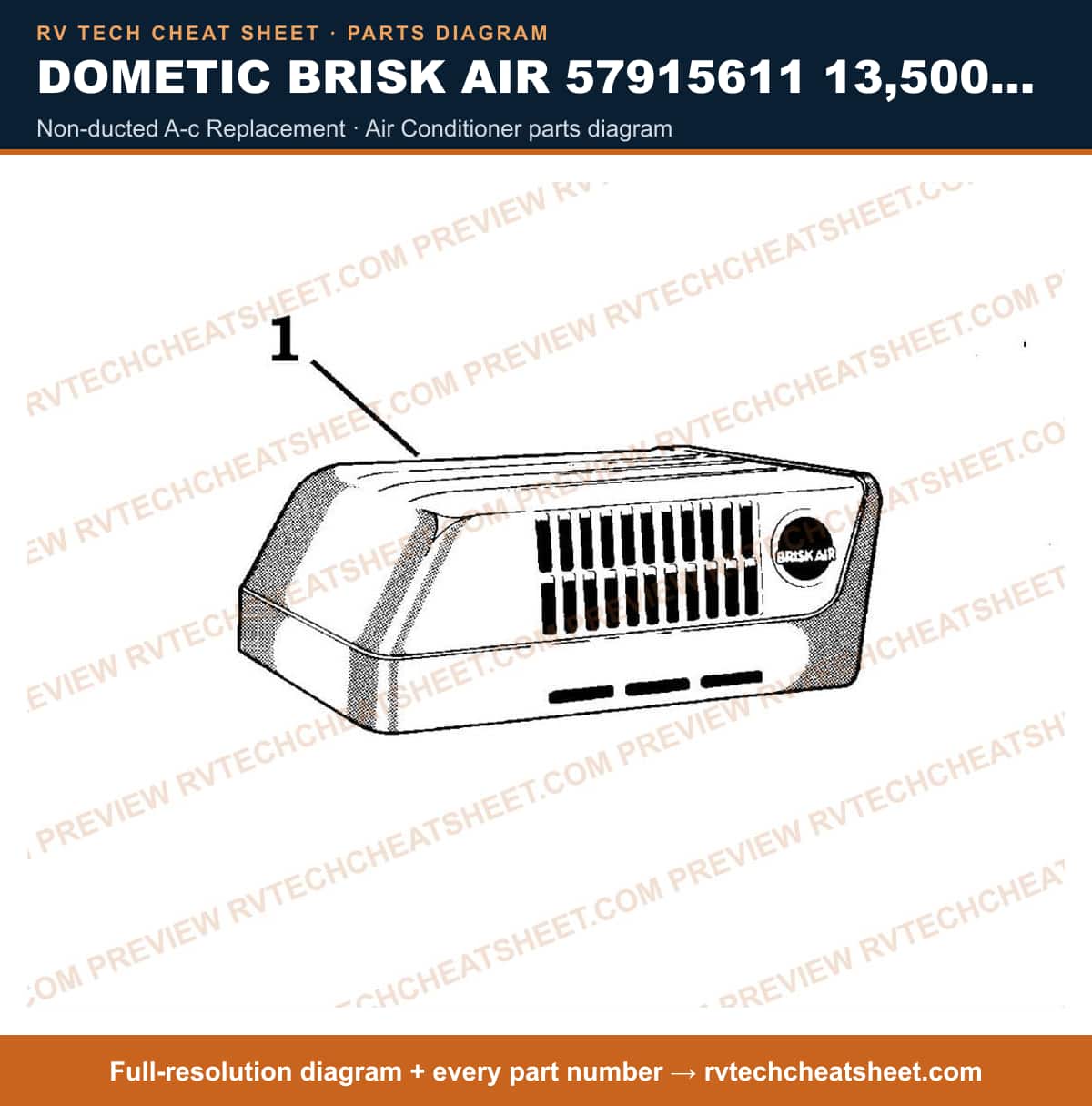

Non-ducted A-c Replacement

Components

12 items

1. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
2. #COMFORT CTRL MFR # 3106463007
3. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
4. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
5. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
6. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
10. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
11. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
12. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description

Shroud And Main Components

Components

78 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
10. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
11. #SHROUD 12' MFR # 3309518003
12. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
14. #COVER, CONDENSER COIL MFR # 309383000
15. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #COMPRESSOR USE 3104115013 58915 MFR # 3104115005 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Compressor Kit MFR # 3104115013
22. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
24. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
25. #GASKET,COVER MFR # 3103800003
26. #NUT, FLANGE MFR # 36342004
27. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
29. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
30. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
31. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245426
32. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
33. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
34. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #FAN BLADE MFR # 3313107015
37. #SERVICE KIT F/MOTOR MFR # 3310725001
38. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
39. #SUPPORT, MOTOR MFR # 317795002
40. #MOTOR KIT MFR # 3108706916
41. #MOTOR,BLOWER USE 3108700448 MFR # 3103644005 Superseded: see description
42. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
43. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
45. #BASE PAN MFR # 313746008
46. #GROMMET MFR # 3100238207
47. #BLOCKS, FOAM MFR # 3100587009
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
49. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
50. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
53. #HOUSING, BLOWER MFR # 3100865009
54. #INSULATION (3 REQUIRED) MFR # 3103899005
55. #BULKHEAD, EVAPORATOR MFR # 3100831035
56. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
57. #RING,BLOWER INLET MFR # 39304
58. #DRAIN PAN MFR # 3103900001
59. #BRACKET,MOUNTING 5891 5-602 MFR # 3103660001
60. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
61. #CONDUIT,FLEX 579 MFR # 3100838006
62. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
63. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
64. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
65. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
66. #COVER CONT MFR # 38146
67. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
68. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
70. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
71. #A/C SEAL, 14 X 14 WHITE MFR # A101414
72. #ROOF A/C GASKET KIT MFR # 3310718006
73. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
74. #GASKET, GREY, 14 X 14 MFR # 6759A3281
75. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
76. #BRACE, FRONT MFR # 3103901009
77. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
78. #SCREWS 8 - 18X50 HW (8 REQUIRED) MFR # 310359002

Ducted A-c Replacement

Components

12 items

1. #COMFORT CTRL MFR # 3106463007
2. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
3. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
4. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
5. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
6. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
9. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
10. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
11. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
12. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description

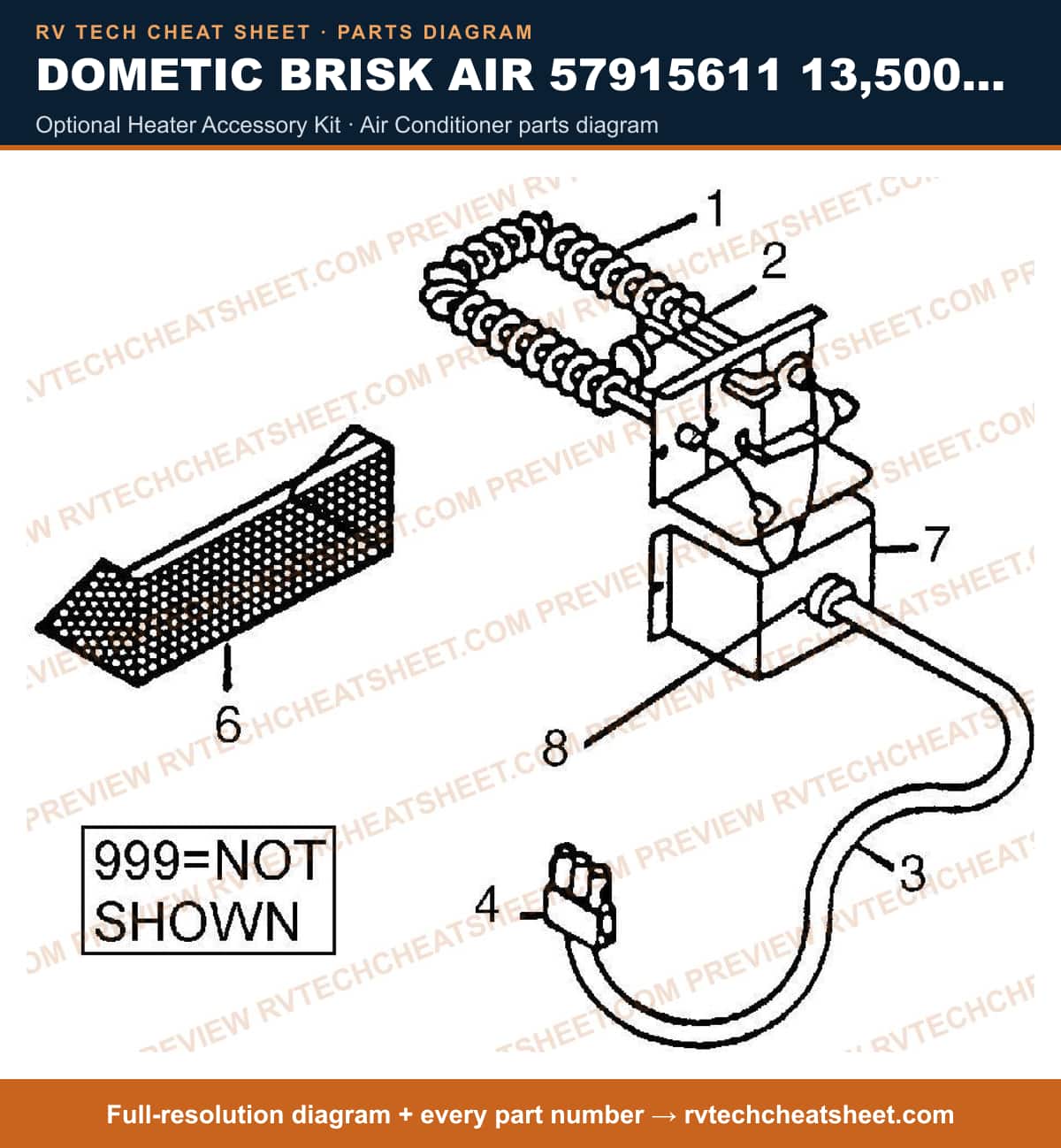

Optional Heater Accessory Kit

Components

9 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

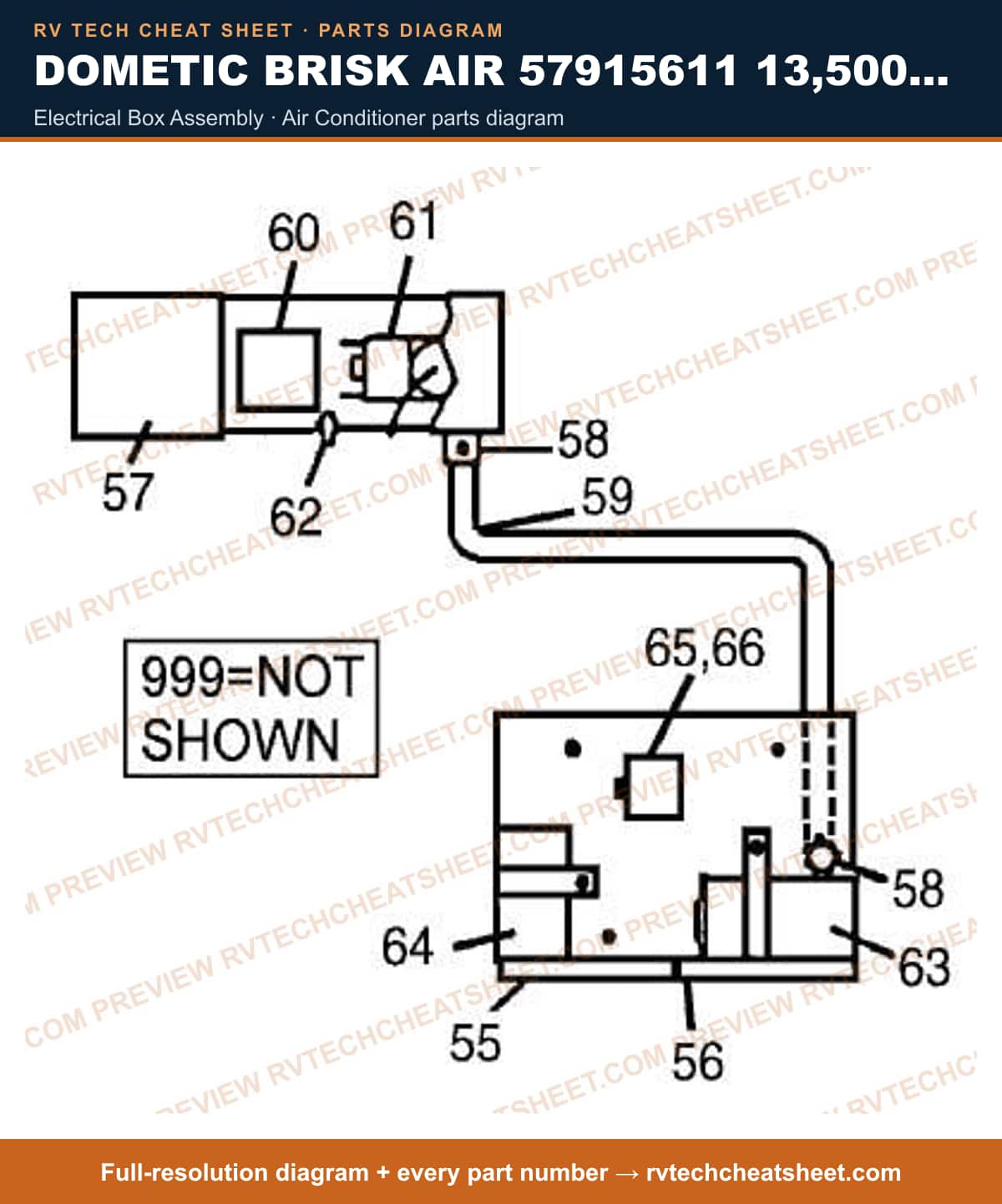

Electrical Box Assembly

Components

20 items

1. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
2. #COVER, ELECTRIC BOX MFR # 3100828
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
10. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
11. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
12. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
13. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
14. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
15. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
16. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
17. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
18. #PTCR KIT MFR # 3310731009
19. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
20. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D

Air Box Assembly

Components

21 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #KIT SVC AIR FILTER MFR # 3313107103
6. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #LOUVER ASM 2REQUIRED MFR # 310138
10. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
11. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
12. #STUD,LATCH RETURN AIR MFR # 311673001
13. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
14. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
15. #RETAINER,RETURN AIR GRILLE MFR # 311675000
16. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
17. #AIRBOX COMPLETE 5940 6-501 MFR # 316699016
18. #BOLT KIT, 6" - 9" MFR # 310538001
19. #PARTS BAG 679508.403 MFR # 3101148009
20. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
21. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
