Dometic Brisk Air 57915626 13,500 BTU Parts Diagram · 3105023.000 Air Dist Box Kit

Air Conditioner · 12 assemblies · 12 diagram sheets · 189 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 57915626 13,500 BTU rooftop air conditioner: 12 assemblies (3105023.000 Air Dist Box Kit, Ducted A-c Replacement, 3104999.010 Electronic-stat, 3104999.010 Electronic Cable, 3104999.002 Electronic Control and more) and 189 manufacturer part numbers. 62 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

3105023.000 Air Dist Box Kit

Components

45 items

1. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
2. #SWITCH,ROTARY USE 20250 *N* MFR # 20250000 Superseded: see description
3. #BUSHING,SNAP-IN MFR # 301028040
4. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
5. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
6. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
7. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
8. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
13. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
14. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
15. #KIT SVC AIR FILTER MFR # 3313107103
16. #FILTER RETURN AIR(UNIVER MFR # 3108015003
17. #CAP, CONN. HOUSING (6 POLE) MFR # 314471001
18. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
19. #LOUVER ASM 2REQUIRED MFR # 310138
20. #PLUG, FEMALE MFR # 314471000
21. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
22. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
23. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
24. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
25. #WELDMENT, JUNCTION BOX MFR # 3104161017
26. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
27. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
28. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
29. #BOX,CONTROL USE 3107196002 MFR # 3105026029 Superseded: see description
30. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
31. #BOX,CONTROL ASM USE 3105026029 MFR # 3105026011 Superseded: see description
32. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
33. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
34. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
35. #APPLIANCE COMPONENTS RV; Parts Bag Shell White MFR # 3105043008
36. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
37. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
39. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
40. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
41. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
42. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
43. #EXTENSION, DUCT MFR # 313606000
44. #BOX ASM USE 3105026011 MFR # 3105026003 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Box Control MFR # 3107196002

Ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
2. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
3. #COMFORT CTRL MFR # 3106463007
4. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
5. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
6. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
10. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
11. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
12. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009

3104999.010 Electronic-stat

Components

6 items

1. #BASE,T-STAT MFR # 3103808014
2. #COVER, THERMOSTAT MFR # 3103809038
3. #BOARD KIT MFR # 3108701339
4. #DECAL, T-STAT (CLG./ELEC. HEAT MFR # 3105379006
5. #APPLIANCE COMPONENTS RV; Decal T-Stat Electric H/C MFR # 3105380004
6. #T-STAT ASM MOD 57915.621 MFR # 3105375004

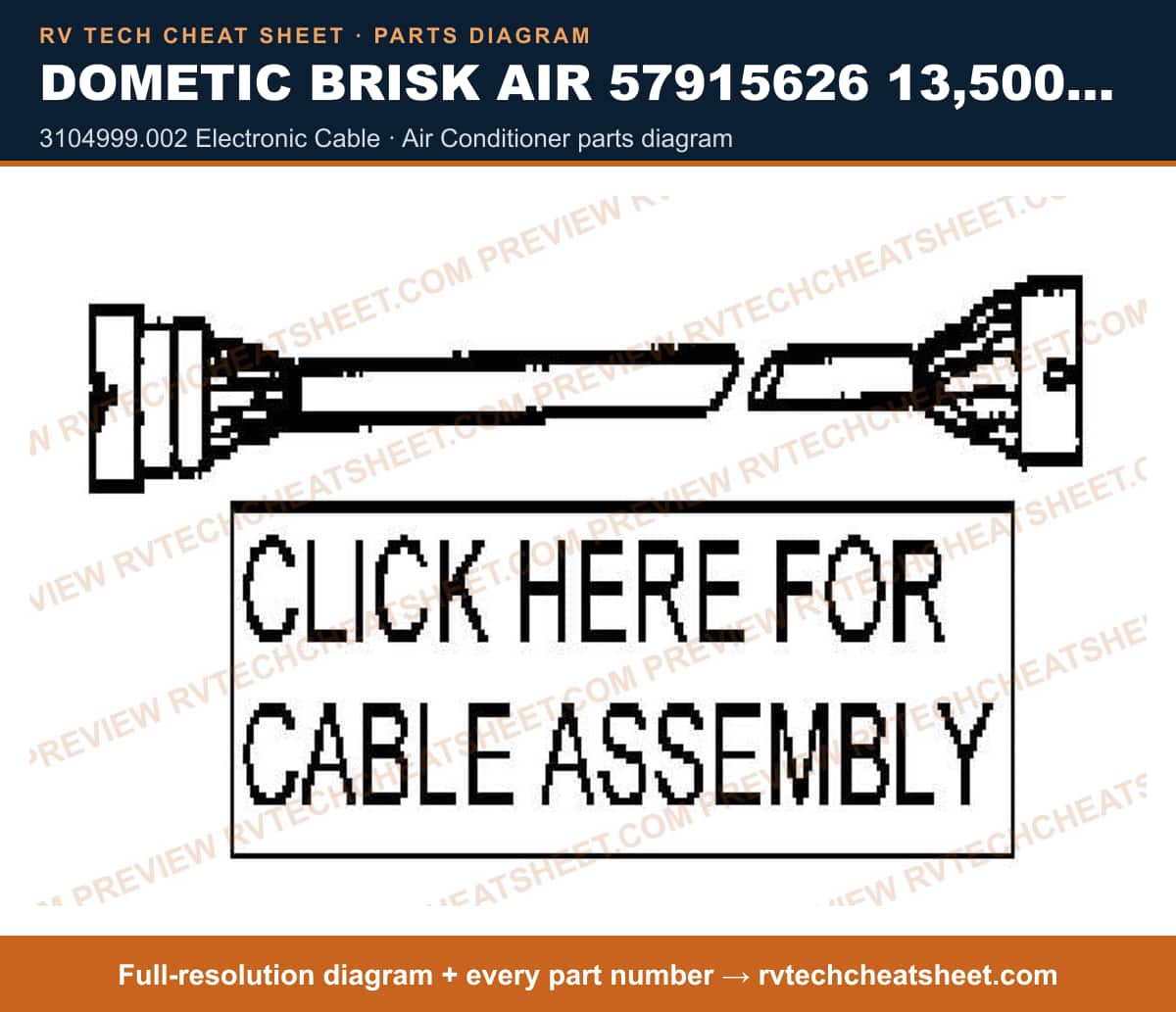

3104999.010 Electronic Cable

Components

3 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description

3104999.002 Electronic Control

Components

18 items

1. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
2. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
3. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
12. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #COVER, JUNCTION BOX MFR # 3104967009
16. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
17. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
18. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002

3104999.010 Electronic Contro

Components

18 items

1. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
2. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
3. #BOARD USE 3108701693 MFR # 3104964006 Superseded: see description
4. #BOARD,CIRCUIT USE 3104855006 MFR # 3108701693 Superseded: see description
5. #COVER, MAIN BOARD BOX MFR # 3104965003
6. #DECAL, FIELD WIRING MFR # 3105003002
7. #PLUG,CONNECTOR MFR # 3105001006
8. #CONNECTOR ASM MFR # 3105002004
9. #STRAIN, RELIEF MFR # 302994001
10. #BOX, JUNCTION MFR # 3104966001
11. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
14. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
15. #COVER, JUNCTION BOX MFR # 3104967009
16. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
18. #ELECTRONIC KIT W/OU T GAS HT MFR # 3104999010

Non-ducted A-c Replacement

Components

12 items

1. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
2. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
3. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
4. #COMFORT CTRL MFR # 3106463007
5. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
6. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
7. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
10. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
11. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
12. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049

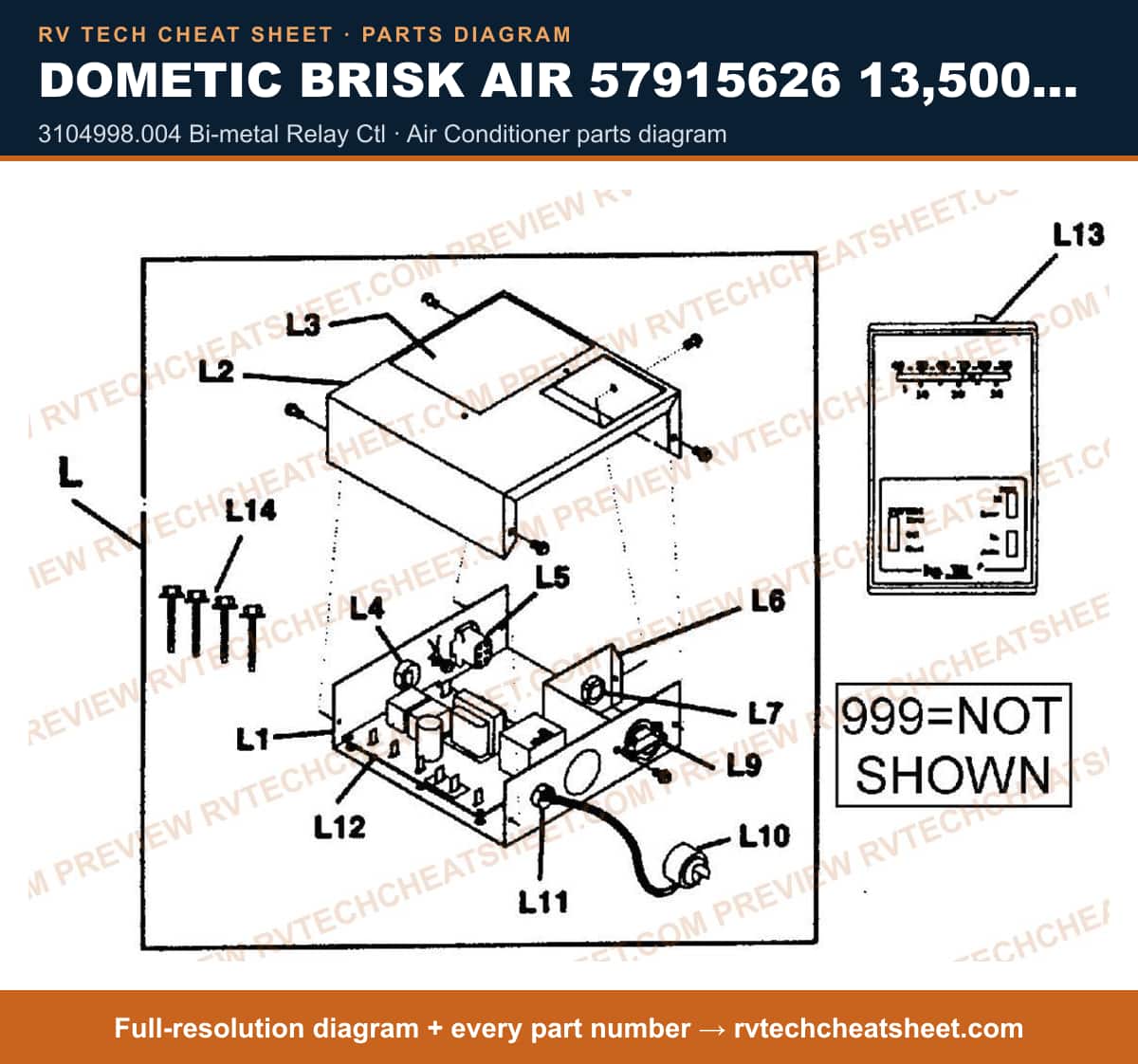

3104998.004 Bi-metal Relay Ctl

Components

22 items

1. #BOX, RELAY MFR # 3101932003
2. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
3. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
4. #COVER,BOX RELAY USE 3104998004 MFR # 3104933001 Superseded: see description
5. #3104938000 MFR # 3104938000
6. #RELIEF, STRAIN MFR # 302994006
7. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3104991009
8. #BOX JUNCTION MFR # 3104934009
9. #STRAIN, RELIEF MFR # 302994001
10. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
11. #APPLIANCE COMPONENTS RV; Control Cold MFR # 3104996008
12. #RELIEF,STRAIN USE 302994002 MFR # 32994002 Superseded: see description
13. #Refrigerator Power Cord Strain Relief Bushing; Use With Duo-Therm Air Conditioner Basement Model 39115601 MFR # 302994002 Superseded: see description
14. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
15. #T-STAT USE 3108700539 MFR # 3104438001 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
17. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
18. #T-STAT KIT USE 3105058014 HEAT/COOL MFR # 3108700539 Superseded: see description
19. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
20. #BOLT,ANCHOR .25-10X8 USE 3106756020 MFR # 3100375066 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Bolt Mounting 1/4-20 X 8 MFR # 3106756020
22. #COVER, JUNCTION BOX MFR # 3104935006

3104999.002 Electronic T-stat

Components

5 items

1. #BASE,T-STAT MFR # 3103808014
2. #BOARD KIT MFR # 3108701339
3. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
4. #APPLIANCE COMPONENTS RV; Decal Selector Switch MFR # 3105318004
5. #T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description

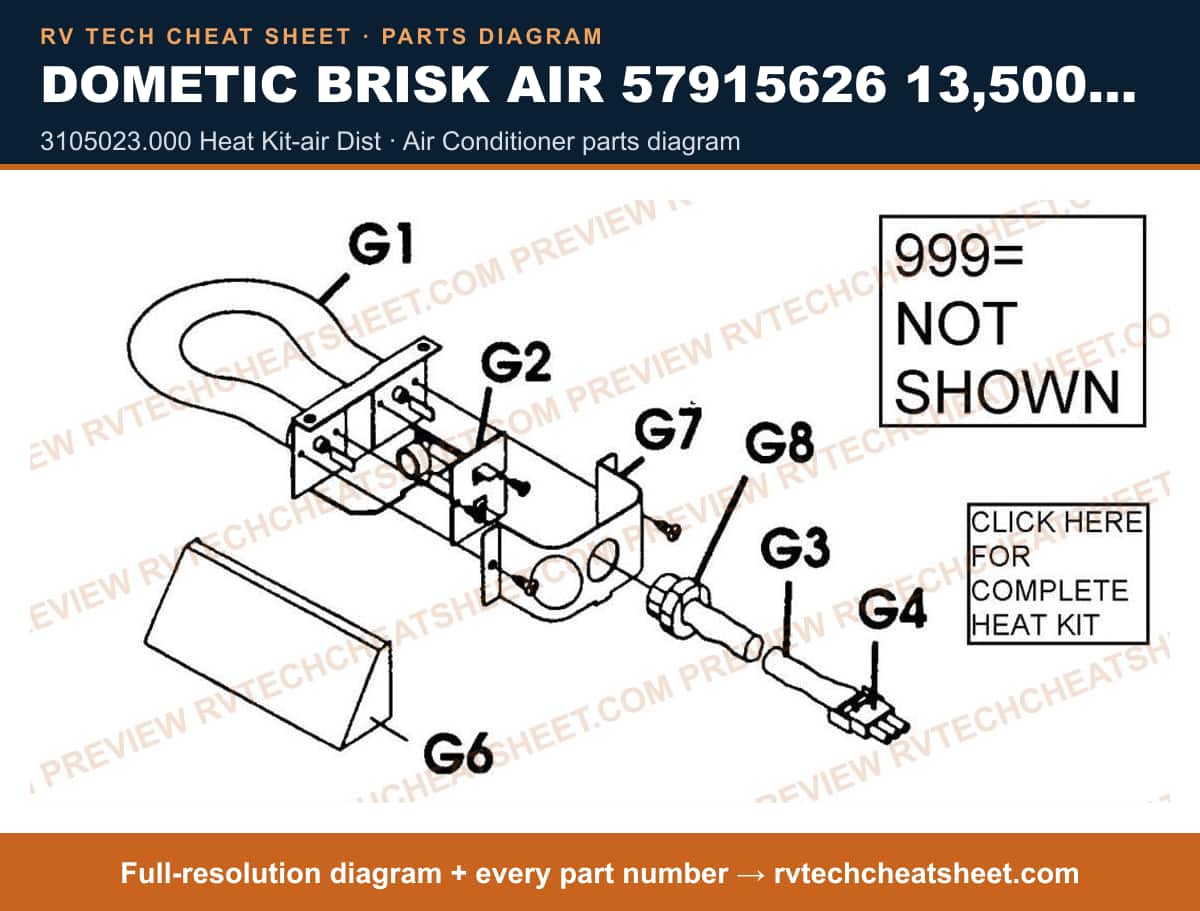

3105023.000 Heat Kit-air Dist

Components

9 items

1. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #SLEEVING MFR # 3100394083
4. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
5. #GUARD, HEAT MFR # 3101143
6. #ELECTRIC BOX MFR # 3101125007
7. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
8. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
9. #HEAT STRIP,NON-DUCTED MFR # 3101121030

Shroud & Main Components

Components

81 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #SHROUD 12' MFR # 3309518003
10. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
11. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
12. #DECAL,FIELD WIRING MFR # 3105052009
13. #COVER, CONDENSER COIL MFR # 309383000
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #INSULATION,EVAPORATOR MFR # 317797001
16. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
18. #APPLIANCE COMPONENTS RV; Compressor Asm 57915-603 MFR # 3104465004
19. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
21. #GASKET,COVER MFR # 3103800003
22. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
23. #NUT, FLANGE MFR # 306342004
24. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
26. #COIL,EVAP USE 3100818024 MFR # 3100818016 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
28. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245467
29. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
30. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
31. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
32. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
33. #FAN BLADE MFR # 3313107015
34. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
35. #Air Conditioner Condenser Fan Motor Service Kit; Replacement For Dometic 600015001/ 600308001 Model Air Conditioners; With Four Inserts/ Four Grommets/ Four Nuts MFR # 331072500
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
38. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
39. #SERVICE KIT F/MOTOR MFR # 3310725001
40. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
41. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
42. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
43. #MOTOR KIT MFR # 3108706916
44. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
46. #BLOCKS, FOAM MFR # 3100587009
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
49. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
50. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
51. #A/C SEAL, 14 X 14 WHITE MFR # A101414
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
54. #ROOF A/C GASKET KIT MFR # 3310718006
55. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
56. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
57. #PLUG,CONNECTION MFR # 314470001
58. #SLEEVING,WIRE MFR # 318087003
59. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
60. #BLOWER INLET RING MFR # 309304
61. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
62. #WHEEL BLOWER MFR # 3313107033
63. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
64. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
65. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
67. #BULKHEAD, EVAPORATOR MFR # 3100831050
68. #PAN KIT,BASE 12" MFR # 3108700323
69. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
70. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
71. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
72. #CAPACITOR 30/50MFD MFR # 3313107027
73. #PTCR KIT MFR # 3310731009
74. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
75. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
76. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
77. #BOX,ELECTRICAL MFR # 3100827066
78. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
79. #GROMMET MFR # 3100238207
80. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
81. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017

3104999.002 Electronic Cable

Components

3 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
