Dometic Brisk Air 58915601 13,500 BTU Parts Diagram · Optional Grill Assembly

Air Conditioner · 5 assemblies · 5 diagram sheets · 121 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 58915601 13,500 BTU rooftop air conditioner: 5 assemblies (Optional Grill Assembly, Optional Thermostat Cable, Optional Bracket Kit, Thermostat Package, Shroud And Main Components) and 121 manufacturer part numbers. 43 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Grill Assembly

Components

10 items

1. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
2. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
3. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
4. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
8. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003

Optional Thermostat Cable

Components

7 items

1. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
2. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
4. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
5. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
6. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
7. #CABLE MFR # 3102757006

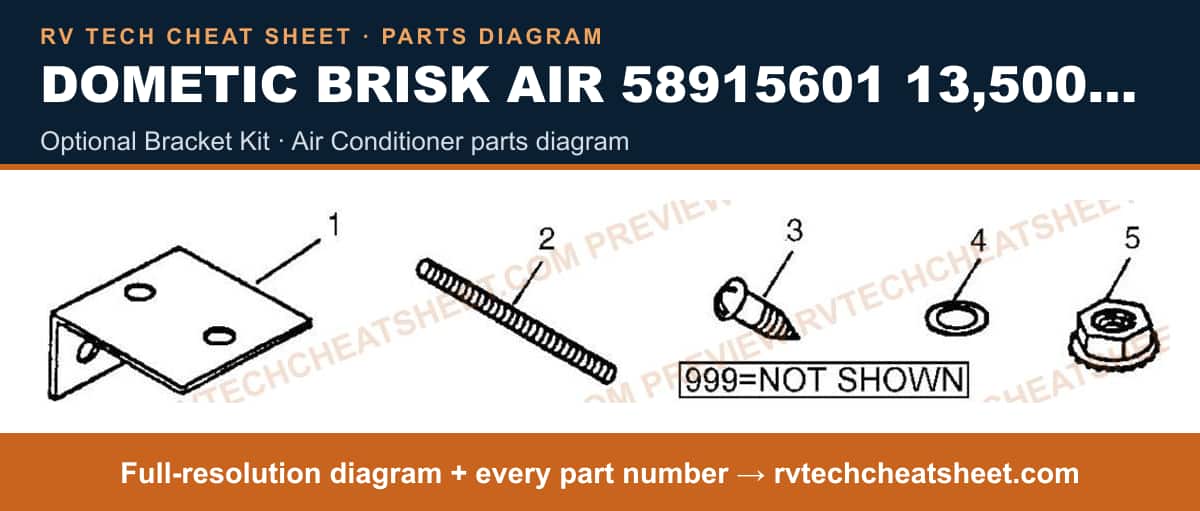

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Thermostat Package

Components

12 items

1. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
2. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
3. #COVER,T-STAT MFR # 3103809004
4. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
5. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
6. #COVER, JUNCTION BOX MFR # 3101316028
7. #BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description
8. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
11. #APPLIANCE COMPONENTS RV; Parts Package 58915 Ser MFR # 3103641001
12. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005

Shroud And Main Components

Components

87 items

1. #SHROUD KIT CLOSED END SW MFR # 3309364028
2. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
3. #SHROUD 12' MFR # 3309518003
4. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
7. #DECAL,SHROUD MFR # 3101380016
8. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
9. #SCREW,SHOULDER MFR # 3102834003
10. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
12. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
13. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
14. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
15. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #DECAL, FIELD WIRING MFR # 3101382012
20. #COVER,EVAPORATOR MFR # 314885001
21. #INSULATION,EVAPORATOR MFR # 317797001
22. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
23. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
24. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
25. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
26. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
27. #SERVICE KIT F/MOTOR MFR # 3310725001
28. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
29. #SWITCH KIT,LOW TEMP MFR # 3103033001
30. #GASKET,COVER MFR # 3103800003
31. #COMPRESSOR USE 3104115013 58915 MFR # 3104115005 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Compressor Kit MFR # 3104115013
33. #NUT, FLANGE MFR # 36342004
34. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
35. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
36. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
38. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
40. #FAN BLADE MFR # 3313107015
41. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
42. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
43. #SUPPORT, MOTOR MFR # 317795002
44. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
45. #MOTOR,BLOWER USE 3108700448 MFR # 3103644005 Superseded: see description
46. #MOTOR KIT MFR # 3108706916
47. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
49. #PAN KIT,BASE 12" MFR # 3108700323
50. #PAN,BASE USE 3108700323 MFR # 3103746008 Superseded: see description
51. #BLOCKS, FOAM MFR # 3100587009
52. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
53. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
55. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
56. #COVER,ELECTRICAL BOX 5891 5-304/58915.302 MFR # 3101313017
57. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
58. #BOARD,MODULE USE 3104233006 MFR # 3101626004 Superseded: see description
59. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
60. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
61. #COVER, ELECTRIC BOX MFR # 3100828023
62. #GASKET, GREY, 14 X 14 MFR # 6759A3281
63. #ROOF A/C GASKET KIT MFR # 3310718006
64. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
65. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
66. #A/C SEAL, 14 X 14 WHITE MFR # A101414
67. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
68. #BOX, JUNCTION USE3101316036 MFR # 3101316010
69. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
70. #CONDUIT,FLEX 579 MFR # 3100838006
71. #BRACKET,MOUNTING 5891 5-602 MFR # 3103660001
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
74. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
75. #RING,BLOWER INLET MFR # 39304
76. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
77. #BULKHEAD, EVAPORATOR MFR # 3100831027
78. #STRAIN RELIEF MFR # 32994011
79. #SLEEVING, FIBERGLASS MFR # 3100394125
80. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
81. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
82. #PTCR KIT MFR # 3310731009
83. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
84. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
85. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
86. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
87. #BOX, ELECTRICAL MFR # 3103637009
