Dometic Brisk Air 58915603 13,500 BTU Parts Diagram · Optional Bracket Kit

Air Conditioner · 5 assemblies · 5 diagram sheets · 116 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 58915603 13,500 BTU rooftop air conditioner: 5 assemblies (Optional Bracket Kit, Shroud And Main Components, Optional Cover Assembly, Thermostat Package, Optional Thermostat Cable) and 116 manufacturer part numbers. 39 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Shroud And Main Components

Components

88 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #DECAL,SHROUD MFR # 3101380016
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
10. #SHROUD 12' MFR # 3309518003
11. #SHROUD KIT CLOSED END SW MFR # 3309364028
12. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3103645002
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #COVER, CONDENSER COIL MFR # 309383000
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #COIL,CONDENSER USE 3103014001 MFR # 3100817026 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Compressor Asm 57915-603 MFR # 3104465004
22. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
23. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
24. #GASKET,COVER MFR # 3103800003
25. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
26. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
27. #NUT,FLANGE MFR # 306342005
28. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
29. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
31. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
32. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245467
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
37. #FAN BLADE MFR # 3313107015
38. #SERVICE KIT F/MOTOR MFR # 3310725001
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
41. #SPACER USE 308046002 MFR # 38046 Superseded: see description
42. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
43. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
44. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
45. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
46. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
47. #MOTOR USE 3108700448 MFR # 3108700455 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
49. #BLOCKS, FOAM MFR # 3100587009
50. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
52. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
53. #COVER, ELEC. BOX MFR # 3103638007
54. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
55. #A/C SEAL, 14 X 14 WHITE MFR # A101414
56. #ROOF A/C GASKET KIT MFR # 3310718006
57. #GASKET, GREY, 14 X 14 MFR # 6759A3281
58. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
59. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
60. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
61. #BOX, JUNCTION USE3101316036 MFR # 3101316010
62. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
63. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
64. #RING,BLOWER INLET MFR # 39304
65. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
66. #SWITCH,LOW TEMP MFR # 3102410044
67. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
68. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
69. #BULKHEAD, EVAPORATOR MFR # 3100831068
70. #PAN KIT,BASE 12" MFR # 3108700323
71. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
72. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
73. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
74. #CAPACITOR 30/50MFD MFR # 3313107027
75. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
76. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
77. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
78. #PTCR KIT MFR # 3310731009
79. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
80. #STRAIN RELIEF MFR # 32994011
81. #NYLON CLIP MFR # 34203005
82. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
83. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
84. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
85. #BOX, ELECTRIC MFR # 3104442003
86. #LINE, PROCESS MFR # 315761082
87. #NUT, FLANGE MFR # 36342004
88. #GROMMET MFR # 3100238207

Optional Cover Assembly

Components

4 items

1. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
2. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description
3. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
4. #TEMPLATE,CEILING MFR # 3103772004

Thermostat Package

Components

12 items

1. #APPLIANCE COMPONENTS RV; Parts Package 58915 Ser MFR # 3103641001
2. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
3. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005
4. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
5. #COVER,T-STAT MFR # 3103809004
6. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
7. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
8. #COVER, JUNCTION BOX MFR # 3101316028
9. #BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
11. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000

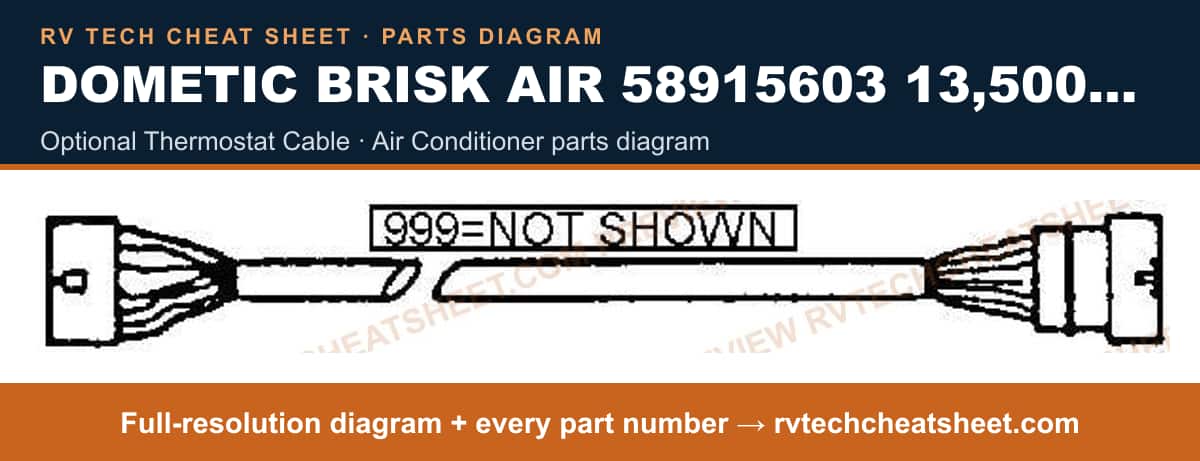

Optional Thermostat Cable

Components

7 items

1. #CABLE MFR # 3102757006
2. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
4. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
5. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
6. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
7. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
