Dometic Brisk Air 58925303 13,500 BTU Parts Diagram · Optional Thermostat Cable

Air Conditioner · 6 assemblies · 6 diagram sheets · 122 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 58925303 13,500 BTU rooftop air conditioner: 6 assemblies (Optional Thermostat Cable, Optional Grill Assembly, Shroud And Main Components, Thermostat Package, Optional Cover Assembly and more) and 122 manufacturer part numbers. 45 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Thermostat Cable

Components

3 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
2. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036

Optional Grill Assembly

Components

10 items

1. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
2. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
3. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
10. #FILTER RETURN AIR(UNIVER MFR # 3108015003

Shroud And Main Components

Components

86 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #DECAL,SHROUD MFR # 3101380016
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
10. #SHROUD KIT CLOSED END SW MFR # 3309364028
11. #SHROUD 12' MFR # 3309518003
12. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3103645002
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #COVER, CONDENSER COIL MFR # 309383000
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
21. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
22. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
23. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
24. #NUT USE 306342005 MFR # 318295 Superseded: see description
25. #NUT,FLANGE MFR # 306342005
26. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
27. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
32. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
37. #FAN BLADE MFR # 3313107015
38. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
39. #SERVICE KIT F/MOTOR MFR # 3310725001
40. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
41. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
42. #SUPPORT, MOTOR MFR # 317795002
43. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
44. #MOTOR,FAN USE 3108700448 MFR # 3104171008 Superseded: see description
45. #MOTOR KIT MFR # 3108706916
46. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
47. #BLOCKS, FOAM MFR # 3100587009
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
49. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
50. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
52. #COVER, ELEC. BOX MFR # 3103638007
53. #ROOF A/C GASKET KIT MFR # 3310718006
54. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
55. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
56. #A/C SEAL, 14 X 14 WHITE MFR # A101414
57. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
58. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
59. #BOX, JUNCTION USE3101316036 MFR # 3101316010
60. #SLEEVING, FIBERGLASS MFR # 3100394166
61. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
62. #RING,BLOWER INLET MFR # 39304
63. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
64. #SWITCH,LOW TEMP MFR # 3102410044
65. #PAN,BASE USE 3108700323 MFR # 3103746008 Superseded: see description
66. #PAN KIT,BASE 12" MFR # 3108700323
67. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
68. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
69. #BULKHEAD, EVAPORATOR MFR # 3100831068
70. #PAN KIT,BASE 10" MFR # 3108700315
71. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
73. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
74. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
75. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
76. #PTCR KIT MFR # 3310731009
77. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
78. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
79. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
80. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
81. #SLEEVING, FIBERGLASS MFR # 3100394208
82. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
83. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
84. #BOX, ELECTRICAL MFR # 3104190008
85. #STRAIN RELIEF MFR # 32994011
86. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116

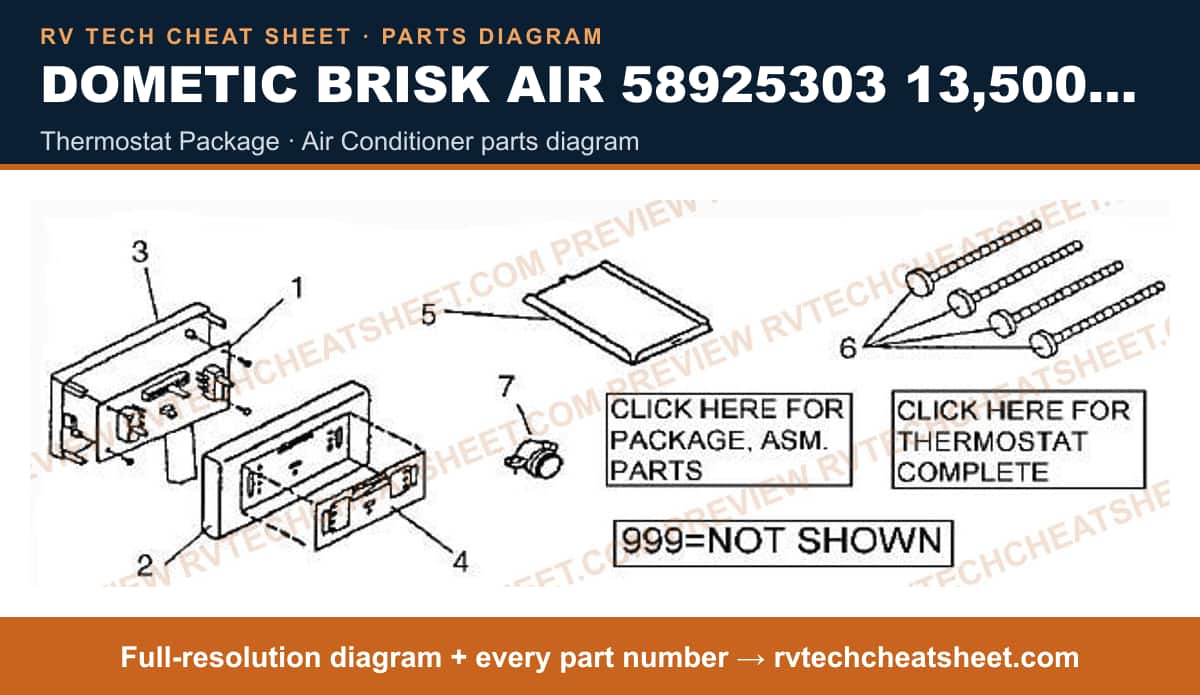

Thermostat Package

Components

11 items

1. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
2. #COVER,T-STAT MFR # 3103809004
3. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
4. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
5. #COVER, JUNCTION BOX MFR # 3101316028
6. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
7. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
8. #BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
10. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
11. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005

Optional Cover Assembly

Components

13 items

1. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
2. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
3. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
4. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
9. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
11. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
12. #TEMPLATE,CEILING MFR # 3103772004
13. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description

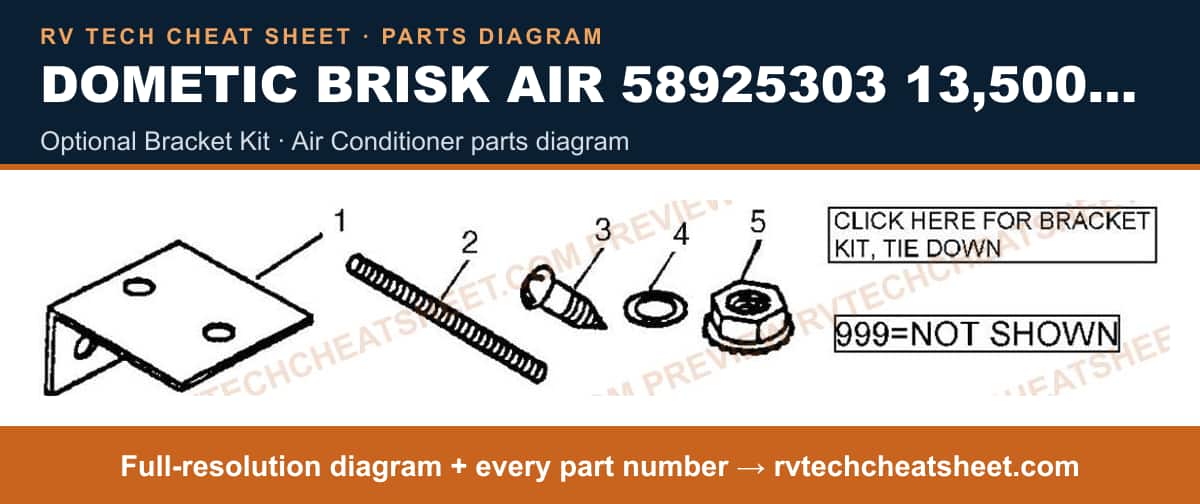

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005
