Dometic Brisk Air 58925304C 13,500 BTU Parts Diagram · Thermostat Assembly

Air Conditioner · 5 assemblies · 5 diagram sheets · 124 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 58925304C 13,500 BTU rooftop air conditioner: 5 assemblies (Thermostat Assembly, Bracket Kit, Shroud And Main Components, Optional Cover Assembly, Thermostat Cable Assembly) and 124 manufacturer part numbers. 39 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Thermostat Assembly

Components

5 items

1. #PACKAGE ASM. PARTS MFR # 3104889005
2. #BOARD KIT MFR # 3108701339
3. #THERMOSTAT COVER MFR # 3103809012
4. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
5. #DECAL,T-STAT HT/COOL MFR # 3104856012

Bracket Kit

Components

5 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004

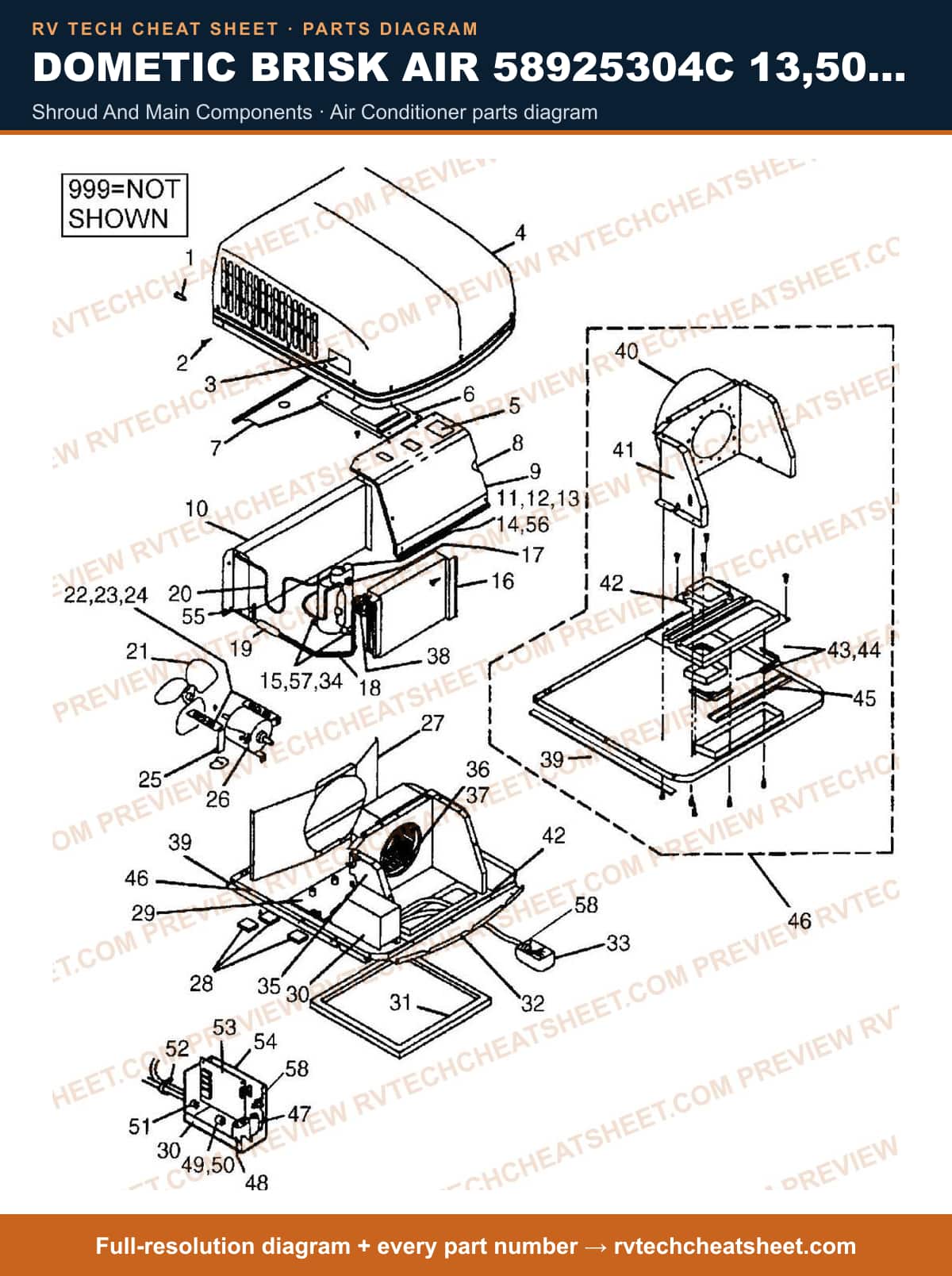

Shroud And Main Components

Components

88 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #DECAL,SHROUD MFR # 3101380016
7. #SHROUD 12' MFR # 3309518003
8. #SHROUD KIT CLOSED END SW MFR # 3309364028
9. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
10. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
11. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3104875004
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #COVER, CONDENSER COIL MFR # 309383000
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
21. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
23. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
24. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
25. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
26. #NUT,FLANGE MFR # 306342005
27. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
29. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
32. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
35. #FAN BLADE MFR # 3313107015
36. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
37. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
38. #SERVICE KIT F/MOTOR MFR # 3310725001
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
41. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
42. #SUPPORT, MOTOR MFR # 317795002
43. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
44. #MOTOR KIT MFR # 3108706916
45. #MOTOR,FAN USE 3108700448 MFR # 3104171008 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
47. #BLOCKS, FOAM MFR # 3100587009
48. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
49. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
51. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
52. #COVER, ELEC. BOX MFR # 3103638007
53. #ROOF A/C GASKET KIT MFR # 3310718006
54. #A/C SEAL, 14 X 14 WHITE MFR # A101414
55. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
56. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
58. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
59. #BOX, JUNCTION USE3101316036 MFR # 3101316010
60. #SLEEVING, FIBERGLASS MFR # 3100394166
61. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
62. #RING,BLOWER INLET MFR # 39304
63. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
64. #SWITCH,LOW TEMP MFR # 3102410044
65. #PAN,BASE USE 3108700323 MFR # 3103746008 Superseded: see description
66. #PAN KIT,BASE 12" MFR # 3108700323
67. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
69. #BULKHEAD, EVAPORATOR MFR # 3100831068
70. #PAN KIT,BASE 10" MFR # 3108700315
71. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
74. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
75. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
76. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
77. #PTCR KIT MFR # 3310731009
78. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
79. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
80. #STRAIN RELIEF MFR # 32994011
81. #NYLON CLIP MFR # 34203005
82. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
83. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
84. #BOX,ELECTRICAL MFR # 3104628007
85. #LINE, PROCESS MFR # 315761082
86. #NUT, FLANGE MFR # 36342005
87. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
88. #STRAIN RELIEF (2 REQUIRED) MFR # 32994017

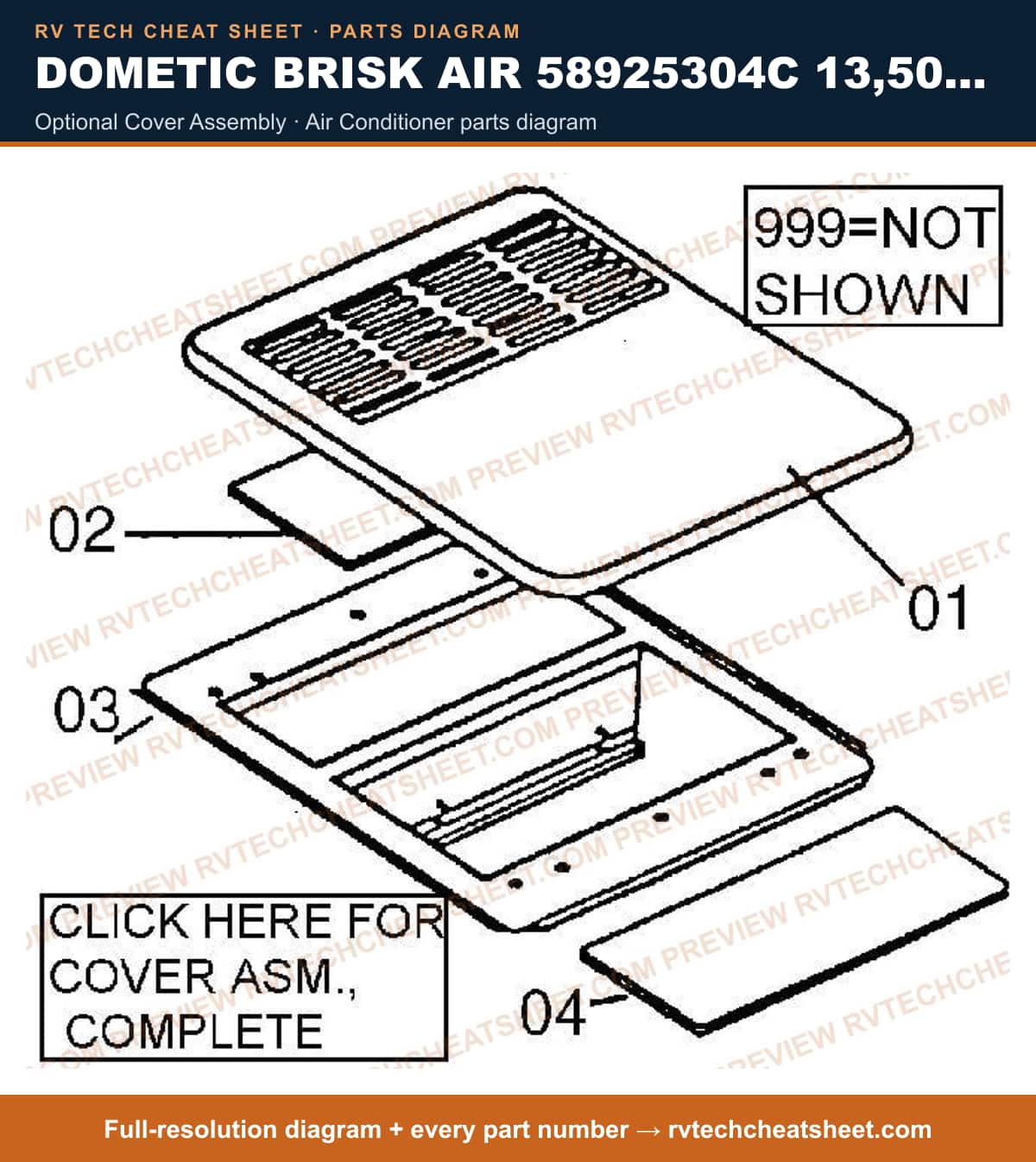

Optional Cover Assembly

Components

19 items

1. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
2. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
3. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
4. #GRILL ASSEMBLY (GRAY MFR # 3103771022
5. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
11. #ATTACHMENT TAPE GREY-EACH MFR # 06384
12. #TEMPLATE,CEILING MFR # 3103772004
13. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
14. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
15. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
16. #GRILLE ASM,GRAY MFR # 3103636035
17. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
18. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description
19. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description

Thermostat Cable Assembly

Components

7 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
3. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
4. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
5. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
6. #CABLE MFR # 3102757006
7. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
