Dometic Brisk Air 58935601 13,500 BTU Parts Diagram · Optional Grill Assembly

Air Conditioner · 4 assemblies · 4 diagram sheets · 132 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 58935601 13,500 BTU rooftop air conditioner: 4 assemblies (Optional Grill Assembly, Shroud And Main Components, Optional Bracket Kit, Optional Cover Assembly) and 132 manufacturer part numbers. 55 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Grill Assembly

Components

10 items

1. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
2. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
3. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
4. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description

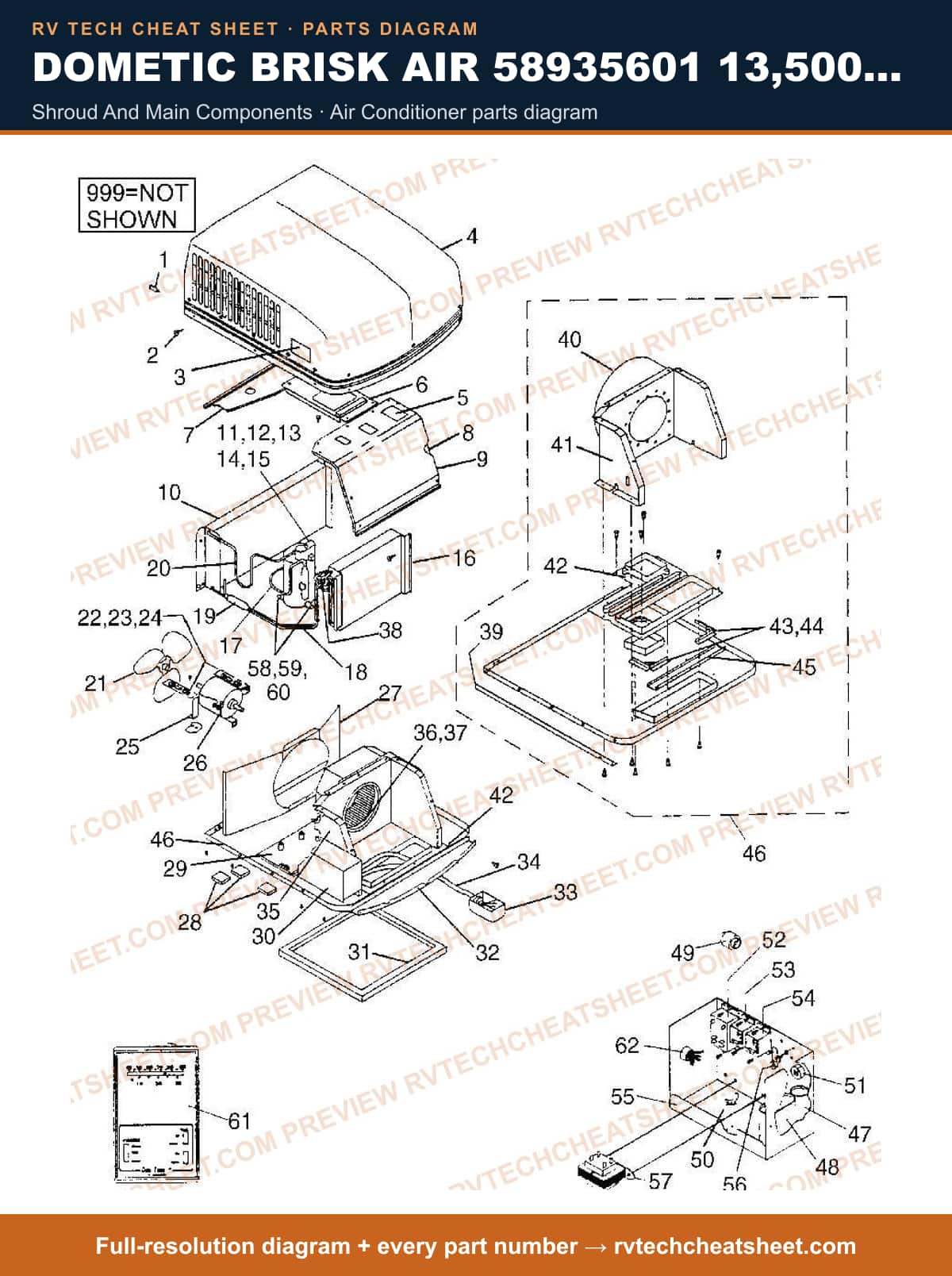

Shroud And Main Components

Components

103 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #DECAL, FIELD WIRING MFR # 3104637008
8. #SHROUD 12' MFR # 3309518003
9. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
11. #SHROUD KIT CLOSED END SW MFR # 3309364028
12. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
13. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
14. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
15. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
17. #COVER, CONDENSER COIL MFR # 309383000
18. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
24. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
25. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
26. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
27. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
28. #NUT, FLANGE MFR # 36342005
29. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
30. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
32. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
33. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
34. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
35. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
36. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
37. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
38. #FAN BLADE MFR # 3313107015
39. #SERVICE KIT F/MOTOR MFR # 3310725001
40. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
41. #SPACER USE 308046002 MFR # 38046 Superseded: see description
42. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
43. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
44. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
45. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
46. #MOTOR KIT MFR # 3108706916
47. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
48. #MOTOR USE 3108700448 MFR # 3108700455 Superseded: see description
49. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
51. #BLOCKS, FOAM MFR # 3100587009
52. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
54. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
55. #COVER, ELEC. BOX MFR # 3103638007
56. #A/C SEAL, 14 X 14 WHITE MFR # A101414
57. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
58. #ROOF A/C GASKET KIT MFR # 3310718006
59. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
60. #GASKET, GREY, 14 X 14 MFR # 6759A3281
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #BOX, JUNCTION USE3101316036 MFR # 3101316010
63. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
64. #SLEEVING, WIRE MFR # 318087006
65. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
66. #RING,BLOWER INLET MFR # 39304
67. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
68. #SWITCH,LOW TEMP MFR # 3102410044
69. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
70. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
71. #BULKHEAD, EVAPORATOR MFR # 3100831068
72. #PAN KIT,BASE 12" MFR # 3108700323
73. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
74. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
75. #CAPACITOR,RUN MFR # 3100248479
76. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
77. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
78. #PTCR KIT MFR # 3310731009
79. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
80. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
81. #RELAY,COMPRESSOR USE 97F8358 MFR # 3104446004 Superseded: see description
82. #RELAY,COMPRESSOR USE 46-3390 MFR # F8672 Superseded: see description
83. #RELAY,COMPRESSOR DPST MFR # 97F8358
84. #RELAY,FAN USE 3104766005 (CODE # T91S1A32-24) MFR # 3104290006 Superseded: see description
85. #RELAY,FAN USE 90B6852 MFR # 3104766 Superseded: see description
86. #RELAY,FAN 24V AC USE 98B9010 MFR # 90B6852 Superseded: see description
87. #RELAY, FAN 24V AC (100) MFR # 98B9010
88. #RELAY,FAN 24V MFR # 90B9010
89. #RELAY,FAN SPEED (SPDT) (100) 120V AC RELAY MFR # 99F8143
90. #RELAY,FAN USE 90B6852 MFR # 3104766005 Superseded: see description
91. #SWITCH,FAN SPD USE 3104766005 MFR # 3104633007 Superseded: see description
92. #BOX,ELECTRICAL MFR # 3104628007
93. #STRAIN RELIEF MFR # 32994006
94. #TRANSFORMER120V USE 3311546000 50/60 HZ 24V 20VA MFR # 317759 Superseded: see description
95. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
96. #NUT,FLANGE MFR # 306342005
97. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
98. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
99. #T-STAT USE 3108700539 HEAT/COOL MFR # 3104610005 Superseded: see description
100. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
101. #T-STAT USE 3108700539 MFR # 3104438001 Superseded: see description
102. #T-STAT KIT USE 3105058014 HEAT/COOL MFR # 3108700539 Superseded: see description
103. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

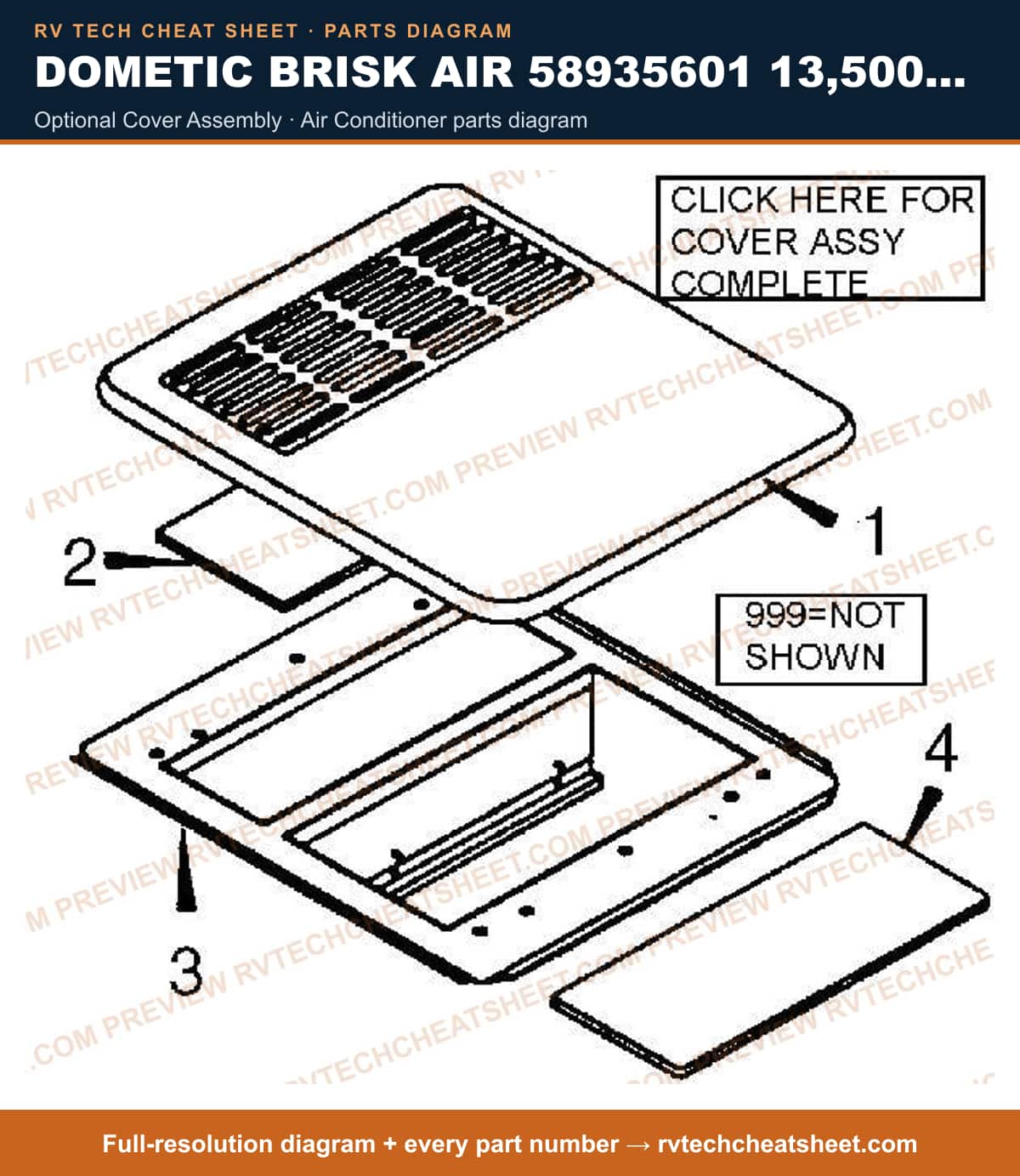

Optional Cover Assembly

Components

19 items

1. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
2. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
3. #GRILL ASSEMBLY (GRAY MFR # 3103771022
4. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
5. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #FILTER RETURN AIR(UNIVER MFR # 3108015003
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #ATTACHMENT TAPE GREY-EACH MFR # 06384
12. #TEMPLATE,CEILING MFR # 3103772004
13. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
14. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
15. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
16. #GRILLE ASM,GRAY MFR # 3103636035
17. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description
18. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
19. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description
