Dometic Brisk Air 59016506 15,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 3 assemblies · 3 diagram sheets · 99 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59016506 15,000 BTU rooftop air conditioner: 3 assemblies (Shroud & Main Components, Non-ducted A-c Replacement, Ducted A-c Replacement) and 99 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

87 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
5. #DECAL,SHROUD MFR # 3101380016
6. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD KIT CLOSED END SW MFR # 3309364028
10. #SHROUD 12' MFR # 3309518003
11. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
12. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
13. #DECAL, FIELD WIRING MFR # 3103645002
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #COVER, CONDENSER COIL MFR # 309383000
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAPORATOR MFR # 314885001
19. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
20. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
21. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
23. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
24. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
25. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
26. #NUT,FLANGE MFR # 306342005
27. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
29. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
31. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
32. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
35. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
36. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
37. #FAN BLADE MFR # 3313107015
38. #SERVICE KIT F/MOTOR MFR # 3310725001
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
41. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
42. #SUPPORT, MOTOR MFR # 317795002
43. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
44. #MOTOR KIT MFR # 3108706916
45. #MOTOR,FAN USE 3108700448 MFR # 3104171008 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
47. #BLOCKS, FOAM MFR # 3100587009
48. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
49. #PLATE,MOUNTING USE 3103149005 COMPRESSOR MFR # 317928003 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
51. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
52. #COVER, ELEC. BOX MFR # 3103638007
53. #A/C SEAL, 14 X 14 WHITE MFR # A101414
54. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
55. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
56. #ROOF A/C GASKET KIT MFR # 3310718006
57. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
58. #BOX, JUNCTION USE3101316036 MFR # 3101316010
59. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
60. #SLEEVING, FIBERGLASS MFR # 3100394166
61. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
62. #RING,BLOWER INLET MFR # 39304
63. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
64. #SWITCH,LOW TEMP MFR # 3102410044
65. #PAN,BASE USE 3108700323 MFR # 3103746008 Superseded: see description
66. #PAN KIT,BASE 12" MFR # 3108700323
67. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
69. #BULKHEAD, EVAPORATOR MFR # 3100831068
70. #PAN KIT,BASE 10" MFR # 3108700315
71. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
74. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
75. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
76. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
77. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
78. #PTCR KIT MFR # 3310731009
79. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
80. #STRAIN RELIEF MFR # 32994011
81. #NYLON CLIP MFR # 34203005
82. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
83. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
84. #BOX, ELECTRIC MFR # 3104442003
85. #LINE, PROCESS MFR # 315761082
86. #NUT, FLANGE MFR # 36342004
87. #GROMMET MFR # 3100238207

Non-ducted A-c Replacement

Components

12 items

1. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
2. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
3. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
4. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
5. #COMFORT CTRL MFR # 3106463007
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
10. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
11. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
12. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description

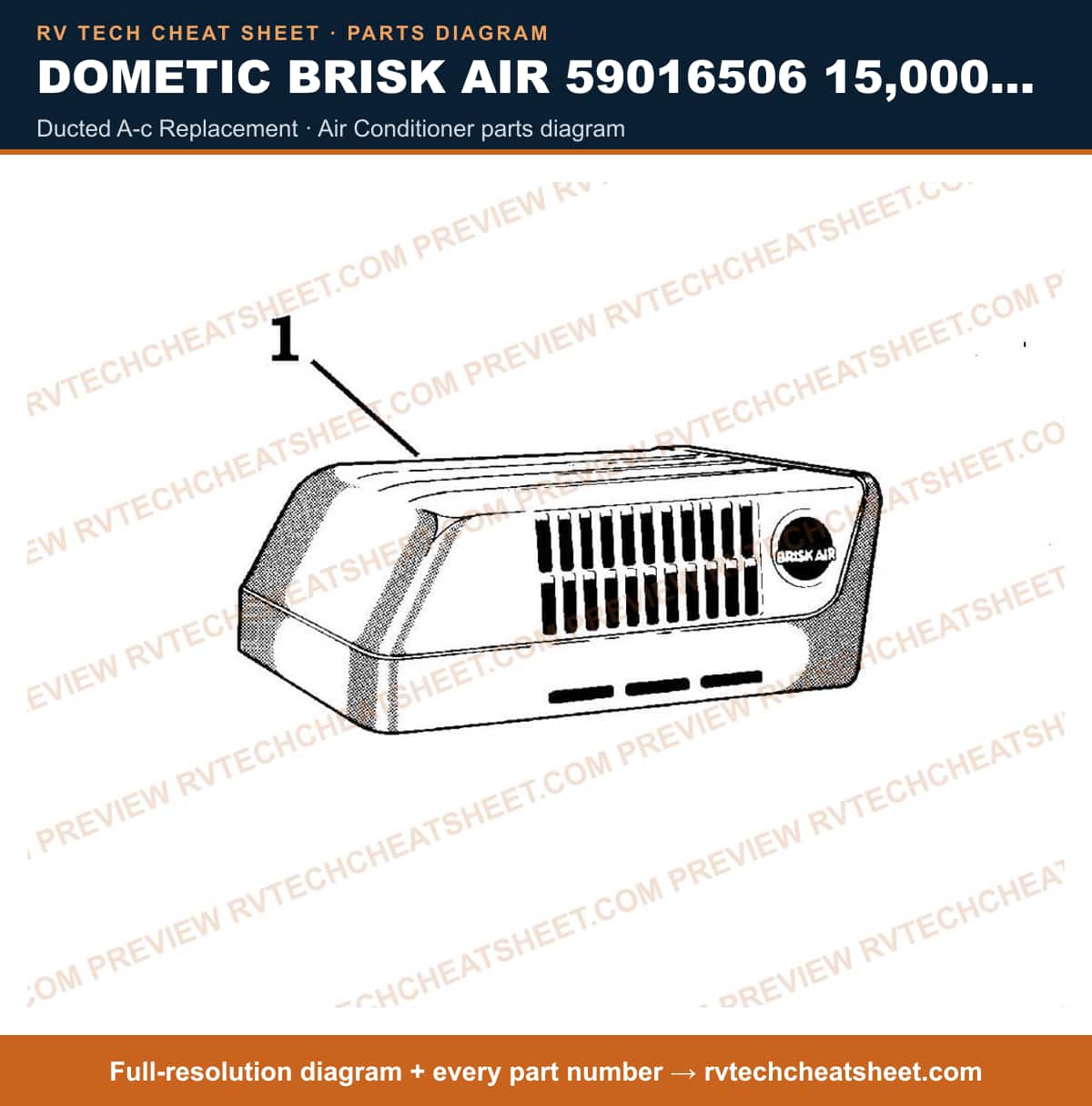

Ducted A-c Replacement

Components

12 items

1. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
2. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
3. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
4. #COMFORT CTRL MFR # 3106463007
5. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
6. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
9. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
10. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
11. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
12. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
