Dometic Brisk Air 59016512 15,000 BTU Parts Diagram · Optional Heat Kit

Air Conditioner · 7 assemblies · 7 diagram sheets · 125 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59016512 15,000 BTU rooftop air conditioner: 7 assemblies (Optional Heat Kit, Optional Cover Assembly, Shroud & Main Components, Ducted A-c Replacement, Optional Thermostat Cable and more) and 125 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Optional Heat Kit

Components

5 items

1. #ELEMENT,HEATING ***USE 46-6762*** MFR # 3103778001 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3103785006
3. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
4. #COVER, HEATER TERMINALS MFR # 3103779009
5. #GUARD, HEAT ELEMENT MFR # 3103821001

Optional Cover Assembly

Components

19 items

1. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
2. #GRILL ASSEMBLY (GRAY MFR # 3103771022
3. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
4. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
5. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
11. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
12. #TEMPLATE,CEILING MFR # 3103772004
13. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
14. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
15. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
16. #GRILLE ASM,GRAY MFR # 3103636035
17. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
18. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description
19. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description

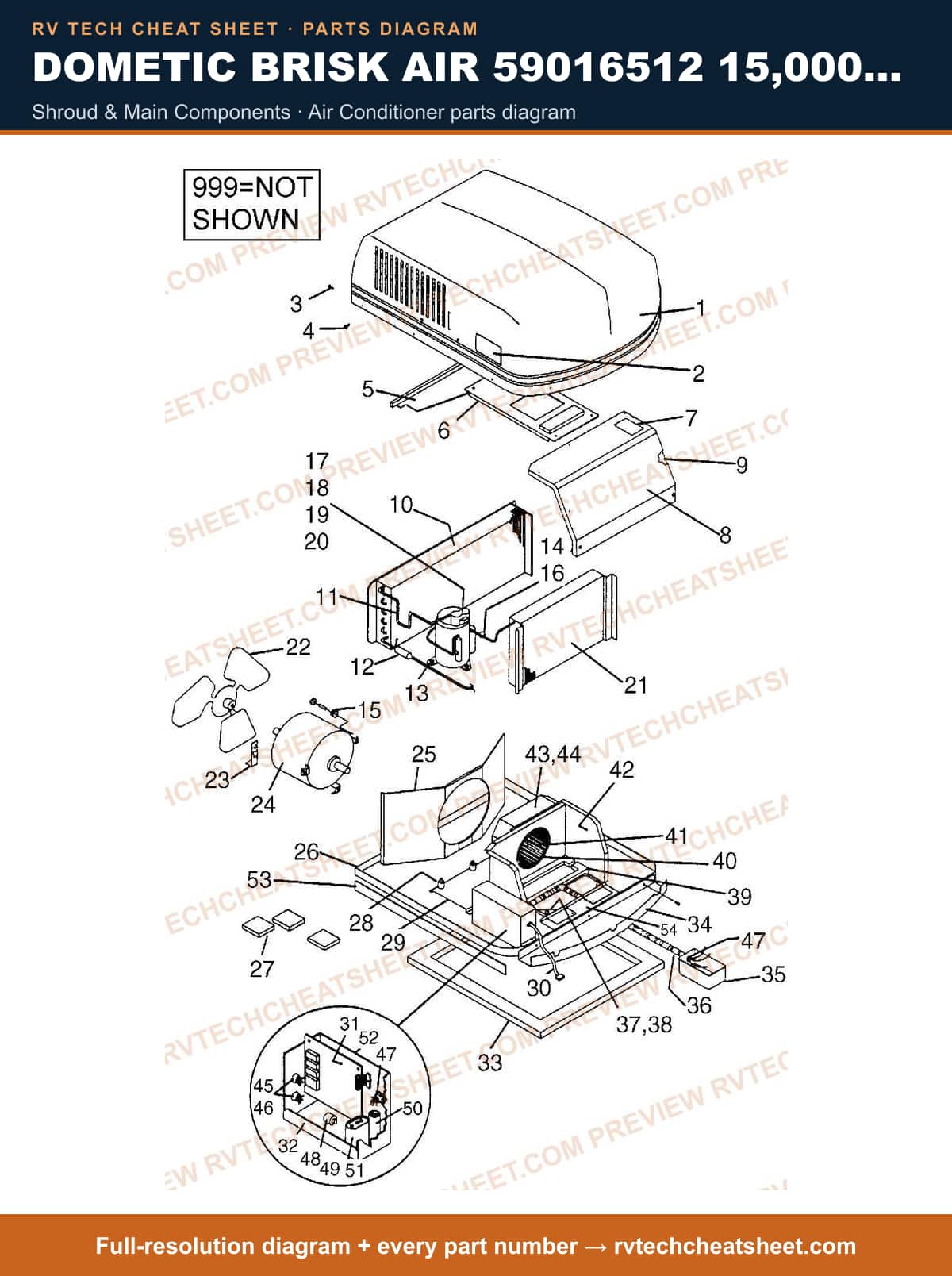

Shroud & Main Components

Components

76 items

1. #SHROUD KIT CLOSED END SW MFR # 3309364028
2. #SHROUD,AC CLOSED END GRAY MFR # 3308084023
3. #SHROUD AC CLOSED END POL WHT ***USE 49-9076*** MFR # 3308782006 Superseded: see description
4. #SHROUD,AC USE 3308781008 CLOSED END SHELL WHT MFR # 3308084007 Superseded: see description
5. #SHROUD CLOSED END PW MFR # 3309364002
6. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
7. #SHROUD,AC USE 3103148007 MFR # 3108239025 Superseded: see description
8. #SHROUD,AC USE 3103147009 POLAR WHITE MFR # 3108239017 Superseded: see description
9. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
10. #SHROUD,AC USE 3308782006 CLOSED END POLAR WHITE MFR # 3308084015 Superseded: see description
11. #SHROUD 12' MFR # 3309518003
12. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
14. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 3308261001
16. #DECAL,SHROUD MFR # 3101380016
17. #COVER, CONDENSER COIL MFR # 309383000
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
20. #DECAL, FIELD WIRING MFR # 3105052017
21. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
22. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
23. #COIL,CONDENSER MFR # 3100817034
24. #COIL,EVAPORATOR USE 3107338026 MFR # 3107338018 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Compressor Asm 57915-603 MFR # 3104465004
26. #GROMMET MFR # 3100238207
27. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
28. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
29. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
30. #TUBE, CAPILARY MFR # 3100245525
31. #LINE, PROCESS MFR # 315761082
32. #LINE, SUCTION MFR # 3104236017
33. #LINE,DISCHARGE MFR # 3108688007
34. #FAN BLADE MFR # 3313107015
35. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
36. #SERVICE KIT F/MOTOR MFR # 3310725001
37. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
38. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
39. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
40. #MOTOR KIT MFR # 3108706916
41. #INSULATION,BLOWER HOUSING MFR # 3104153014
42. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
43. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
44. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
45. #WHEEL BLOWER MFR # 3313107033
46. #BULKHEAD, EVAPORATOR MFR # 3100831084
47. #APPLIANCE COMPONENTS RV; Insulation Evaporator Rh MFR # 3108137013
48. #APPLIANCE COMPONENTS RV; Basepan Kit MFR # 3108709928
49. #Wire Plug Connector; Replacement For Dometic Air Conditioner Compressor; 6 Pole MFR # 3310734003
50. #APPLIANCE COMPONENTS RV; Connector Plug MFR # 3106625019
51. #ROOF A/C GASKET KIT MFR # 3310718006
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
54. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
55. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
56. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
57. #BLOCKS, FOAM MFR # 3100587009
58. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002
59. #INSULATION MFR # 3109712004
60. #APPLIANCE COMPONENTS RV; Insulation Evap Lh MFR # 3108137005
61. #BULKHEAD, EVAPORATOR MFR # 3100831068
62. #PAN KIT,BASE 10" MFR # 3108700315
63. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
65. #PAN KIT,BASE 12" MFR # 3108700323
66. #Air Conditioner Capacitor; Hard Start Capacitor; 25 To 30 Micro Farad; 330 Volts MFR # 3100236201
67. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
68. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
69. #PTCR KIT MFR # 3310731009
70. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
71. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
72. #STRAIN RELIEF MFR # 32994011
73. #NYLON CLIP MFR # 34203005
74. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
75. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
76. #BOX,ELECTRICAL MFR # 3104628007

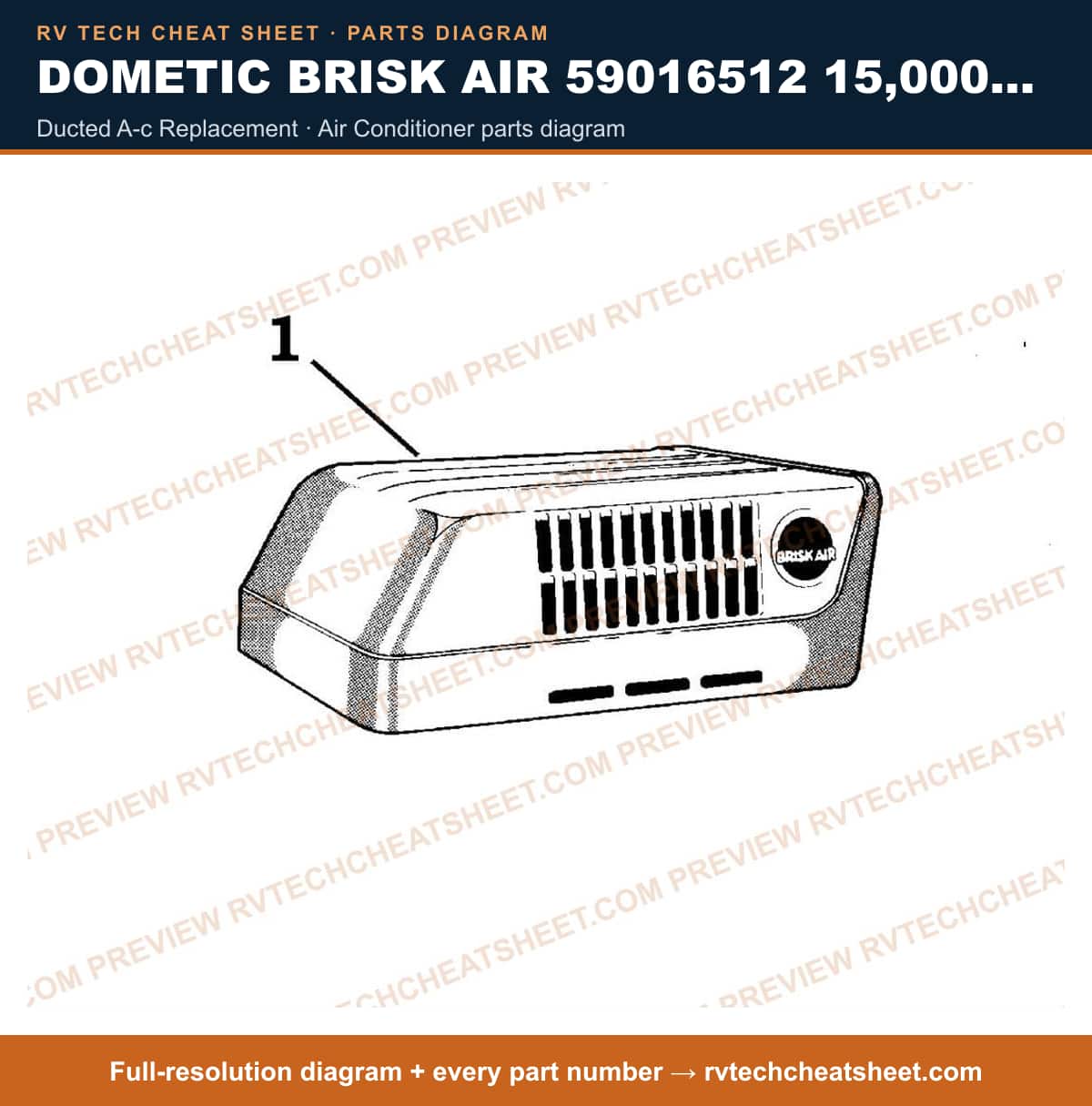

Ducted A-c Replacement

Components

12 items

1. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
2. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
11. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
12. #COMFORT CTRL MFR # 3106463007

Optional Thermostat Cable

Components

7 items

1. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
3. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
4. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
5. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
6. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
7. #CABLE MFR # 3102757006

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Non-ducted A-c Replacement

Components

12 items

1. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
2. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
5. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
6. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
7. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
8. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
9. #COMFORT CTRL MFR # 3106463007
10. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
11. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
12. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
