Dometic Brisk Air 59016515 15,000 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 7 assemblies · 7 diagram sheets · 131 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59016515 15,000 BTU rooftop air conditioner: 7 assemblies (Non-ducted A-c Replacement, Optional Heat Kit, Optional Cover Assembly, Ducted A-c Replacement, Optional Bracket Kit and more) and 131 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

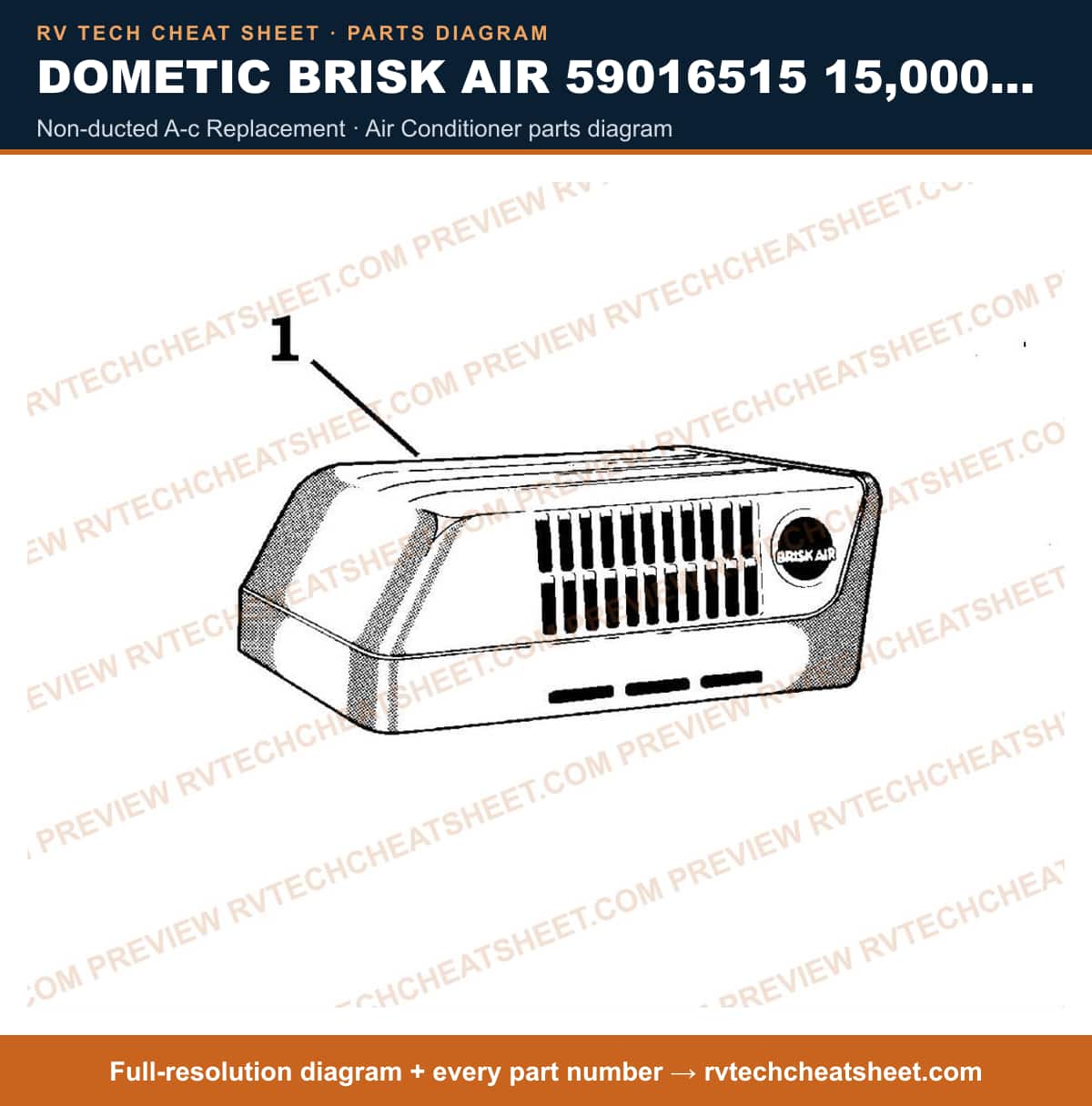

Non-ducted A-c Replacement

Components

12 items

1. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
2. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
3. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
4. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
5. #COMFORT CTRL MFR # 3106463007
6. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
9. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
10. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description
11. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
12. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005

Optional Heat Kit

Components

5 items

1. #ELEMENT,HEATING ***USE 46-6762*** MFR # 3103778001 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3103785006
3. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
4. #COVER, HEATER TERMINALS MFR # 3103779009
5. #GUARD, HEAT ELEMENT MFR # 3103821001

Optional Cover Assembly

Components

19 items

1. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
2. #GRILL ASSEMBLY (GRAY MFR # 3103771022
3. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
4. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
5. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
12. #TEMPLATE,CEILING MFR # 3103772004
13. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
14. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
15. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description
16. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description
17. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
18. #GRILLE ASM,GRAY MFR # 3103636035
19. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045

Ducted A-c Replacement

Components

12 items

1. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
2. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
3. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
4. #COMFORT CTRL MFR # 3106463007
5. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
6. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
7. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
8. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
9. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
10. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
11. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
12. #AIR CONDITIONER USE 57915N BRISK AIR CW MFR # 57915522N Superseded: see description

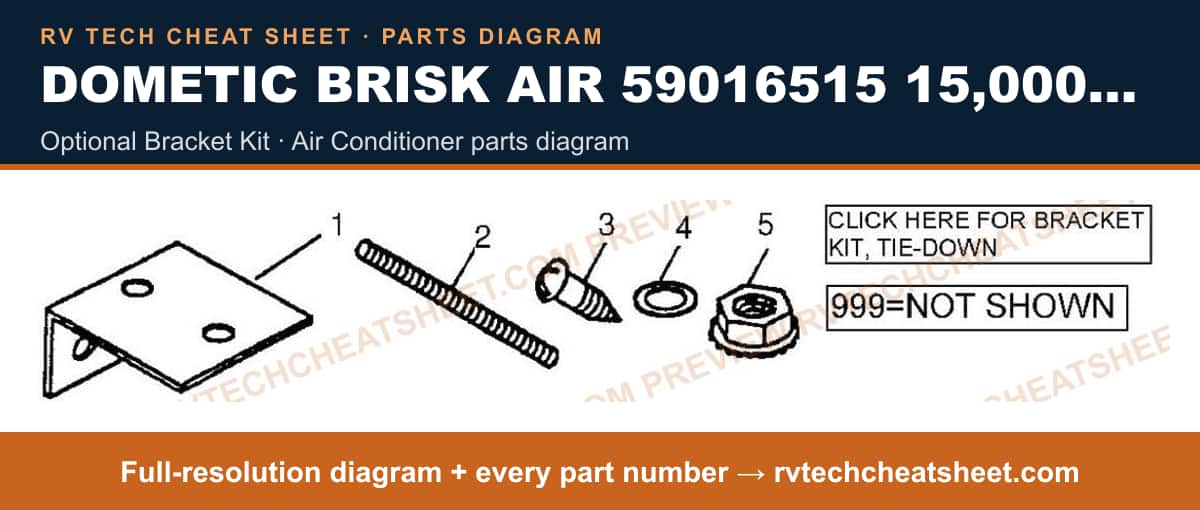

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Shroud And Main Components

Components

82 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #DECAL,SHROUD MFR # 3101380016
5. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
9. #DECAL,FIELD WIRING MFR # 3105052009
10. #COVER, CONDENSER COIL MFR # 309383000
11. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
12. #INSULATION,EVAPORATOR MFR # 317797001
13. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
15. #APPLIANCE COMPONENTS RV; Compressor Asm 57915-603 MFR # 3104465004
16. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
17. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
18. #GASKET,COVER MFR # 3103800003
19. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
20. #NUT, FLANGE MFR # 306342004
21. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
22. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
23. #COIL,EVAP USE 3100818024 MFR # 3100818016 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3108700364
25. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245467
26. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
27. #LINE,DISCHARGE 5791 5.621 MFR # 3104113
28. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
29. #FAN BLADE MFR # 3313107015
30. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
31. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
32. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
33. #Air Conditioner Condenser Fan Motor Service Kit; Replacement For Dometic 600015001/ 600308001 Model Air Conditioners; With Four Inserts/ Four Grommets/ Four Nuts MFR # 331072500
34. #SERVICE KIT F/MOTOR MFR # 3310725001
35. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
36. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
37. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
38. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
39. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR KIT MFR # 3108706916
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BLOCKS, FOAM MFR # 3100587009
44. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
45. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203
47. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
48. #A/C SEAL, 14 X 14 WHITE MFR # A101414
49. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
50. #ROOF A/C GASKET KIT MFR # 3310718006
51. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
54. #PLUG,CONNECTION MFR # 314470001
55. #SLEEVING,WIRE MFR # 318087003
56. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
57. #BLOWER INLET RING MFR # 309304
58. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
59. #WHEEL BLOWER MFR # 3313107033
60. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
61. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
62. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
64. #BULKHEAD, EVAPORATOR MFR # 3100831050
65. #PAN KIT,BASE 12" MFR # 3108700323
66. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
67. #CAPACITOR, FAN/RUN ***USE 49-9656*** MFR # 3100248420 Superseded: see description
68. #CAPACITOR,FAN/RUN USE 46-2342 MFR # F8048 Superseded: see description
69. #CAPACITOR 30/50MFD MFR # 3313107027
70. #PTCR KIT MFR # 3310731009
71. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
72. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
73. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
74. #BOX,ELECTRICAL MFR # 3100827066
75. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
76. #GROMMET MFR # 3100238207
77. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
78. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
79. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
80. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
81. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
82. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004

Thermostat Cable Assembly

Components

7 items

1. #CABLE MFR # 3102757006
2. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
3. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
4. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
5. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
6. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
7. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
